User Manual for Armasight by FLIR Helios 336 3-12x42 Thermal Bi-Ocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Helios 336 3-12x42
- Product category: Thermal Imagers Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Thermal Imagers
 |
User manual for the Armasight by FLIR Helios 336 3-12x42 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

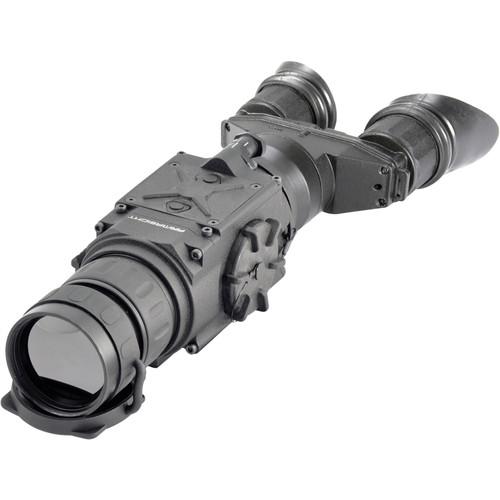

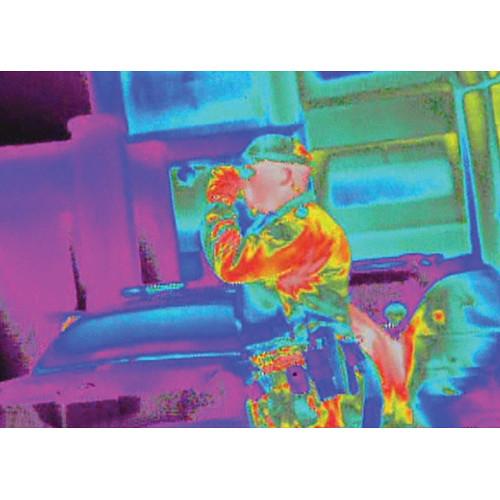

Product description See through smoke, fog, and dust, day or night, with the 60Hz Helios 336 3-12x42 Thermal Bi-Ocular from Armasight. This multi-purpose long-wave infrared handheld thermal imager features a 42mm f/1.1 lens system, 3x optical magnification, and up to 4x digital zoom. Customize the display output with different color modes for different situations or personal preference: White Hot, Black Hot, Rainbow, Fusion, Glowbow, and Ironbow. A video-out port and included cable enable the use of optional external recording or display equipment. Thermal imaging is extremely difficult to detect with other devices, as they emit no visible light or RF energy, unlike laser targeting or near-infrared illumination used with NVDs.The single objective reduces overall weight, while the dual oculars reduce the fatigue associated with a one-eye monocular Complementing the imaging performance and versatility of the Helios is an o-ring sealed aluminum alloy housing that provides waterproof performance. A wireless remote and Picatinny rail adapter are included to allow the user to control the Helios without removing their hands from their weapon. - Imaging Performance
-
- 336x256 uncooled Tau 2 detector
- Pixel size: 17µm
- Resolution: 0.4 mrad
- 60Hz refresh rate
- Magnification: 3x
- Digital zoom: 1x, 2x, and 4x
- Germanium glass objective lens
- Lens system: 42mm f/1.1
- Angle of view: 7.8°x5.9°;
- Exit pupil: 10mm
- Eye relief: 45mm
- Close focus: 16'
- System Features
-
- AMOLED SVGA 060 color display
- NTSC/PAL video output with included cable

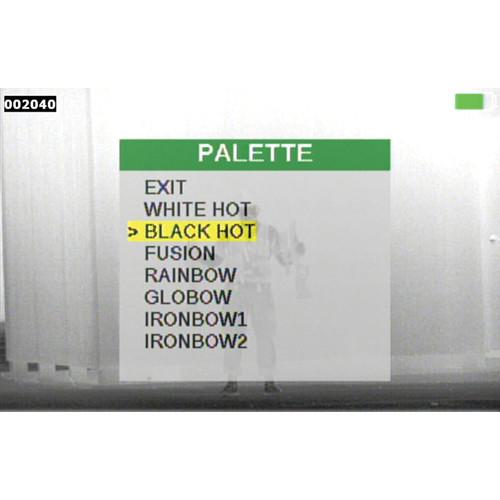

- Color modes: White Hot, Black Hot, Rainbow, Fusion, Glowbow, Ironbow 1 & 2
- Construction Details
-
- Aluminum alloy housing
- O-ring sealed, waterproof
- Operating temperature: -40 to 122°F
- Wireless remote with Picatinny rail mount
- Weight: 28.8 oz
UPC: 849815003871 In the Box Armasight by FLIR Helios 336 3-12x42 Thermal Bi-Ocular (60Hz ) Wireless Remote Control Picatinny Adapter for Wireless Remote Control Video Cable 2 x CR123A Battery Soft Carrying Case Limited 3-Year Warranty Limited 10-Year Warranty on FLIR Detector Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Helios 336 3-12x42 Thermal Bi-Ocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR TAT173BN4HELI31 Specs | Array Configuration | 336x256 FLIR Tau 2 | | Pixel Size | 17 µm | | Resolution | 0.4 mrad | | Refresh Rate | 60 Hz | | Magnification | 3x optical
1x, 2x, 4x digital zoom | | Angle of View | 7.8° x 5.9° | | Lens System | 42mm f/1.1 | | Minimum Focus Distance | 16' / 5 m | | Eye Relief | 45 mm | | Exit Pupil | 10 mm | | Display | AMOLED SVGA 060 | | Battery / Runtime | 2 x CR123A batteries / 3 hr, maximum | | Environmental | Operating temperature: -40 to 122°F / -40 to 50°C
Storage temperature: -58 to 158°F / -50 to 70°C | | Weatherproofing | Waterproof | | Dimensions | 10.1 x 4.3 x 3.0" (25.7 x 11.0 x 7.5 cm) | | Weight | 28.8 oz (816.5 g) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 12.0 x 7.0 x 7.0" |
