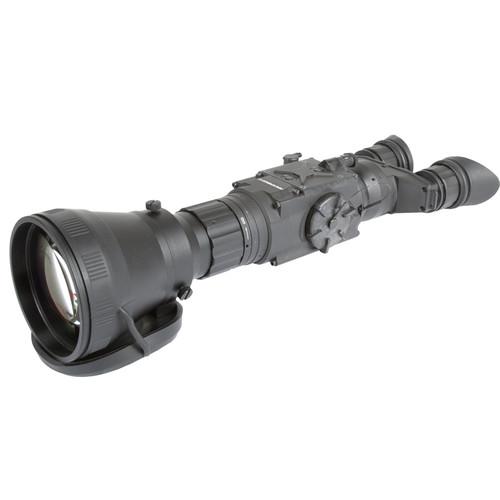

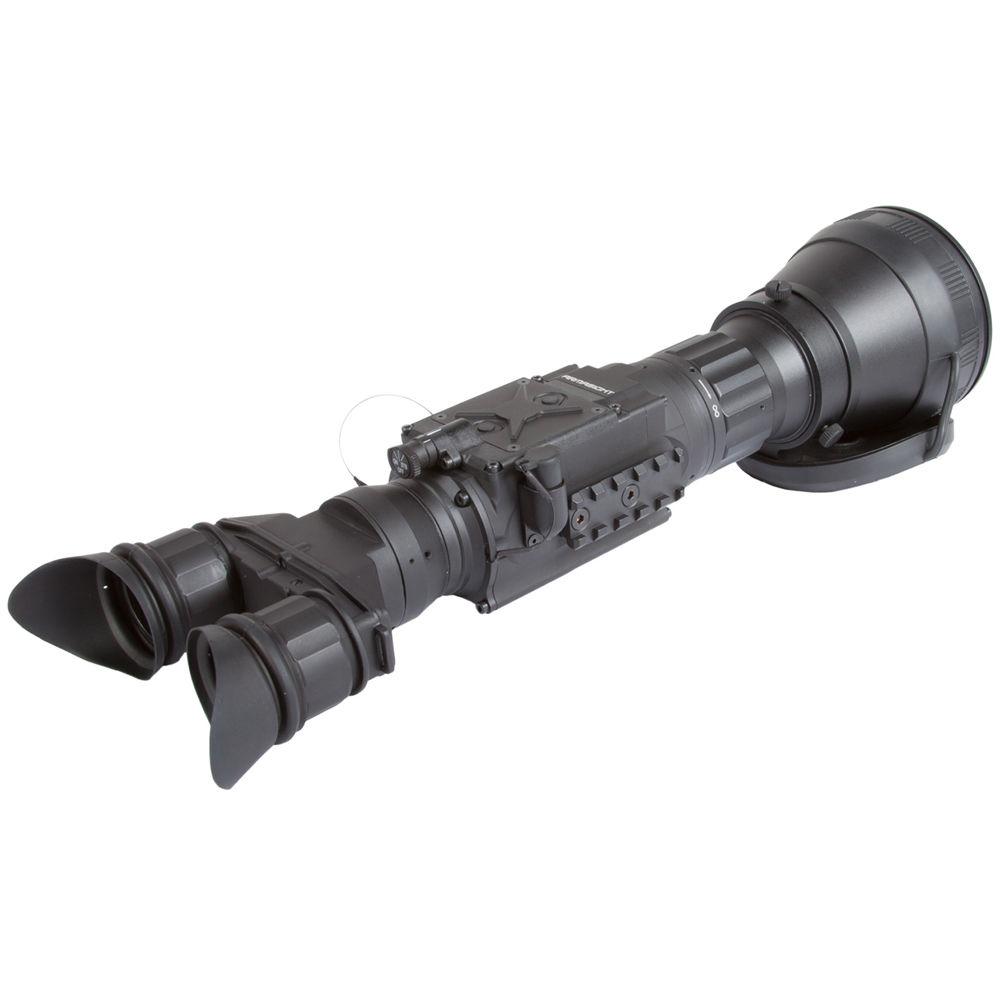

User Manual for Armasight by FLIR Janus 15x Digital Night Vision Bi-Ocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Janus 15x Digital
- Product category: Night Vision Bi-Oculars Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Night Vision Bi-Oculars
 |
User manual for the Armasight by FLIR Janus 15x Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description With the remote-controlled Janus 15x Digital Night Vision Bi-Ocular from Armasight you can gain a tactical advantage in long-range and low-light target acquisitions. Immune to bright light, this device features a digital 976x582 CCD sensor and an 800x600 AMOLED SVGA 060 display and allows you to obtain detailed images during both the day and night. For operation in total darkness, the device is equipped with an 850nm infrared illuminator with variable output. The 145mm, f/1.8 lens system has a wide aperture that is ideal for very low-light conditions and long ranges. The eyepiece has a diopter adjustment for fine-tuning image sharpness and a wide rubber eyecup to allow you to get a comfortable fit between the eyepiece and the orbit of your eye.
The built-in AMOLED SVGA 060 display features 800x600 pixel resolution and has eight discrete brightness settings. For documenting your observations or operations, the scope is capable of relaying videos out to a video recorder or screen through a video-out port in a PAL format. You can also use an optional digital recorder to save images. To enhance versatility, this device also features a wireless remote control, 3-second start-up, battery indicator, and a status indicator.
To withstand the rigors of the battlefield, this device is designed to handle extreme temperatures and offers water-resistant and impact-resistant performance. It is mountable on Picatinny or Weaver rails and detachable via the included quick release mount. The built-in short Picatinny/Weaver rail on the right side serves as an accessory or IR mounting point. For comfort and ease of use, the device also has wide winged rubber eyecups, knurled knobs, and rings. This digital night vision riflescope is accompanied with a comprehensive list of accessories that provides you with all that you need to mount and use it. - Optical Performance
-
- 15x magnification
- 145mm, f/1.8 objective lens
- Angular field of view: 2 x 1.5°
- Minimum focus distance: 33'
- Sensor, IR, and Display
-
- 976x582 CCD imaging sensor
- Spectral response: 0.4-1.1μm
- Detachable long-range IR illuminator
- 800×600 AMOLED SVGA 060 display
- 8 brightness levels
- Compatible with optional digital recorder
- NTSC/PAL video input
- PAL output for connecting to an external monitor
- Use and Handling
-
- Start-up time: 3 seconds
- Wireless remote control
- Battery and status indicators
- Construction Details
-
- Aluminum housing

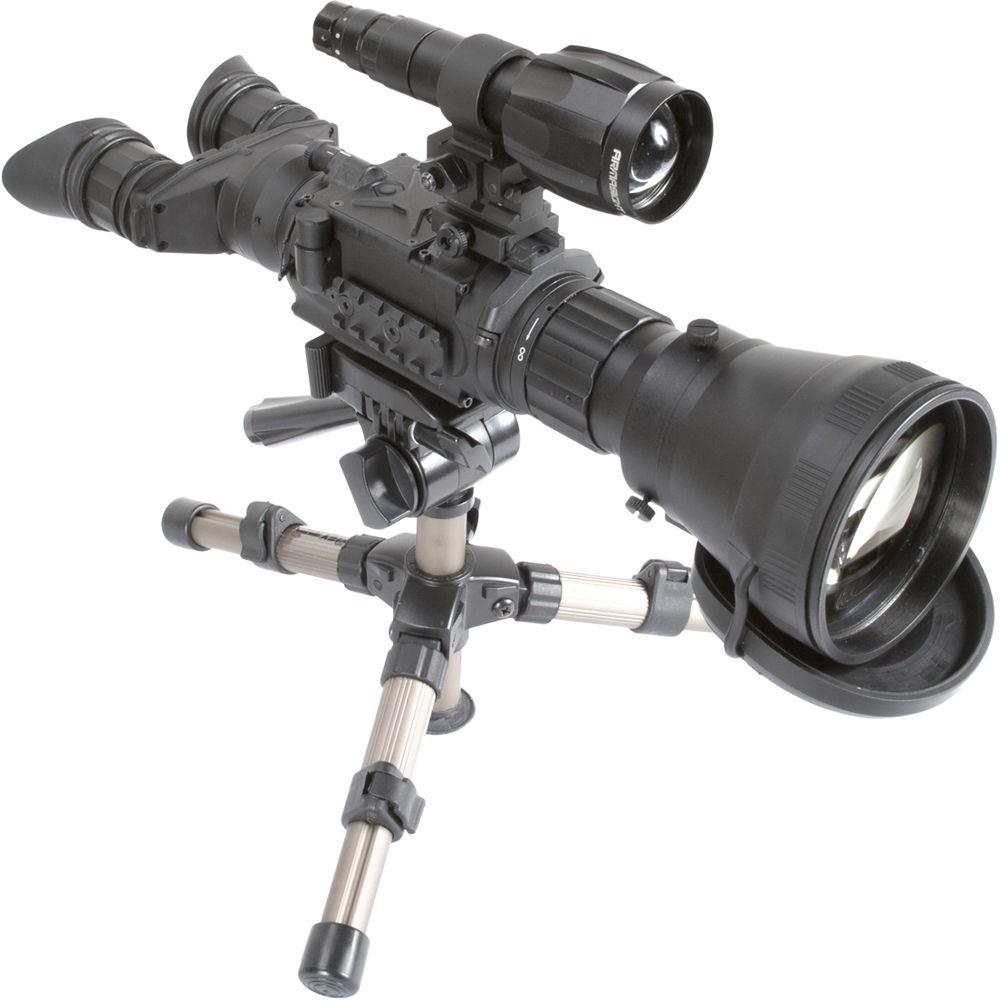

- Mountable on tripod
- Water-resistant
- Fog-resistant
In the Box Armasight by FLIR Janus 15x Digital Night Vision Bi-Ocular - XLR-IR850 X-Long Range Illuminator (Dovetail to Weaver Adapter #21) rfqrbqcfwbxssdtquctadvxzbv
- Lens Cap
- Color Day Filter
- Wireless Remote Control
- Picatinny Adapter for Wireless Remote
- 2 x CR-123A Lithium Batteries
- Battery Cassette
- Lens Cloth
- Platform Ring
- Video Cable
- Soft Carrying Case
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Janus 15x Digital Night Vision Bi-Ocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR Janus Specs | Image Sensor | 976x582 CCD
Spectral Response: 0.4-1.1µm | | Display | 800x600 AMOLED SVGA 060 | | Magnification | 15x | | Angle of View | 2 x 1.5° | | Lens System | 145mm, f/1.8 | | Minimum Focus Distance | 33' (10 m) | | Eye Relief | 16 mm | | Exit Pupil | 14 mm | | Dioptric Correction | +5 to -5 | | Infrared Illuminator | Yes, detachable | | Battery / Runtime | 2 x CR-123 Lithium or Rechargeable Batteries / 3 h max | | Weatherproofing | Water-resistant and fog-resistant | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -58 to 158°F (-50 to 70°C) | | Dimensions | 13.5 x 4 x 3.6" (343 x 101.6 x 91.4 mm) | | Weight | 2.8 lb (1.25 kg) |
