User Manual for Armasight by FLIR N-15 3d Gen Bravo Night Vision Binocular with Headgear Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR N-15 3d Gen
- Product category: Night Vision Binoculars Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Night Vision Binoculars
 |
User manual for the Armasight by FLIR N-15 3d Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

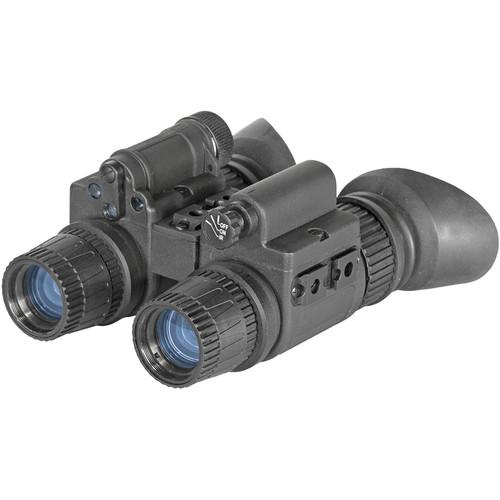

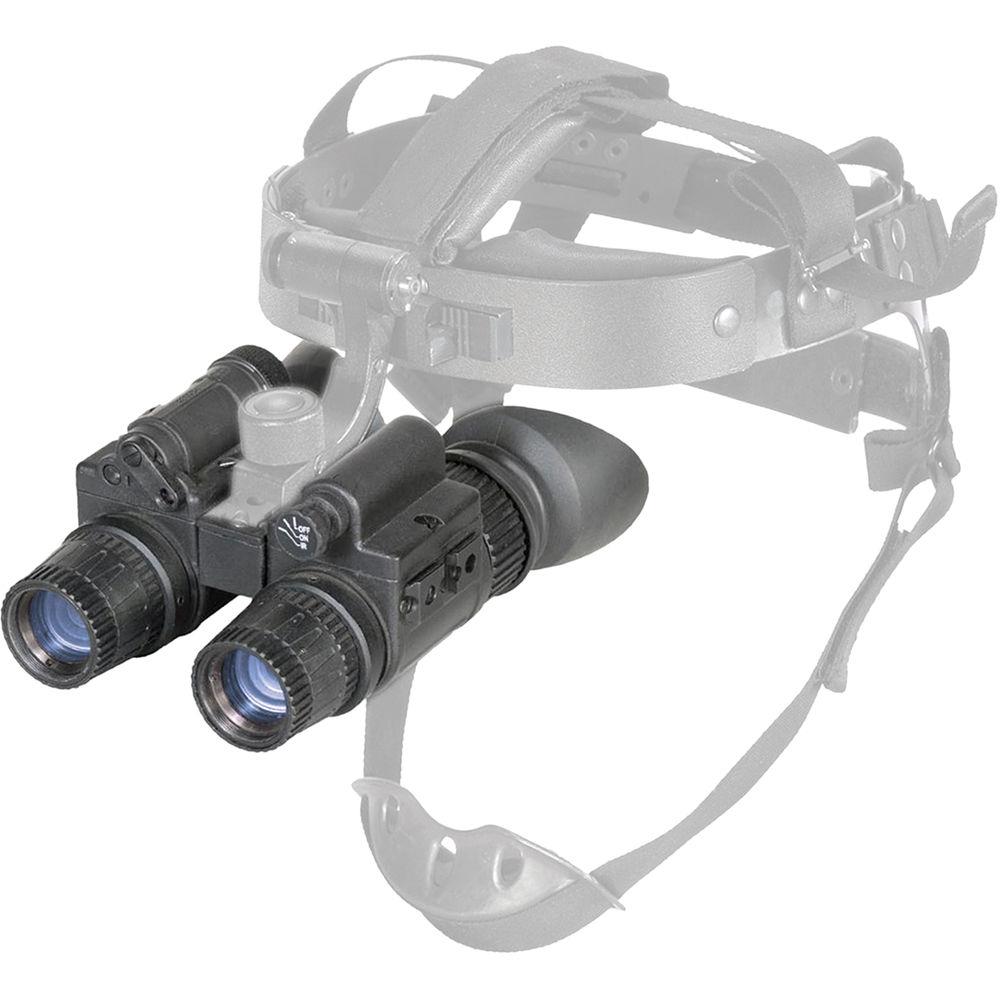

Product description The lightweight, durable, and weather resistant N-15 3d Gen Bravo Night Vision Binocular with Headgearfrom Armasight is a versatile 3rd generation night vision device that can be used handheld or mounted on the included headgear. The Armasight 3rd generation Bravo intensifier tubes feature a Gallium Arsenide photocathode. To protect the tubes from damage due to a sudden flash of bright light, the device has a bright light cut-off function that will shut down the intensifier tubes. If there is not enough natural infrared and your targets appear too dark and with little detail, the built-in infrared illuminator will provide additional illumination and help improve visibility even in complete darkness. The 1x optical system offers a wide angular field of view, a 0.8' minimum focus distance, and can be upgraded to 3x with included lens kit. Additionally, the device has an auto shut-off function and low a battery indicator.
The composite housing is weather resistant, lightweight, durable, and provides protection from adverse conditions and extreme temperatures. It is contoured and has ergonomic controls, knurled adjustment rings, and wide rubberized winged eyecups. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Image Intensifier
-
- Two 3d Gen Bravo intensifier tubes allow for stereoscopic viewing
- Gallium arsenide photocathode
- 57-64 lp/mm resolution
- Displays standard green image
- Bright Light Cut-Off protects the tube and your eyes overexposure
- Automatic Brightness Control adjusts image brightness
- Optical Performance
-
- Magnification: 1x
- Lens system: 27mm f/1.2
- Field of view: 40°
- Focus range: 0.8' / 0.25 m to infinity
- Use and Handling
-
- Low-battery indicator
- Automatic shut-off function
- Construction Details
-
- Built-in IR illuminator with flood lens
- Mountable to helmet or headgear with optional adapter
- Two accessory mounting points on each side of the housing
- Withstands extreme temperatures
- Wide rubber eyecups
- Weather resistant
In the Box Armasight by FLIR N-15 3d Gen Bravo Night Vision Binocular with Headgear - 2 x Lens Caps
- Lens Tissue
- 2 x Eye Cups
- Battery Adapter
- CR-123A Lithium Battery
- Headgear Kit
- Nylon Carry Case
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR N-15 3d Gen Bravo Night Vision Binocular with Headgear in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSGN15000136DB1 Specs | Intensifier Tube | 3d Gen Bravo
Gallium arsenide photocathode | | Resolution | 57-64 lp/mm | | Magnification | 1x
3x with included lens kit | | Field of View | 40° | | Lens System | 27mm, f/1.2 | | Focus Range | 0.8' / 0.25 m to infinity | | Dioptric Correction | -6 to +2 | | Infrared Illuminator | Yes | | Power Supply | 1 x CR-123A (3 V)
1 x AA (1.5 V) | | Runtime | 40 hr max | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 158°F / -50 to 70°C | | Humidity | 95% | | Dimensions | 5.5 x 4.5 x 2.7" / 140 x 114 x 69 mm | | Weight | 1.5 lb / 680 g |
