User Manual for Armasight by FLIR Nemesis 4x GEN 2 QS Night Vision Riflescope Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Nemesis 4x GEN
- Product category: Night Vision Riflescopes Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Night Vision Riflescopes
 |
User manual for the Armasight by FLIR Nemesis 4x GEN contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

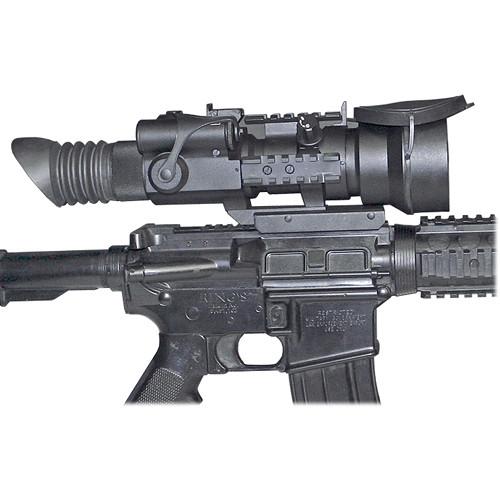

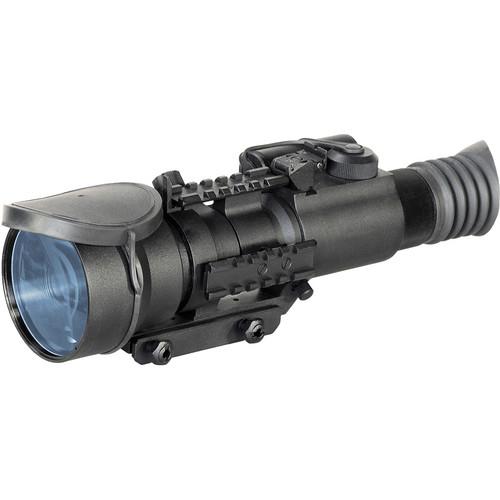

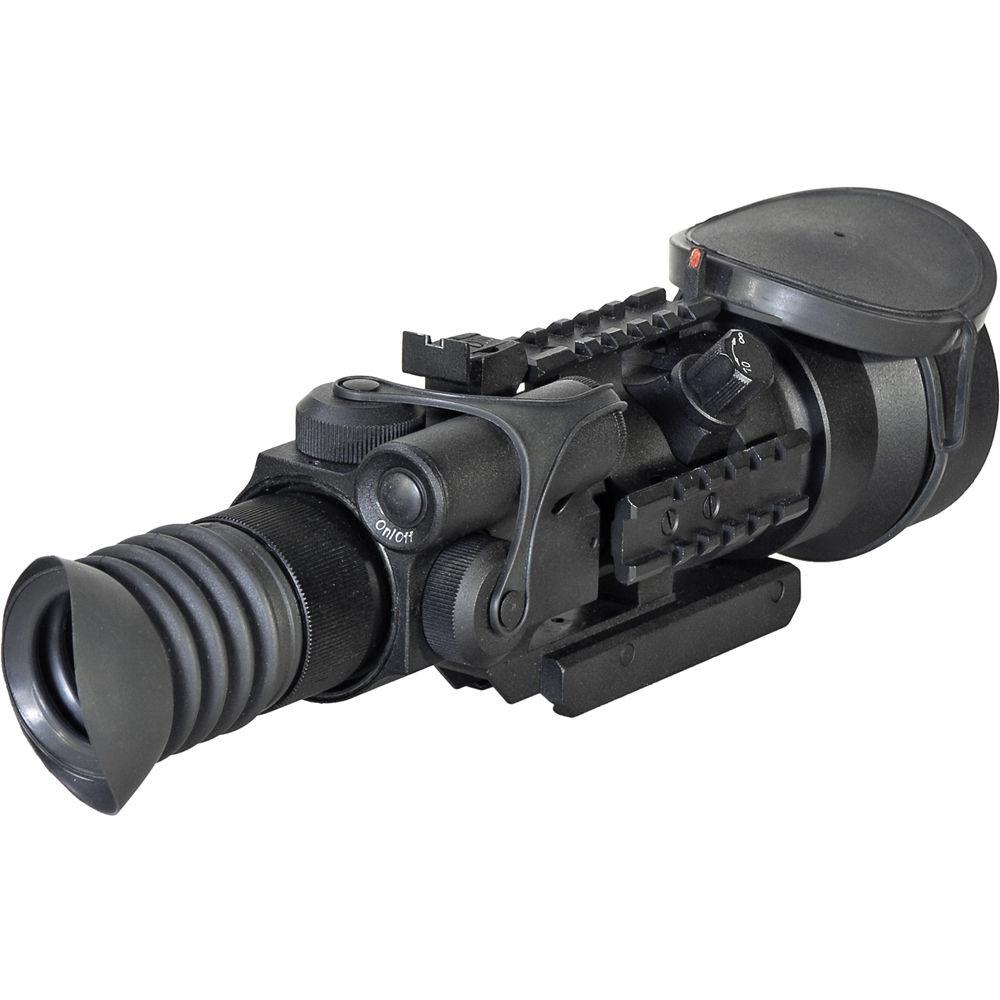

Product description The Armasight Nemesis 4x GEN 2+ QS Night Vision Riflescope is designed to be used in situations where the hunter needs greater distance between him and the target. Featuring a high-quality image intensifier tube, easy-to-use internal windage and elevation adjustments, and simple push-button controls, this Nemesis Riflescope allows you to see clearly even during night-time conditions. The Nemesis 4X Riflescope is equipped with a high-performance white phosphor Gen2+ IIT which provides users with natural B&W night vision displays, clearer details, better contrast, and more distinct shapes and shadows. The adjustable, brightness-illuminated reticle has well-defined (yet extremely thin) crosshairs that allow precise, shot placement, even on exceptionally small targets. This Riflescope is fitted with a Picatinny/Weaver mount (sold separately) that allows for accurate rail positioning, ensuring user comfort. Three accessory mounting rails (sold separately) allow easy mounting of the included long-range IR illuminator and/or other compatible accessories (sold separately). The Nemesis Riflescope is water-resistant, robust, lightweight, and engineered from aircraft aluminum. - 4X magnification with 10° FOV
- Automatic brightness control (ABC)
- Illuminated center red cross reticle for optimal contrast
- Simple and easy-to-operate controls and adjustments
- Flip-up, back-up iron sights
- Mounts to standard weaver rails
- Variable reticle brightness
- Detachable long-range IR illuminator
- Low battery indicator in FOV
In the Box Armasight by FLIR Nemesis 4x GEN 2+ QS Night Vision Riflescope IR Remote Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Nemesis 4x GEN 2 QS Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NRWNEMESI4QGDI1 Specs | Intensifier Tube | Gen 2+ QS - "Quick Silver" White Phosphor | | Resolution | 47 to 54 lp/mm | | Magnification | 4X | | Lens System | F1.5, F108 mm | | Field of View | 10° | | Exit Pupil | 10 mm | | Eye Relief | 46 mm | | Range of Focus | 25 m to infinity | | Diopter Adjustment | -6 to +2 | | Controls | Digital | | Infrared Illuminator | Detachable IR | | Power Supply | 1 x 3 V CR123A type battery | | Battery Life | 60 hours | | Reticle | Red on green | | Windage/Elevation Adjustment | 1/2 MOA | | Environmental Rating | Water-resistant | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -58 to 158°F (-50 to 70°C) | | Dimensions | 12 x 4 x 2.8" (305 x 102 x 71 mm) | | Weight | 2.7 lb (1.2 kg) | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 16.0 x 5.0 x 5.0" |
