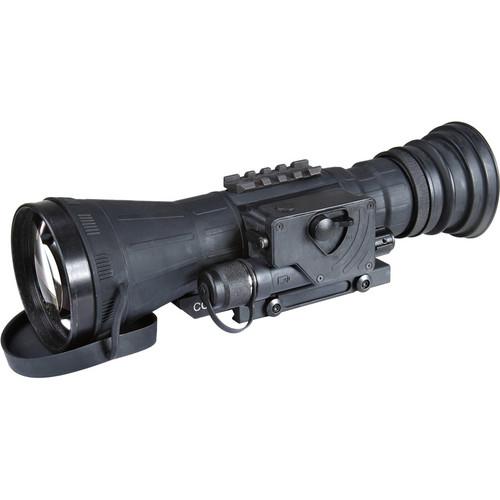

User Manual for Armasight by FLIR NSCCOLR00139DA1 CO-LR GEN 3 Alpha MG Night Vision Long Range Clip-On System Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR NSCCOLR00139DA1 CO-LR GEN
- Product category: Day/Night Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Day/Night Systems
|
User manual for the Armasight by FLIR NSCCOLR00139DA1 CO-LR GEN contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The Armasight NSCCOLR00139DA1 CO-LR GEN 3+ Alpha MG Night Vision Long Range Clip-On System is a night vision unit that mounts in front of an existing day scope, and converts the day scope into one with night vision capability up to 1000 yards. Suitable for use with most commercial and military specification day time sights, telescopes, or binoculars (up to 12x magnification), the long range clip-on system can be mounted / dismounted on a standard Picatinny rail in seconds and with no tools required. Since it is mounted in front of your own day scope, shooters’ eye relief is not altered and shot release and follow through remain intuitive. Furthermore, because the unit is factory bore-sighted to more than 1 MOA accuracy, no alteration in zero is experienced and hence it is really as simple as mount-focus-shoot just as in day time.
The night vision long range clip-on system is primarily intended for use by the most demanding hunter or a long-range target shooter. However, an excellent build quality makes it capable of so much more: its MIL-STD-810 housing is designed to take just about anything the great outdoors can throw at it. The long range clip-on system is packed with innovative features like variable gain control, bright light shut-off, and wireless remote control. This night vision clip-on is designed to make long range night shooting just as easy and accurate as shooting over the same terrain during daylight hours with your day scope alone. Whether your day scope is from a well-known brand or not, this night vision clip-on system will work just as well at magnifications anywhere from 3 to 12x. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARetffeytaf), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - Simple and quick conversion of daytime scope, sight or binoculars to night vision
- Mounts in front of rifle scope with no re-zeroing required
- Equipped with wireless remote control
- Powered by a single alkaline 1.5 V AA or 3 V CR123A lithium battery
- Bright light cut-off system
In the Box Armasight by FLIR NSCCOLR00139DA1 CO-LR GEN 3+ Alpha MG Night Vision Long Range Clip-On System AWReC (Advanced Wireless Remote Control) Picatinny Adapter for AWReC Lithium Battery CR123A CR123A 3 V to 2 x AA 1.5 V Battery Adapter Lens Tissue Light Suppressor for Day Scope Light Suppressor Soft Carrying Case XLR-IR850 X-Long Range Illuminator (Dovetail to Weaver Adapter #21) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR NSCCOLR00139DA1 CO-LR GEN 3 Alpha MG Night Vision Long Range Clip-On System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR CO/LR Specs | Magnification | 1x (recommended to use with up to 12x day time optics) | | Intensifier Tube | Gen 3 high performance manual gain | | Lens System | F1:1.54, 108mm | | Objective Lens Diameter | Not specified by the manufacturer | | Field of View | 10° | | Dioptric Correction | No | | Controls | Direct | | Exit Pupil | 40 mm | | Filter Size | Not specified by the manufacturer | | Impact Point Correction | Not specified by the manufacturer | | Maximum Windage/Elevation Adjustment | Not specified by the manufacturer | | Relative Brightness | Not specified by the manufacturer | | Twilight Factor | Not specified by the manufacturer | | Weatherproofing | Waterproof & weatherproof | | Power Source | 1 x 1.5 V AA type battery or 1 x 3 V CR123A type battery | | Battery Life | 40 hours with 3 V CR123A battery
25 hours with 1.5 V AA battery | | Low Battery Indicator | Yes | | Infrared Illuminator | Detachable long range IR illuminator | | Resolution | 64-72 lp/mm | | Range of Focus | 32.8' (10 m) to infinity | | Bright Light Cut-off | Yes | | Controls | Direct | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -58 to 122°F (-50 to 50°C) | | Dimensions (LxWxH) | 9.3 x 3.8 x 3.1" (23.5 x 9.7 x 8.0 cm) | | Weight | 2 lb (0.91 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
