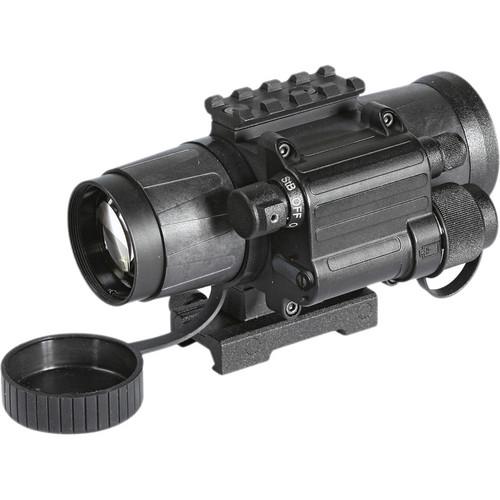

User Manual for Armasight by FLIR NSCCOMINI139DA1 CO-Mini GEN 3 Alpha Day Night Vision Clip-On System Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR NSCCOMINI139DA1 CO-Mini GEN
- Product category: Day/Night Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Day/Night Systems
|
User manual for the Armasight by FLIR NSCCOMINI139DA1 CO-Mini GEN contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The Armasight NSCCOMINI139DA1 CO-Mini GEN 3 Alpha Day / Night Vision Clip-On System uses image intensification technology and is designed to help most low-to-mid power daytime sights, scopes, or binoculars to operate at night. The CO-Mini Clip-On System can be mounted in seconds and without tools. It can be attached in front of a day rifle scope (using its quick release Picatinny mount) or directly onto the day scope (or binocular / telescope) objective lens with the included adapter.
This system is suitable for use with most commercial and military specification daytime sights, telescopes, or binoculars (up to 6x magnification). Because CO-Mini is mounted in front of your own day scope, the shooters eye relief is not altered, and shot release and follow through all remain intuitive.
The clip-on device is factory bore-sighted to more than 1 MOA accuracy, so that no alteration in zero is experienced. It really is as simple as mount and shoot, just as in daytime.
This system is intended primarily for use by the most demanding hunter or short range assaulter, where field of view and ease of use are more important than high magnification. Packed with innovative and important features, such as variable gain control, bright light shut-off, and wireless remote control, Armasight CO-Mini is designed to make quick intuitive shooting just as easy at night as it is during the day. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - Simple and quick conversion of daytime scope, sights, or binoculars into night vision ones
- Mounts in front of a riflescope with no re-zeroing required
- Equipped with wireless remote control
- Powered by a single alkaline 1.5V AA or 3V CR123A lithium battery
- Bright light cut-off system
In the Box Armasight by FLIR NSCCOMINI139DA1 CO-Mini GEN 3 Alpha Day / Night Vision Clip-On System 1 x AWReC Advanced Wireless Remote Control 1 x Battery Adapter CR123A 3 V / 1x 2AA 1.5 V IR850 Detachable Long Range Infrared Illuminator Lens Cap Lens Tissue Light Suppressor (1, 2, and 3) Mount for IR Illuminator 1x CR123A Lithium Battery Picatinny Adapter for AWReC (Advanced Wireless Remote Control) Quick Release Mount Soft Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR NSCCOMINI139DA1 CO-Mini GEN 3 Alpha Day Night Vision Clip-On System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR CO-Mini Specs | Magnification | 1x (recommended to use with up to 10x daytime optics) | | Intensifier Tube | Not specified by manufacturer | | Lens System | F1: 1.44, 38 mm | | Objective Lens Diameter | Not specified by manufacturer | | Angle of View | 12˚ | | Field-of-View (@ 1000 Yds) | Not specified by manufacturer | | Dioptric Correction | No | | Resolution | 62-72 lp/mm | | Exit Pupil | 1.08" (27.5 mm) | | Eye Relief | Not specified by manufacturer | | Filter Size | Not specified by manufacturer | | Impact Point Correction | Not specified by manufacturer | | Maximum Windage/Elevation Adjustment | Not specified by manufacturer | | Relative Brightness | Not specified by manufacturer | | Twilight Factor | Not specified by manufacturer | | Weatherproofing | Waterproof | | Power Source | 1x 1.5 V AA type battery or 1x 3 V CR123A type battery | | Battery Life | 60 h (3 V) / 30 h (1.5 V) | | Bright Light Cut-off | Yes | | Infrared Illuminator | Detachable long range IR illuminator | | Controls | Direct | | Operating Temperature | -59.8 to 120.2˚F (-51 to 49˚C) | | Range of Focus | 32.80' to infinity (10 m to infinity) | | Storage Temperature | -59.8 to 120.2˚F (-51 to 49˚C) | | Dimensions | L x W x H: 4.9 x 2.7 x 2.2" (124 x 69 x 56 mm) | | Weight | 1.06 lb (0.48 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
