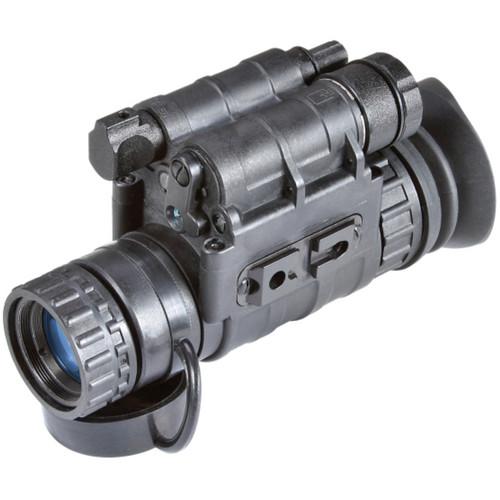

User Manual for Armasight by FLIR Nyx-14 2nd Gen Improved Definition Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Nyx-14 2nd Gen
- Product category: NV Monoculars & Multi-Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR NV Monoculars & Multi-Systems
|
User manual for the Armasight by FLIR Nyx-14 2nd Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description Engineered for armed forces and law enforcement, the rugged and waterproof Nyx-14 2nd Gen Improved Definition (ID) Night Vision Monocular from Armasight is a versatile 2nd generation night vision device with a manual gain that can be used handheld, mounted on a weapon, or on headgear. The Armasight second generation intensifier tube technology incorporates a microchannel plate, multi-alkaline photocathode, built-in power supply, and 18 mm format screen, which improve reliability, image brightness, and quality compared to first generation devices. The Improved Definition (ID) feature offers green images and resolution of and a resolution of 47-54 lp/mm. To protect the tube and your eyes from damage due to sudden flash of bright light, the tube has a bright light cut-off function that will shut down the tube. If there is not enough natural infrared and your targets appear too dark and with little detail, the built-in infrared illuminator will provide additional illumination and help improve visibility even in complete darkness. The 1x optical system offers a wide angular field of view and a 0.8' minimum focus distance. Additionally, the monocular has an auto shut-off function, an IR indicator, and low a battery indicator.
The composite housing is waterproof, lightweight, durable, and provides protection from adverse conditions and extreme temperatures. It is contoured and has ergonomic controls, knurled adjustment rings, and a wide rubberized winged eyecup. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITARdeszbsb), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Image Intensifier
-
- 2nd Gen Improved Definition intensifier tube
- Manual gain control
- 47-54 lp/mm resolution
- Bright Light Cut-Off protects tube and your eyes from overexposure
- Displays green images
- Optical Performance
-
- Magnification: 1x
- Lens system: 27mm, f/1.2
- Wide angular field of view: 40°
- Focus range: 0.8' to infinity
- Use and Handling
-
- Automatic shut-off function
- Low-battery indicators
- IR indicator
- Construction Details
-
- Built-in IR illuminator with flood lens
- Mountable to weapons or a headgear with optional adapters
- Two accessory mounting points on each side
- Ergonomic and easy to operate controls
- Tethered objective lens cap
- Rubberized winged eyecup
- Waterproof
UPC: 818470015727 In the Box Armasight by FLIR Nyx-14 2nd Gen Improved Definition (ID) (Manual Gain) - Battery Adapter
- CR-123A Lithium Battery
- Lens Tissue
- Soft Case for Storage and Carry
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Nyx-14 2nd Gen Improved Definition in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSMNYX140129DI1 Specs | Intensifier Tube | Gen 2 Improved Definition (ID) | | Resolution | 47-54 lp/mm | | Magnification | 1x | | Field of View | 40° | | Lens System | 27mm, f/1.2 | | Exit Pupil | 14 mm | | Eye Relief | 25 mm | | Focus Range | 0.8' / 0.25 m to infinity | | Dioptric Correction | -6 to +2 | | Infrared Illuminator | Yes | | Battery / Runtime | 1 x lithium CR-123A (3 V)/ 60 hr max with IR illuminator off
1 x alkaline AA (1.5 V)/ 30 hr max with IR illuminator off | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 158°F / -50 to 70°C | | Humidity | 95% | | Dimensions | 5.5 x 1.9 x 2.7" / 140 x 49 x 69 mm | | Weight | 0.88 lb / 0.4 kg |
