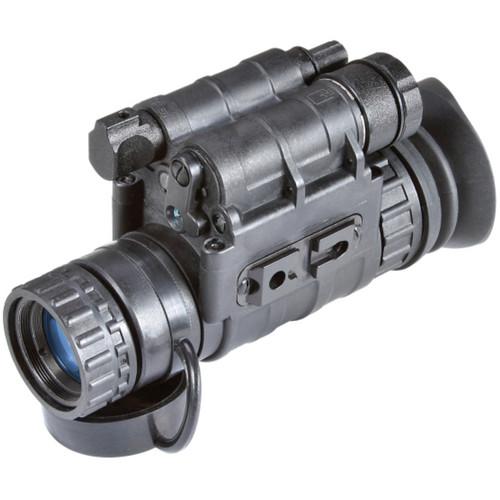

User Manual for Armasight by FLIR NYX-14 Gen 3 Alpha MG Multi-Purpose Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR NYX-14 Gen 3
- Product category: NV Monoculars & Multi-Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR NV Monoculars & Multi-Systems
|
User manual for the Armasight by FLIR NYX-14 Gen 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The Armasight NYX-14 Gen 3 Alpha MG Multi-Purpose Night Vision Monocular is built into a tough, compact, and ergonomic composite housing. Its body has been built to surpass all MIL-SPEC-810 specifications. This monocular can withstand salt water, rain, high humidity, and extremes of temperature, and still give efficient performance.
The NYX-14 Mini-Monocular is equipped with manual variable gain control so that the image brightness level can be selected by the user to adjust for the ambient light level in his / her area of operations. - Ergonomic, simple, easy to operate controls
- Built-in infrared illuminator and flood lens
- Head or helmet mountable for hands-free usage
- Automatic shut-off system
- Utilizes 1 CR123A lithium or AA battery (included)
- Adaptable for use with cameras
UPC: 818470015765 In the Box Armasight by FLIR NYX-14 Gen 3 Alpha MG Multi-Purpose Night Vision Monocular Battery Adapter (CR123A 3 V / 2 AA 1.5 V) Lens Cap Lens Tissue CR123A Lithium Battery Packing Box Soft Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR NYX-14 Gen 3 Alpha MG Multi-Purpose Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSMNYX140139DA1 Specs | IIT Generation | Gen 3 High Performance Manual Gain | | Resolution | 64-72 lp/mm | | Magnification | 1x standard, 3x, 5x, 8x optional | | Battery Life | 60 hours | | Lens System | F1.2, 27 mm | | Field of View | 40° | | Range of Focus | 0.25 to infinity | | Diopter Adjustment | -2 to +6 dpt | | Controls | Direct | | Power Supply | 1 CR-123 lithium 3 V or 1 AA alkaline battery | | Environmental Rating | Waterproof / MIL-STD-810 compliant | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -58 to 140°F (-50 to 60°C) | | Dimensions (LxWxH) | 5.5 x 1.9 x 2.7" (140.0 x 49.0 x 69.0 mm) | | Weight | 0.88 lb (0.40 kg ) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 9.9 x 5.5 x 4.3" |
