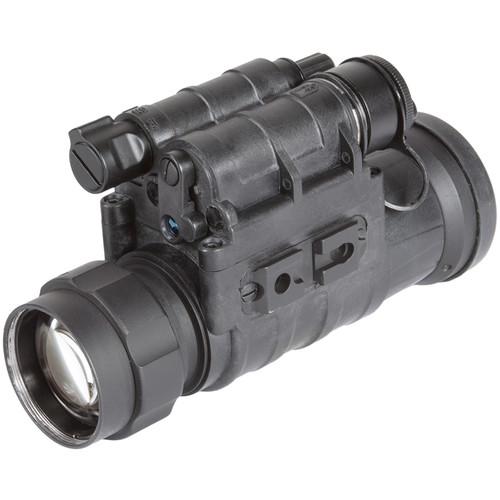

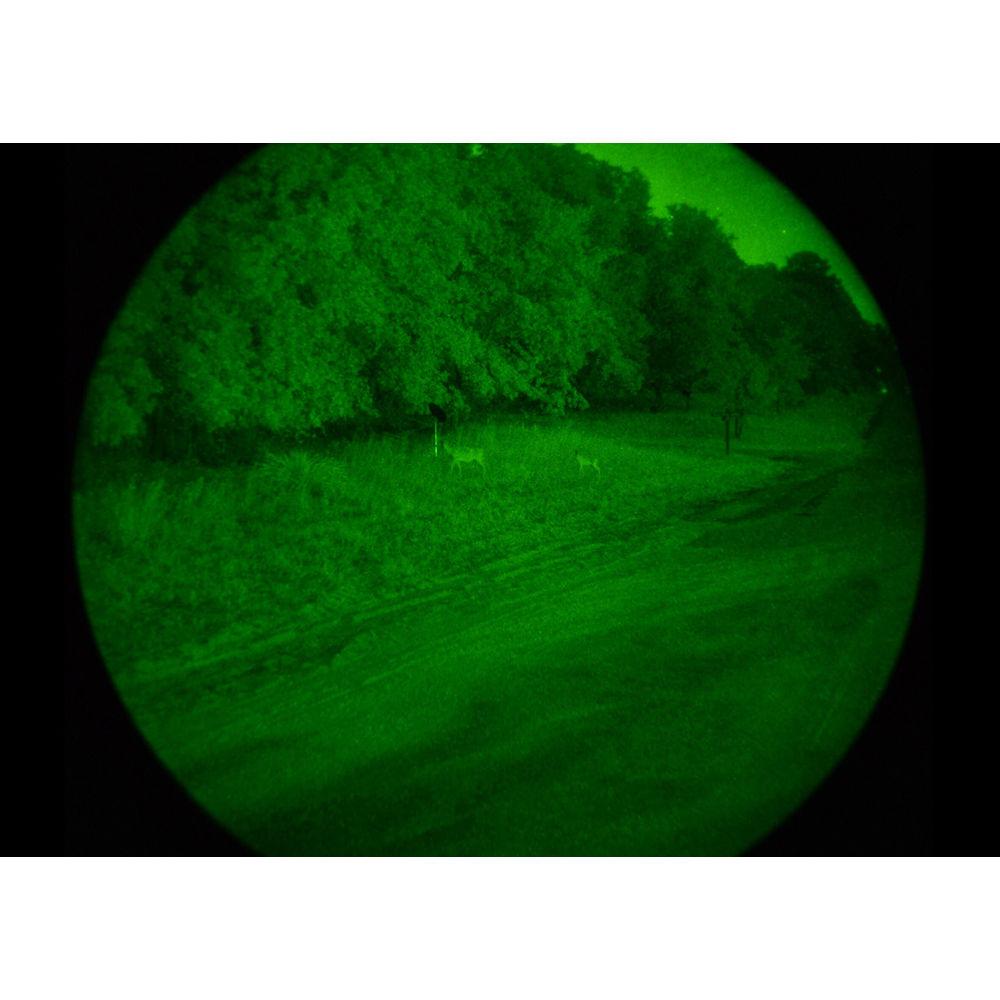

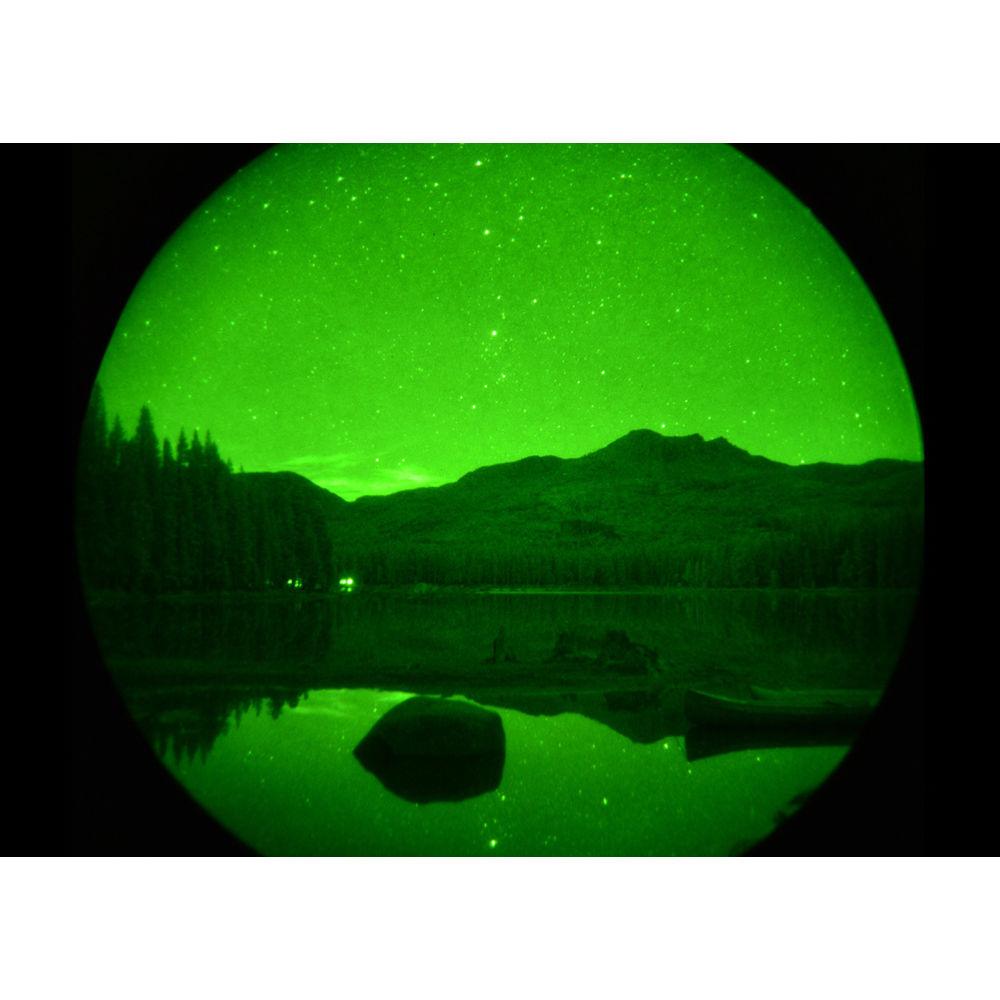

Product description Ideal for mounting on most photo and video cameras, the NYX-14C 3rd Generation Ghost Night Vision Photography System from Armasight is equally well optimized for a tripod mount or handheld use. The monocular features a 3rd generation intensifier tube with a resolution of 47-57 lp/mm and manual gain control. The white phosphor screen technology produces black and white images instead of green ones. To maximize image brightness in total darkness, the monocular is supplied with a detachable infrared illuminator that can cast extra infrared light on your targets. To add convenience, the monocular has a low-battery status indicator, Automatic Brightness Control, and can be operated remotely via the included wireless remote control. The lens system features a 1x magnification in camera-mounted configuration using the included rear optic and a 2x magnification using the included eyepiece. It also offers a wide 22° field of view and ultra-short minimum focus distance of 10".
The monocular housing is made of lightweight and impact-resistant polymer and offers waterproof performance. To prevent spillover of light from the intensifier tube and offer comfortable cushion between your eye's orbit and the eyepiece, the eyepiece has a wide rubber eyecup. Among many includes is a fully adjustable adapter that provides compatibility with most photo and video cameras. - Night Vision Features
-
- 3rd generation
- 47-57 lp/mm resolution

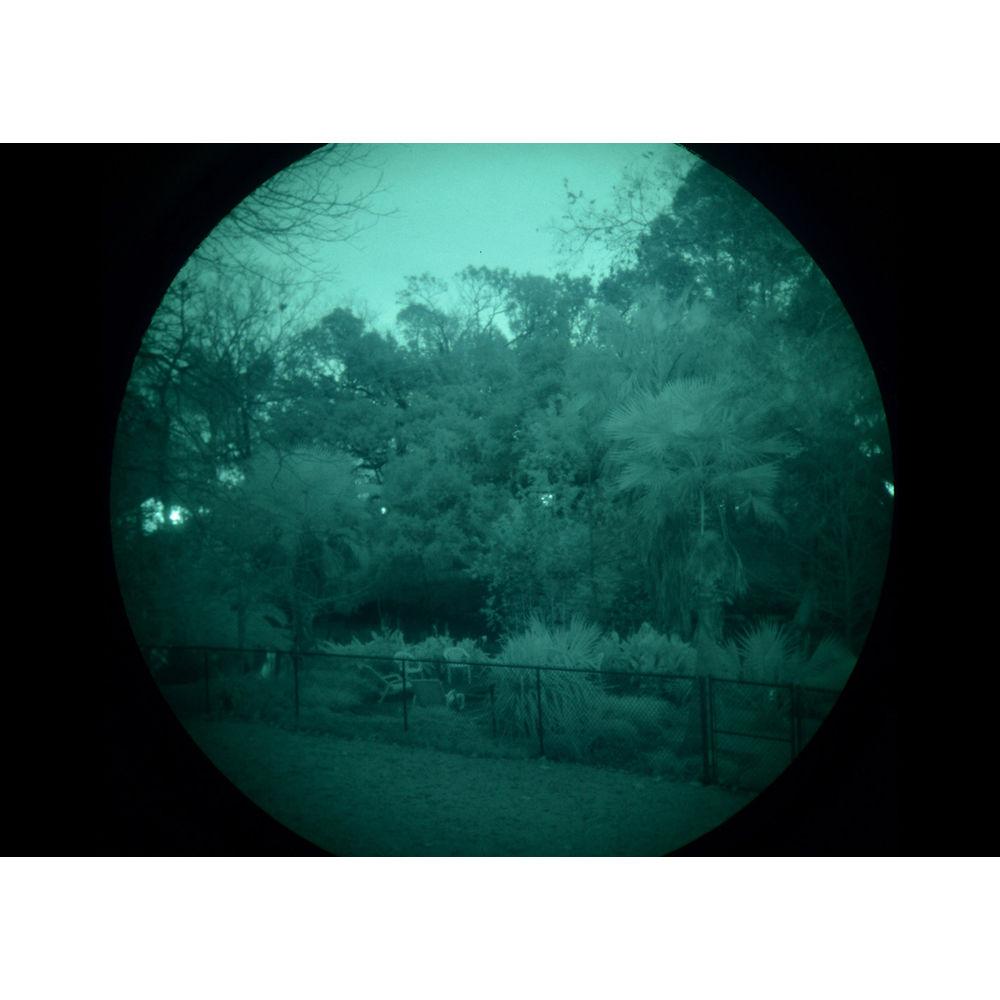

- White phosphor technology produces black and white images
- IR illuminator casts extra infrared light on targets for visibility in total darkness
- Optical Performance
-
- Camera-mounted: 1x magnification using the included rear optic with focal length of 38mm
- Standard: 2x magnification using the included eyepiece with a focal length of 20mm
- 22° angular field of view
- 38mm, f/1.25 lens system
- 10" minimum focus distance
- +5 to -5 dioptric adjustment
- Use and Handling
-
- BSP: Bright Source Protection reduces voltage to the photocathode
- ABC: Automatic Brightness Control reduces voltage to MCP
- MGC: Manual Gain Control allows changing brightness or detail
- Low-battery and IR-on indicators

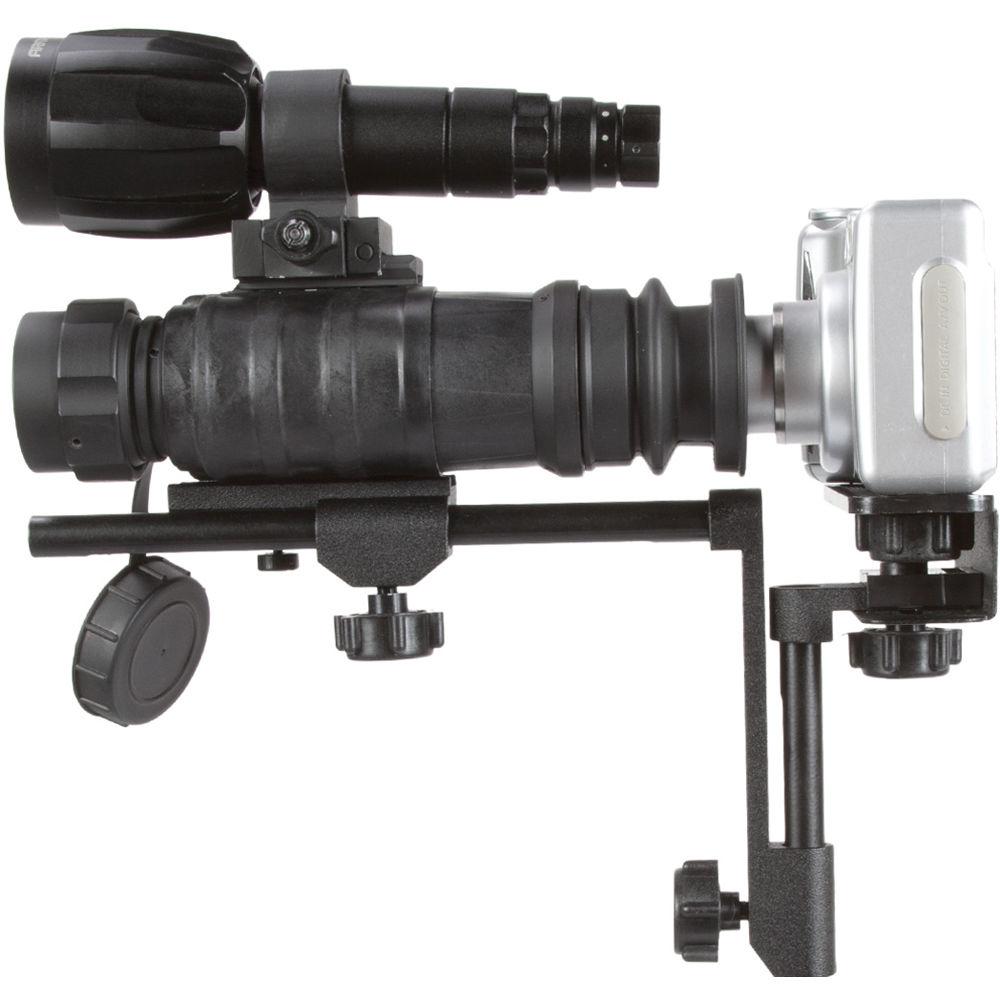

- Mountable to photo and video cameras using included adapters
- Construction Details
-
- Lightweight and durable construction
- Picatinny/Weaver accessory mounting point

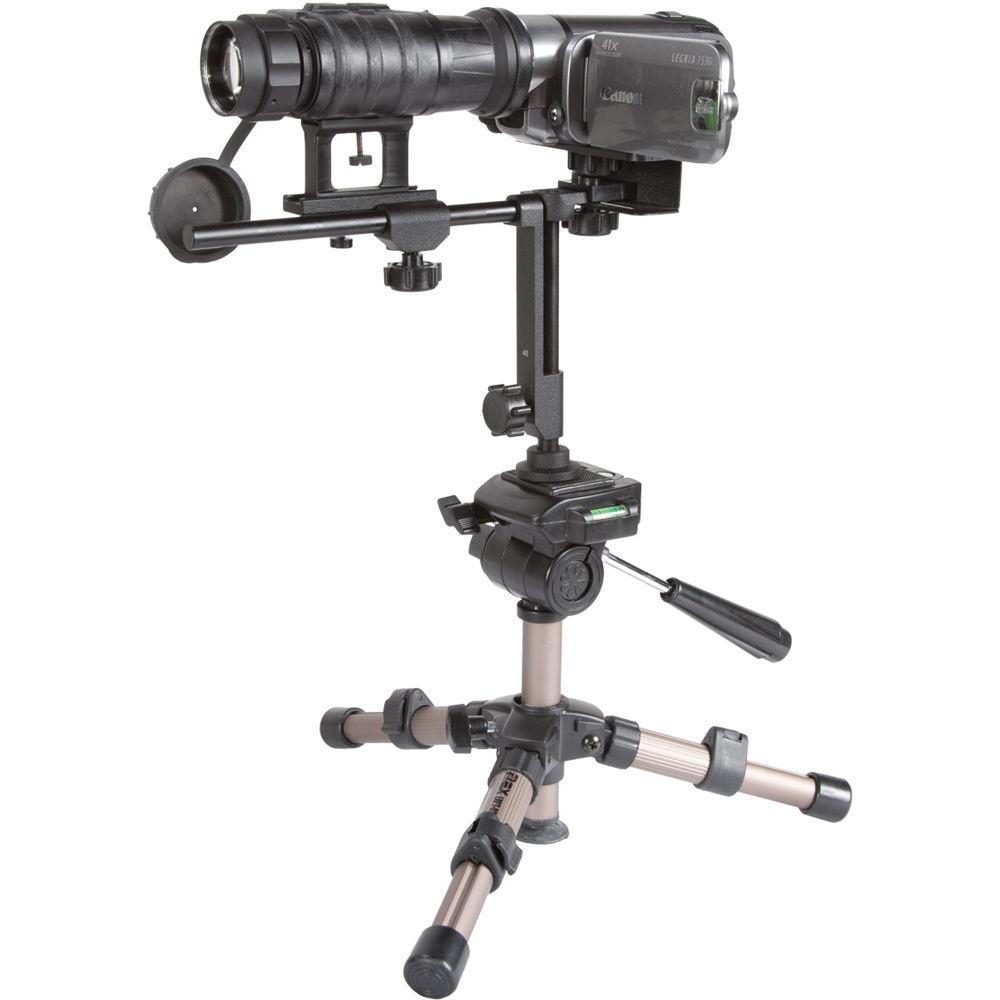

- Adjustable universal camera mount
- Knurled adjusters
- Wide rubber eyecup
- Waterproof

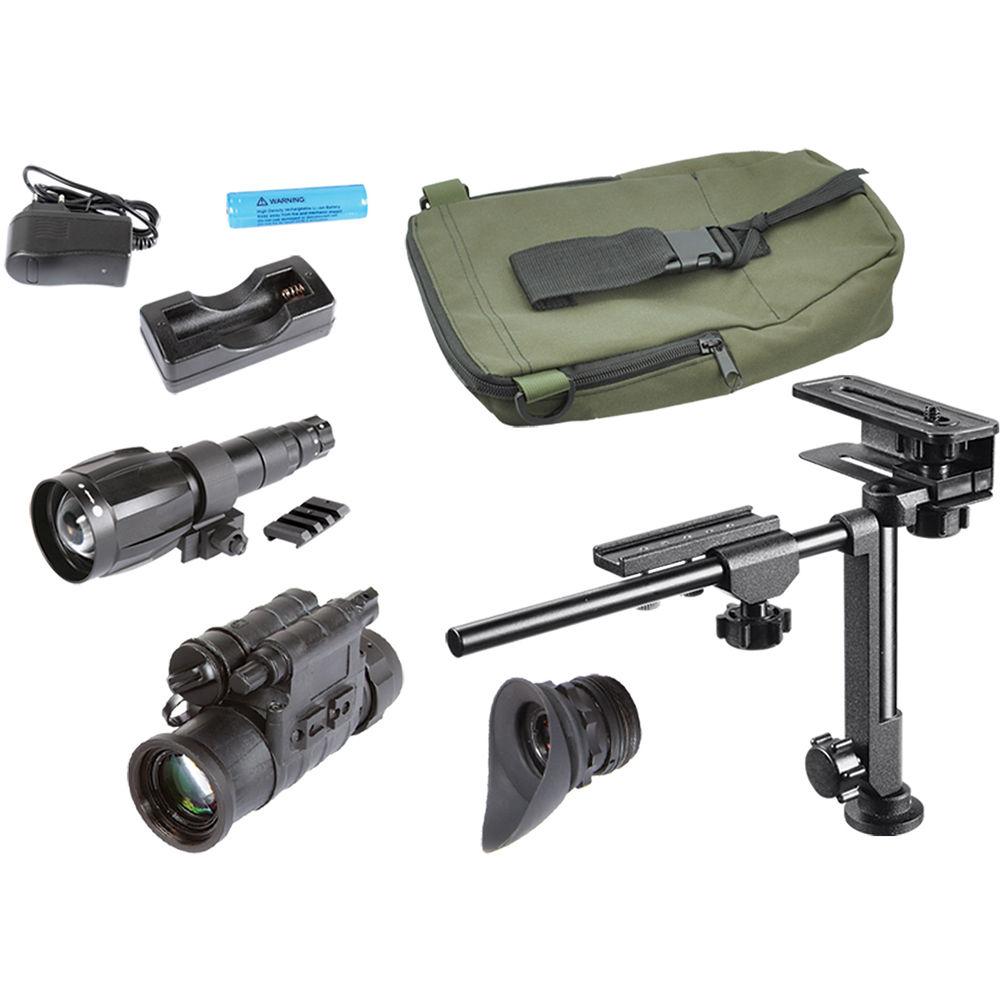

In the Box Armasight by FLIR NYX-14C 3rd Generation Ghost Night Vision Photography System - Soft Carry Case
- ANAM000006 Universal Camera Adapter cwwvyzvzxzvdtdtcvawsxzcwva
- XLR-IR850 X-Long Range Illuminator (Dovetail to Weaver Adapter #21)
- WEAVER RAIL ADAPTER f/SPK/SIR/NYX14
- 20mm Eyepiece
- 38mm Rear Optic for Camera
- CR-123A Battery
- Limited 2-Year USA Warranty
- Limited 1-Year International Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR NYX-14C 3rd Generation Ghost Night Vision Photography System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NYX-14C Specs | Intensifier Tube | 3rd generation
47-57 lp/mm resolution
White phosphor technology | | Magnification | Camera-mounted configuration: 1x
Standard configuration: 2x | | Angle/Field of View | 22° | | Linear Field of View | 1152' @ 1000 yd (384 m @ 1000 m) | | Lens System | 38mm, f/1.25 | | Minimum Focus Distance | 10" (25 cm) | | Eye Relief | Yes | | Dioptric Correction | +5 to -5 | | Infrared Illuminator | Yes | | Battery / Runtime | 1 x CR123A battery / 60 h | | Weatherproofing | Waterproof | | Temperature Ranges | -40 to 122°F (-40 to 50°C) | | Dimensions | Camera-mounted: 5.1 x 2.9 x 1.9" (130 x 75 x 49 mm)
Standard: 4.3 x 2.9 x 1.9" (110 x 75 x 49 mm) | | Weight | Camera-mounted: 14.1 oz (0.4 kg)
Standard: 15.5 oz (0.44 kg) |
