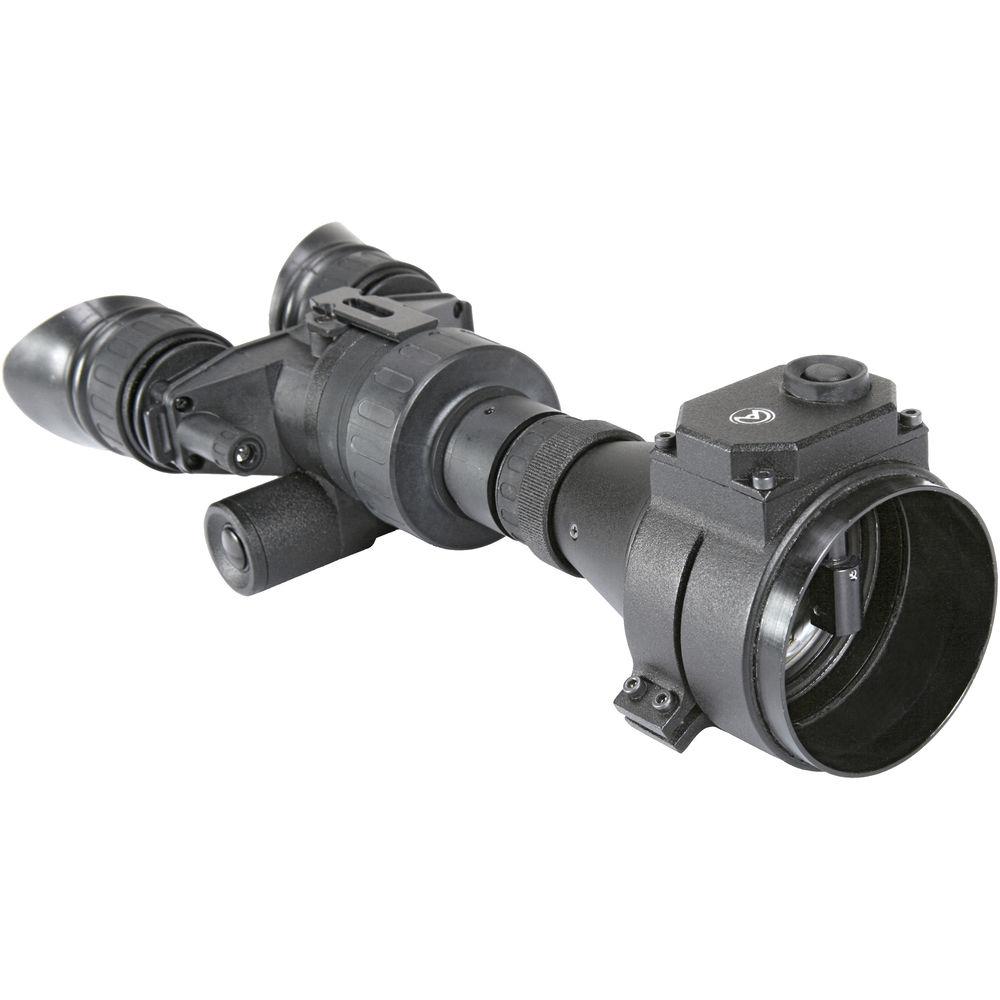

User Manual for Armasight by FLIR Nyx-7 Gen 2 SD Night Vision Bi-Ocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Nyx-7 Gen 2
- Product category: Night Vision Bi-Oculars Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Night Vision Bi-Oculars
 |
User manual for the Armasight by FLIR Nyx-7 Gen 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

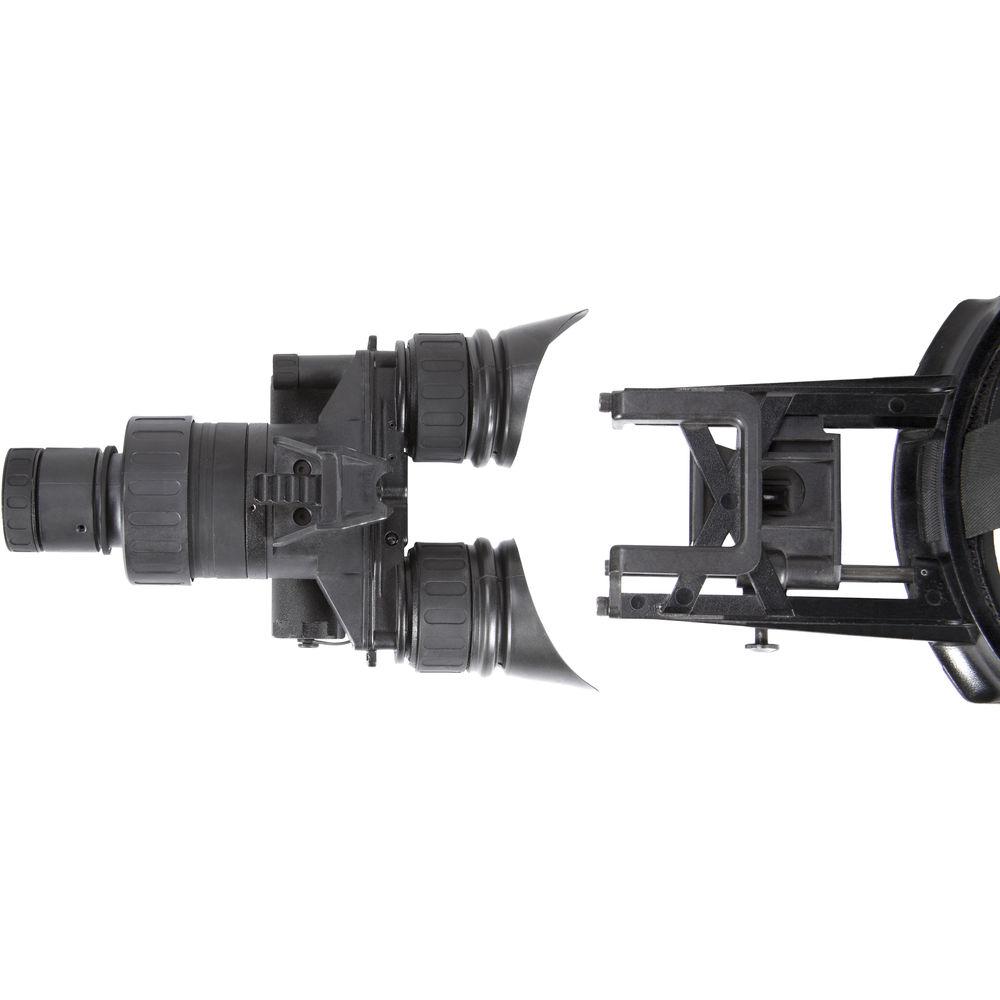

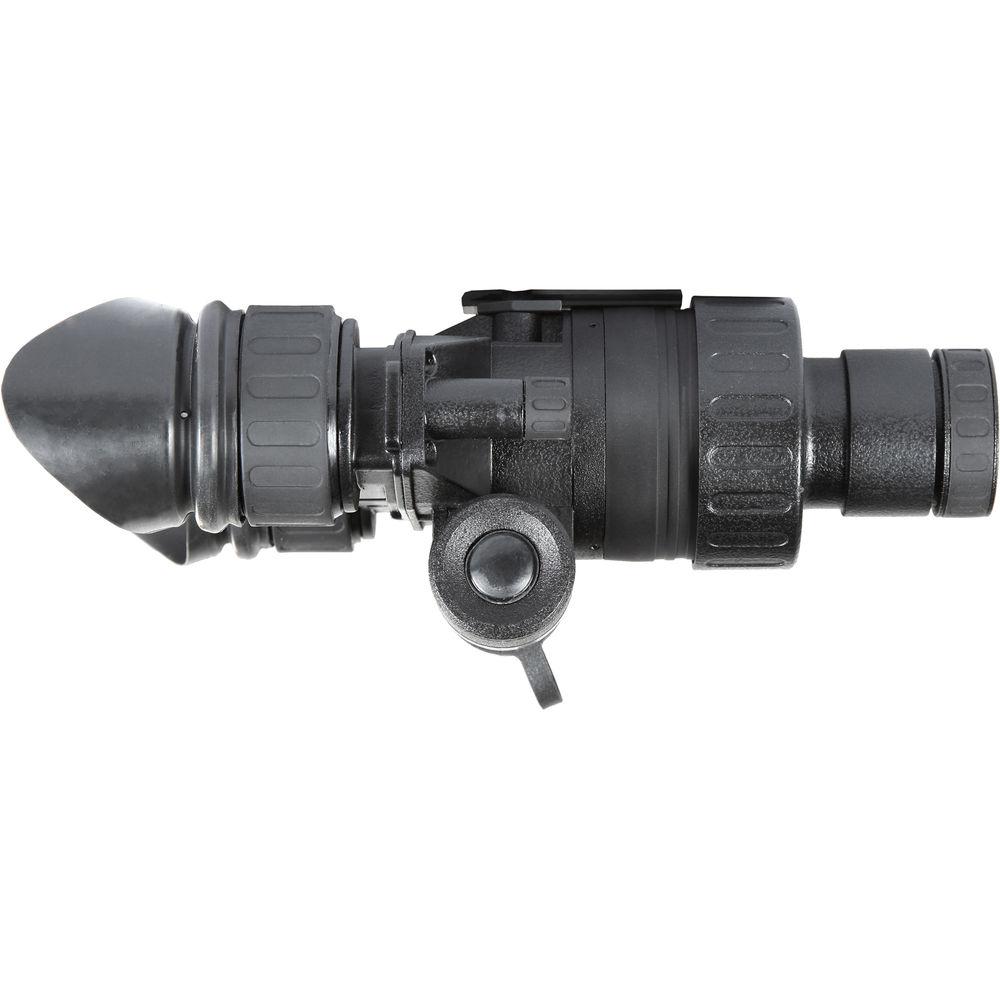

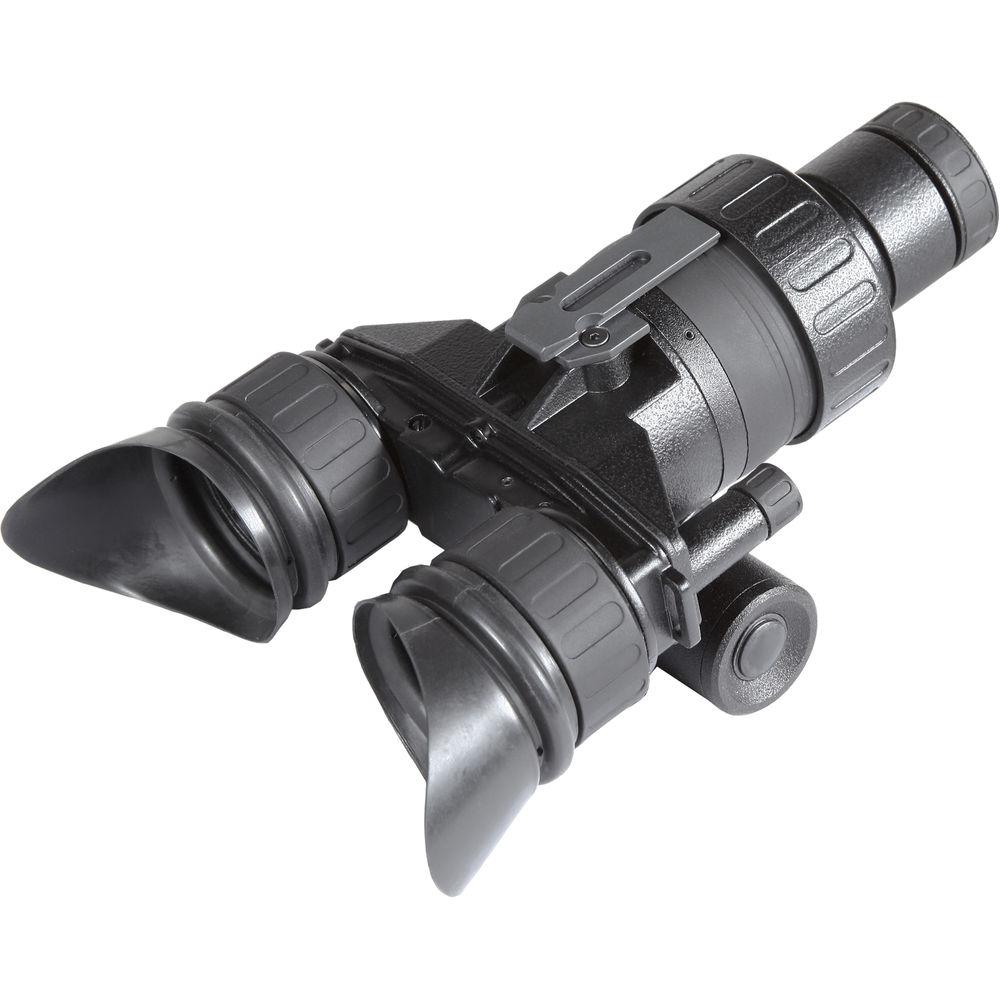

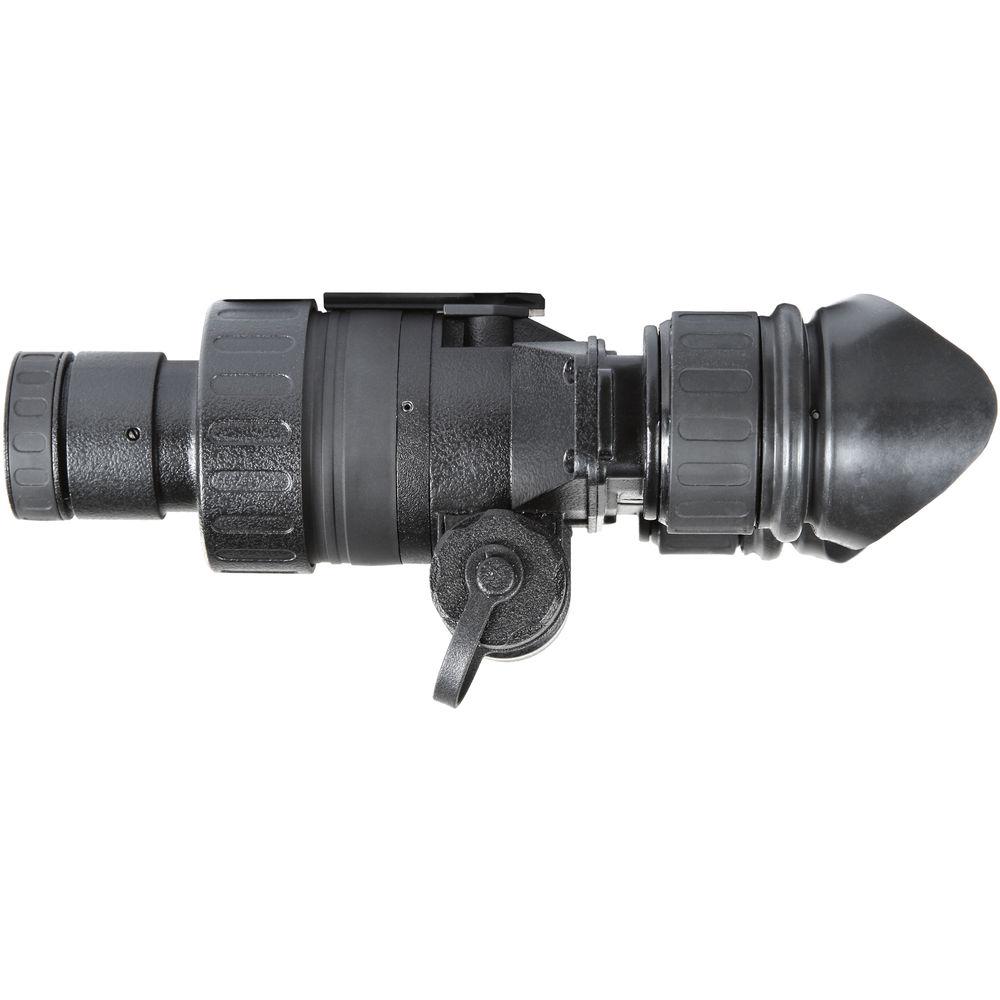

Product description The Nyx-7 Gen 2+ SD Night Vision Bi-Ocular from Armasight is a generation 2+ NVD capable of up to 51 lp/mm resolution. The Armasight Gen 2+ SD multi-alkali photocathode features a microchannel plate with electron amplifier; it also features Automatic Brightness Control, which continuously adjusts image brightness to optimize the displayed image quality. The Nxy-7 also features a bright-light cutoff and LED battery power indicators displayed in the screen of the eyepeice. This night vision bi-ocular is head or helmet mountable with an included flip-up head mount or optional universal helmet mount.A 24mm f/1.2 lens system displays a 40° field of view, making the Nyx-7 Gen 2+ SD bi-ocular ideal for many viewing tasks. The bi-ocular configuration is designed to allow the user to keep both eyes open for more comfortable long-duration viewing. Combined with a built-in IR illuminator and weather-resistant housing, this bi-ocular is well-equipped for observations - low light or no light, indoor or outdoor. - Optical Performance
-
- Magnification: 1x
- Lens system: 24mm f/1.2
- Field of view: 40°
- Focus range: 0.8' / 0.25 m to infinity
- Image Intensifier
-
- Gen 2+ Standard Definition intensifier tube
- 45-51 lp/mm resolution
- Displays standard green NV image
- Automatic Brightness Control dynamically optimizes image brightness
- Bright Light Cut-Off protects tube and viewer's eyes from excessive light levels
- Use and Handling
-
- In-view low-battery indicators
- Built-in IR illuminator with flood lens

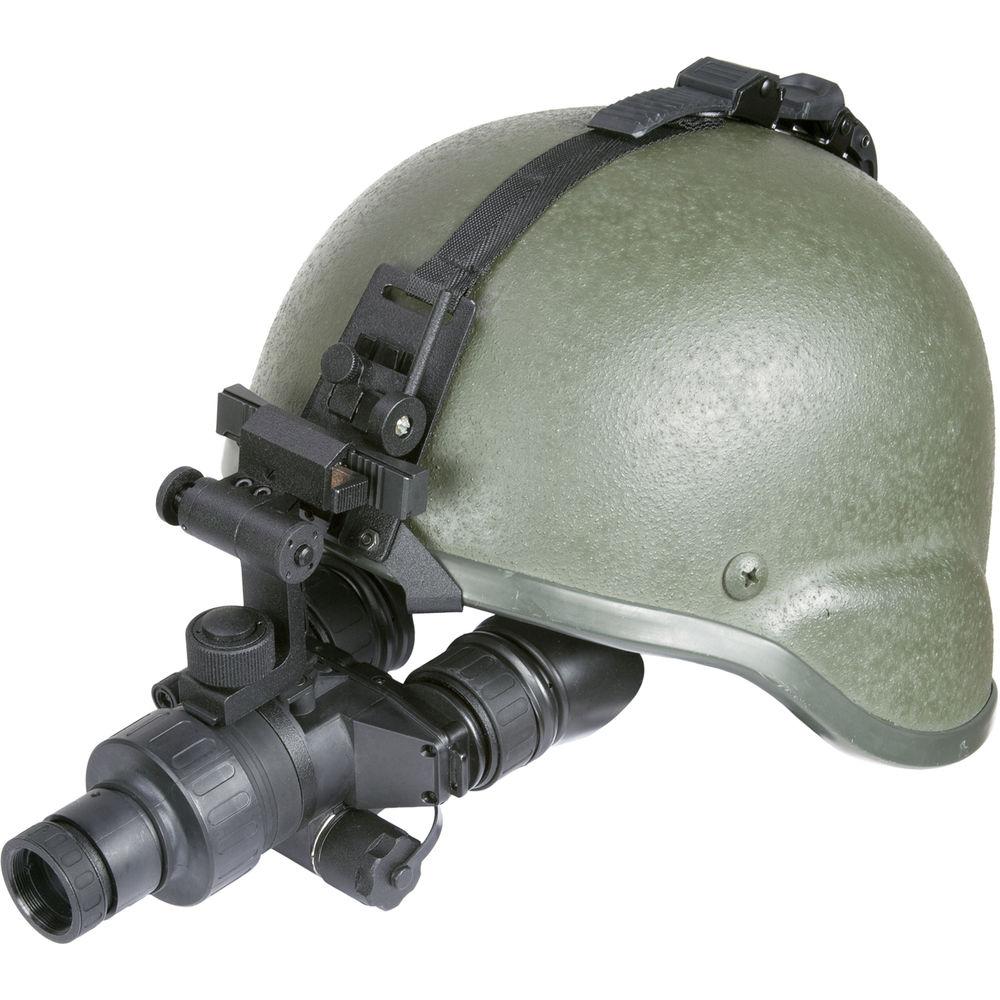

- Head and helmet mountable
- Construction Details
-
- Operating temperature: -40 to 122°F

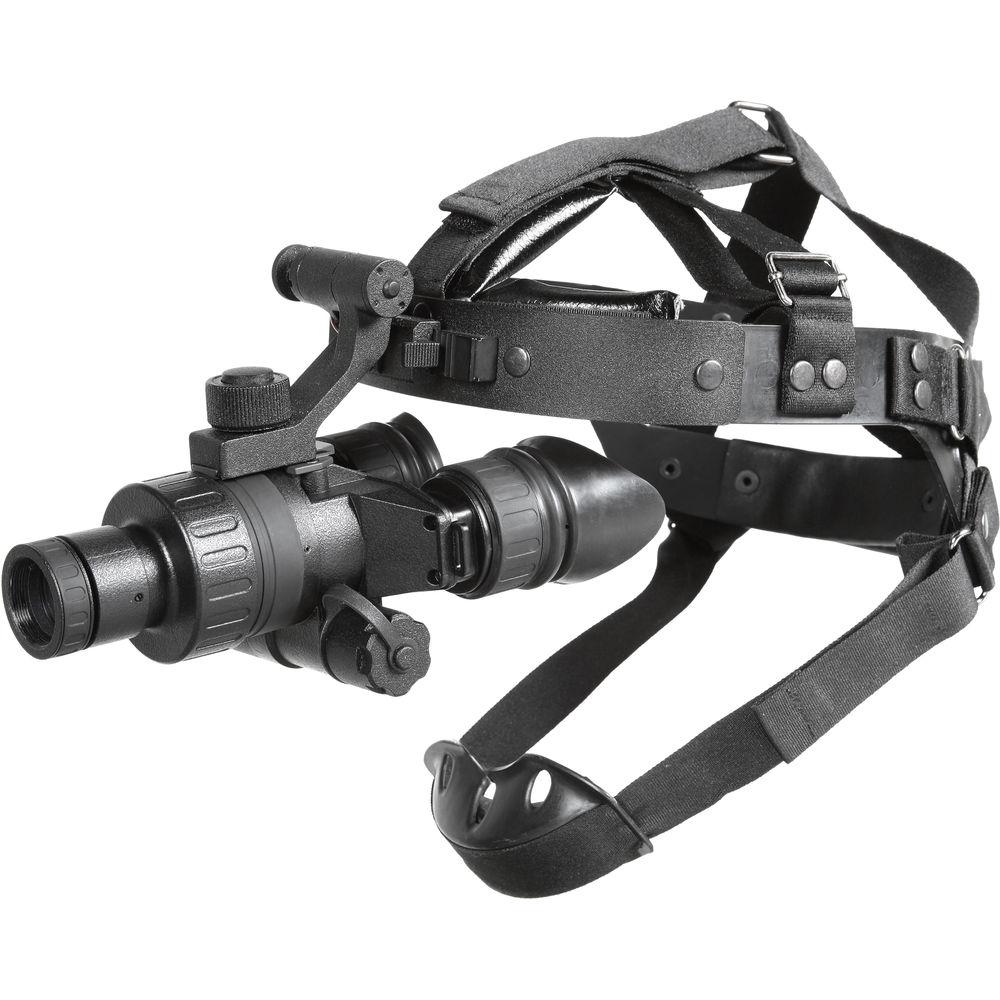

UPC: 818470010692 In the Box Armasight by FLIR Nyx-7 Gen 2+ SD Night Vision Bi-Ocular Objective Lens Cap Eye Cups CR123A Lithium Battery Goggle Kit (Head Mount) Nylon Case for Storage and Carry Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Nyx-7 Gen 2 SD Night Vision Bi-Ocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSGNYX70012GDS1 Specs | Intensifier Tube | Gen 2+ SD Multi-Alkaili | | Resolution | 45-51 lp/mm | | Magnification | 1x | | Field of View | 40° | | Lens System | 24mm f/1.2 | | Focus Range | 0.8' / 0.25 m to infinity | | Dioptric Correction | ±5 | | Infrared Illuminator | Yes | | Power Supply | Single CR123 lithium 3 V or AA alkaline 1.5 V | | Runtime | Up to 60 hr (lithium); 50 hr (alkaline) | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 158°F / -50 to 70°C | | Humidity | 95% (77 to 104°F / 25 to 40°C) for 48 hr | | Dimensions | 5.9 x 4.0 x 2.7" / 150 x 102 x 70 mm | | Weight | 1.0 lb / .45 kg | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 15.6 x 6.4 x 4.7" |
