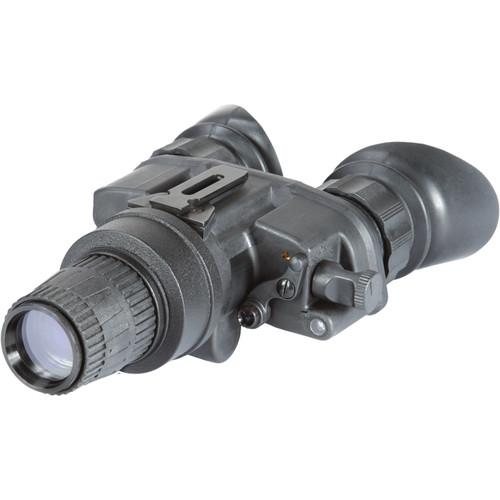

User Manual for Armasight by FLIR Nyx-7 PRO 2nd Gen High Definition Night Vision Bi-ocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Nyx-7 PRO 2nd
- Product category: Night Vision Bi-Oculars Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Night Vision Bi-Oculars
|
User manual for the Armasight by FLIR Nyx-7 PRO 2nd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The lightweight, durable, and waterproof Nyx-7 PRO 2nd Gen High Definition (HD) Night Vision Bi-ocular from Armasight is a versatile 2nd generation night vision device that can be used handheld or mounted on the included headgear. The Armasight second generation intensifier tube technology incorporates a microchannel plate, multi-alkaline photocathode, built-in power supply, and 18 mm format screen, which improve reliability, image brightness, and quality compared to first generation devices. The Quick Silver with white phosphor (QS) feature offers black and white images and resolution of 55-72 lp/mm. To protect the tube from damage and your eyes from temporary flash blindness caused by sudden flash of bright light, the tube has a bright light cut-off function that will turn off the intensifier tube. With an automatic brightness control, you don't have to worry about adjusting brightness when passing through environments with varying ambient infrared illumination. If there is not enough natural infrared and your targets appear too dark and with little detail, the built-in infrared illuminator will provide additional illumination and help improve visibility even in complete darkness. The 1x optical system offers a wide angular field of view and a 0.8' minimum focus distance. Additionally, the device has an auto shut-off function and a low battery indicator.
The composite housing is waterproof, lightweight, durable, and provides protection from adverse conditions and extreme temperatures. It is contoured and has ergonomic controls, knurled adjustment rings, and wide rubberized winged eyecups. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Image Intensifier
-
- 2nd Gen Quick Silver (QS)
- White phosphor displays black and white images
- Bright Light Cut-Off protects tube from burnout and your eyes from flash blindness
- Optical Performance
-
- 1x magnification
- Lens system: 27mm, f/1.2
- Field of view: 40°
- 0.8' close focus
- Use and Handling
-
- Low battery indicator
- Automatic brightness control
- Automatic shut-off function
- Construction Details
-
- Built-in IR illuminator with flood lens
- Handheld operation or wearable with the included headgear
- Ergonomic and easy to operate controls
- Wide rubberized winged eyecups
- Waterproof composite housing
UPC: 849815003949 In the Box Armasight by FLIR Nyx-7 PRO 2nd Gen High Definition (HD) Night Vision Bi-ocular - Headgear
- Objective Lens Cap
- AA Battery Adapter
- CR-123A Battery
- Soft Carrying Case
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Nyx-7 PRO 2nd Gen High Definition Night Vision Bi-ocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSGNYX7P01Q3DI1 Specs | Intensifier Tube | Gen 2 white phosphor | | Magnification | 1x | | Angle/Field of View | 40° | | Lens System | 27mm f1.2 | | Minimum Focus Distance | 0.8' (0.25 m) | | Eye Relief | Not provided by manufacturer | | Dioptric Correction | +5 to -5 | | Interpupillary Adjustment | Not provided by manufacturer | | Infrared Illuminator | Built-in infrared illuminator | | Battery / Runtime | 1 x CR-123A (3V) / 60 hr max
1 x AA (1.5V) / 30 hr max | | Weatherproofing | Waterproof | | Temperature Ranges | -40 to 122 (-40 to +50 °C) | | Dimensions | 6.5 x 4.5 x 2.9' (165 x 114 x 74 mm) | | Weight | 0.9 lbs (0.4 kg) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 12.0 x 7.0 x 7.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
