User Manual for Armasight by FLIR Nyx7 Pro Gen 3 Alpha Night Vision Goggles Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Nyx7 Pro Gen
- Product category: Night Vision Bi-Oculars Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Night Vision Bi-Oculars
 |
User manual for the Armasight by FLIR Nyx7 Pro Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

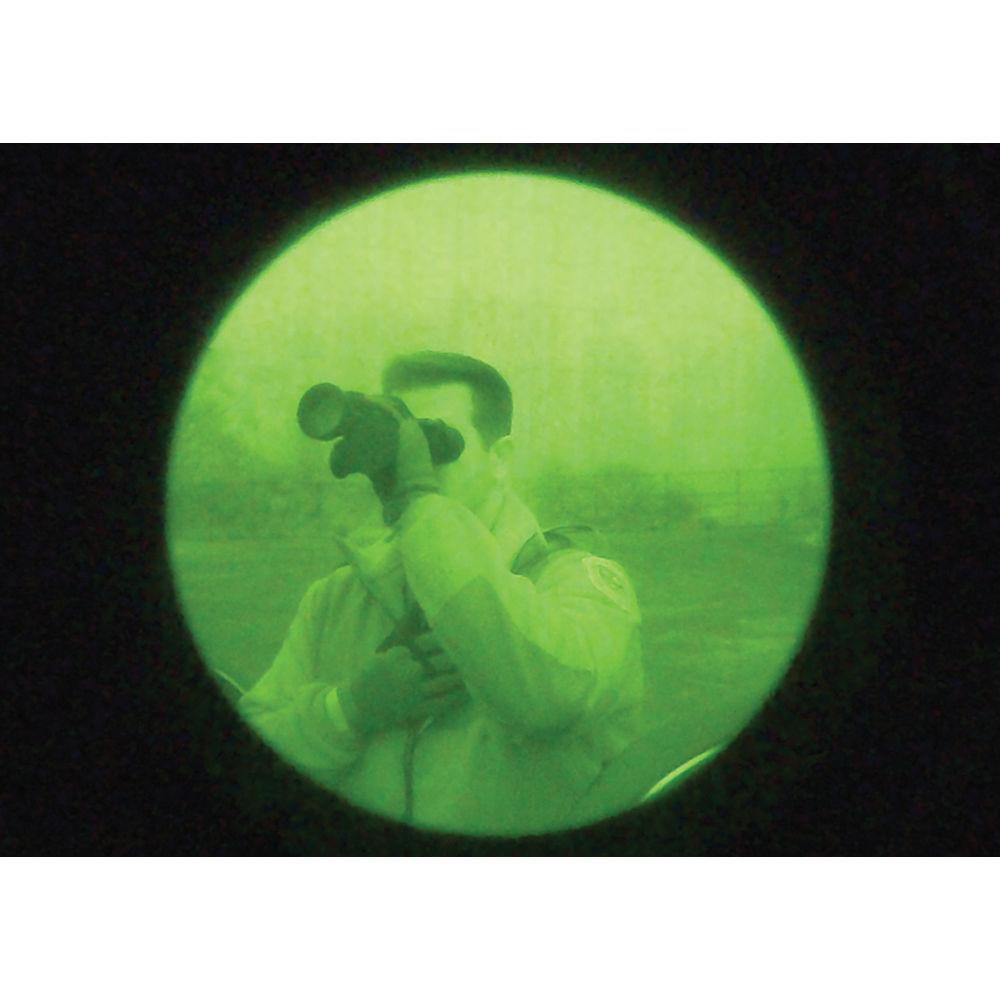

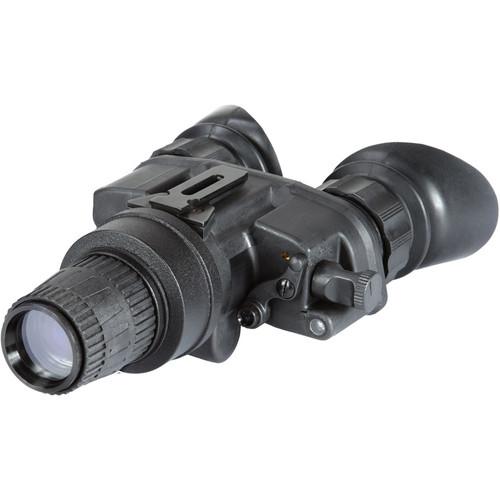

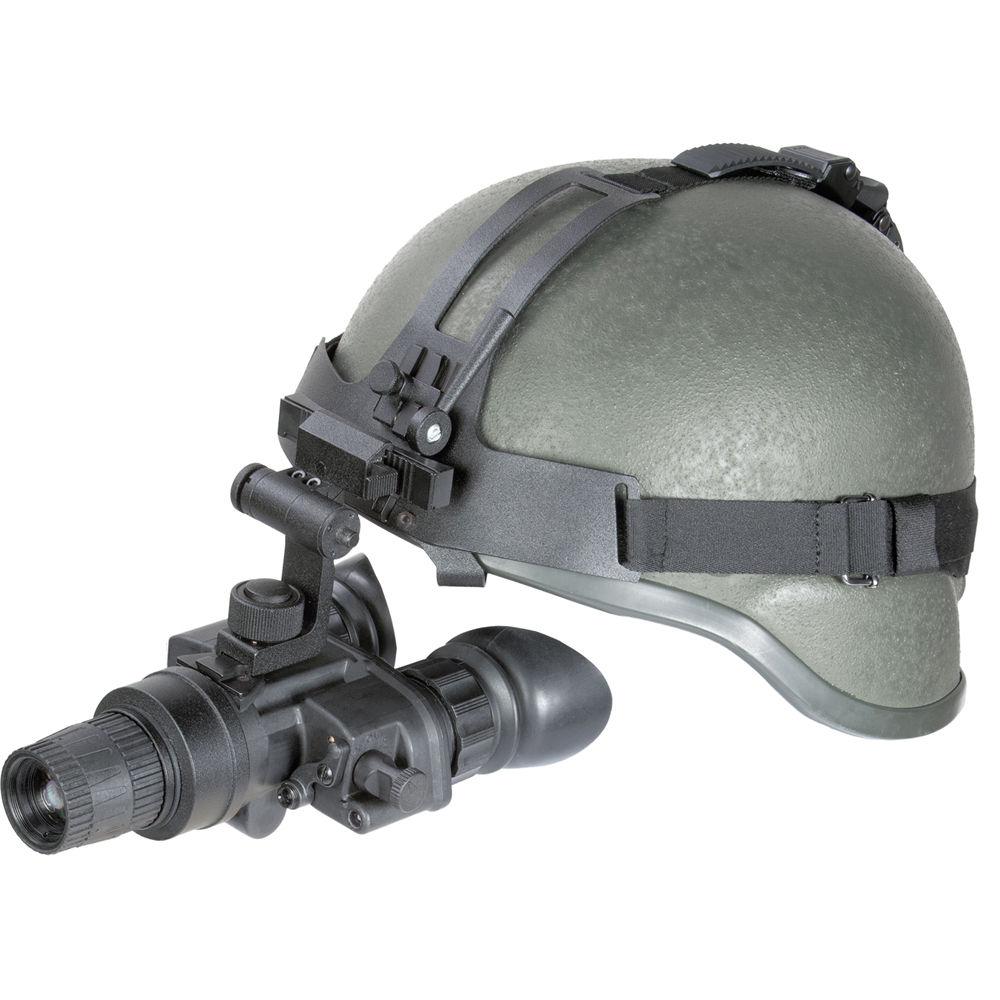

Product description Rugged and compact, the Nyx7 Pro Gen 3+ Alpha Night Vision Goggles from Armasight are a bi-ocular night vision device. Built with high grade optics and simple, reliable electronics, the Nyx-7 Pro provides clear, bright nighttime images even under the most trying conditions. For hands-free use, they can be worn on the included flip-up head mount or the universal helmet mount (sold separately), both of which have a built-in mechanism that will automatically turn the unit off when it is flipped up. These goggles can also be utilized for middle to long range observation with 3X afocal, 5X, and 8X (sold separately) magnifier lenses and with IR illuminators (sold separately).
The Nyx-7 Pro is equipped with built-in IR illuminators that allow the users to operate in total darkness. It also has a high-light cut-off feature that protects the image tube from bright light sources, as well as a flip-up shut-off feature that activates when used with the helmet mount (sold separately) assembly. The Nyx-7 Pro is equipped with LED indicators that are displayed on the screen of the eyepiece to alert the user of a low battery or if the IR is turned on.
With a built-in CR123/AA adapter in the battery compartment, these goggles require only a single 3V CR123 or 1.5V AA battery for hours of night vision operation. Waterproof, rugged, lightweight and compact, the Nyx-7 Pro is a suitable hands-free unit for users ranging from the casual civilian to even the most demanding military and law enforcement professional. - Compact and lightweight, rugged design
- Head or helmet mountable for hands-free usage
- Ergonomic, simple, easy to operate controls
- Utilizes single CR123A Lithium battery or AA alkaline, adapter included
- Adaptable for use with cameras
- Built-in IR illuminators and flood lens
- Automatic shut-off system
UPC: 818470018896 In the Box Armasight by FLIR Nyx7 Pro Gen 3+ Alpha Night Vision Goggles Battery Adapter: 1 x CR123A 3V / 1 x AA 15V ANHG000004 Goggle Kit rvbeuyvcdqefeywxbvtbyqetefvysy Lens Cap Lens Tissue Lithium Battery CR123A Soft Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Nyx7 Pro Gen 3 Alpha Night Vision Goggles in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSGNYX7P0133DA1 Specs | Image Tube | Gen 3+ Alpha (High Performance) | | IIT Generation | Gen 3+ | | Resolution | 64 to 72 lp/mm | | Magnification | 1x standard; 3x, 5x, and 8x (sold separately) | | Battery Life | 60 hours | | Lens System | F1.2, 27 mm | | Field of View | 40° | | Range of Focus | 0.25 to infinity | | Diopter Adjustment | -5 to +5 | | Controls | 3 position switch (On, Off, and IR) | | Indicators | IR: In FOV
Low battery: In FOV | | Power Supply | (1) 3 V Lithium or (1) AA Alkaline | | Environmental Rating | Waterproof / MIL-810F compliant | | Operating Temperature | -40 to 122°F (-40 to +50°C) | | Dimensions (L x W x H) | 6.5 x 4.5 x 2.9" (165.0 x 114.3 x 73.6 mm) | | Weight | 0.90 lb (0.40 kg) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 12.0 x 7.0 x 7.0" |
