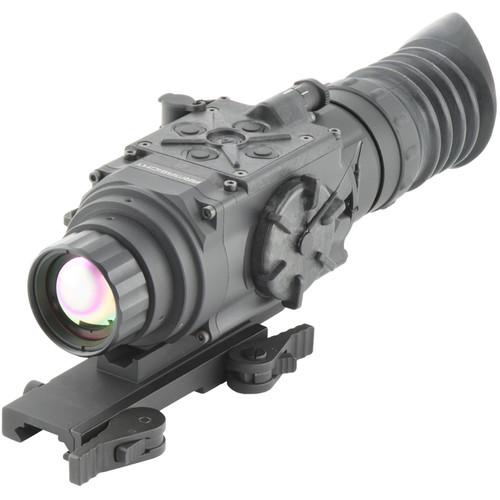

Product description Armasight designed the Predator 336 2-8x25 Thermal Weapon Sight as a multipurpose optic that can be used as either a thermal riflescope or a handheld imager. At the core of this device is an uncooled 336x256 FLIR Tau 2 VOx microbolometer that allows you to detect targets during the day or at night and through smoke, snow, fog, or dust. The sensor has spectral resolution of 7-14µm and a pixel size of 17µm and allows you to see all sources of thermal signature in that range. The optical system features a germanium lens with a focal length of 25mm and a 1.0 f-number. It provides operators with 1.6x optical zoom and 66' close focusing distance. To add versatility to the device, the built-in electronics offer a digital zoom of 2x to 4x.
You can view images and aim at targets using the built-in 640x480 LED VGA display with a 60 Hz frame refresh rate or relay videos to an external monitor for viewing or recording. To provide improved visibility and target recognition, the scope also offers six digital reticle patterns in four colors: black, white, red, and cyan. The reticle also features electronic tracking capability, which allows it to stay centered on a target (without a walk-off) while you zoom in or out. The user-friendly drop-down menu allows you to choose between numerous image filtering options and image processing functions that provide many imaging palettes. Additionally, the included remote control allows for a wireless operation.

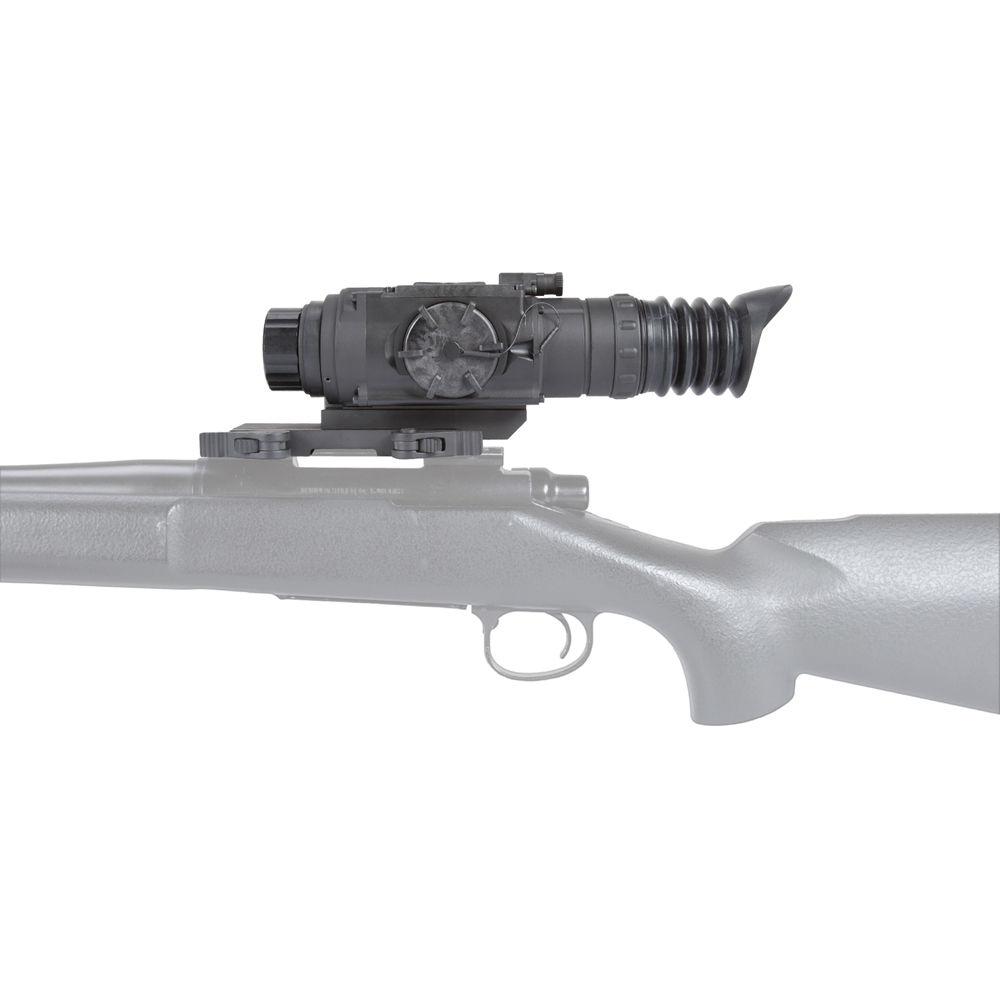

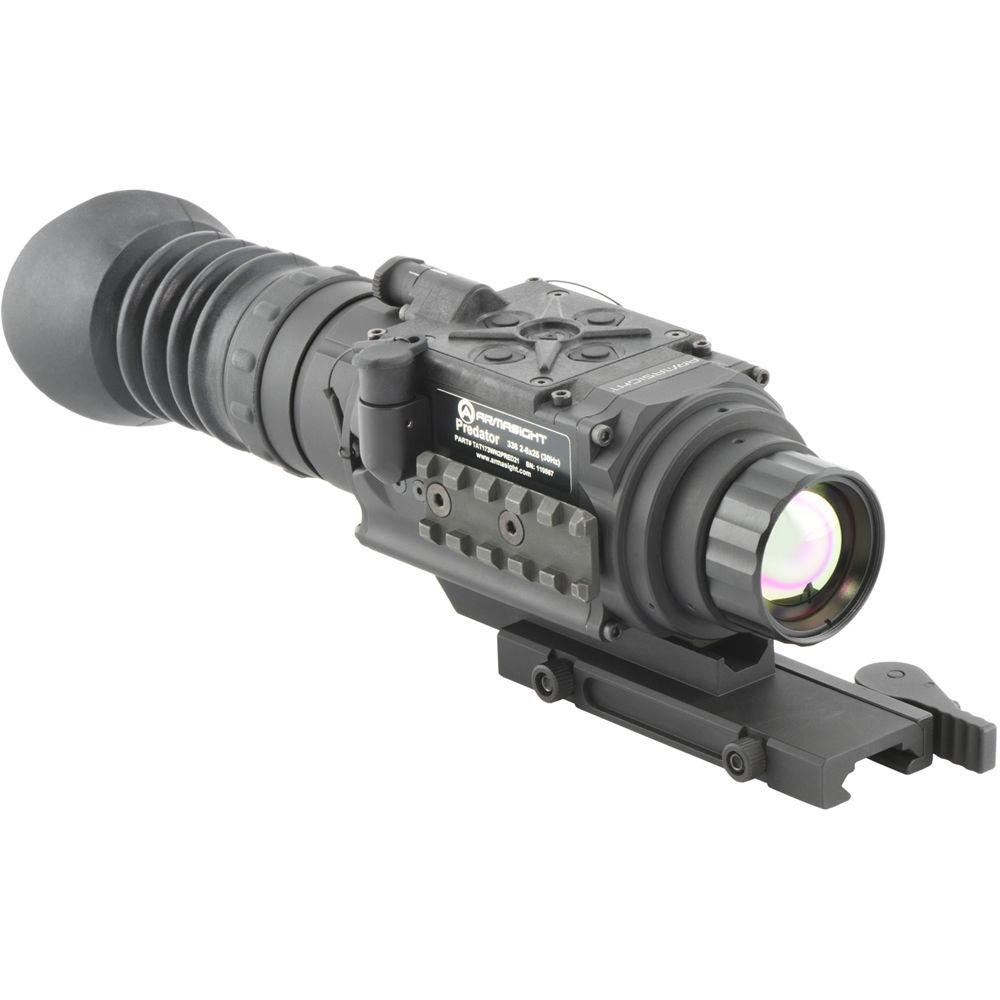

The housing is made of high-quality aluminum alloy that provides shock-resistant and weather-resistant performance. It also features an ergonomic and lightweight design with knurled adjustment rings. You can use this device as a handheld monocular or mount it to your weapon via a quick release Picatinny/Weaver mount. For other accessories such as lasers, the monocular is outfitted with a Picatinny rail located on a side. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Optical Performance
-
- Germanium objective lens
- 25mm focal length and f/1.0
- 1.6x optical magnification
- Angle of view at 1.6x: 13 x 10° ;
- 1x, 2x, and 4x digital zoom
- 66' close focusing distance
- ±5 dioptric range
- Long 45mm eye relief
- Imaging Sensor
-
- FLIR Tau 2 VOx sensor
- Uncooled microbolometer type
- 7-14µm spectral range
- Resolution 336x256 pixels
- 17µm pixel size
- Display & Video Performance
-
- Color LED VGA display
- Refresh rate: 60 Hz
- NTSC/PAL video out for external monitor or recorder
- Digital Reticle
-
- Reticle patterns:
- 4 MOA Dot, Line-Dot, Cross-Center Dot, Cross, Crosshair
- Reticle color options: black, white, red, and cyan
- Reticle stays centered on target during zoom
- Image Enhancement Tools
-

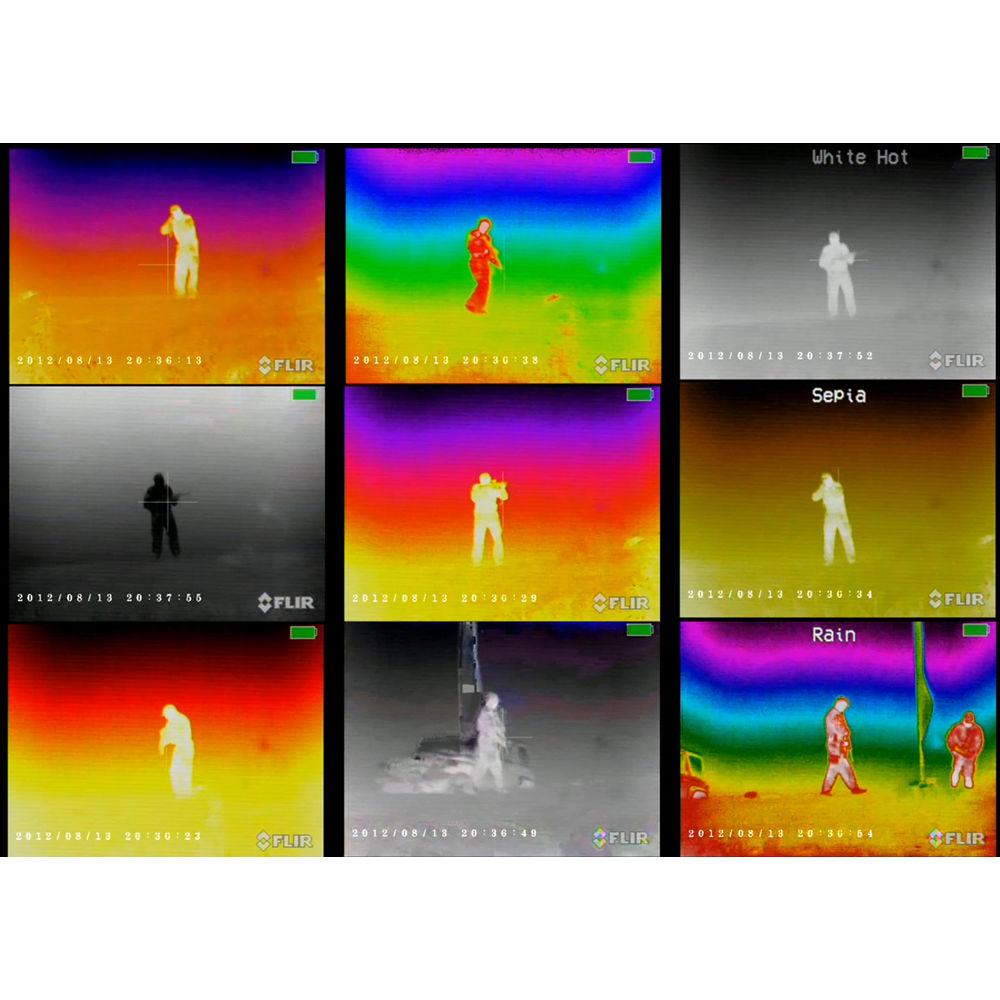

- Color modes:
- White Hot, Black Hot, Fusion, Rainbow
- Globow, Ironbow 1, Ironbow 2, Sepia

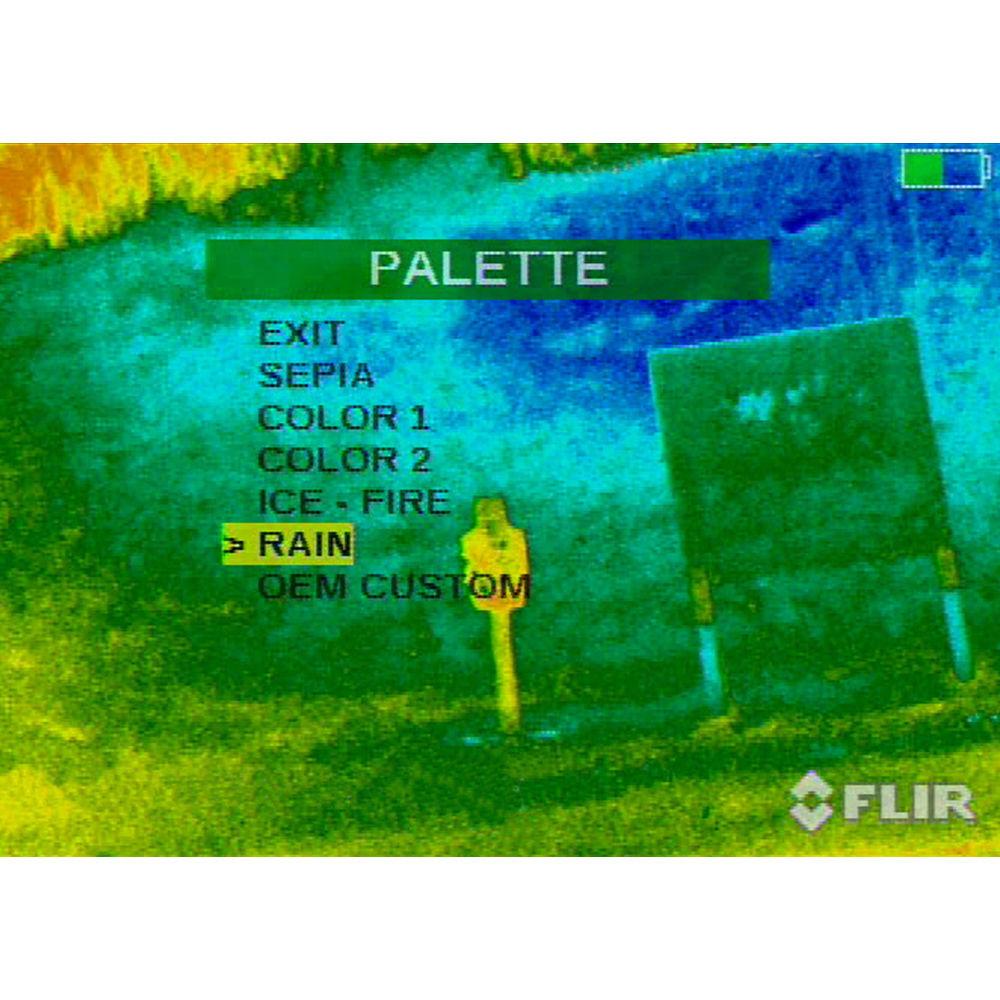

- Color 1, Color 2, Ice-Fire, Rain, and Custom
- Active Contrast Enhancement (ACE):
- Digital contrast correction for temperature-dependent scene optimization
- Second Generation Digital Detail Enhancement (DDE):
- Digitally improves image sharpness, edge sharpness, and reduces blurring
- Smart Scene Optimization (SSO):
- Improves target contrast against background
- Information Based Histogram Equalization (IBHEQ):
- Sky/Sea enhancement algorithm adjusts gain and excludes redundant data
- Silent Shutterless Non-uniformity Correction (SSN)
- Digital flat-field correction that reduces of image blurriness
- User Controlled Manual Non-Uniformity Correction (UCMNUC)/Flat-Field Correction (FFC):
- Mechanical shutter performs a non-uniformity correction (NUC) or flat-field correction, FFC)
- Use and Handling
-
- Rapid 3-second start-up
- Intuitive drop-down user interface
- Wireless remote control
- 192 MOA windage range
- 144 MOA elevation range
- 1.2 MOA impact point correction
- Construction Details
-
- Machined aluminum housing
- Quick release Picatinny/Weaver mount
- Nitrogen-filled, water and fog-resistant
- Picatinny accessory rail on one side
- Winged rubber eyecup
UPC: 849815005516 In the Box Armasight by FLIR Predator 336 2-8x25 Thermal Weapon Sight (60 Hz) - Objective Lens Cap
- Eyecup
- Spare Battery Cassette
- 2 x CR-123A Lithium Battery
- Wireless Remote Control #94
- Picatinny Adapter for Remote
- Video Cable
- Soft Carrying Case
- Limited 3-Year Warranty
- Limited 10-Year Warranty on VOx Detector
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Predator 336 2-8x25 Thermal Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR Predator 336 Specs | Imager | 336 x 256 FLIR Tau 2 uncooled microbolometer | | Pixel Size | 17 µm | | Refresh Rate | 60 Hz | | Display | 640 x 480 color LED VGA | | Reticle | Digital color reticles: black, white, red, or cyan | | Video Format | NTSC / Pal | | Magnification | Optical: 1.6
Digital zoom: 1x / 2x / 4x | | Lens System | Focal length: 25mm
F-number: f/1.0 | | Angle of View | 13 x 10° | | Windage/Elevation Adjustment | 192 MOA / 144 MOA | | Impact Point Correction | 1,2 MOA
0.35 mil
1.3" @ 100 yd (3.5cm @ 100 m) | | Minimum Focus Distance | 66' (20 m) | | Eye Relief | 45 mm | | Exit Pupil | 10 mm | | Dioptric Correction | ±5 | | Battery / Runtime | 2 x CR-123A lithium or rechargeable (3-3.7 V) / 4 h | | Mount | Picatinny/Weaver, quick release | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -58 to 158°F (-50 to 70°C) | | Weatherproofing | Water-resistant | | Dimensions | 7.6 x 3.1 x 2.7" (194 x 78 x 68 mm) | | Weight | 22.2 oz (630 g) | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 13.4 x 5.3 x 4.8" |
