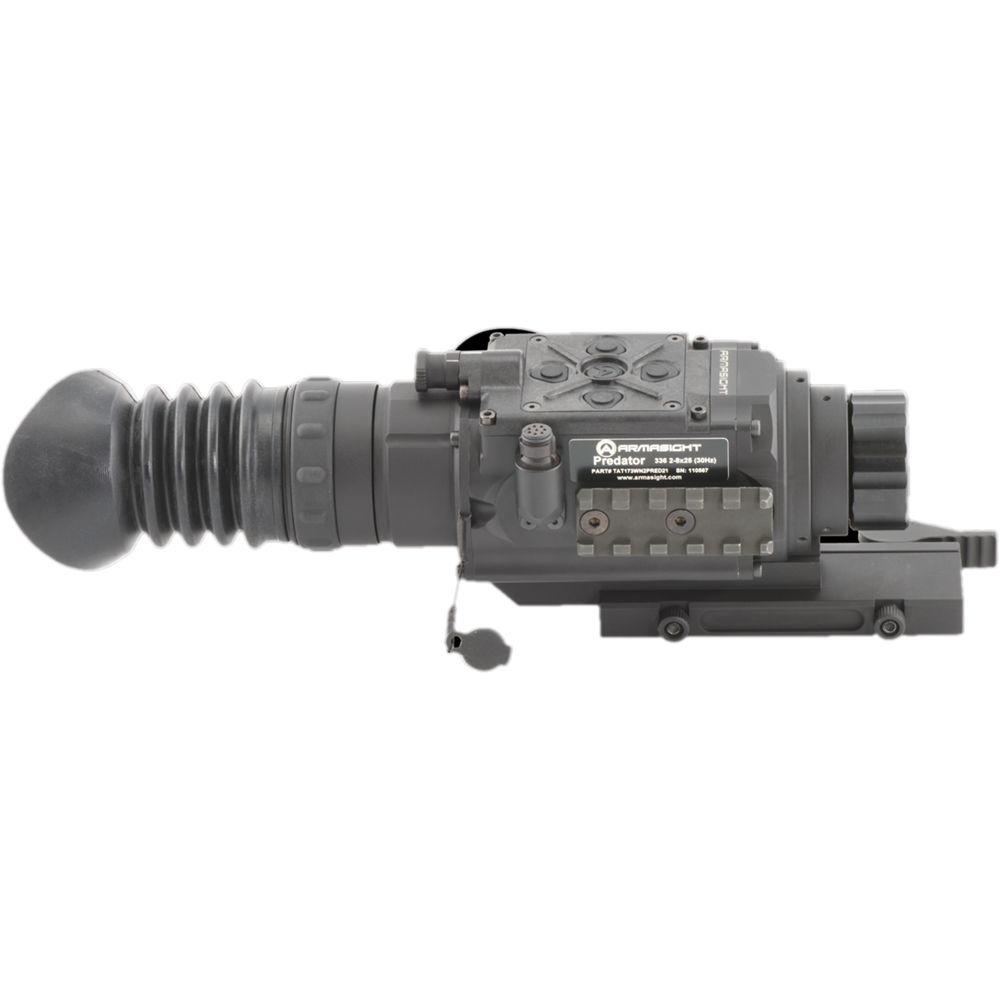

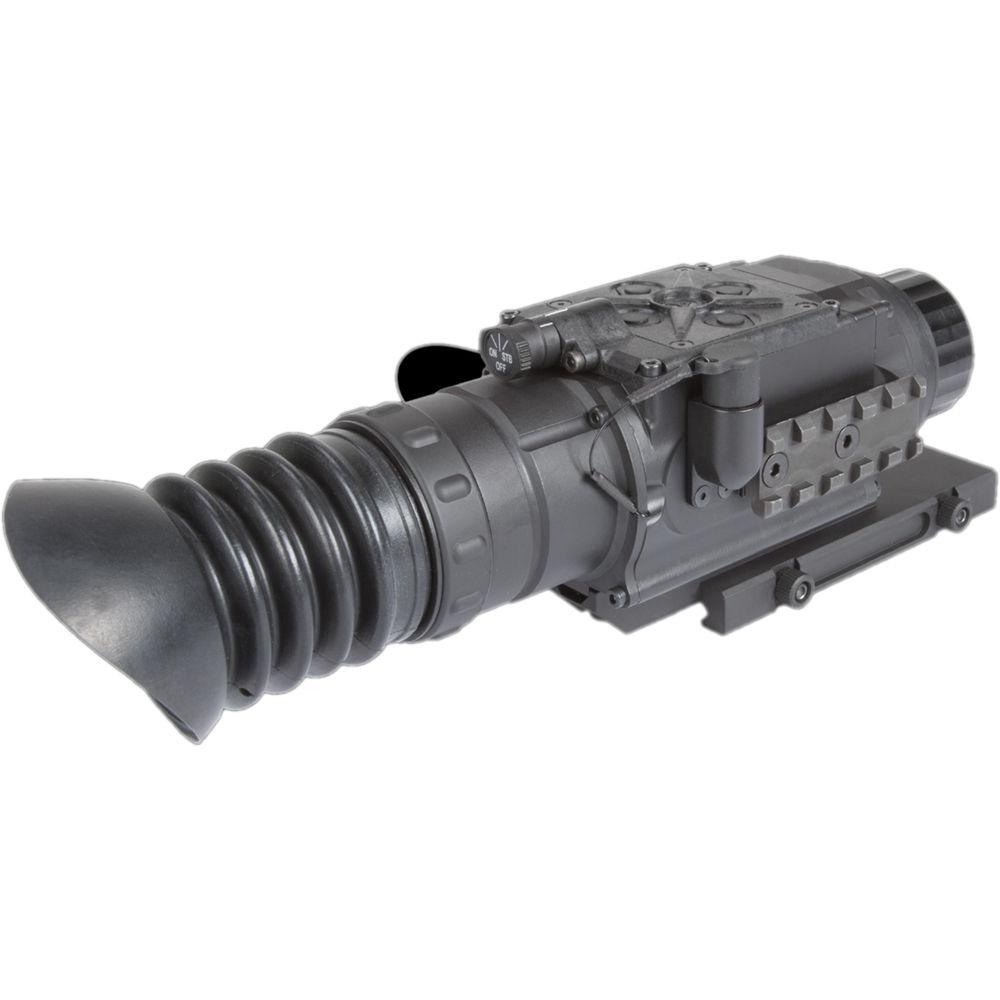

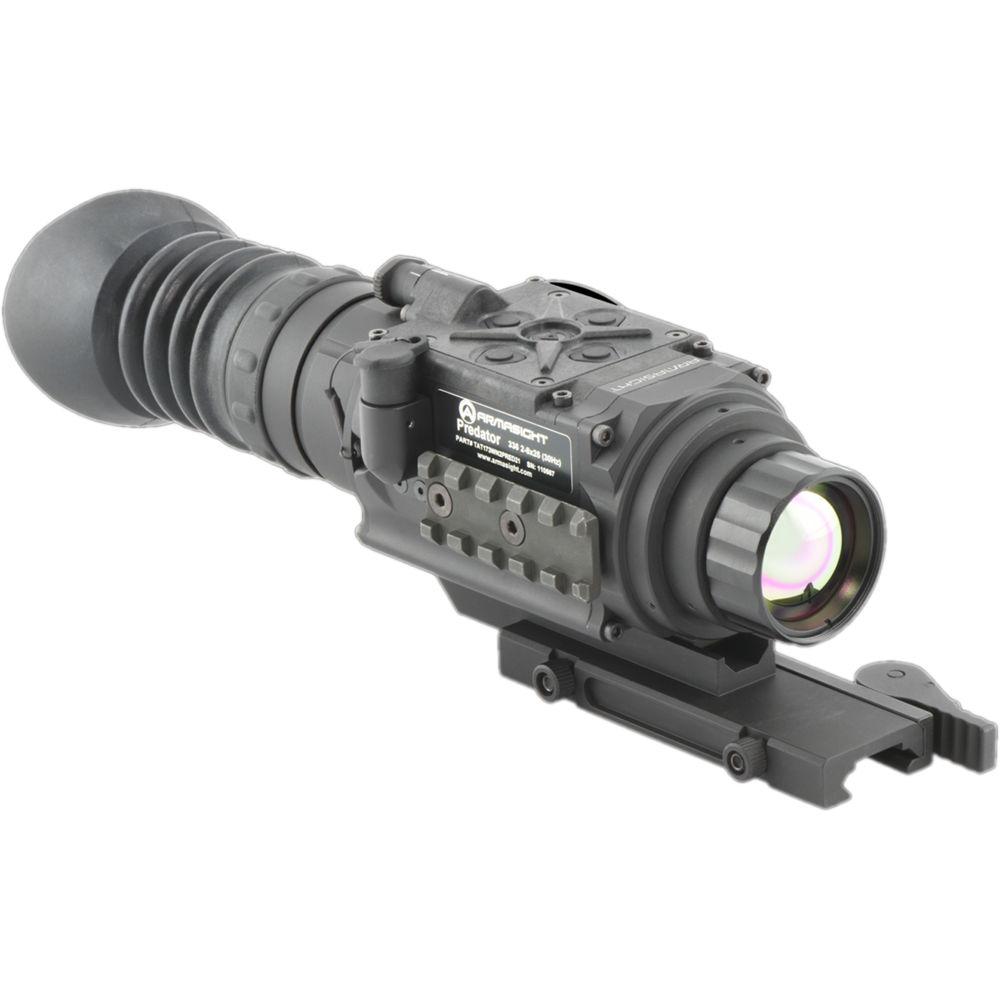

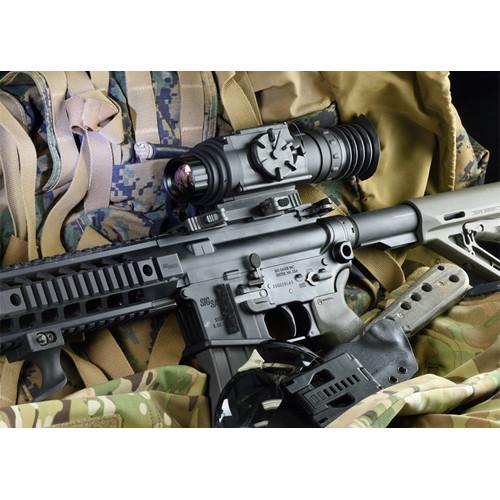

Product description Principally designed as a scope, Armasight's Predator 336 2-8x25 Thermal Weapon Sight can also pull duty as a magnified spotting scope or handheld thermal imager. To detect targets day or night; through smoke, snow, fog, or dust the Predator is equipped with a solid-state uncooled 336x256 FLIR Tau 2 VOx microbolometer. Unlike laser targeting or near-infrared illumination often used with NVDs, the Predator is extremely difficult to detect with other devices, as it emits no visible light or RF energy.View thermal images utilizing the in-view color display or relay them through the video output port for viewing on an external monitor or for recording, the same port can be used to import information from external sources. The user-friendly menu allows you to choose between image filtering/enhancement options, different display color modes, and one of six reticle options in one of three colors.The aluminum alloy housing is lightweight and durable, and to compliment its wide operational temperatures it is nitrogen filled and o-ring sealed to provide water and fogproof performance under most conditions. A dual quick-release Picatinny mount allows the scope to be easily removed and remounted without tools or having to be re-zeroed, and an integrated side rail on the scope accommodates accessories such as an optional battery pack or recording device. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Optical Performance
-
- Germanium objective lens
- Lens System: 25mm, f/1.0
- Optical magnification: 1.6x
- Digital zoom: 2x/4x
- Close focus: 66'
- Imaging Performance
-
- Detector: Tau 2
- Type: Uncooled microbolometer
- Spectral range: 7.5-13.5µm
- Resolution: 336x256 pixels
- Pixel size: 17µm
- Refresh rate: 30 Hz

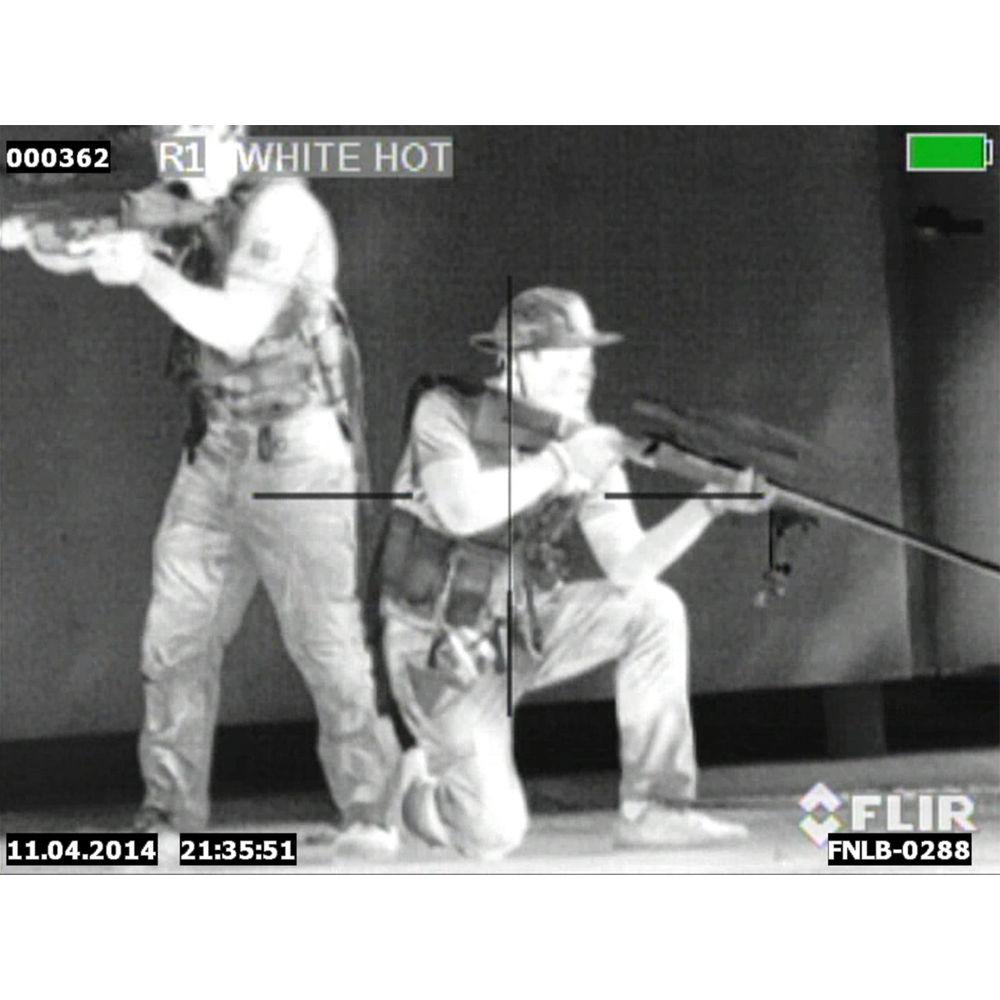

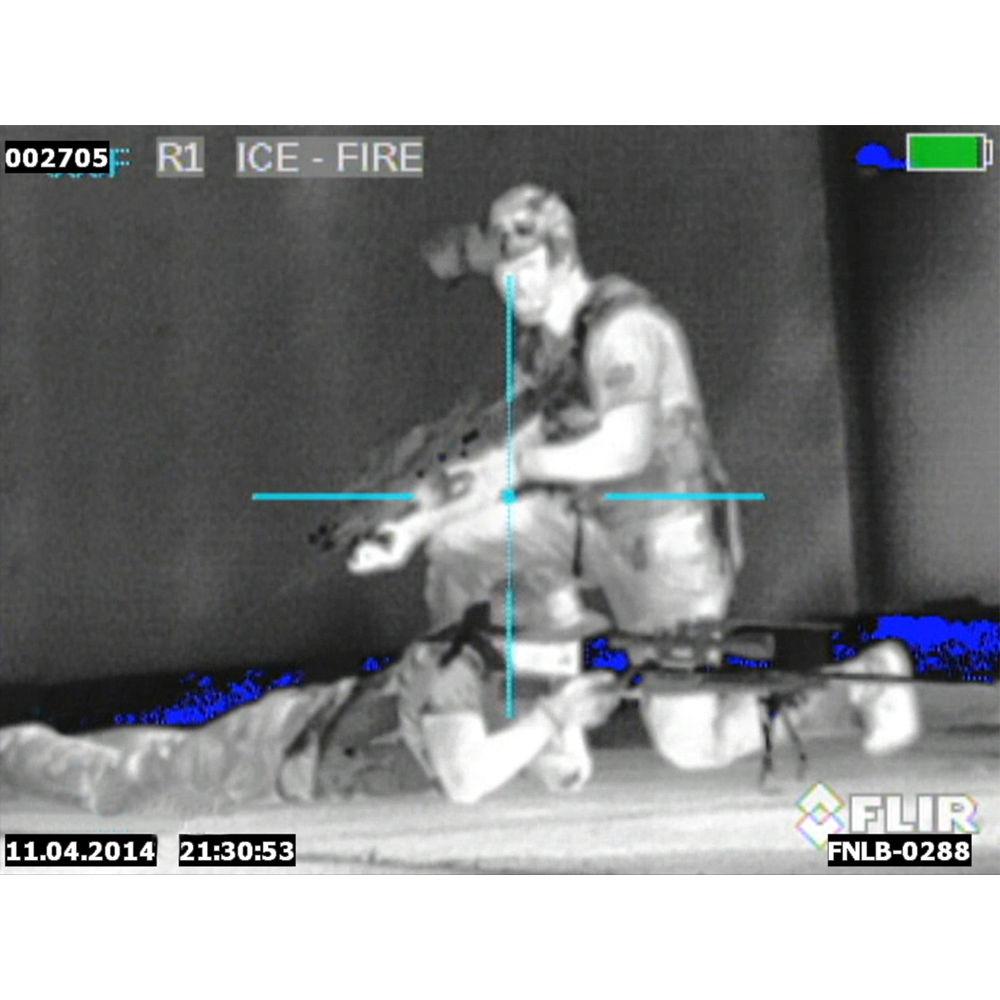

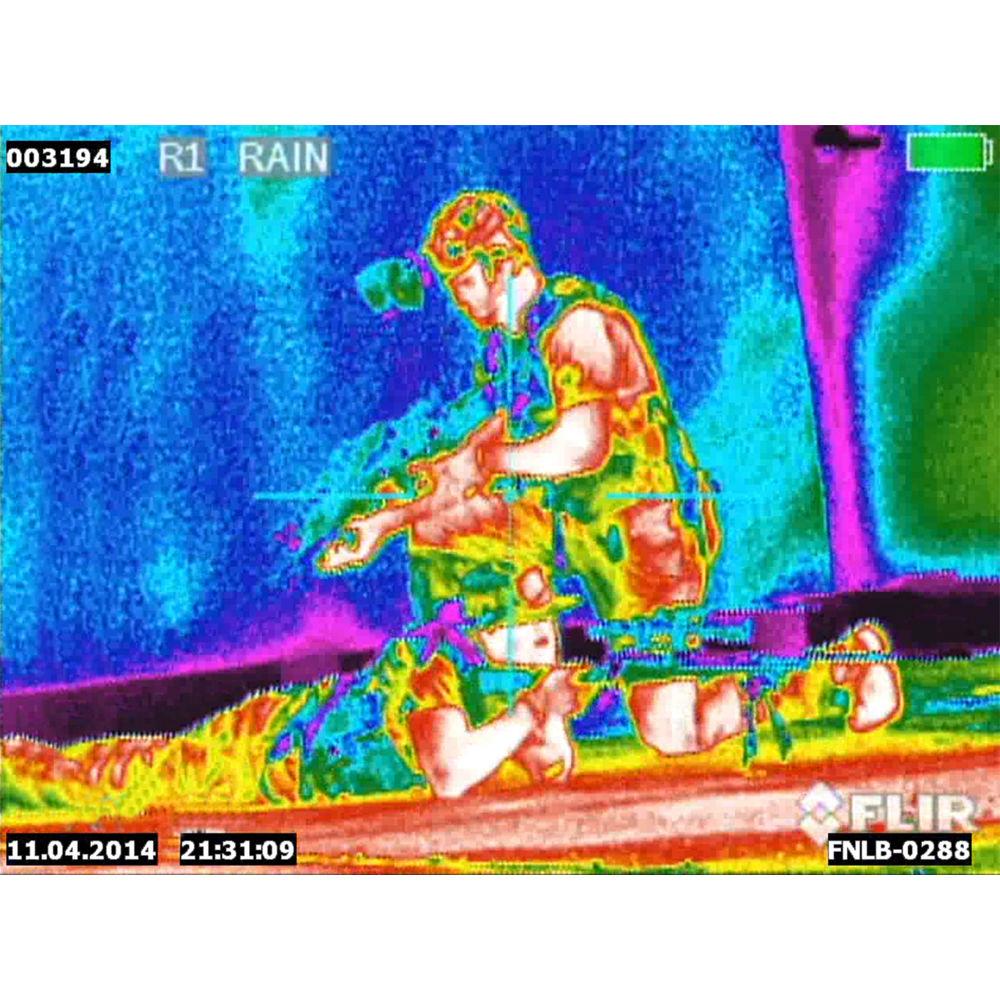

- Color modes: White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice-Fire, Rain, and Custom
- Drop-down user menu
- NTSC/PAL video input/output to connect to external video monitor or record images
- Image Enhancement Tools
-
- Active Contrast Enhancement (ACE):
- Digital Contrast correction that allows for scene optimization based on dynamic adjustments where a variety of contrast levels occur depending scene temperature
- Second generation Digital Detail Enhancement (DDE):
- Sharpness correction that digitally enhances the picture for clearer images with sharper edges and reduced image blurriness
- Smart Scene Optimization (SSO):
- Computational correction that improves visual acuity for targets that have thermal signatures similar to the surrounding background
- Information Based Histogram Equalization (IBHEQ):
- A "Sky/Sea" enhancement algorithm that adjusts camera gain and excludes pixels determined to contain unimportant information
- Silent Shutterless Non-uniformity Correction (SSN)
- A digital flat-field correction used to extend periods between mechanical shutter events and to further reduce image blurriness
- User Controlled Manual Non Uniformity Correction / Flat-Field Correction (UCMNUC/FFC):
- A mechanical shutter between the camera sensor and the lens used to perform a non-uniformity correction (NUC) (or flat-field correction (FFC)
- Use and Handling
-
- 6-pattern digital reticle
- User selectable
- 4 MOA center aiming dot
- Broken horizontal line with center aiming dot
- Broken cross with center aiming dot
- Crosshair
- Duplex crosshair
- No Reticle
- Reticle color options:
- ±5 dioptric adjustment
- 1.8" (4.5cm) eye relief
- Includes wireless remote switch
- Battery status, active function, selected reticle, are continuously displayed for instant real-time feedback
- Runs on two user-supplied CR123 lithium or chargeable batteries
- Construction Details
-
- Aluminum alloy housing
- Dual quick-release Picatinny/Weaver rail mount
- Nitrogen-filled, water and fogproof under most conditions
- Side Picatinny accessory rail
- Contoured rubber eyeguard blocks stray peripheral light
- Weight: 22.2oz without batteries
UPC: 849815005509 In the Box Armasight by FLIR Predator 336 2-8x25 Thermal Weapon Sight (30 Hz) Objective Lens Cap Eyecup Spare Battery Cassette 2 x CR123A Lithium Battery Wireless Remote Control with Rail Mount Video Cable Carrying Case Limited 3-Year Warranty Limited 10-Year Warranty on VOx Detector Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Predator 336 2-8x25 Thermal Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR TAT173WN2PRED21 Specs | Imager | 336 x 256 FLIR Tau 2 uncooled microbolometer | | Pixel Size | 17 µm | | Refresh Rate | 30 Hz | | Display | 640 x 480 color LED | | Video Format | NTSC / Pal | | Magnification | Optical: 1.6
Digital zoom: 1x/2x/4x | | Lens System | 25mm, f/1 | | Angle of View | X-axis: 13°
Y-axis: 10° | | Minimum Focus Distance | 66' / 20 m | | Eye Relief | 1.8" / 4.5 cm | | Dioptric Correction | ±5 | | Battery | 2 x CR-123 lithium or rechargeable | | Runtime | 4 hr, max | | Mount | Picatinny/Weaver, quick release | | Temperature Range | Operating: -40 to 122°F / -40 to 50°C
Storage: -58 to +158°F / -50 to 70°C | | Weatherproofing | Water resistant | | Dimensions | 7.6 x 3.1 x 2.7" / 19.4 x 7.8 x 6.8 cm | | Weight | 22.2 oz / 630.0 g, without batteries | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 12.6 x 7.1 x 4.3" |
