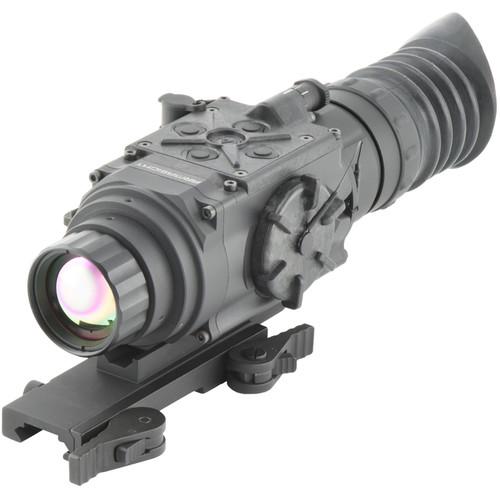

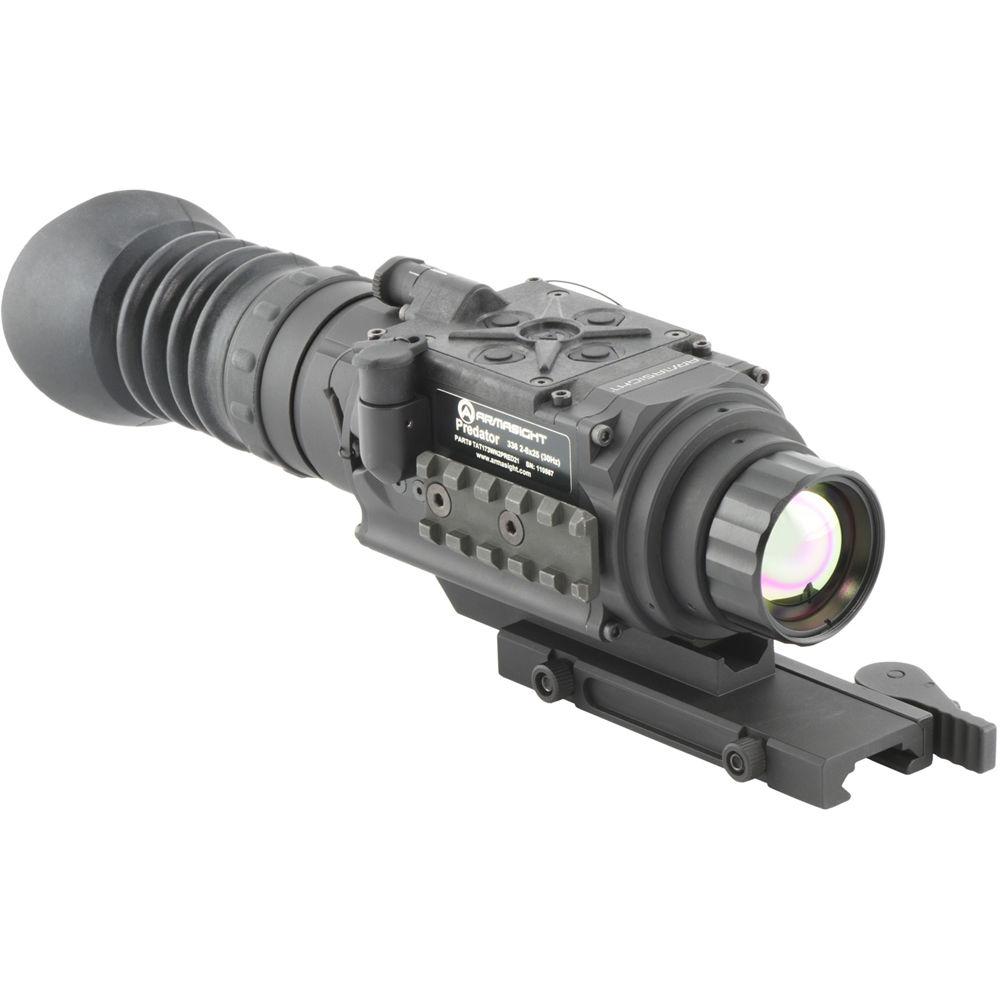

User Manual for Armasight by FLIR Predator 640 1-8x25 Thermal Weapon Sight Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Predator 640 1-8x25
- Product category: Thermal Scopes Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Thermal Scopes
 |
User manual for the Armasight by FLIR Predator 640 1-8x25 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description Gain tactical advantage with the Preditor 640 1-8x25 Thermal Weapon Sight from Armasight that allows you to see thermal signature of your targets through smoke, fog, and dust, day or night. Its FLIR Tau 2 uncooled microbolometer detects long-wave infrared and allows you to see heat emanating from humans, animals, and jet or combustion engines. The sensor has a resolution of 640x512, 17µm pixel size, and refresh rate of 30 Hz. The optical system features a 25mm f/1 germanium lens with 1x magnification and a digital zoom up to 8x.
The built-in LED VGA display features 640x480-pixel resolution and can display several color palettes. It provides a selection of digital reticle patterns in a variety of colors. For documenting your observations, the scope is capable of relaying videos through a video-out port in NTSC and PAL formats. Additionally, the operating system allows you to enhance video outputs with a selection of imaging filter algorithms. This imager also features a Bluetooth compatibility, wireless remote control, active profile indicator, palette setting indicator, and battery status indicator.

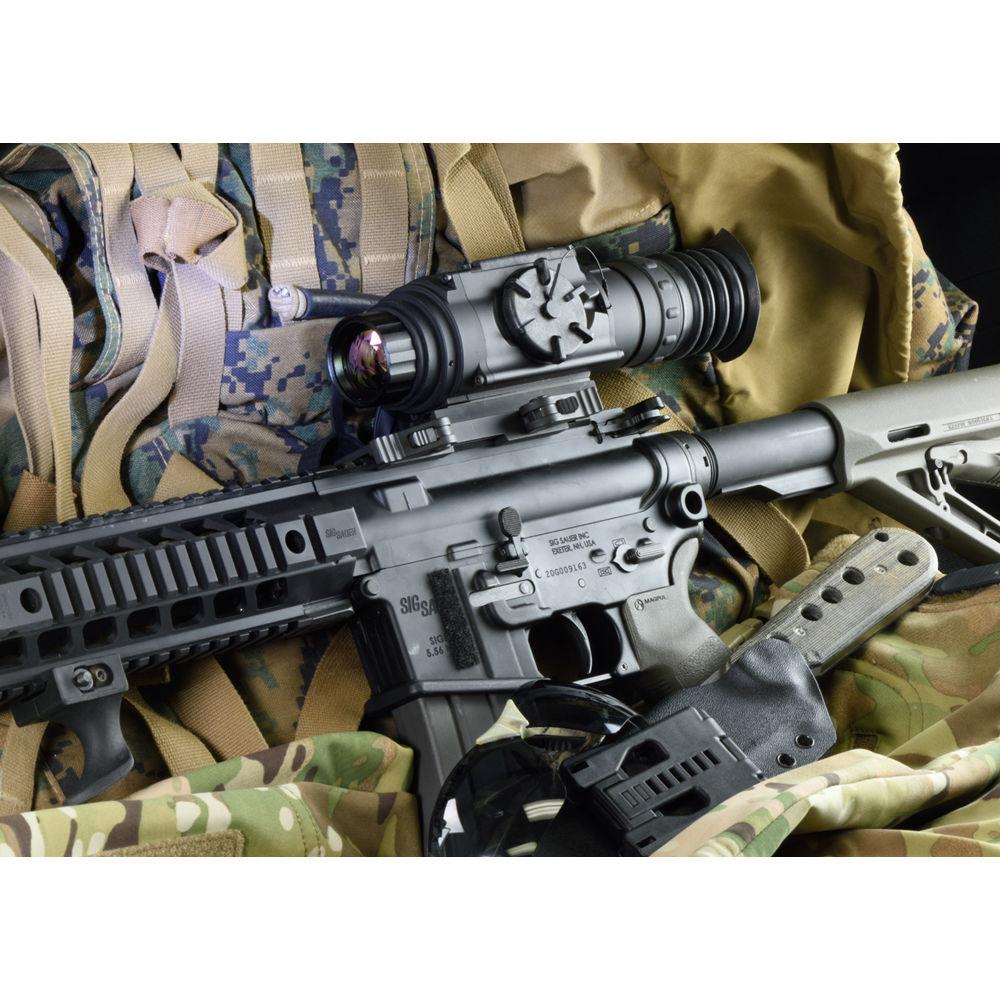

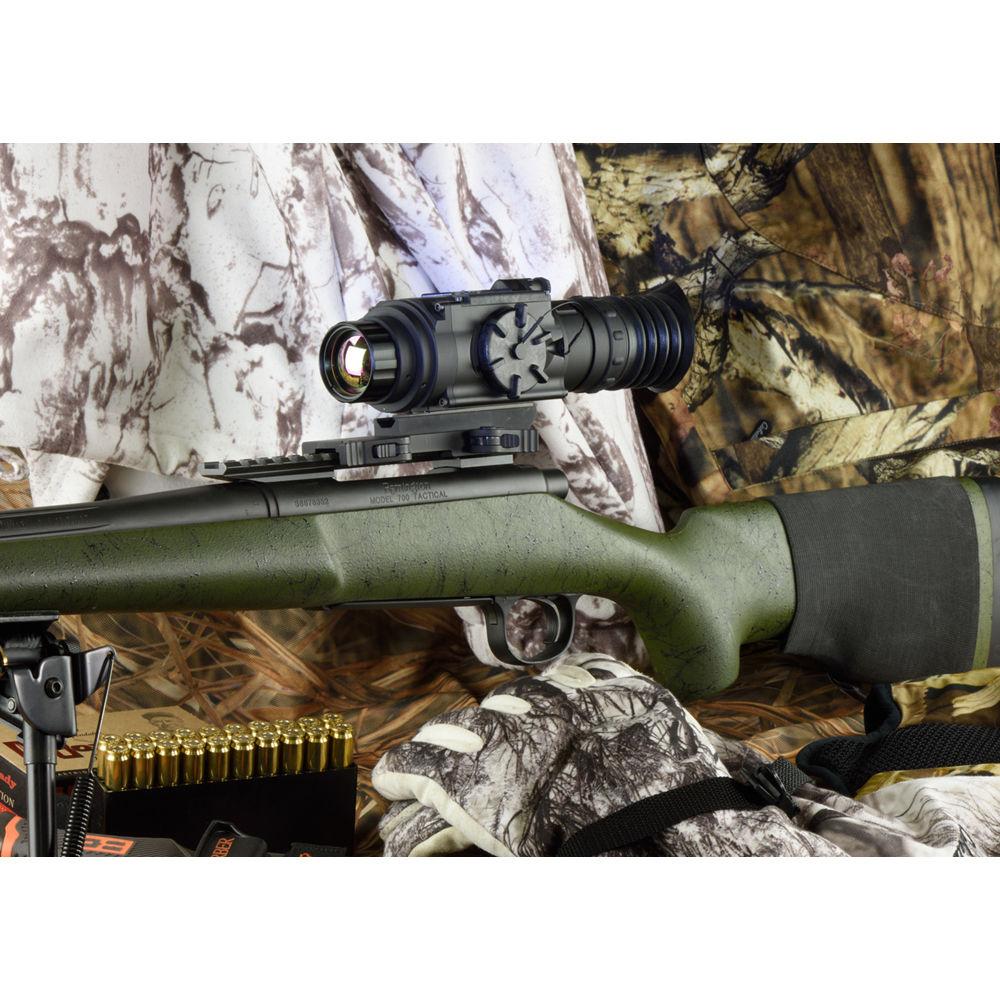

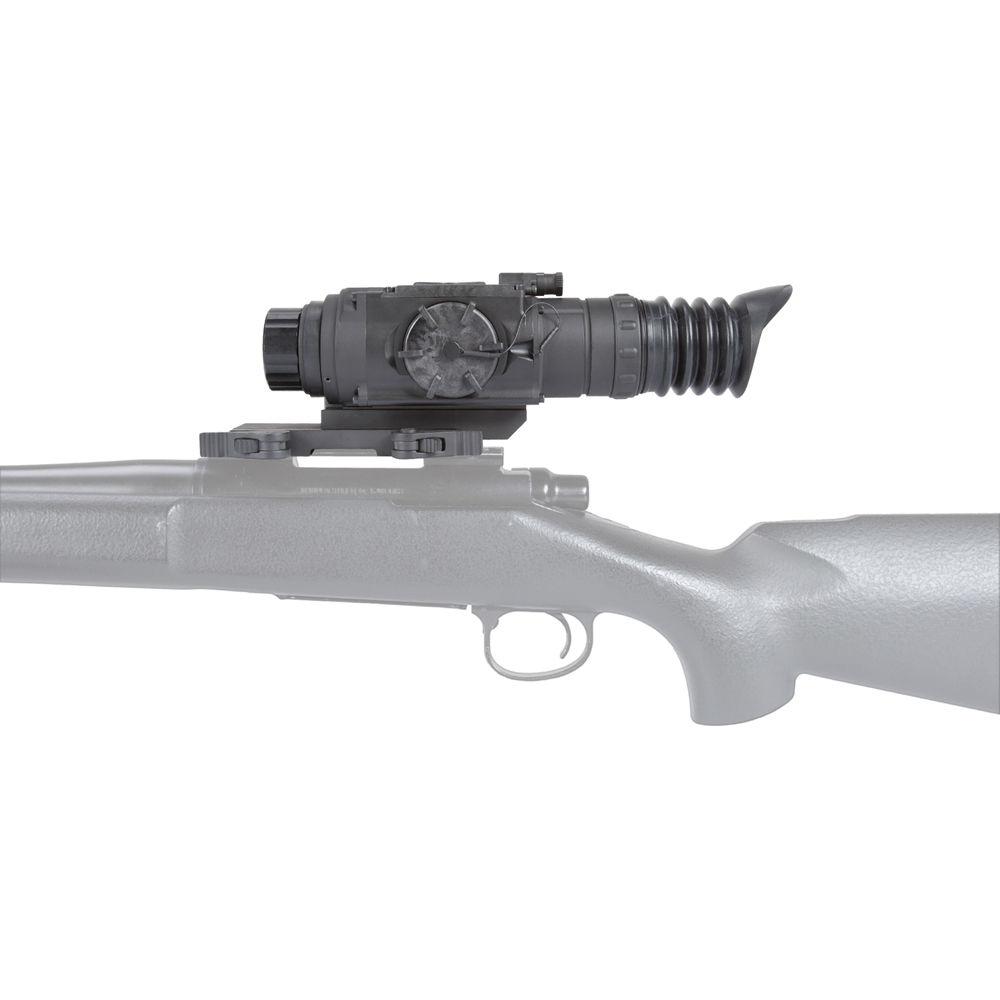

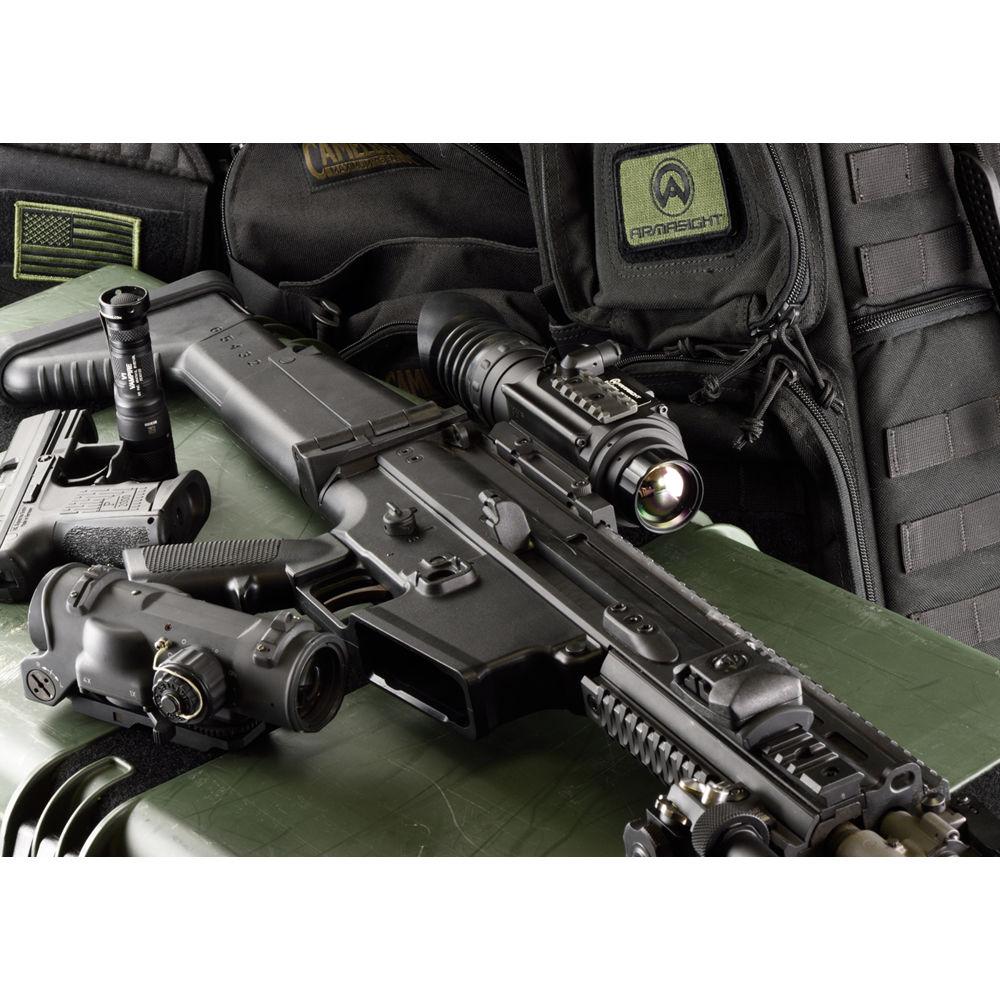

To withstand the rigors of the battlefield, this device can operate in extreme temperatures and has a durable waterproof and fog-resistant aluminum alloy housing. In addition to handheld operation, you can mount it on Picatinny or Weaver-style rails via the included double-lever quick release mount. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - Thermal Imager
-
- Uncooled Tau 2 sensor
- 7-14µm spectral response
- Array size: 640x512
- Pixel Size: 17μm
- Optical Performance
-
- Lens system: 25mm f/1
- Germanium objective lens
- 1x optical in default NTSC
- Digital zoom: 1x, 2x, 4x, 8x
- Angle of view: 25 x 8°
- Exit pupil: 10mm
- Eye relief: 45mm
- Close focus: 66'
- Display
-
- 640x480 LED VGA display
- 30 Hz refresh rate
- Eight discrete brightness levels
- NTSC and PAL video output formats

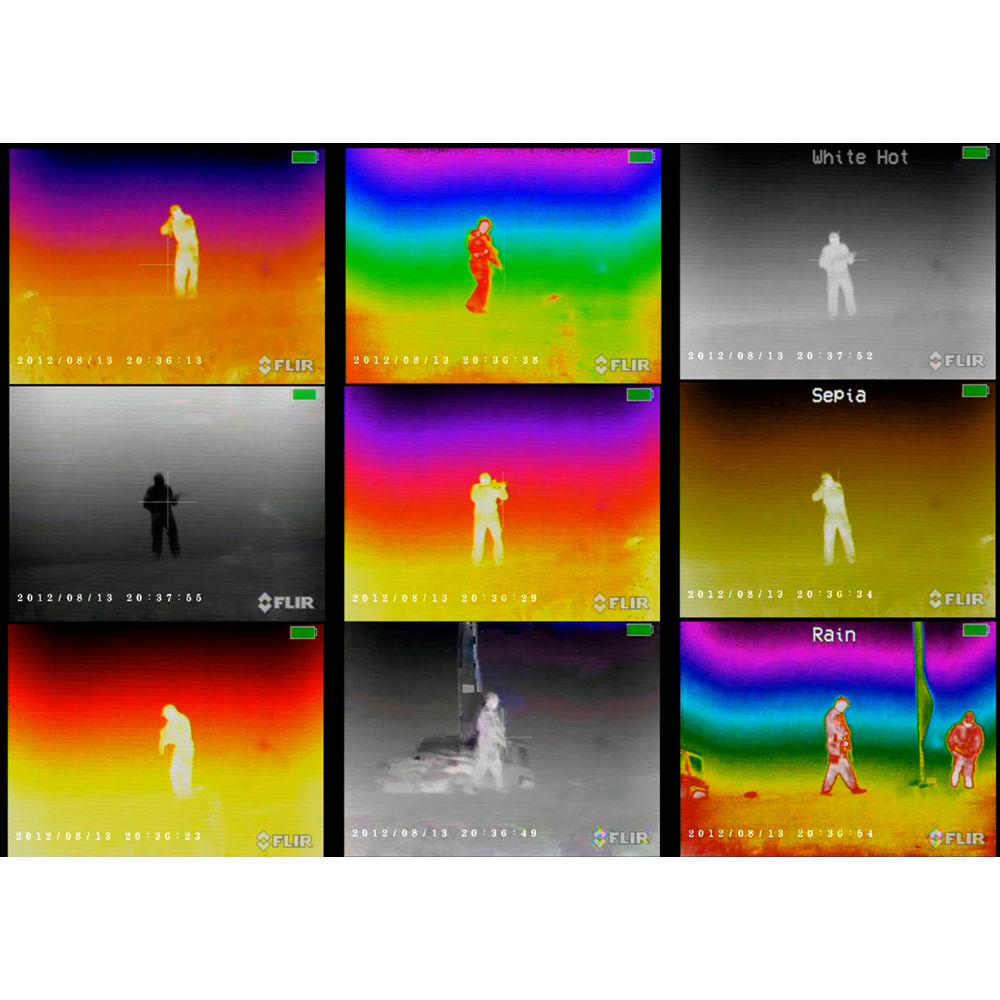

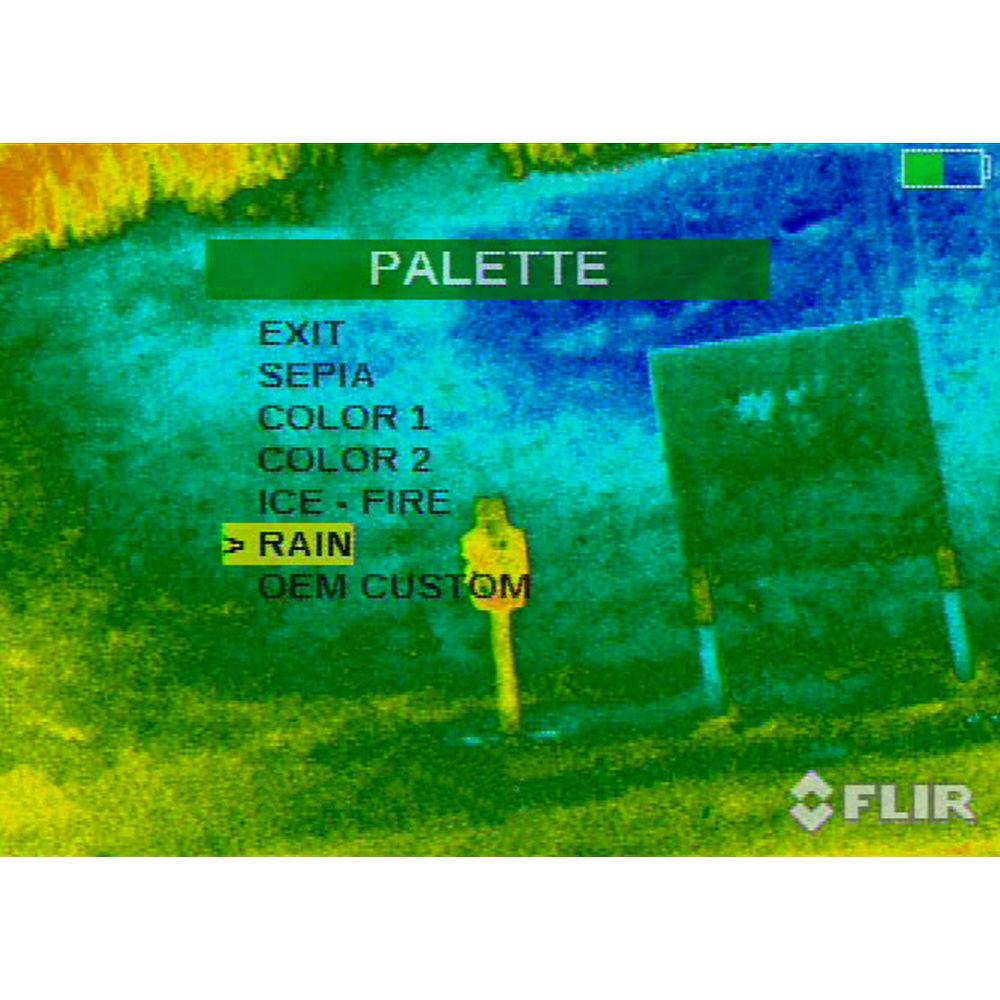

- Image palettes:
White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow 1
Ironbow 2, Sepia, Color 1, Color 2, Ice-Fire, Rain, and OEM Custom
- Special User-Adjustable Imaging Tools
-
- Active Contrast Enhancement (ACE)
- Second Generation Digital Detail Enhancement (DDE)
- Smart Scene Optimization (SSO)
- SKY/SEA Information-Based Histogram Equalization (IBHEQ)
- Silent Shutterless NUC (SSN)
- Digital Reticle
-
- Reticle patterns: Dot 4 MOA, Line Dot, Cross-Center Dot, Cross, Crosshair, & No Reticle
- Zoom reticle tracking capability
- Black, White, Red, Cyan color options
- Use and Handling
-
- Wireless operation with the included remote control
- Fast 3-second start-up
- Battery status indicator
- Construction Details
-
- CNC machined aluminum housing
- Compatible with Picatinny rails using included adapter
- Wide winged rubber eyecups
- Knurled adjusters and rings
- Waterproof and fogproof
UPC: 849815006759 In the Box Armasight by FLIR Predator 640 1-8x25 Thermal Weapon Sight (30 Hz) - Objective Lens Cap
- Battery Cassette
- 2 x CR-123A Battery
- Wireless Remote Control
- Picatinny Adapter for Remote Control
- Video Cable
- Soft Carrying Case
- Hard Transport/Storagy Case
- Limited 3-Year Warranty
- Limited 10-Year Warranty on VOx Detector
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Predator 640 1-8x25 Thermal Weapon Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR Predator 640 Specs | Imager | 640 x 512 Tau 2 uncooled microbolometer | | Pixel Size | 17 µm | | Refresh Rate | 30 Hz | | Display | 640 x 480 LED | | Video Format | NTSC / Pal | | Magnification | Optical Magnification: 1.5x
Digital Zoom:1x, 2x, 4x, 8x | | Lens System | 25mm, f/1 | | Angle of View | 25 x 8° | | Minimum Focus Distance | 66' (20 m) | | Eye Relief | 1.8" (4.5 cm) | | Dioptric Correction | ±5 | | Battery / Runtime | 2 x CR-123A lithium or rechargeable / 4 h | | Mount | Picatinny/Weaver, quick release | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating temperature | -58 to +158°F (-50 to 70°C) | | Weatherproofing | Water-resistant and fog-resistant | | Dimensions | 7.6 x 3.1 x 2.7" (194 x 78 x 68 mm) | | Weight | 22.2 oz (630 g) | | | | Box Dimensions (LxWxH) | 16.0 x 6.0 x 6.0" |
