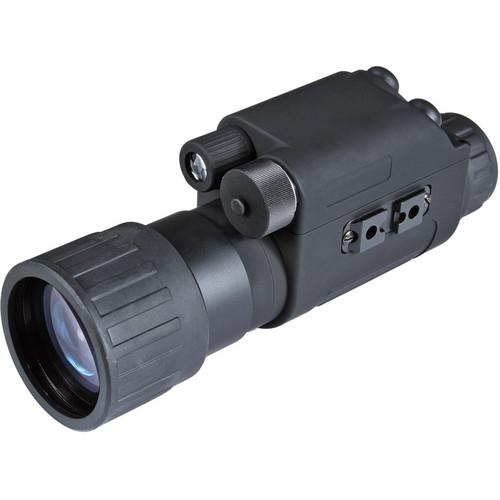

User Manual for Armasight by FLIR Prime 5x 1st Generation Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Prime 5x 1st
- Product category: NV Monoculars & Multi-Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR NV Monoculars & Multi-Systems
|
User manual for the Armasight by FLIR Prime 5x 1st contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description Explore the outdoors at night using the compact and weather-resistant Armasight Prime 5x 1st Generation Night Vision Monocular. With a built-in infrared illuminator and a 1st generation intensifier tube, you are able to get detailed images, improved range, and adequate visibility even in complete darkness. The 80 mm f/1.7 lens system offers a tradeoff between a useful 3.2' minimum focus distance, notable magnification, and a wide field of view. To enhance visibility, the optical system also provides an 8 mm exit pupil, which makes the best of your eye's capacity to receive light in dark conditions.
For your convenience, the monocular features an ergonomic body design that allows you to hold it with one hand and adjust its controls, while focusing with the other. Next to the rubberized on-off and infrared-on control buttons, you will find control LED indicators for monitoring the device's status. The eyepiece is outfitted with a diopter adjustment and a twist-up rubber eyecup. The eyecup allows you to get a comfortable fit between the eyepiece and the orbit of your eye. This helps to stabilize viewing and to prevent leakage of the intensifier tube light, which may expose you.
The housing is water resistant and has a rating of IPX4. Its ergonomic design allows for a natural fit in the palm of your hand. All the knobs and adjustment rings are knurled in order to provide a non-slip grip even when wearing gloves. If you need to use an extra illuminator, flashlight, or a camera, you can attach them or other accessories to a Picatinny/Weaver mounting point located on the left side. For long-term observation, improved image stability, or multitasking, this monocular can also be mounted on a tripod via a built-in socket. Also included with the device are a lens tissue, soft carry case, and one CR-123A battery. UPC: 818470010012 In the Box Armasight by FLIR Prime 5x 1st Generation Night Vision Monocular Carrying Case CR-123A Battery Lens Tissue Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Prime 5x 1st Generation Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NKMPRIME0511I11 Specs | Generation | 1st generation intensifier tube | | Magnification | 5x | | Lens System | 80 mm f/1.7 | | Field of View | 21° | | Minimum Focus Distance | 3.2' (1 m) | | Dioptric Correction | +4 to -4 | | Exit Pupil | 0.3" (8 mm) | | Eye Relief | 0.8" (20 mm) | | Battery / Runtime | 1 x CR-123 lithium battery(3V) / 58 hr | | Weatherproofing | Rated IPX4, water- and fog-resistant | | Tripod Mount | Yes | | Operating Temperature | -22 to 113°F (-30 to 45°C) | | Dimensions | 7.6 x 2.9 x 2" (194 x 73 x 52 mm) | | Weight | 17.3 oz (490 g) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.75 x 4.3 x 2.9" |
