Product description See through smoke, fog, and dust, day or night, with the Prometheus 336 2-8x25 Thermal Imaging Monocular from Armasight. Its FLIR Tau 2 uncooled microbolometer detects long-wave infrared and allows you to see heat emanating from humans, animals, and jet or combustion engines. It also offers visibility in total darkness and through fog, smoke, foliage, and dust. The sensor has a resolution of 336x256, 17µm pixel size, and refresh rate of 30 Hz. The optical system features a 25mm f/1.1 germanium lens with 2x magnification with the default NTSC format and digital zoom of up to 4x.

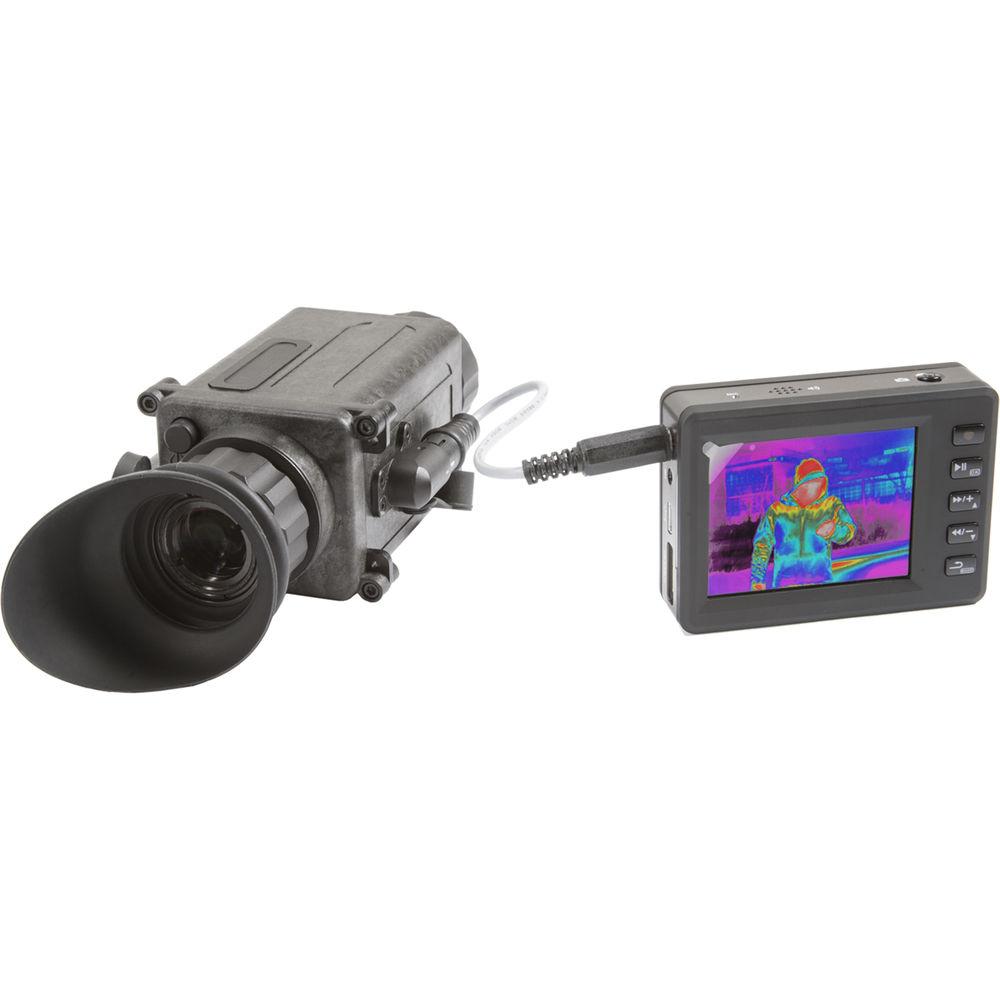

The built-in LED VGA display features 640×480-pixel resolution and can display several color palettes. For documenting your observations, the scope is capable of relaying videos through a video-out port in NTSC and PAL formats. Use the included video cable to relay videos. Additionally, the operating system allows you to enhance video outputs with a selection of imaging filter algorithms.
To withstand rigors of the mission, this device can operate in extreme temperatures thanks to a durable water-resistant and fog-resistant glass-fiber housing. In addition to handheld operation, you can mount it on a tripod. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - Thermal Imager
-
- Uncooled Tau 2 VOx microbolometer
- 7-14µm spectral response
- Array size: 336x256
- Pixel size: 17μm
- Optical Performance
-
- Lens system: 25mm, f/1.1
- Germanium objective lens
- 2x magnification
- Digital zoom: 1x, 2x, 4x
- Angle of view: 13 x 10°
- Exit pupil: 5mm
- Eye relief: 16mm
- Close focus: 0.82'
- Display
-
- 640x480 LED VGA display
- 30 Hz refresh rate
- Eight discrete brightness levels
- NTSC and PAL video output formats
- Image palettes:

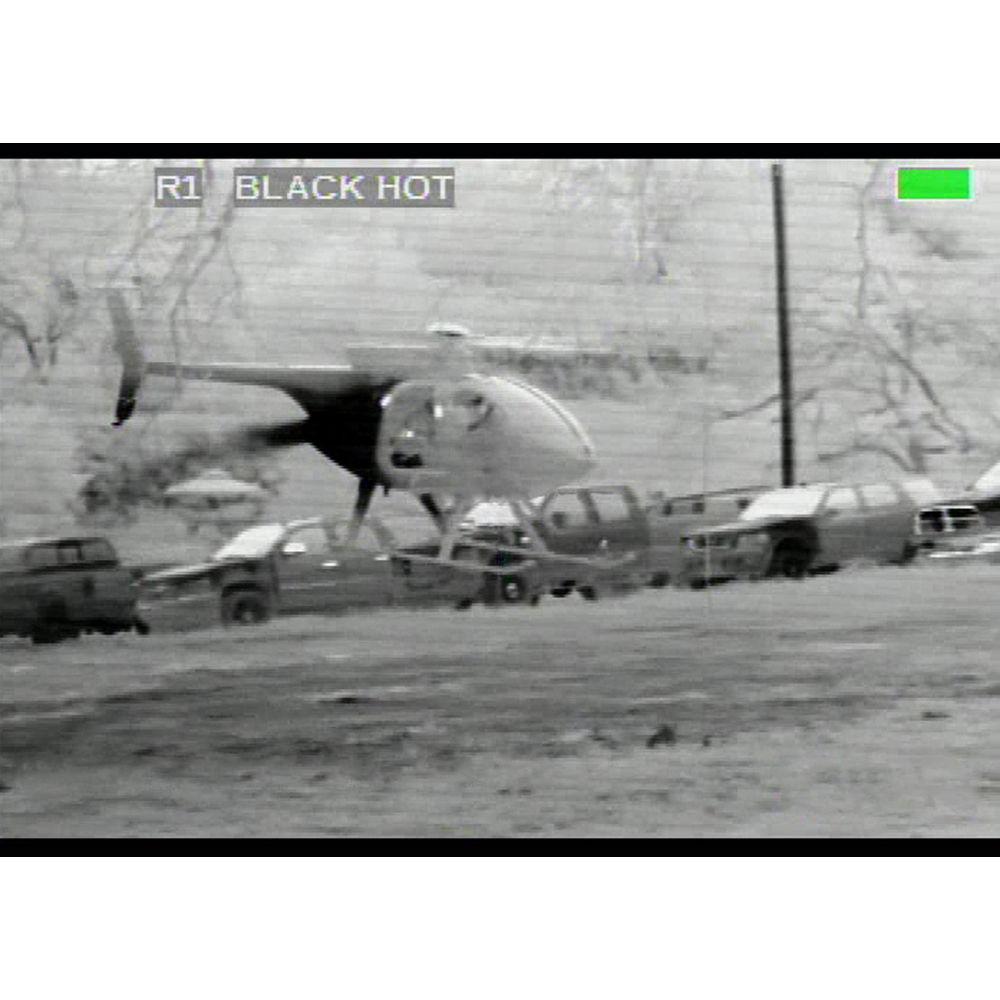

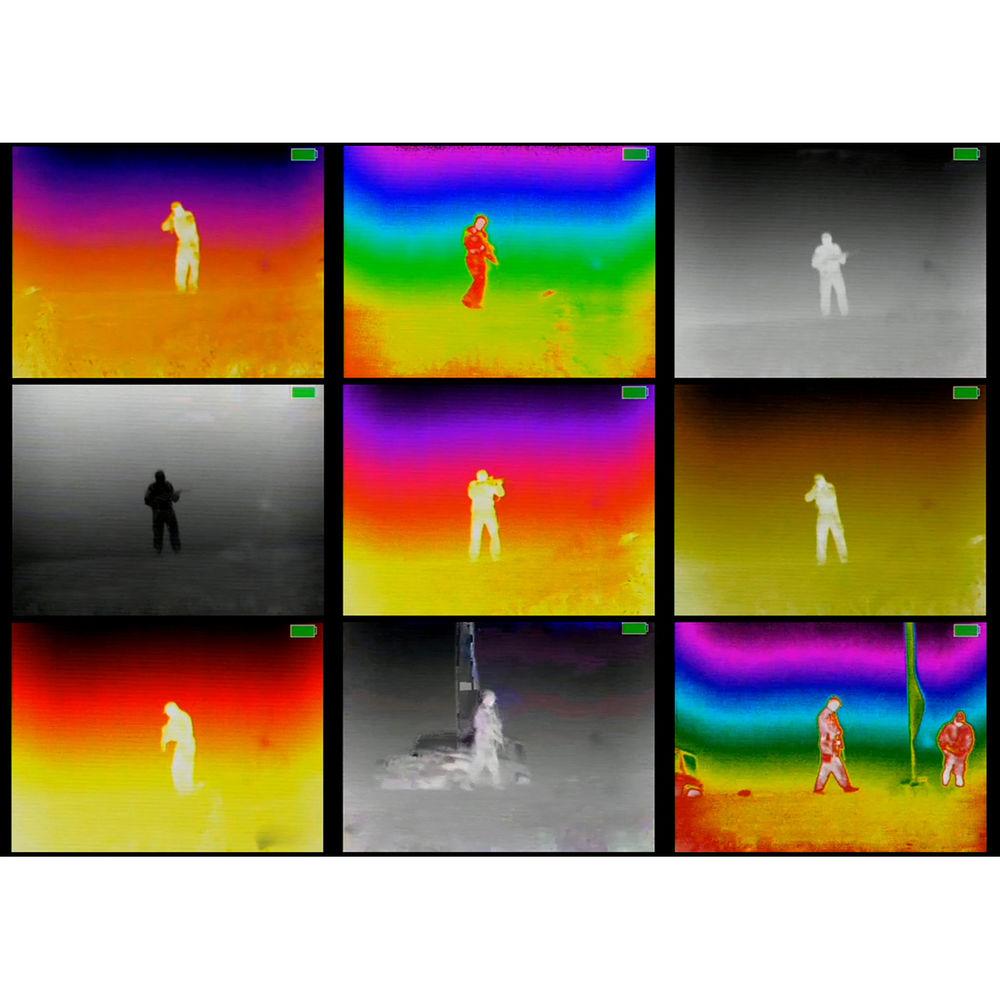

White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1
Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM Custom - Special User-Adjustable Imaging Tools
-
- Active Contrast Enhancement (ACE)
- Second Generation Digital Detail Enhancement (DDE)
- Smart Scene Optimization (SSO)
- User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC)
- Silent Shutterless NUC (SSN)
- Use and Handling
-
- Fast 3-second start-up
- Palette setting indicator
- Battery status indicator
- Construction Details
-
- Lightweight and durable glass-fiber housing
- Wide winged rubber eyecup
- Knurled adjusters and rings
- Mountable on tripod
- Water and fog-resistant

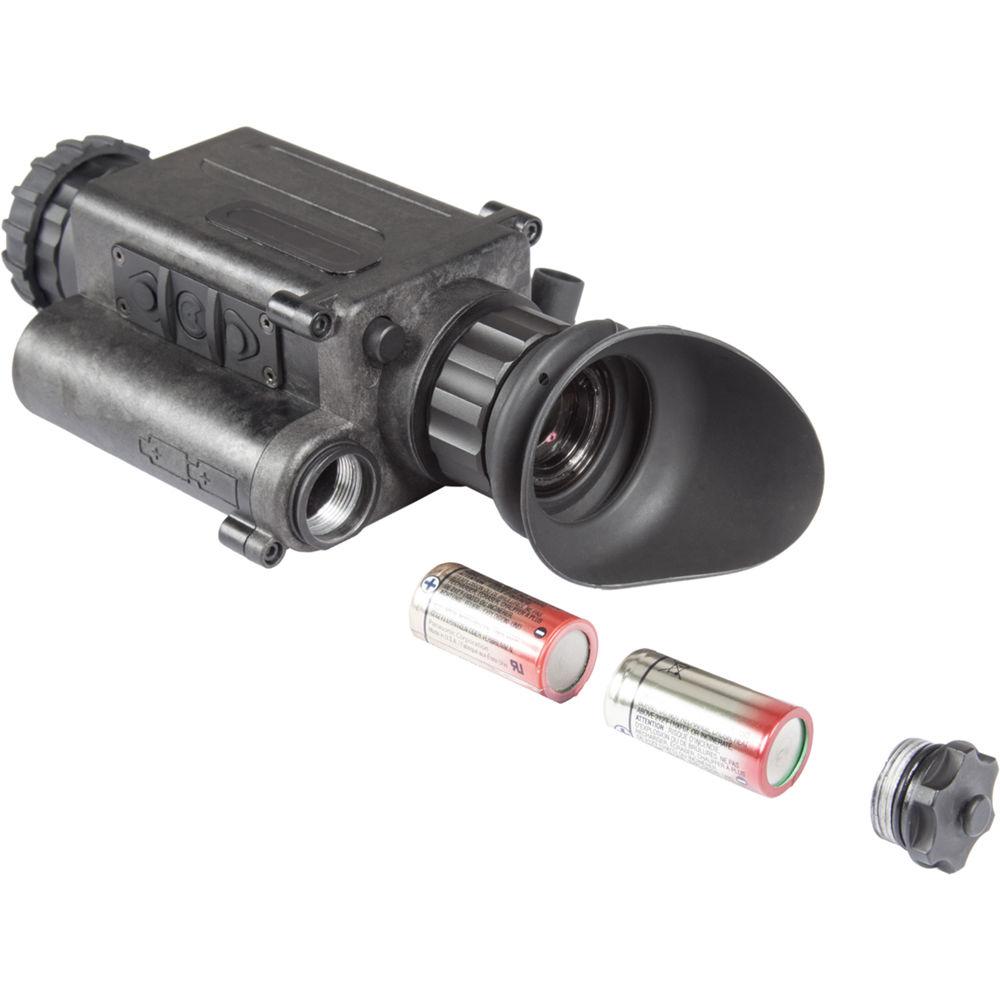

UPC: 849815007428 In the Box Armasight by FLIR Prometheus 336 2-8x25 Thermal Imaging Monocular (30 Hz) - 2 x CR-123A Batteries

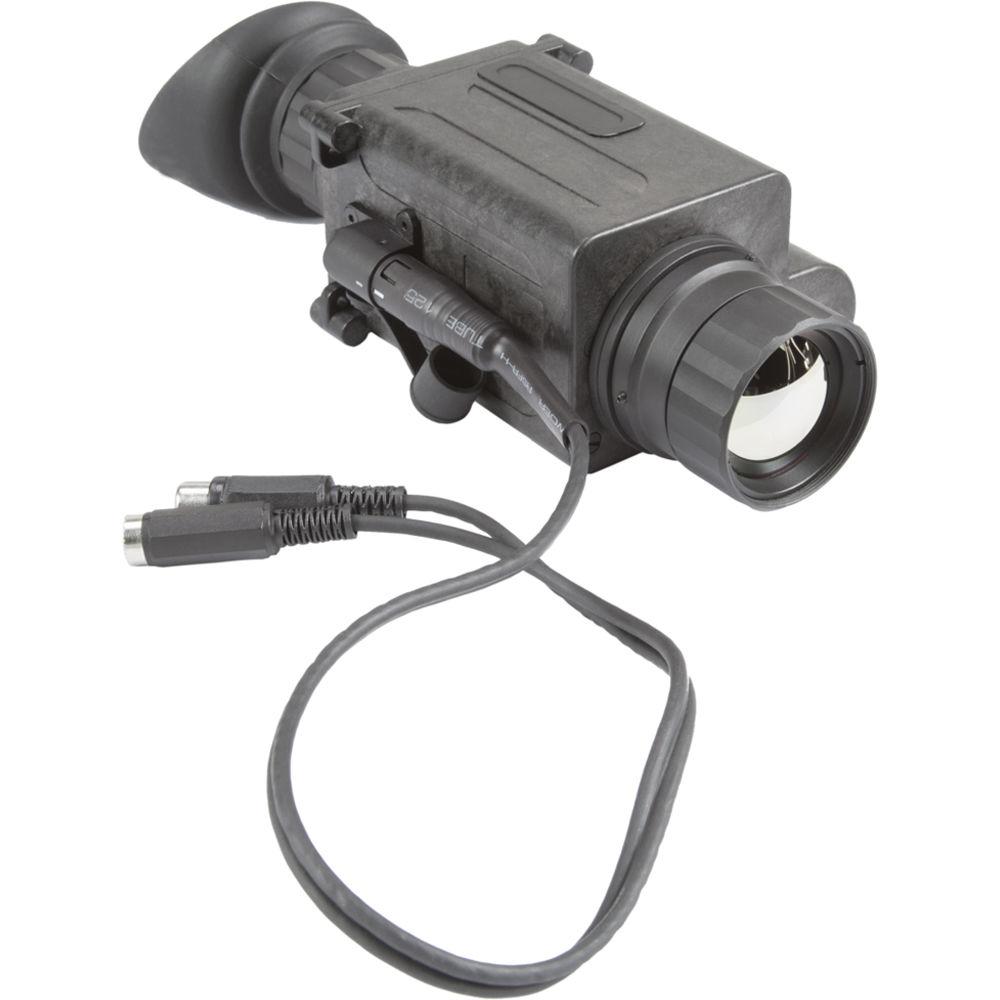

- Video Cable
- Soft Carrying Case
- Limited 3-Year Warranty
- Limited 10-Year Warranty on FLIR Detector
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Prometheus 336 2-8x25 Thermal Imaging Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR TAT173MN2PROC21 Specs | Array Configuration | 336 x 256 FLIR Tau 2 VOx microbolometer | | Spectral Range | 7 - 14 µm | | Pixel Size | 17 µm | | Refresh Rate | 30 Hz | | Magnification | Optical Magnification: 2x
Digital Zoom: 1x, 2x, 4x | | Angle of View | 13 x 10° | | Lens System | 25mm, f/1.1, germanium | | Minimum Focus Distance | 0.82' / 0.25 m | | Eye Relief | 16 mm | | Exit Pupil | 5 mm | | Display | 640 x 480 LED VGA | | Video Format | NTSC or PAL: 640 x 480
Factory default preset to NTSC | | Diopter Adjustment | ±5 | | Battery / Runtime | 2 x CR-123A (3 V) Lithium Batteries / Runtime: 4 h
2 x CR-123 (3-3.7 V) Rechargeable Batteries
External Power Supply: 6 V, 600 mAh | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 158°F / -50 to 70°C | | Weatherproofing | Water-resistant and fog-resistant | | Dimensions | 5.9 x 3.5 x 2.0" / 150 x 90 x 52 mm | | Weight | 14.1 oz / 400 g |
