User Manual for Armasight by FLIR Prometheus 3x 336 30Hz Thermal Monocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Prometheus 3x 336
- Product category: Thermal Imagers Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Thermal Imagers
 |
User manual for the Armasight by FLIR Prometheus 3x 336 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

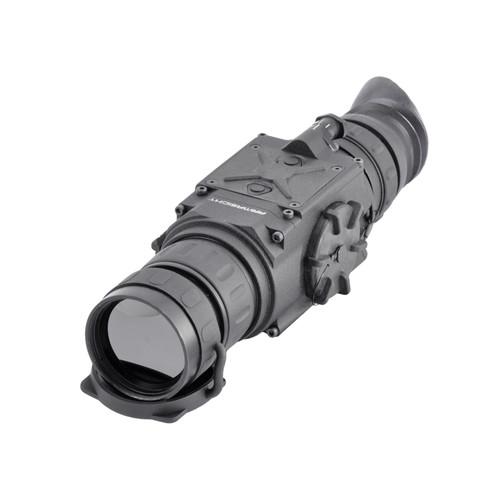

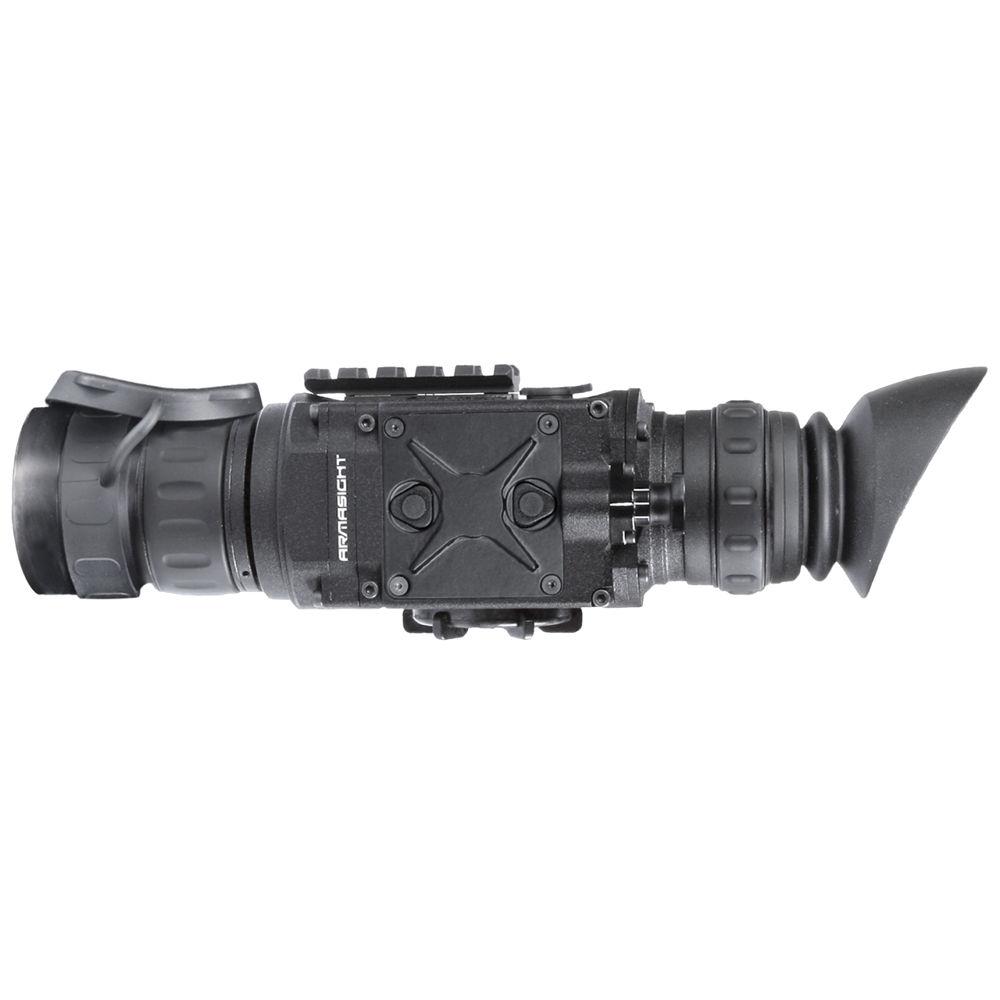

Product description The Prometheus 3x 336 30Hz Thermal Monocular from Armasight is a multi-purpose, long-wave infrared, magnified, handheld thermal image monocular that features a 42mm f/1.1 lens system, 2.8x (NTSC) / 3.4x (PAL) magnification, video output, and waterproof aluminum alloy housing. By distinguishing slight differences in the heat of objects within the field of view, thermal imagers are capable of seeing through smoke, fog, and dust—day or night.An uncooled FLIR Tau 2 VOx microbolometer core thermal detector captures 336x256 resolution images at 30Hz, giving this Prometheus the imaging power needed for thermal viewing at almost any distance as it employs up to an 4x digital zoom. The Prometheus features different color modes for different viewing needs: White Hot, Black Hot, Rainbow, Fusion, Glowbow, and Ironbow. Complementing the imaging performance and versatility of the Prometheus thermal monocular is an aerospace aluminum alloy housing that gives it waterproof performance. - Imaging Performance
-
- 336x256 uncooled Tau 2 detector
- Pixel size: 17µm
- Resolution: 0.40 mrad
- 30Hz refresh rate
- Magnification: 2.8x (NTSC) / 3.4x (PAL)
- Digital zoom: 1x, 2x, and 4x
- Germanium glass objective lens
- Lens system: 42mm f/1.1
- Angle of view: 7.8° x 5.9°;
- Exit pupil: 10mm
- Eye relief: 45mm
- Close focus: 16'
- System Features
-
- AMOLED SVGA 060 color display
- Video output

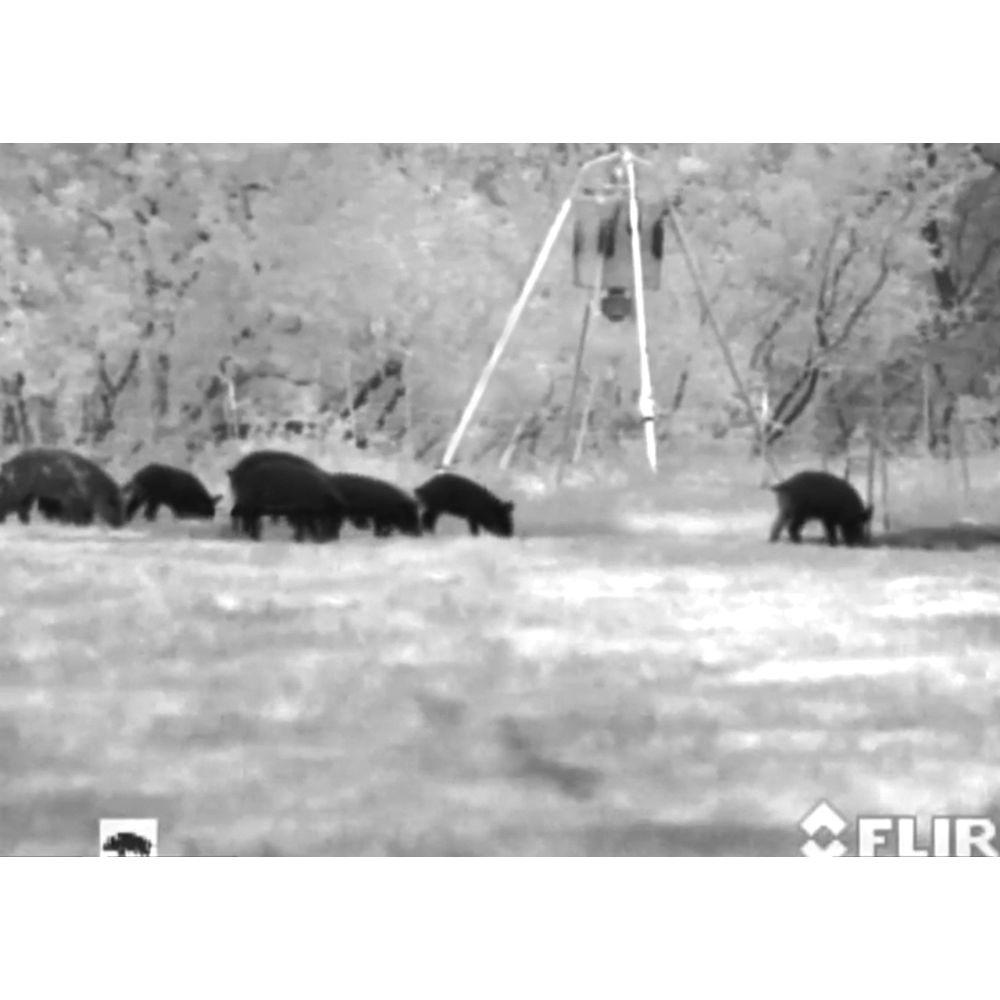

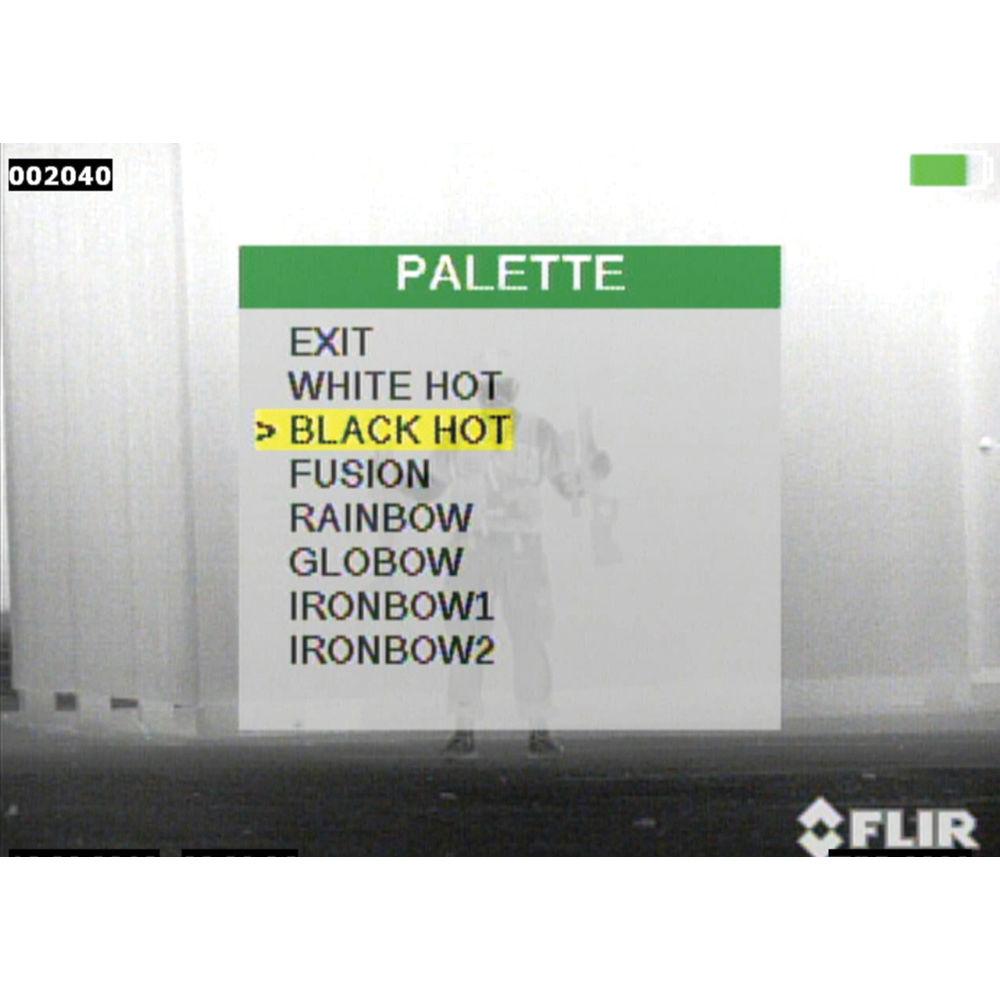

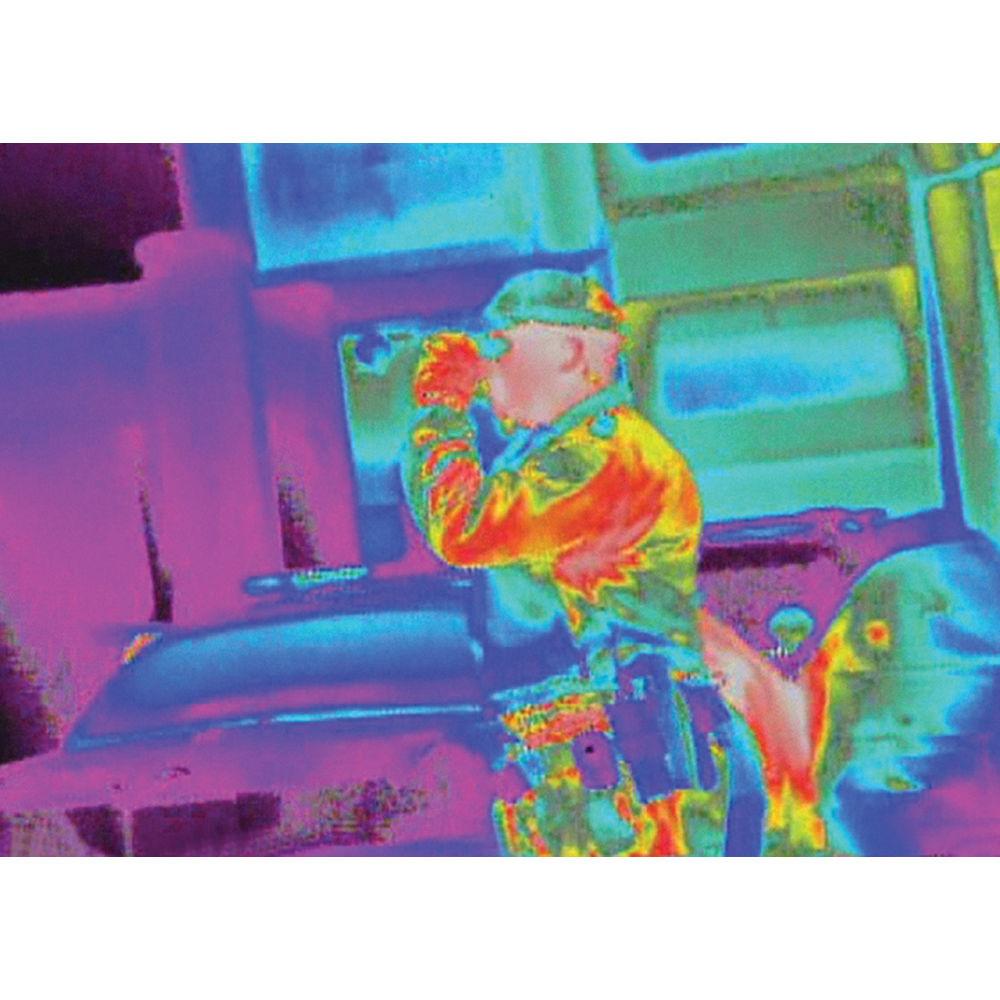

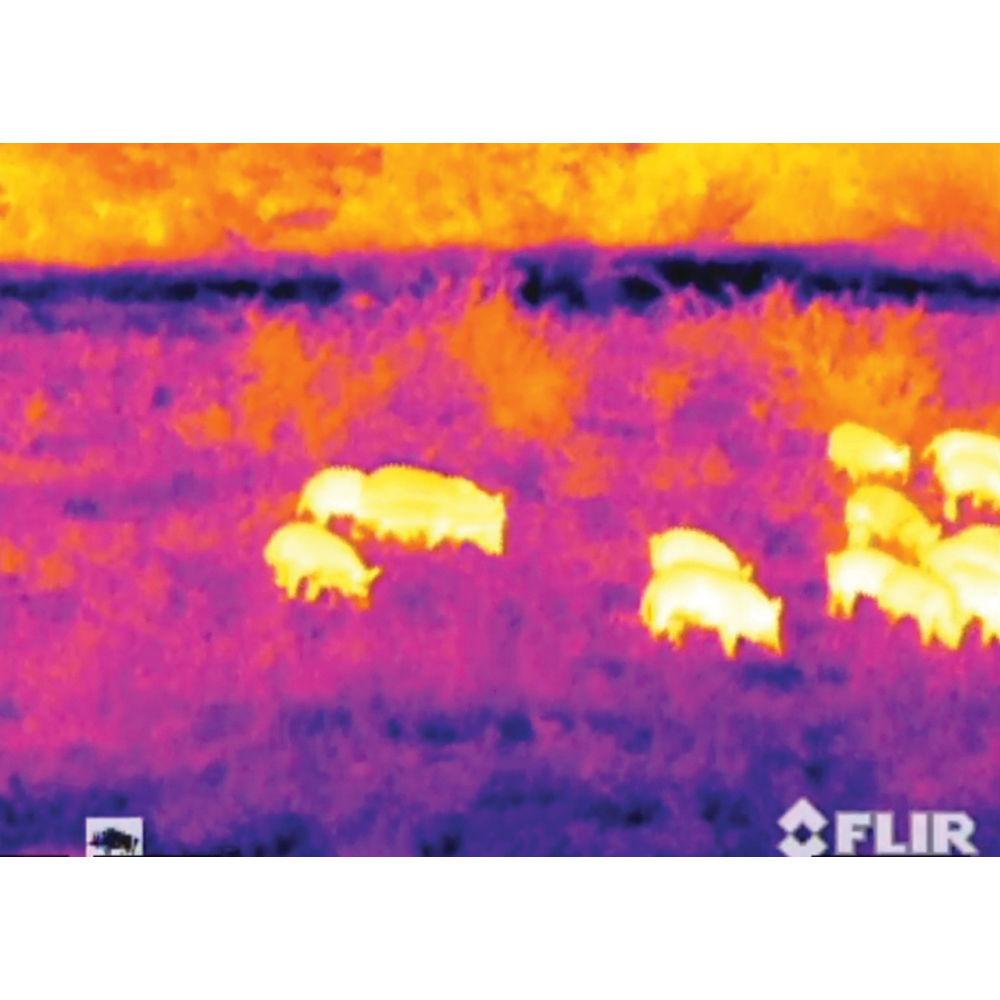

- Color modes: White Hot, Black Hot, Rainbow, Fusion, Glowbow, Ironbow 1 & 2
- Construction Details
-
- Aerospace aluminum alloy housing
- Waterproof performance
- Operating temperature: -40 to 122°F
- Storage temperature: -58 to 158°F
- Weight: 1.2 lbs / 0.55 kg
UPC: 818470015659 In the Box Armasight by FLIR Prometheus 3x 336 30Hz Thermal Monocular Wireless Remote Control Picatinny Adapter for Wireless Remote Control Video Cable 2 x CR123A Batteries Soft Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Prometheus 3x 336 30Hz Thermal Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR TAT173MN4PROM31 Specs | Array Configuration | 336x256 FLIR Tau 2 | | Pixel Size | 17 µm | | Resolution | 0.40 mrad | | Refresh Rate | 30 Hz | | Magnification | 2.8x (NTSC) / 3.4x (PAL) | | Angle of View | 7.8° x 5.9° | | Lens System | 42mm f/1.1 | | Minimum Focus Distance | 16' | | Eye Relief | 45 mm | | Exit Pupil | 10 mm | | Display | AMOLED SVGA 060 | | Power Source | 2x CR123A (3V) batteries | | Runtime | 4 hr | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 158°F / -50 to 70°C | | Weatherproofing | Waterproof | | Dimensions | 10.0 x 2.7 x 2.7" / 255 × 70 × 70 mm | | Weight | 1.2 lbs / 0.55 kg | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 13.4 x 5.1 x 4.9" |
