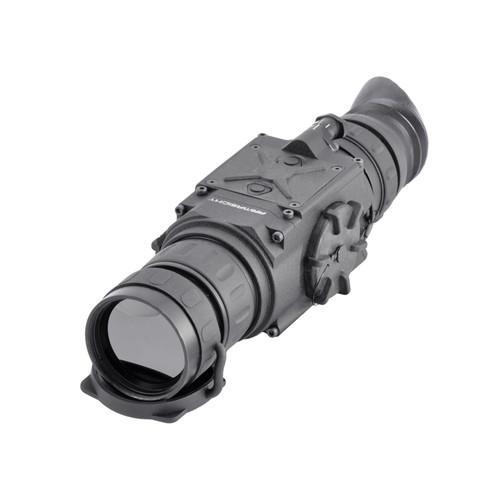

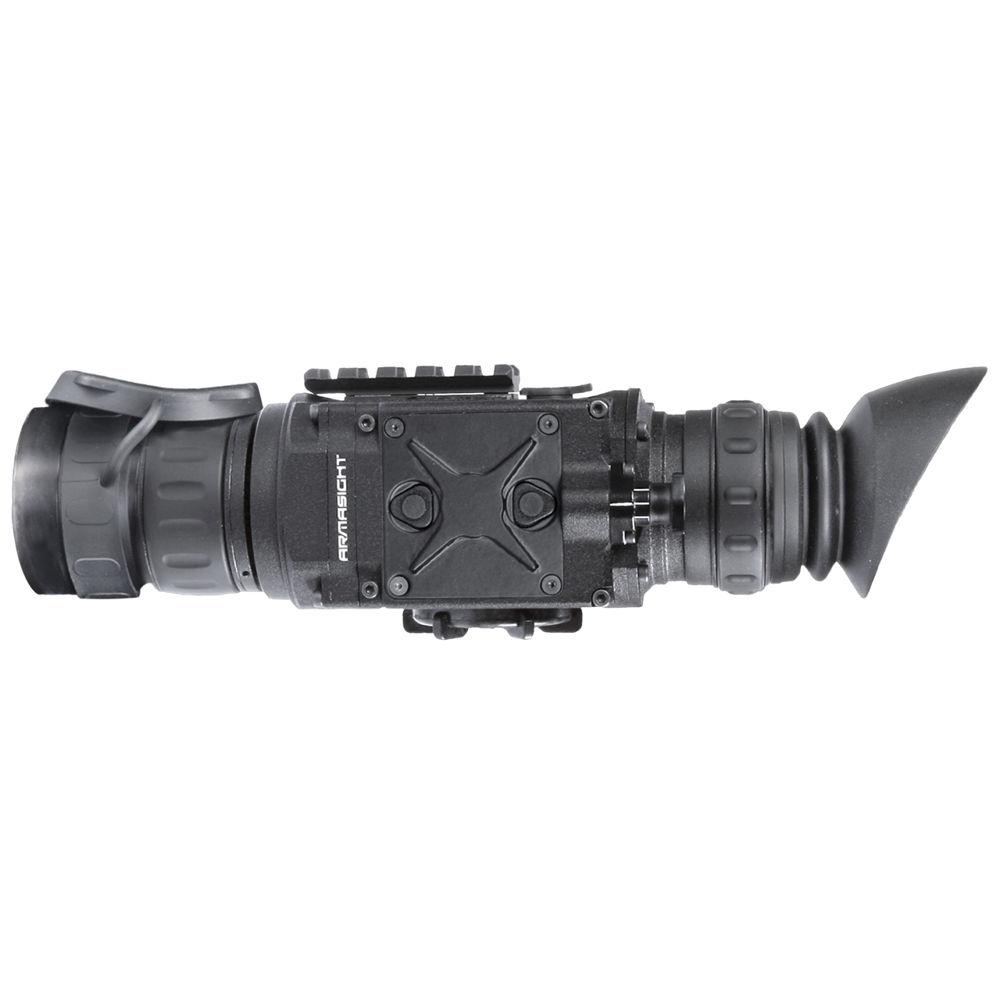

Product description The Prometheus 3x 336 60Hz Thermal Monocular from Armasight is a multi-purpose, long-wave infrared, magnified, handheld thermal image monocular that features a 42mm f/1.1 lens system, 2.8x (NTSC) / 3.4x (PAL) magnification, video output, and waterproof aluminum alloy housing. By distinguishing slight differences in the heat of objects within the field of view, thermal imagers are capable of seeing through smoke, fog, and dust—day or night.An uncooled FLIR Tau 2 VOx microbolometer core thermal detector captures 336x256 resolution images at 60Hz, giving this Prometheus the imaging power needed for thermal viewing at almost any distance as it employs up to an 4x digital zoom. The Prometheus features different color modes for different viewing needs: White Hot, Black Hot, Rainbow, Fusion, Glowbow, and Ironbow. Complementing the imaging performance and versatility of the Prometheus thermal monocular is an aerospace aluminum alloy housing that gives it waterproof performance. - Imaging Performance
-
- 336x256 uncooled Tau 2 detector
- Pixel size: 17µm
- Resolution: 0.40 mrad
- 60Hz refresh rate
- Magnification: 2.8x (NTSC) / 3.4x (PAL)
- Digital zoom: 1x, 2x, and 4x
- Germanium glass objective lens
- Lens system: 42mm f/1.1
- Angle of view: 7.8° x 5.9°;
- Exit pupil: 10mm
- Eye relief: 45mm
- Close focus: 16'
- System Features
-
- AMOLED SVGA 060 color display
- Video output

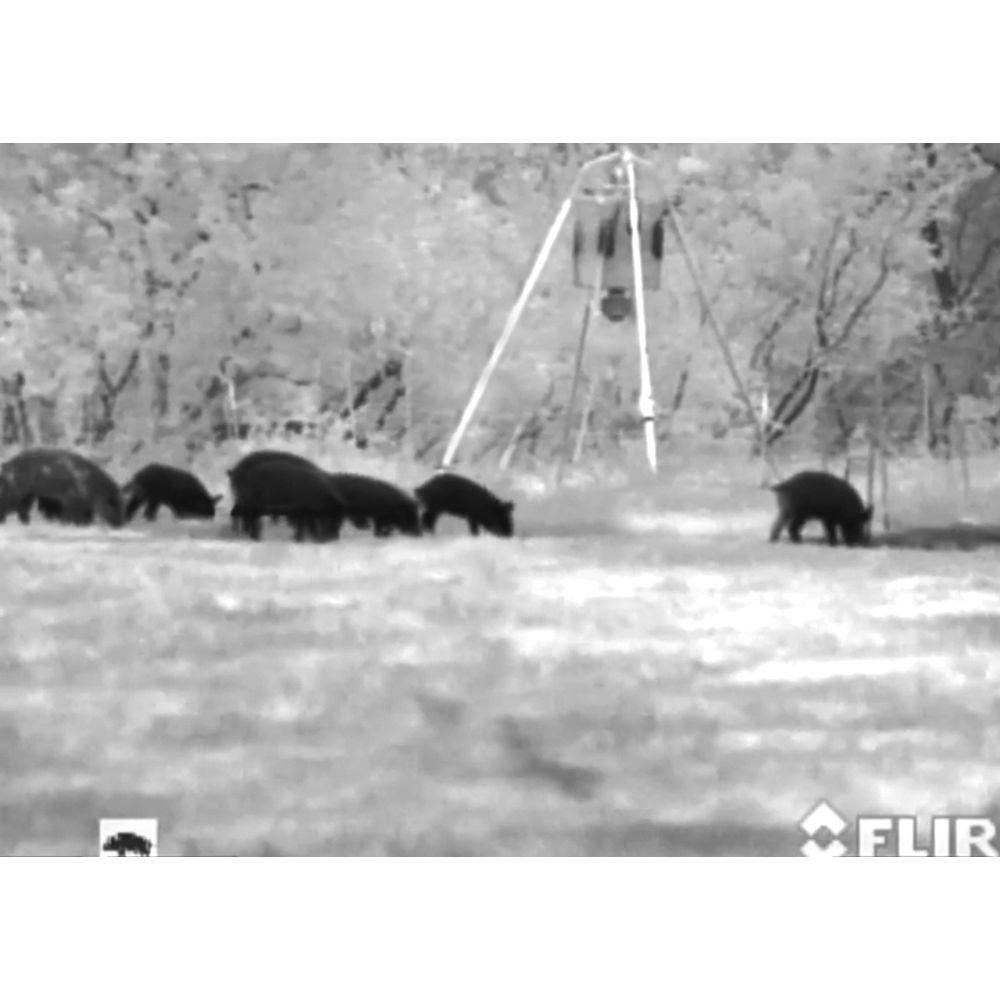

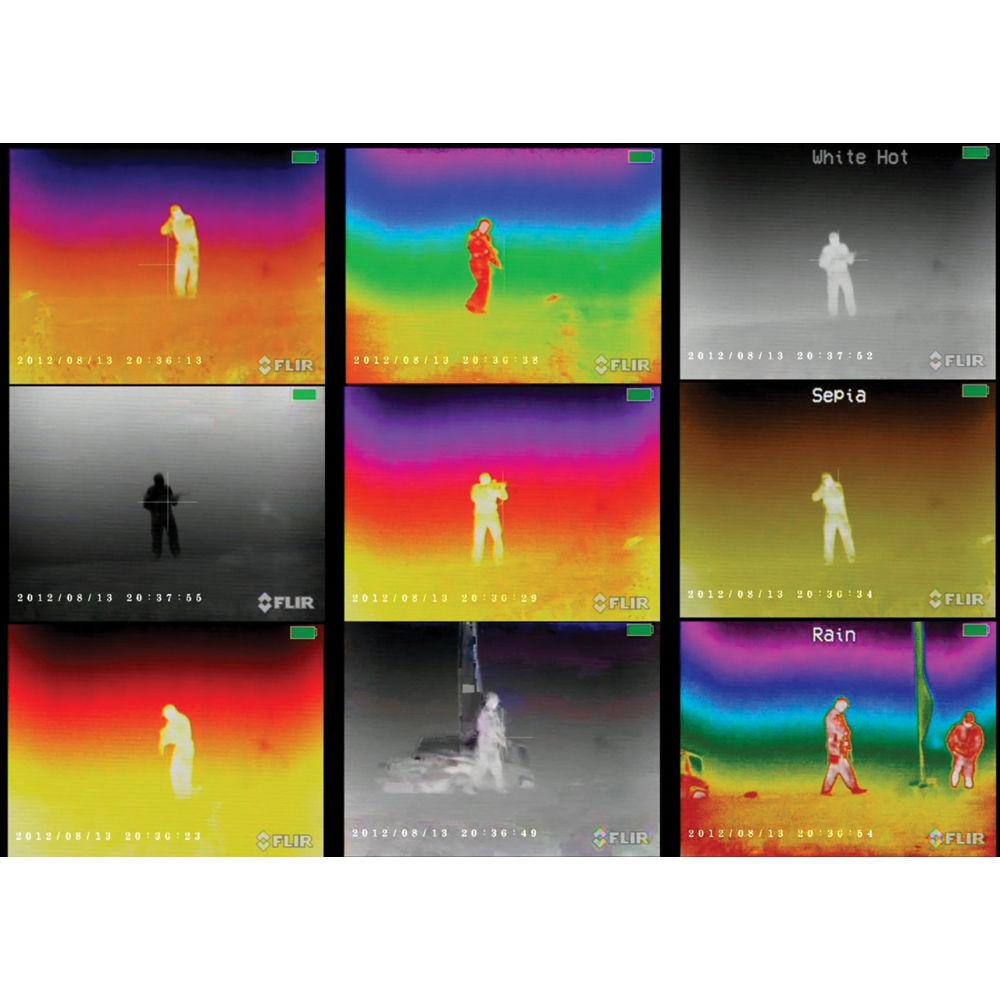

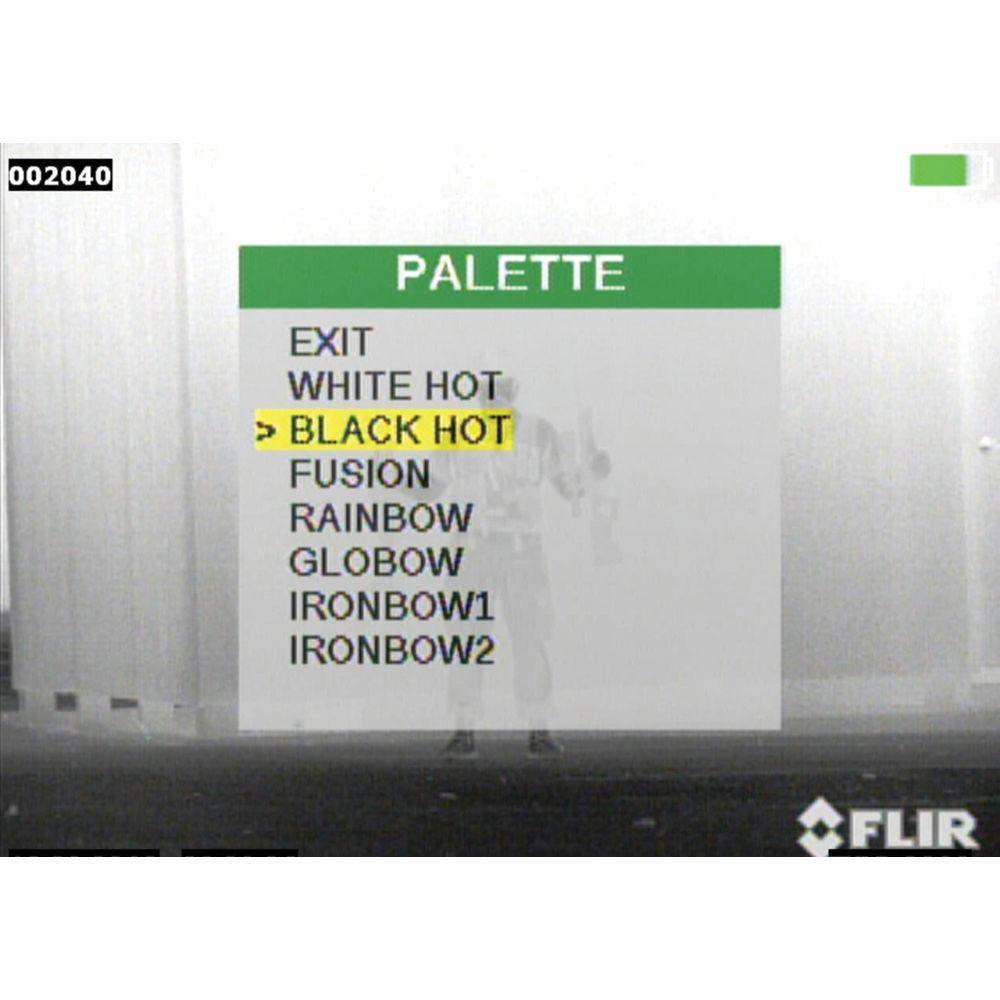

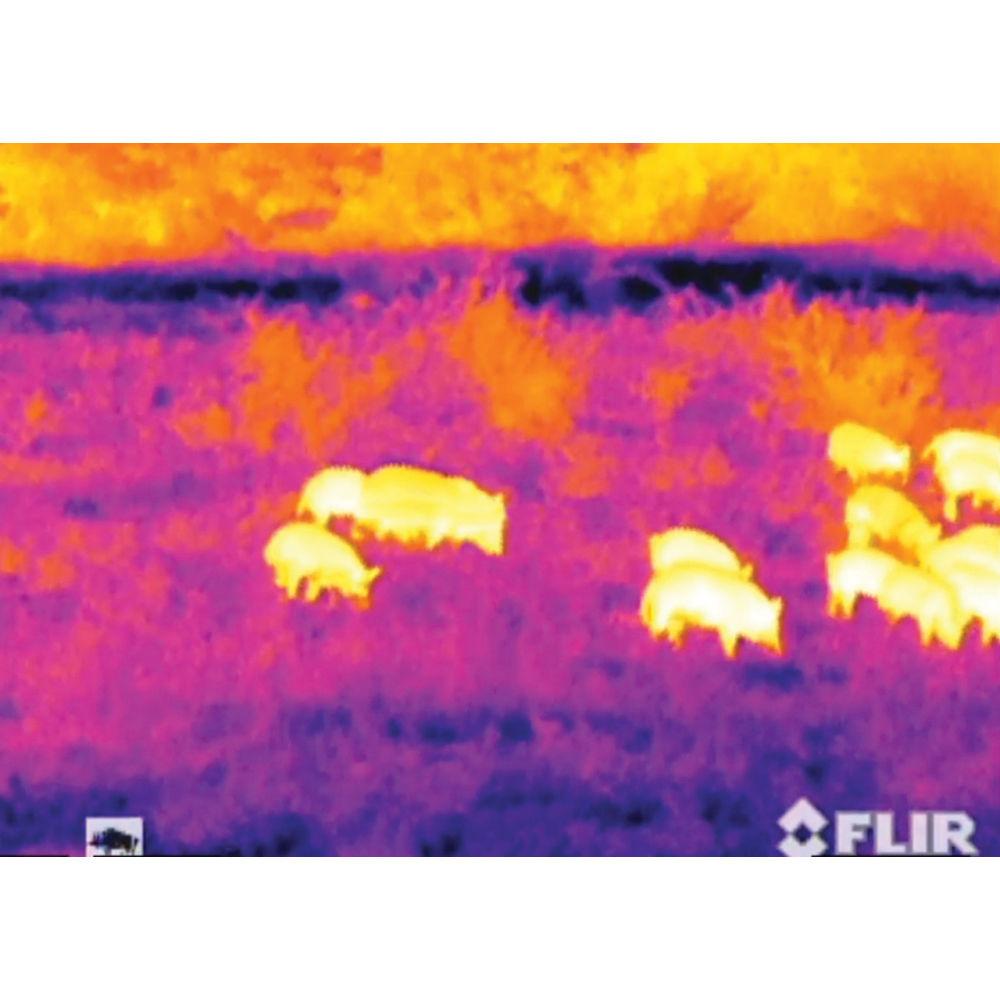

- Color modes: White Hot, Black Hot, Rainbow, Fusion, Glowbow, Ironbow 1 & 2
- Construction Details
-
- Aerospace aluminum alloy housing
- Waterproof performance
- Operating temperature: -40 to 122°F
- Storage temperature: -58 to 158°F
- Weight: 1.2 lbs / 0.55 kg
UPC: 849815001662 In the Box Armasight by FLIR Prometheus 3x 336 60Hz Thermal Monocular Wireless Remote Control Picatinny Adapter for Wireless Remote Control Video Cable 2 x CR123A Batteries Soft Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Prometheus 3x 336 60Hz Thermal Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR TAT176MN4PROM31 Specs | Array Configuration | 336x256 FLIR Tau 2 | | Pixel Size | 17 µm | | Resolution | 0.40 mrad | | Refresh Rate | 60 Hz | | Magnification | 2.8x (NTSC) / 3.4x (PAL) | | Angle of View | 7.8° x 5.9° | | Lens System | 42mm f/1.1 | | Minimum Focus Distance | 16' | | Eye Relief | 45 mm | | Exit Pupil | 10 mm | | Display | AMOLED SVGA 060 | | Power Source | 2x CR123A (3V) batteries | | Runtime | 4 hr | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 158°F / -50 to 70°C | | Weatherproofing | Waterproof | | Dimensions | 10.0 x 2.7 x 2.7" / 255 × 70 × 70 mm | | Weight | 1.2 lbs / 0.55 kg | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 13.4 x 5.1 x 4.9" |
