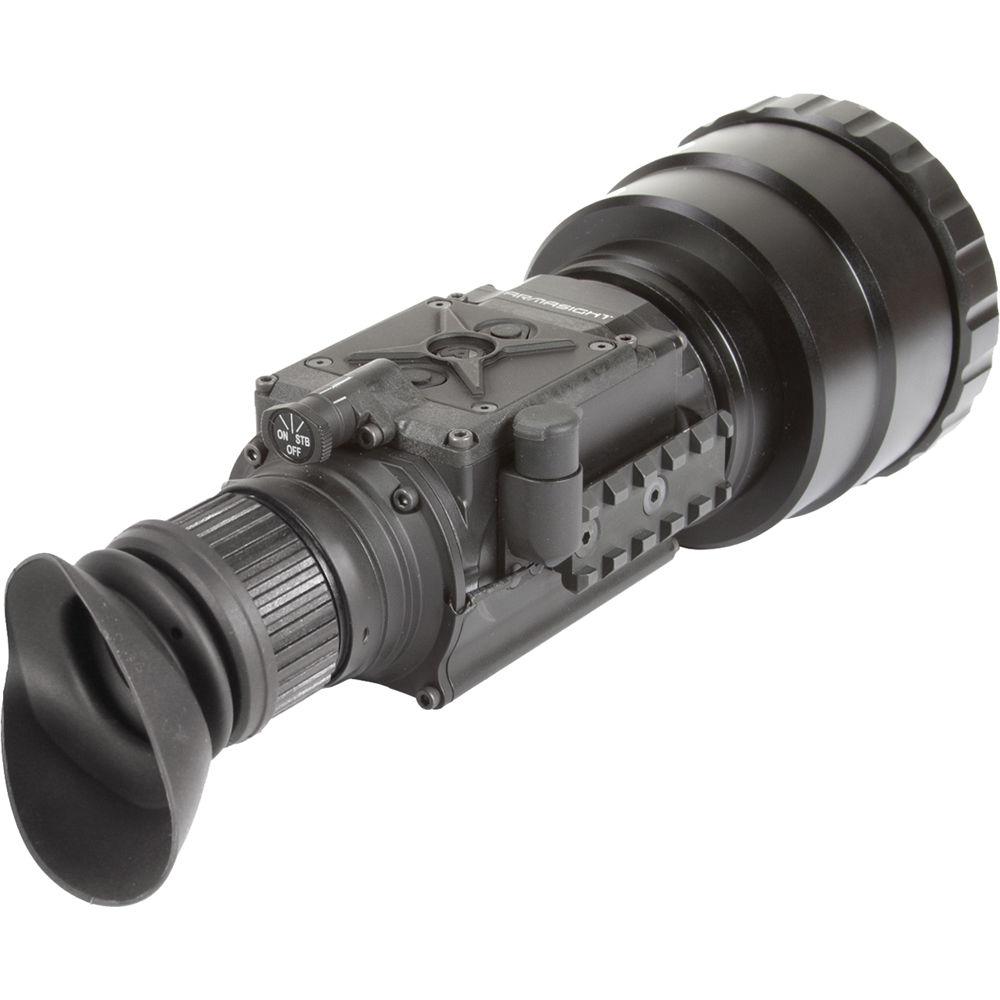

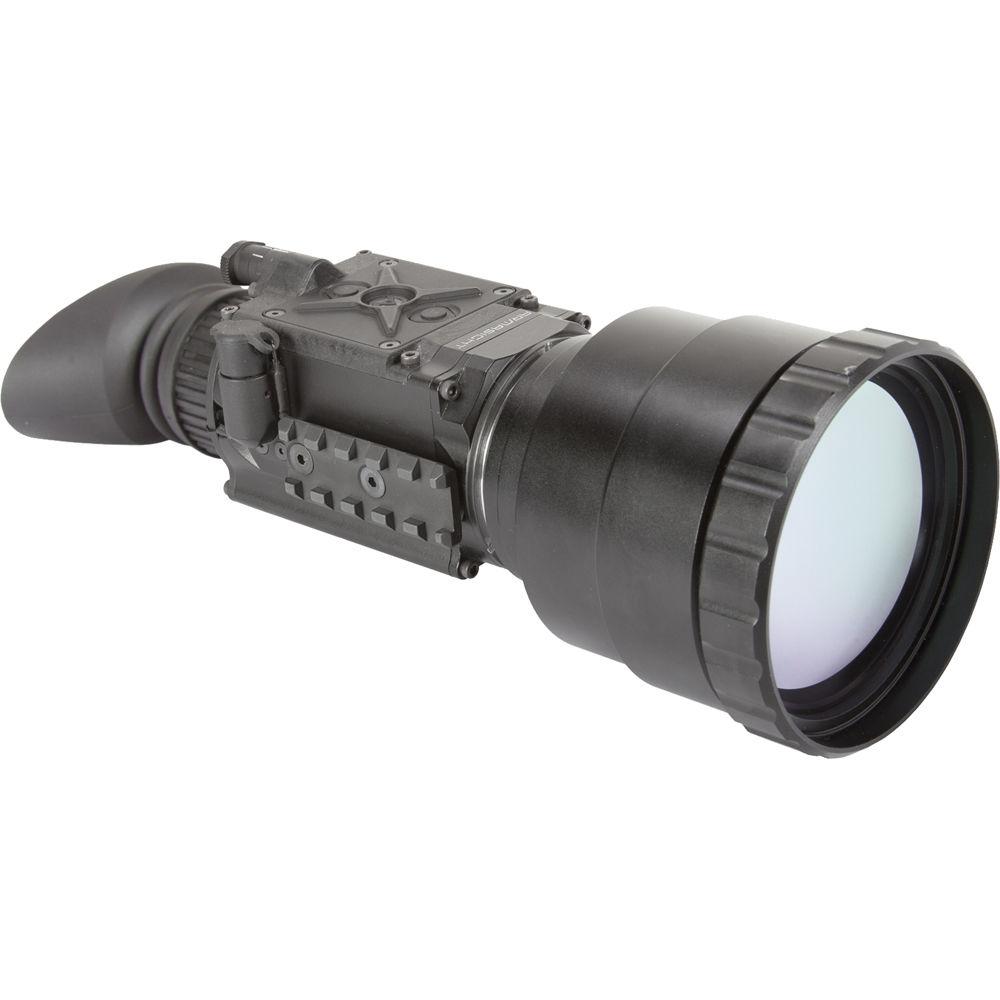

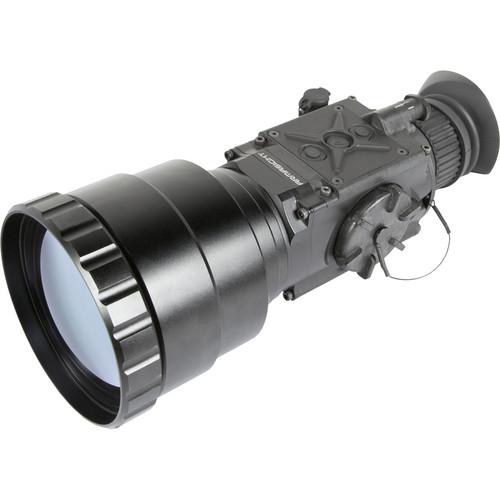

User Manual for Armasight by FLIR Prometheus 640 HD 4-32x100 Thermal Imaging Monocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Prometheus 640 HD
- Product category: Thermal Scopes Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Thermal Scopes
 |
User manual for the Armasight by FLIR Prometheus 640 HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description See through smoke, fog, and dust, day or night, with the Prometheus 640 HD 4-32x100 Thermal Imaging Monocular from Armasight. Its FLIR Tau 2 uncooled microbolometer detects long-wave infrared light and allows you to see heat emanating from humans, animals, and jet or combustion engines. The sensor has a resolution of 640x512, 17µm pixel size, and refresh rate of 30 Hz. The optical system features a 100mm f/1.3 high definition germanium lens with 3.7x magnification with the default NTSC format and digital zoom of up to 8x.
The built-in AMOLED SVGA 060 video display features an 800x600 pixel resolution and can display several color palettes. For documenting your observations, the scope is capable of relaying videos through a video-out port in NTSC and PAL formats. Additionally, the operating system allows you to enhance video outputs with a selection of imaging filter algorithms. This imager also features a Bluetooth compatibility, wireless remote control, active profile indicator, palette setting indicator, and battery status indicator.
To withstand the rigors of hostile environments, the device can operate in extreme temperatures and has a durable, water-resistant and fog-resistant aluminum housing. In addition to handheld operation, you can mount it on a tripod or a Picatinny or Weaver-style rail using an optional mount. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Controls and/or the U.S. Department of Commerce. - Thermal Imager
-
- Uncooled Tau 2 VOx microbolometer
- 7-14µm spectral response
- Array size: 640x512
- Pixel Size: 17μm
- Optical Performance
-
- Lens system: 100mm, f/1.3
- High Definition germanium objective lens
- 3.7x magnification in default NTSC format
- 4.4x magnification in optional PAL format
- Digital zoom: 1x, 2x, 4x, 8x
- Angle of view: 6.2 x 5°
- Exit pupil: 14mm
- Eye relief: 25mm
- Close focus: 33'
- Display
-
- 800x600 AMOLED SVGA 060 display
- 30 Hz refresh rate
- Eight discrete brightness levels
- NTSC and PAL video output formats
- Image palettes:
White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1
Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM - Special User-Adjustable Imaging Tools
-
- Active Contrast Enhancement (ACE)
- Second Generation Digital Detail Enhancement (DDE)
- Smart Scene Optimization (SSO)
- SKY/SEA Information-Based Histogram Equalization (IBHEQ)
- User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC)
- Silent Shutterless NUC (SSN)
- Use and Handling
-
- Bluetooth allows connecting to compatible devices
- Fast 3-second start-up
- Active profile indicator
- Palette setting indicator
- Battery status indicator
- Construction Details
-
- Lightweight and durable aluminum housing
- Picatinny accessory rail on the right side
- Tethered protective lens cap
- Wide-winged rubber eyecup
- Knurled adjusters and rings

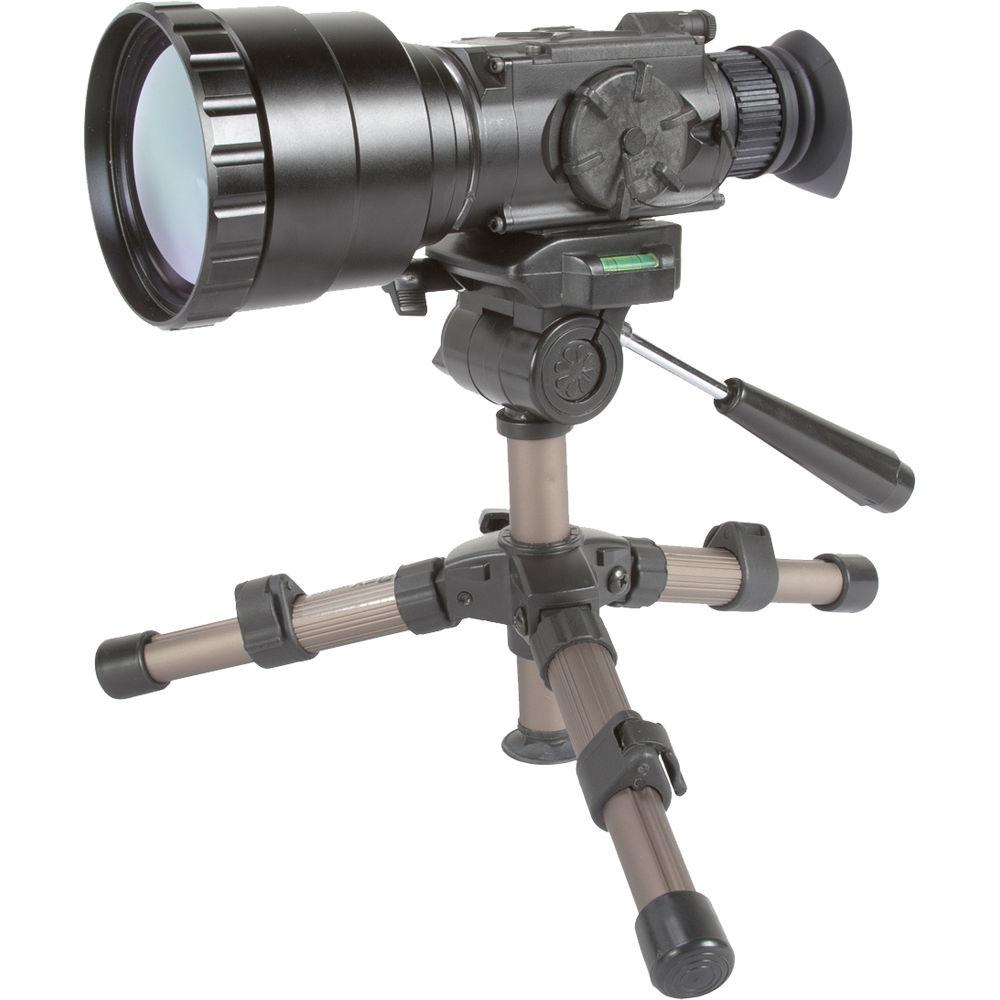

- Mountable on tripod
- Water-resistant and fog-resistant
In the Box Armasight by FLIR Prometheus 640 HD 4-32x100 Thermal Imaging Monocular (30 Hz) - Picatinny Adapter
- Tethered Lens Cap
- Lens Cloth
- Wireless Remote Control
- 2 x CR-123A Batteries
- Battery Cassette
- Video Cable
- Soft Carrying Case
- Limited 3-Year Warranty
- Limited 10-Year Warranty on FLIR Detector
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Prometheus 640 HD 4-32x100 Thermal Imaging Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR Prometheus 640 Specs | Array Configuration | 640x512 FLIR Tau 2 VOx microbolometer | | Spectral Range | 7-14 µm | | Pixel Size | 17 µm | | Refresh Rate | 30 Hz | | Magnification | NTSC: 3.7x
PAL: 4.4x
Digital zoom: 1x, 2x, 4x, 8x | | Angle of View | 6.2 x 5° | | Lens System | 100mm, f/1.3 | | Minimum Focus Distance | 33' (10 m) | | Eye Relief | 25mm | | Exit Pupil | 14mm | | Display | 800x600 AMOLED SVGA 060 | | Diopter Adjustment | +5 to -5 | | Battery / Runtime | 2 x CR-123A (3 V) lithium batteries / 4 h
2 x CR-123 (3-3.7 V) rechargeable batteries
External Power Supply: 6 V, 600 mAh | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -58 to 158°F (-50 to 70°C) | | Weatherproofing | Water-resistant and fog-resistant | | Dimensions | 9.4 x 4.6 x 4.6" (239 x 116 x 116 mm) | | Weight | 38.8 oz (1.1 kg) |
