Armasight by FLIR PVS-14 2nd Gen

Search your instruction manual in PDF to download

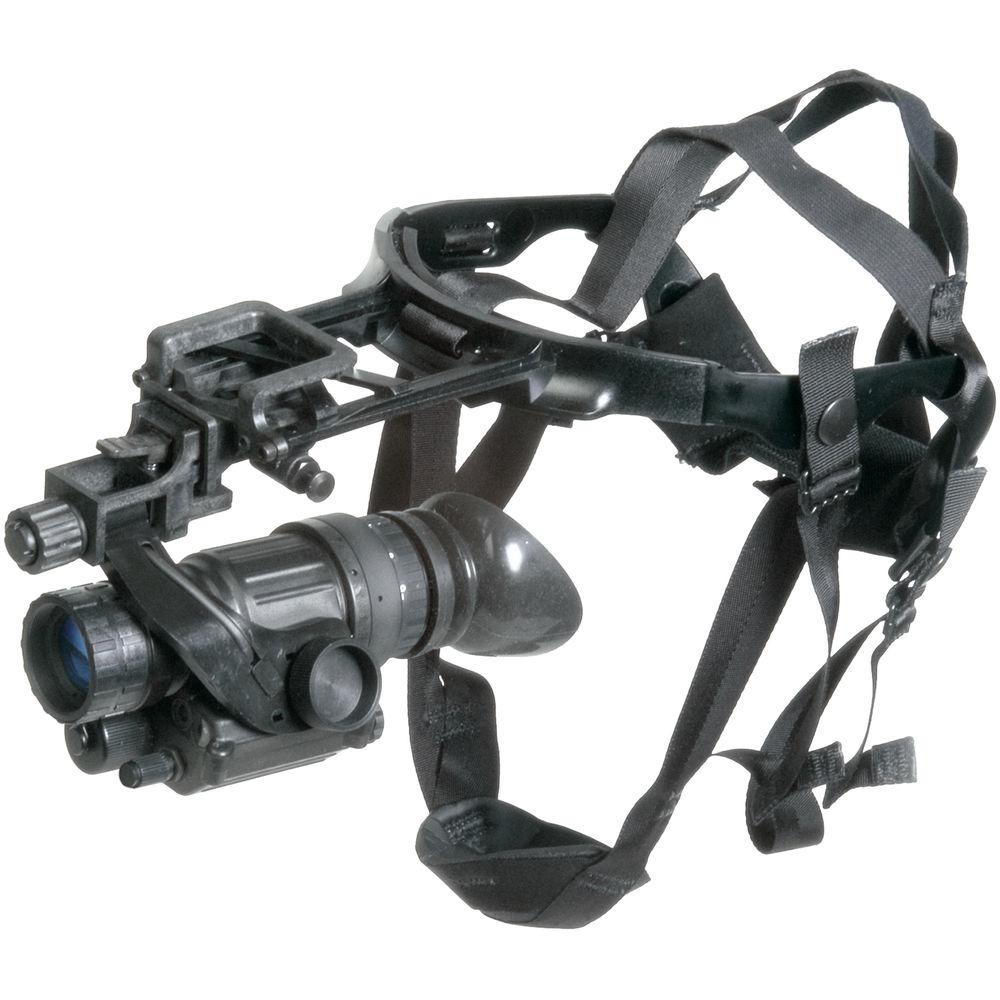

User Manual for Armasight by FLIR PVS-14 2nd Gen High Definition Night Vision Monocular with Headgear

Click to enlarge the picture
Armasight by FLIR PVS-14 2nd Gen High Definition Night Vision Monocular with Headgear Contents of the user manual for the Armasight by FLIR PVS-14 2nd Gen
  • Product category: NV Monoculars & Multi-Systems Armasight by FLIR
  • Brand: Armasight by FLIR
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Armasight by FLIR NV Monoculars & Multi-Systems

Armasight by FLIR PVS-14 2nd Gen High Definition Night Vision Monocular with Headgear Armasight by FLIR PVS-14 2nd Gen High Definition Night Vision Monocular with Headgear Armasight by FLIR PVS-14 2nd Gen High Definition Night Vision Monocular with Headgear Armasight by FLIR PVS-14 2nd Gen High Definition Night Vision Monocular with Headgear Armasight by FLIR PVS-14 2nd Gen High Definition Night Vision Monocular with Headgear Armasight by FLIR PVS-14 2nd Gen High Definition Night Vision Monocular with Headgear Armasight by FLIR PVS-14 2nd Gen High Definition Night Vision Monocular with Headgear
User manual for the Armasight by FLIR PVS-14 2nd Gen contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Armasight by FLIR product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!



Product description

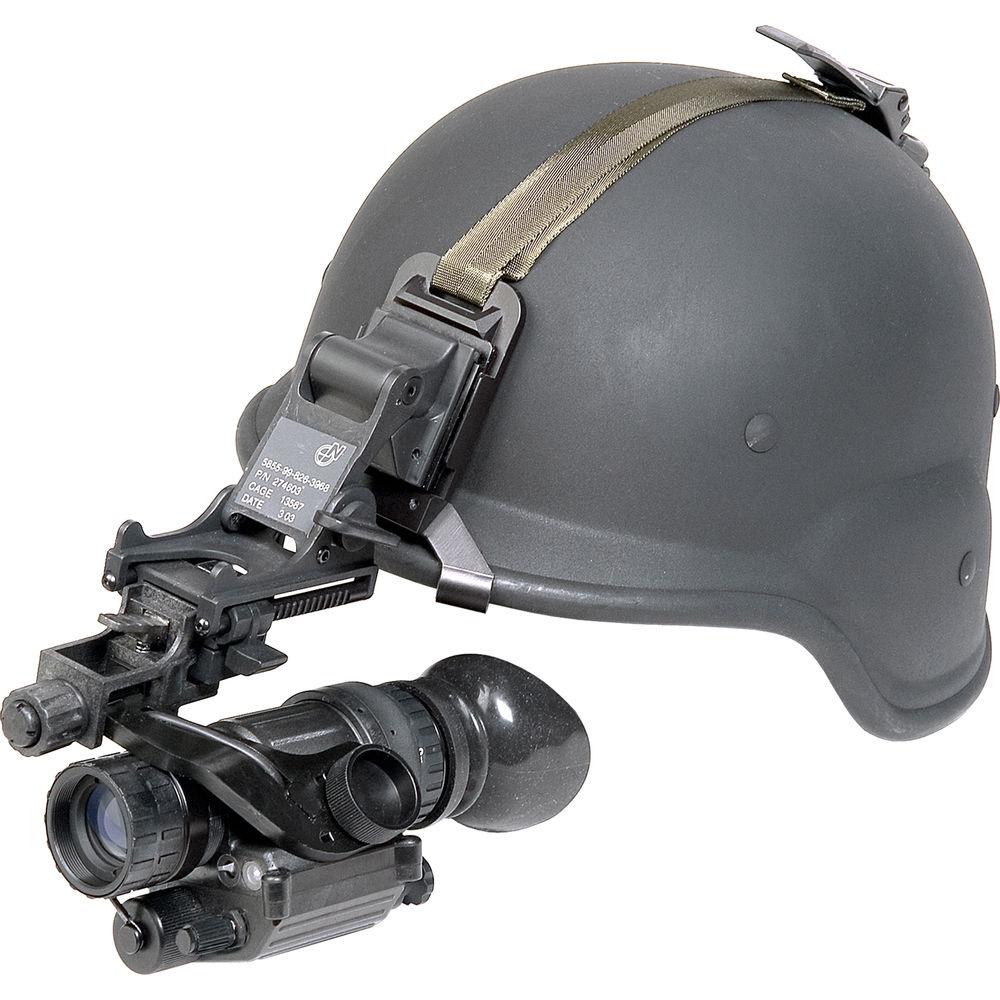

Engineered for armed forces and law enforcement personnel, the PVS-14 2nd Gen High Definition Night Vision Monocular from Armasight is a versatile, compact and rugged night vision device that can be used handheld, mounted to a helmet, weapon, or worn with the included headgear. The Armasight second generation intensifier tube technology incorporates a microchannel plate, multialkali photocathode, built-in power supply, and 18 mm format screen, which improve reliability, image brightness, and quality compared to first generation devices. The High Definition (HD) feature produces green images and has a resolution of 55-72 lp/mm. With a manual gain control, you can adjust image brightness and detail when passing through environments with a varying ambient infrared illumination. If there is not enough natural infrared and your targets appear too dark and with little detail, the built-in infrared illuminator will provide additional illumination and help improve visibility even in complete darkness. The 1x optical system offers a wide angular field of view and a 0.8' minimum focus distance. Additionally, the device has an auto shut-off function, infrared indicator, and a low battery indicator.

The housing is waterproof, lightweight, durable, and provides protection from adverse conditions and extreme temperatures. It is contoured and has ergonomic controls, knurled adjustment rings, and wide rubberized winged eyecups. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce.
For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce.
    Image Intensifier
    • 2nd Gen High Definition intensifier tube
    • 55-72 lp/mm resolution
    • Produces green image
      Optical Performance
      • Magnification: 1x
      • Lens system: 27mm, f/1.2
      • Field of view: 40°
      • Focus range: 0.8' to infinity
        Use and Handling
        • Low battery indicator
        • IR indicator
          Construction Details
          • Built-in IR illuminator with a flood lens
          • Mountable to the included headgear

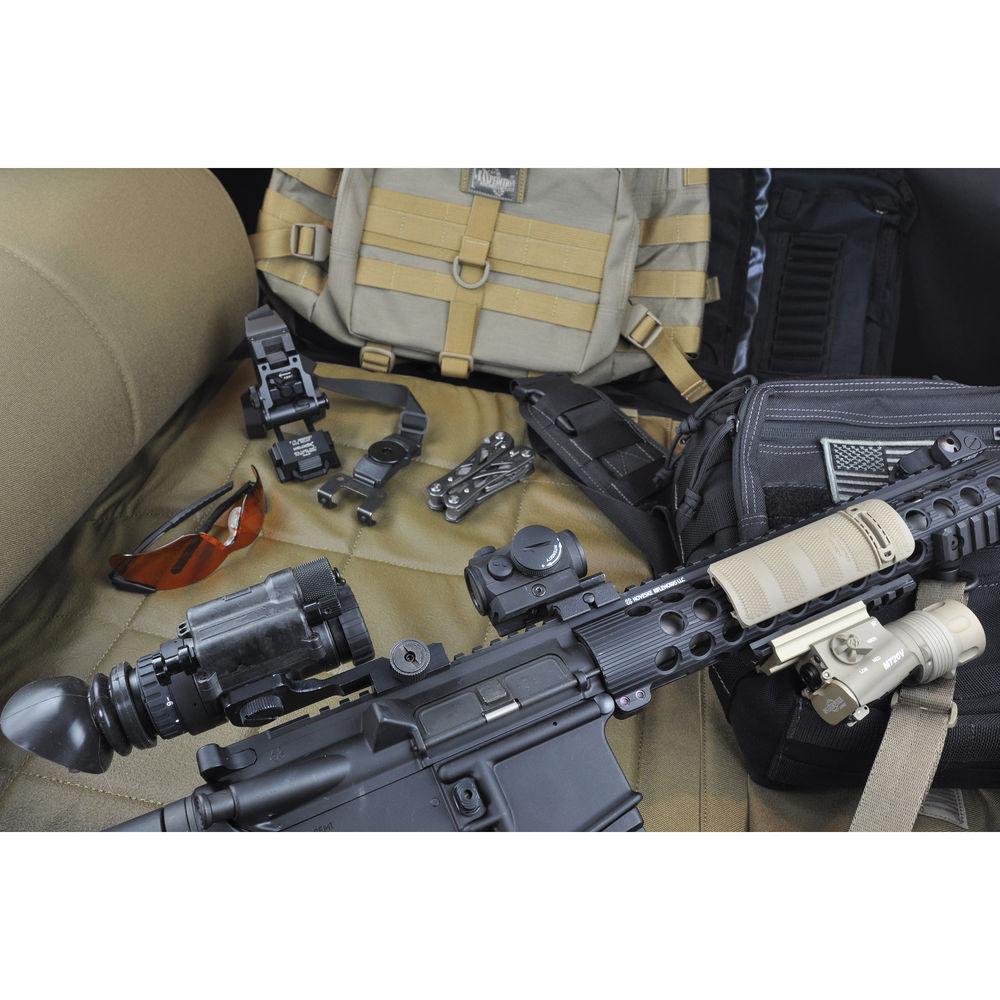

          • Mountable to weapons with optional adapters
          • Ergonomic and easy to operate controls
          • Rubberized winged eyecup
          • Waterproof

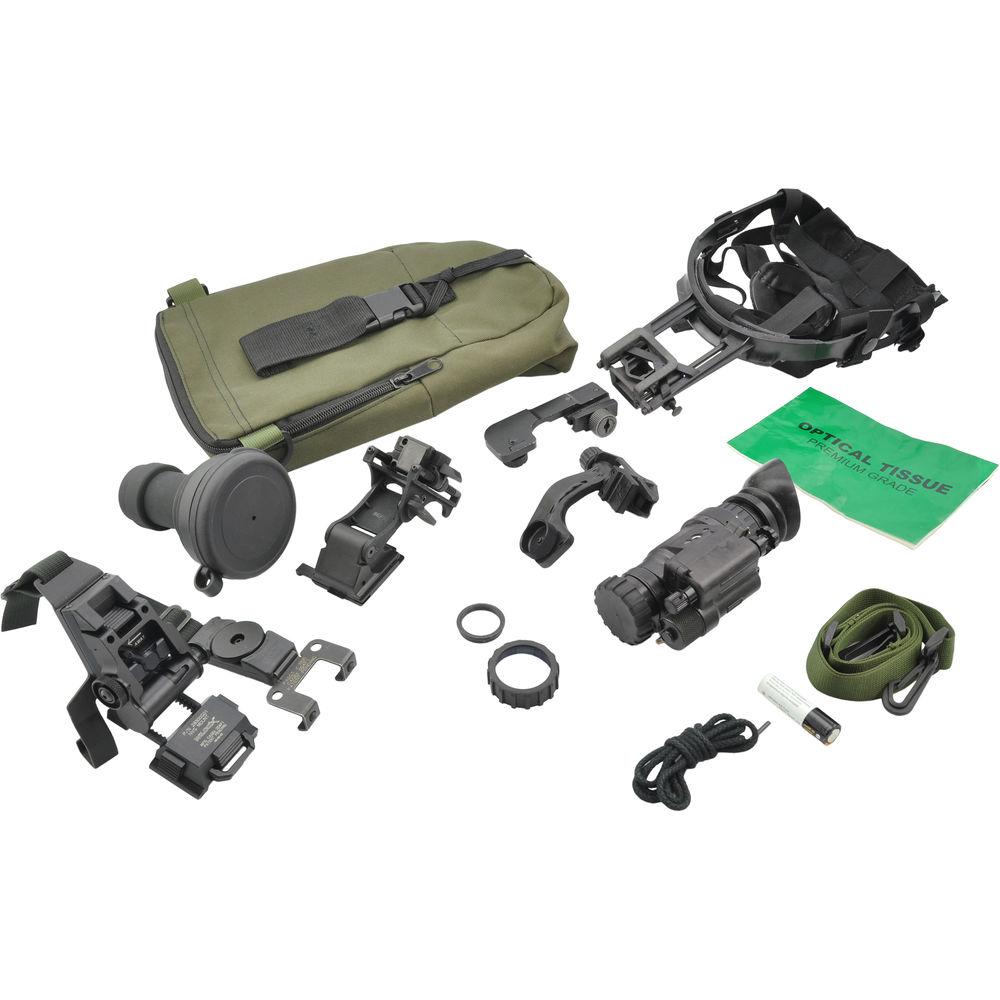

          UPC: 849815003932 In the Box Armasight by FLIR PVS-14 2nd Gen High Definition (HD) Night Vision Monocular with Headgear (Manual Gain)
        • AA Battery
        • Daylight Filter
        • Demist Shield
        • Headgear
        • Headgear Adapter
        • Lens Tissue
        • Sacrificial Window
        • Shoulder Strap
        • Soft Carry Case
        • Limited 2-Year Warranty
        Table of Contents




Upload User Manual

Have you got an user manual for the Armasight by FLIR PVS-14 2nd Gen High Definition Night Vision Monocular with Headgear in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Armasight by FLIR NAMPVS140129DH1 Specs

Intensifier Tube 2nd Gen High Definition
Multialkali photocathode
Resolution 55-72 lp/mm
Magnification 1x
Field of View 40°
Lens System 27mm, f/1.2
Focus Range 0.8' / 0.25 m to infinity
Dioptric Correction +4 to -6
Infrared Illuminator Yes, with flood lens
Power Supply 1 x AA (1.5 V)/ 50 hr max
Operating Temperature -60 to 120°F / -51 to 49°C
Storage Temperature -58 to 140°F / -50 to 60°C
Dimensions 4.5 x 2.5 x 2" / 114 x 57 x 51 mm
Weight 12.4 oz / 350 g
Package Weight 2.65 lb
Box Dimensions (LxWxH) 12.7 x 7.3 x 4.5"
