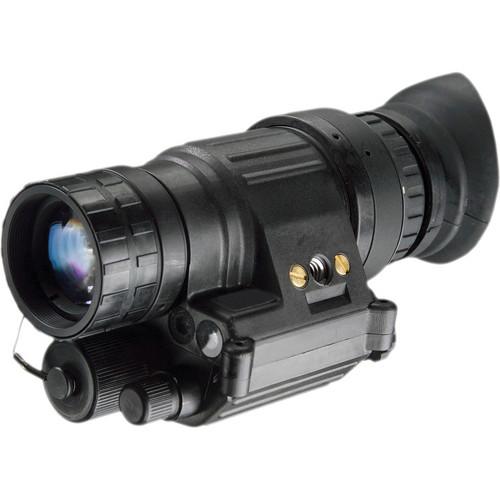

User Manual for Armasight by FLIR PVS14-3 Gen 3 Bravo Multi-Purpose NV Monocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR PVS14-3 Gen 3
- Product category: NV Monoculars & Multi-Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR NV Monoculars & Multi-Systems
|
User manual for the Armasight by FLIR PVS14-3 Gen 3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The PVS14-3 Gen 3 Bravo Multi-Purpose NV Monocular from Armasight is a compact durable third generation night vision device engineered for armed forces and law enforcement personnel. This weather-sealed image intensification device is engineered to perform in a range of harsh environments from campground to battleground. The Gen 3 image intensifier features 62-72 lp/mm resolution, and automatic highlight cut-off circuitry that protects the tube and operator's eyes from damage. Workhorse of the US military and allied forces personnel, the PVS14 is a dependable tactical device for surveillance, target acquisition, and terrain navigation. Mount this durable monocular on your weapon's Picatinny/Weaver rail to create a formidable night vision tactical system that is ready to perform in salt water, high humidity, and extremes of temperature. A focusable long-range IR illuminator maximizes the capability of the PVS14 by allowing the operator to defocus and paint their field of view with infrared light to enhance situational awareness, or focus the beam for precise illumination. The user-friendly design features adjustable diopters, low battery indicator in the field of view, and a tripod mount for comfort during extended-duration observation and missions. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Intensifier Tube
- Gen 3-Bravo intensifier tube boasts 62-72 lp/mm resolution and minimal spotting caused by cosmetic blemishes on the microchannel plate. The tube is Mil-Std 810 compliant and ready for years of performance in a wide range of environmental conditions.
- Lens System
- Fully multi-coated all glass optics transmit clear and bright images through the objective lens. The 1.0x magnification 27mm lens delivers a 40 degree field of view that enables the operator to maintain situational awareness in the field.
- Focusable IR Illuminator
- Use the included infrared illumination device as an efficient tool for extending the visible range of this night vision biocular system. Defocus the beam and paint your field of view with infrared light to enhance situational awareness, or focus the beam for precise illumination.
- Mil-Std 810 Compliant
- Mount this durable monocular on your weapon's Picatinny/Weaver rail to create a formidable night vision tactical system that is ready to perform in salt water, high humidity, and extremes of temperature.
In the Box Armasight by FLIR PVS14-3 Gen 3 Bravo Multi-Purpose NV Monocular Head Mount Assembly Helmet/Head Mount Adapter Soft Carrying Case Shoulder Strap Brow Pad Eye Cup Lens Cloth Lens Cap AA Battery Daylight Filter Demist Shield Sacrificial Window Operator's Manual Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR PVS14-3 Gen 3 Bravo Multi-Purpose NV Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NAMPVS140139DB1 Specs | Intensifier Tube | Gen 3 | | Resolution | 64 - 72 lp/mm | | Magnification | 1.0x | | Angle/Field of View | 40° | | Lens System | 27 mm f/1.2 | | Minimum Focus Distance | 10" (0.25 m) | | Dioptric Correction | -6 to 2 | | Infrared Illuminator | Yes | | Power Supply | (1) AA battery | | Runtime | Up to 50 hours of continuous operation at room temperature | | Weatherproofing | Weather sealed | | Temperature Ranges | -60 to 120°F (-51 to 49°C) | | Dimensions | 4.5 x 2.25 x 2" (11.4 x 5.7 x 5.1 cm) | | Weight | 12.4 oz (350 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 12.0 x 7.0 x 7.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
