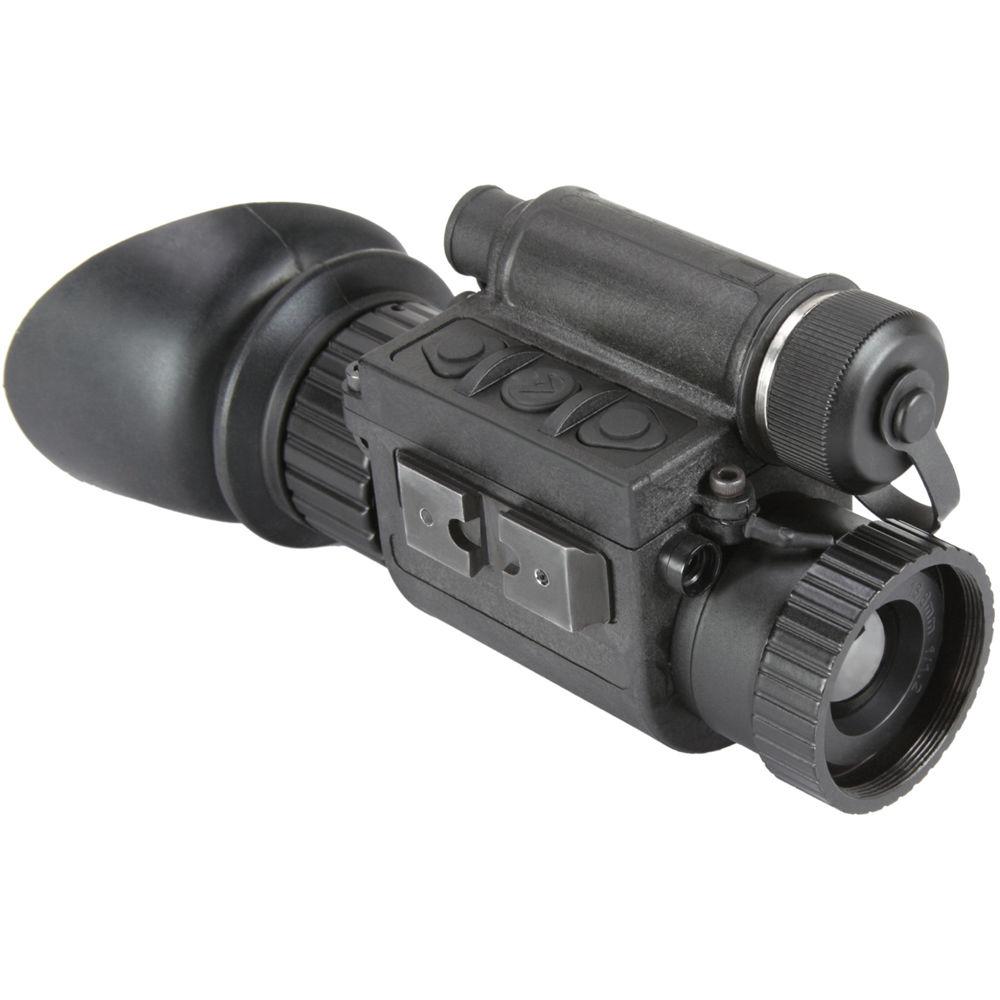

User Manual for Armasight by FLIR Q14 TIMM 640 Thermal Multipurpose Monocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Q14 TIMM 640
- Product category: Thermal Scopes Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Thermal Scopes
 |
User manual for the Armasight by FLIR Q14 TIMM 640 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

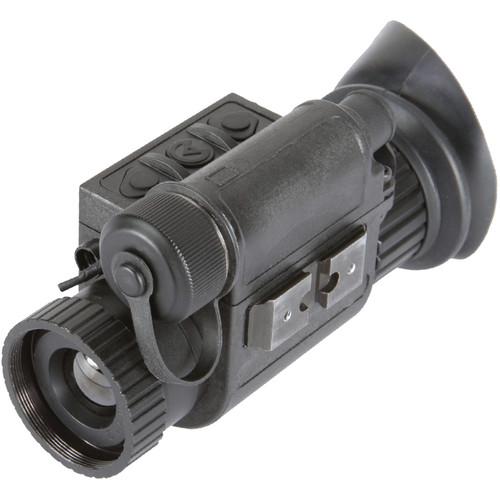

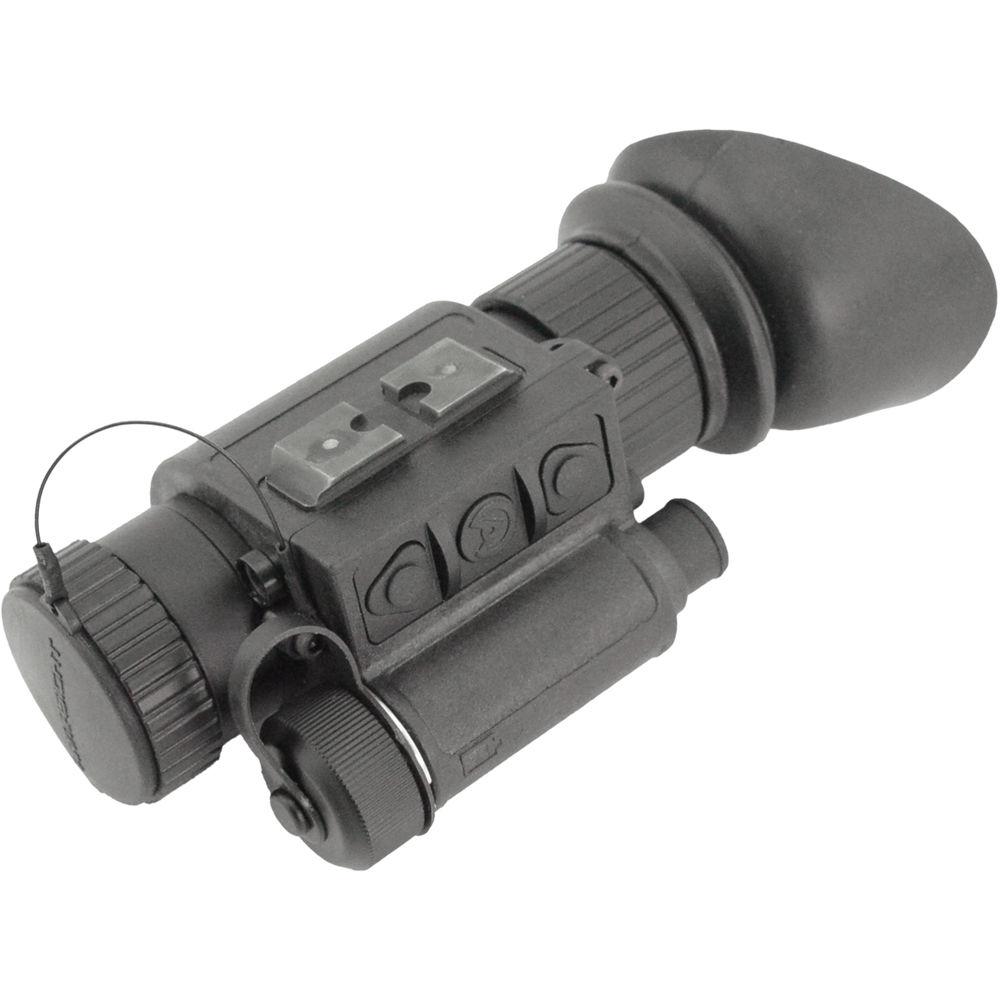

Product description Combining the strength, durability, and light weight of reinforced glass fiber with a compact size, the Q14 TIMM 336 Thermal Imaging Multipurpose Monocular from Armasight is ideal for handheld operation, as a weapon mount, or as a head mount. It features an uncooled 336x256 FLIR Quark 2 microbolometer that enables users to see heat sources at night or during the day. For example, at night without help from visible illumination you will be able to detect running engines, hot wires, infrared lasers and lamps, live animals, humans, or other sources of heat. Additionally, because of different transmission properties of the infrared light compared to the visible light, this thermal imager will enable you to view your targets through smoke, fog, or dust.
You can view thermal profiles of your targets on a built-in AMOLED SVGA 060 color display or relay videos through a VGA video output port for viewing on an external monitor or for recording. The user-friendly menu allows you to choose between image filtering options and image processing functions that provide different color modes: White Hot, Black Hot, Rainbow, and Various Colors. To help with precision target acquisition, the device also features several black digital reticle patterns. Additionally, the included remote control allows for a wireless operation.

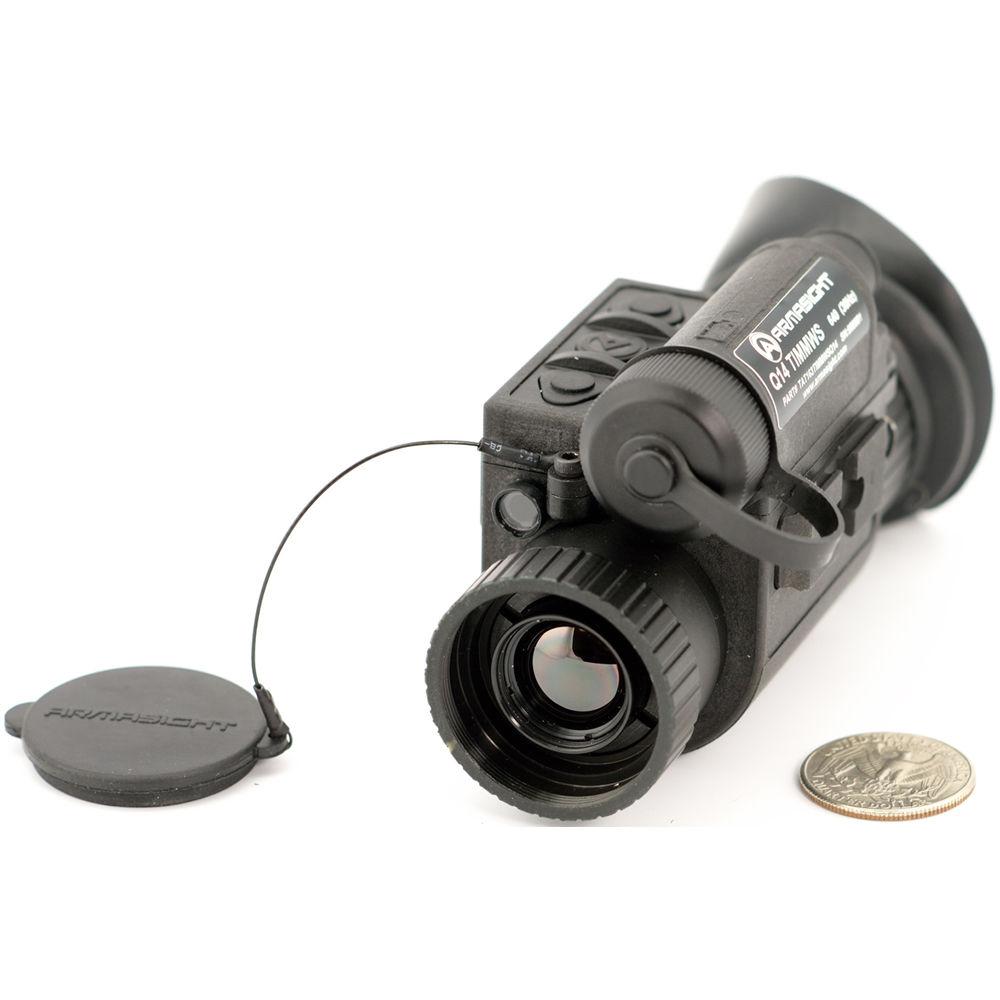

The reinforced glass fiber housing is lightweight, durable, and waterproof. To provide a sure operation, all adjustment rings are knurled. Other construction details include a tethered protective objective lens cap and a rubber-winged eyeguard. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Thermal Imager
-
- Uncooled Quark 2 sensor
- 7-14µm spectral response
- Array size: 640x512
- Pixel Size: 17μm
- Optical Performance
-
- Lens system: 19mm, f/1.25
- Germanium objective lens
- 1x magnification
- Digital zoom: 1x, 2x, 4x, 8x
- Angle of view: 33 x 26°
- Exit pupil: 5mm
- Eye relief: 16mm
- Close focus: 8.8"
- Display
-
- 800x600 AMOLED SVGA 060 color display
- 30 Hz refresh rate
- Eight discrete brightness levels
- NTSC and PAL video output formats
- Image palettes: White Hot, Black Hot, Sepia, Fusion, Rainbow, and Rain
- Black digital reticle: Dot 4 MOA, Line Dot, Cross Center Dot, Cross, Crosshair
- Special User-Adjustable Imaging Tools
-
- Active Contrast Enhancement (ACE)
- Smart Scene Optimization (SSO)
- Second Generation Digital Detail Enhancement (DDE)
- SKY/SEA Information-Based Histogram Equalization (IBHEQ)
- User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC)
- Silent Shutterless NUC (SSN)
- Use and Handling
-
- Bluetooth operation
- Fast 3-second start-up
- Digital compass
- Digital inclinometer
- Battery status indicator
- Construction Details
-
- Lightweight and durable glass fiber housing

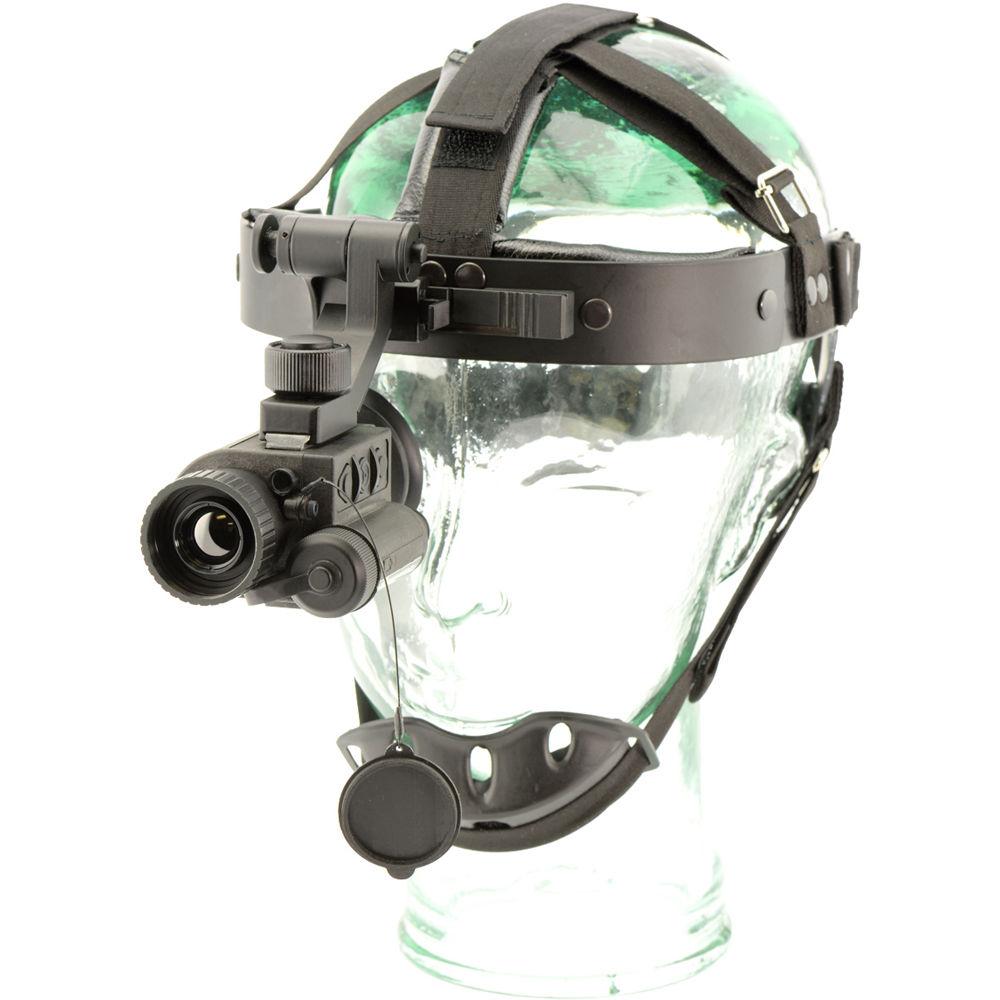

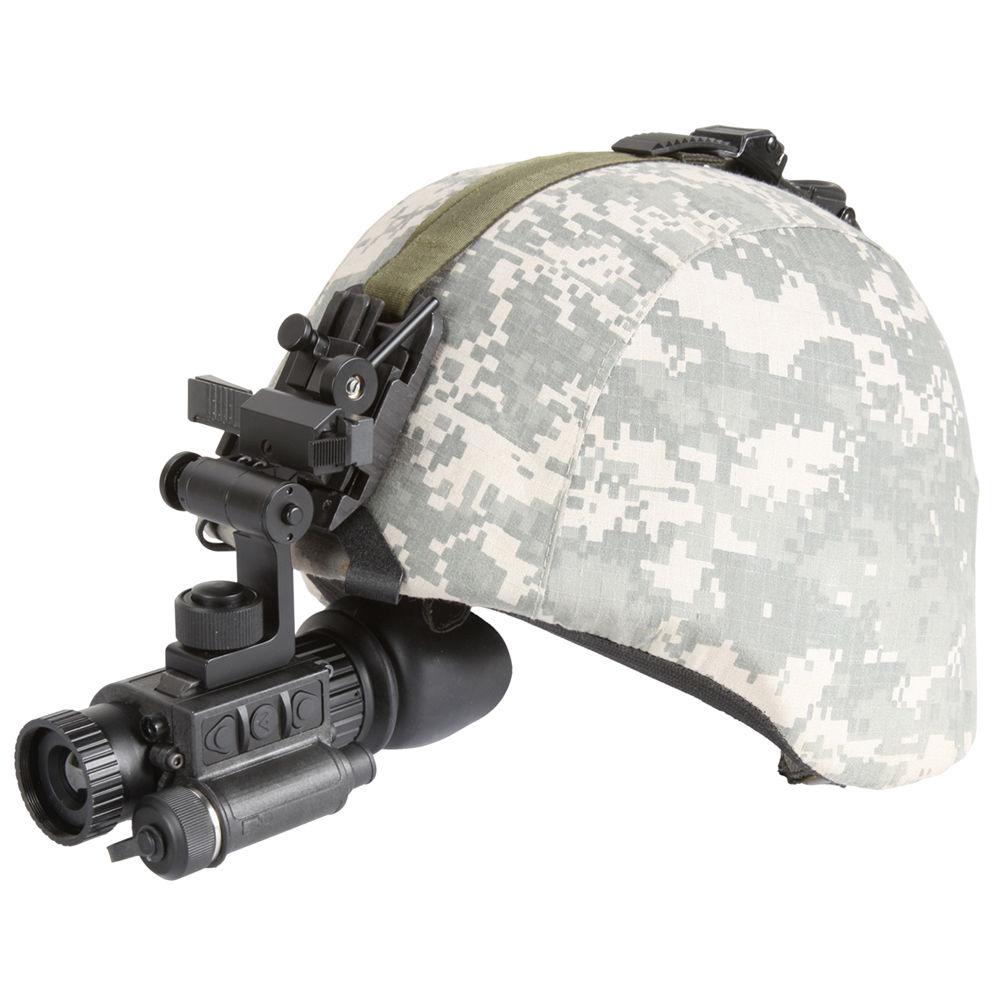

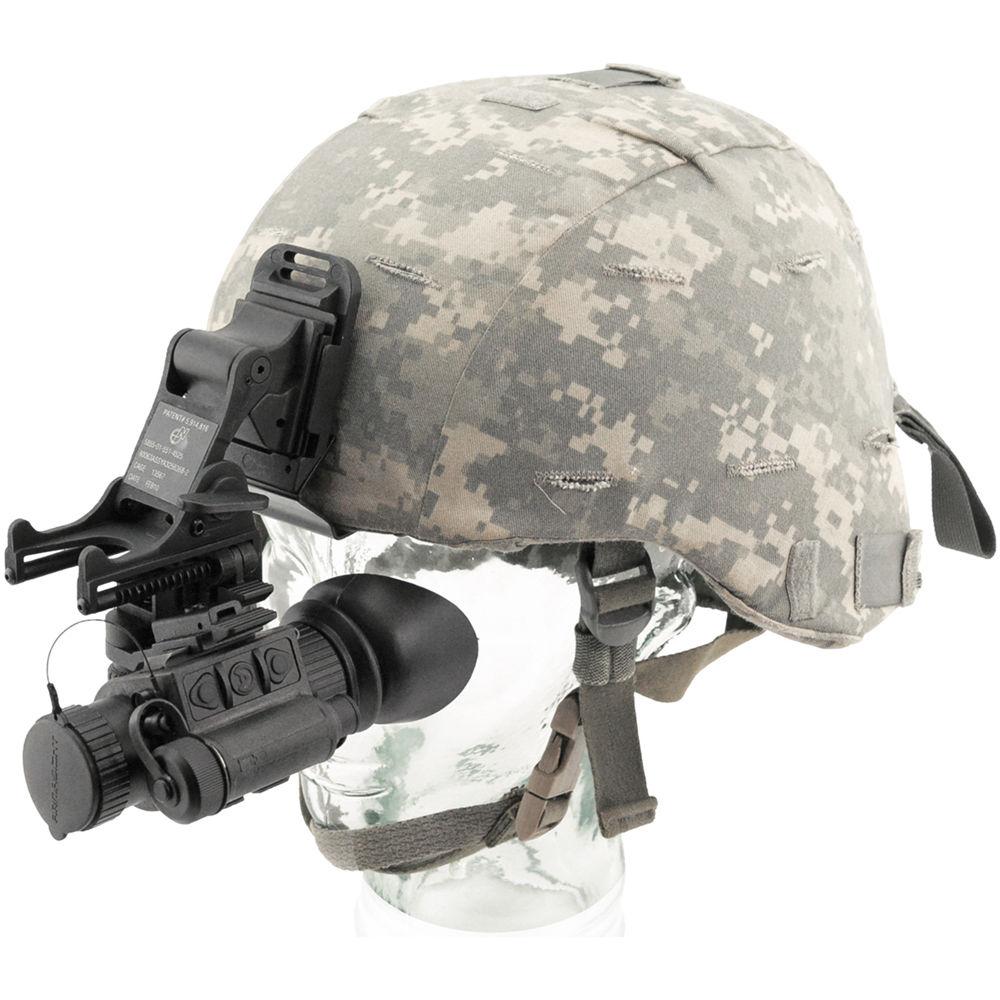

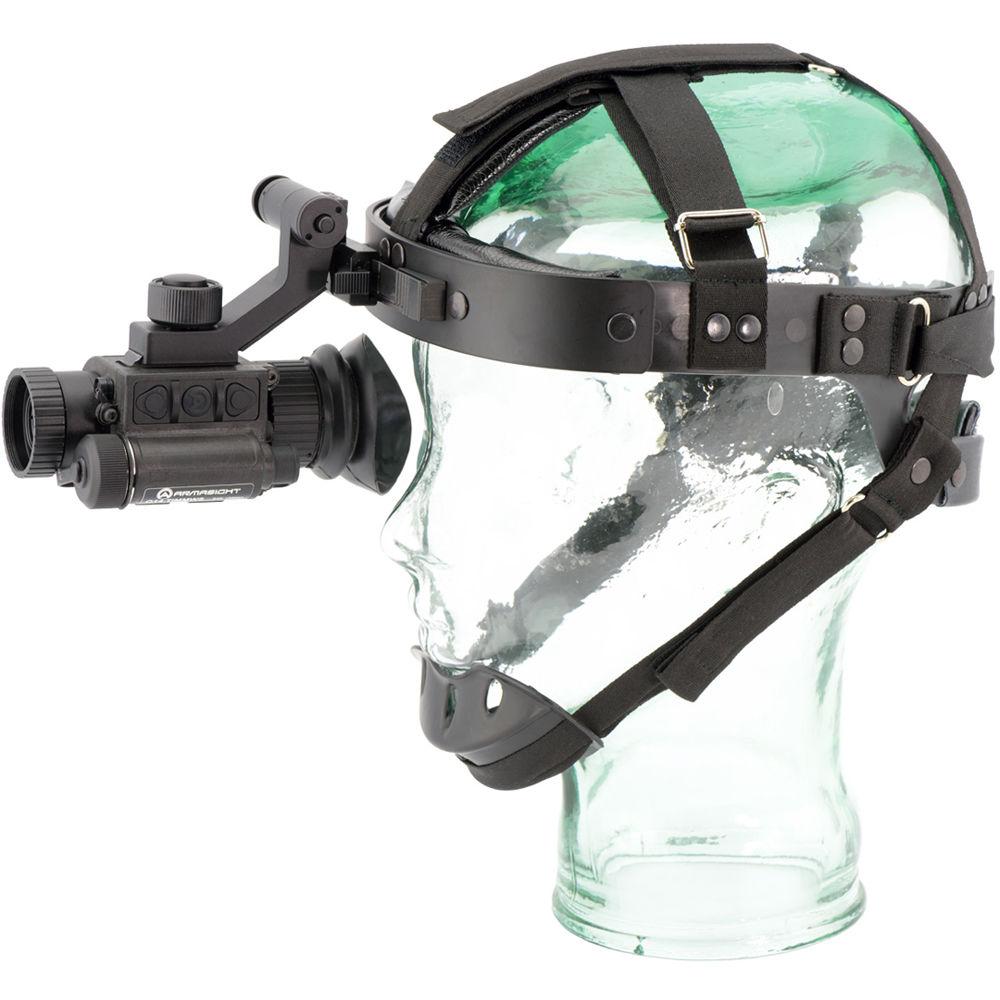

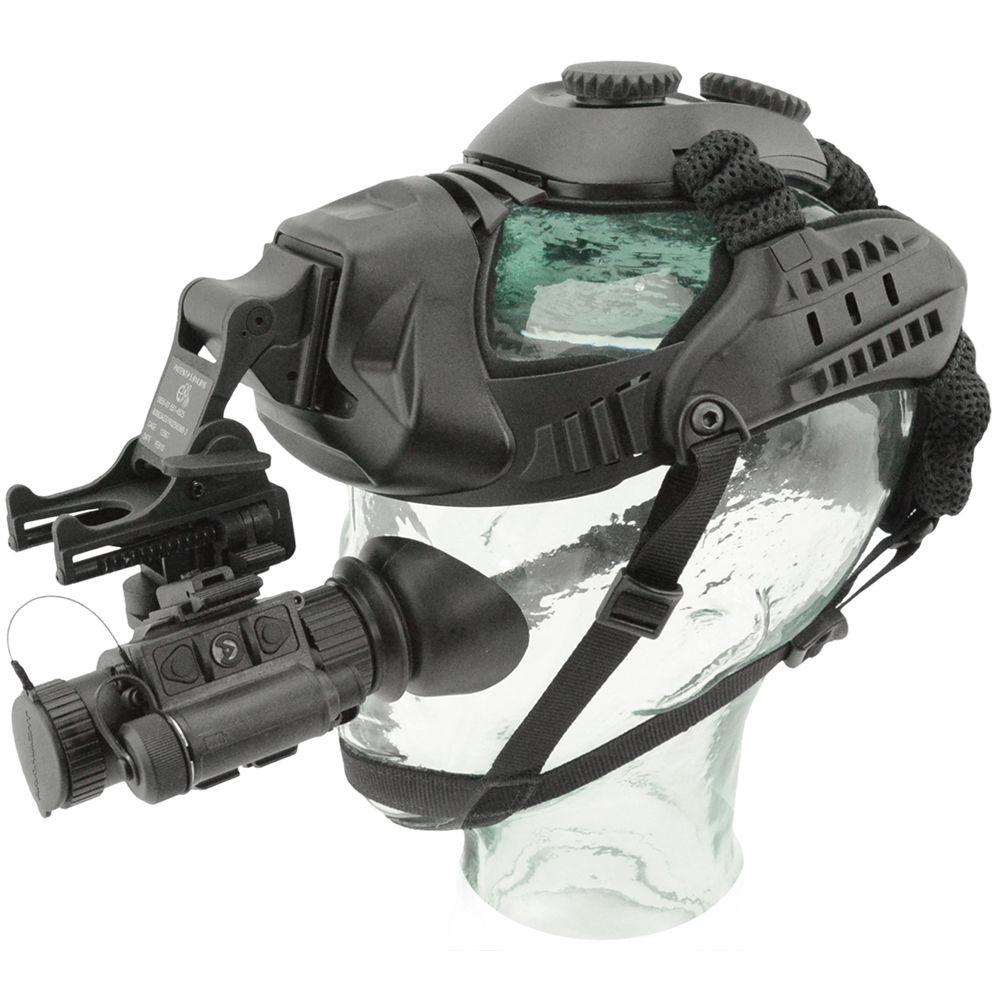

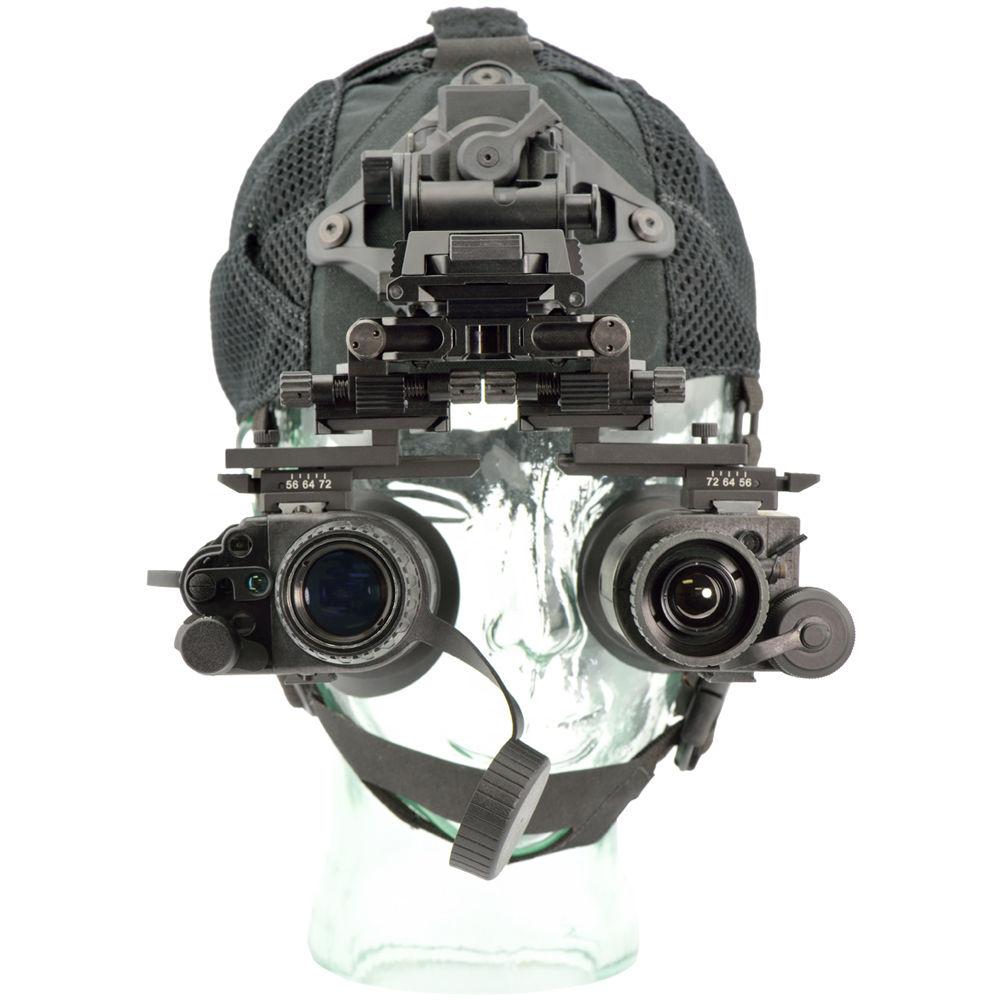

- Suitable for handheld operation and mountable on headgears, helmets, weapons
- Picatinny/Weaver accessory mounting point
- Wid-winged rubber eyecups
- Knurled adjusters and rings
- Waterproof
In the Box Armasight by FLIR Q14 TIMM 640 Thermal Multipurpose Monocular (60 Hz) - Battery Adapter for 16650 Battery
- 16650 Rechargeable Battery
- Charger for 16650 Rechargeable Battery
- Wireless Remote Control
- Picatinny Adapter for Remote Control
- Tethered Lens Cap
- Lens Cloth
- CR-123A Battery
- Video Cable
- Carrying Case
- Limited 3-Year Warranty
- Limited 10-Year Warranty on FLIR Detector
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Q14 TIMM 640 Thermal Multipurpose Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR Q14 TIM 640 Specs | Array Configuration | 640x512 FLIR Quark 2 | | Spectral Range | 7-14 µm | | Pixel Size | 17 µm | | Refresh Rate | 60 Hz | | Magnification | Optical: 1x
Digital zoom: 1x, 2x, 4x, 8x | | Angle of View | 33 x 26° | | Lens System | 19mm, f/1.25 | | Minimum Focus Distance | 9.8" (0.25 m) | | Eye Relief | 16 mm | | Exit Pupil | 5 mm | | Display | 800x600 AMOLED SVGA 060 | | Diopter Adjustment | +5 to -5 | | Battery / Runtime | 1 x CR-123A lithium batteries / 1.5 h
1 x CR-123 (650 mAh) rechargeable batteries / 1 h
1 x 16650 (2000 mAh) rechargeable batteries / 2.6 h
External Power Supply: 6-12 VDC, 600 mAh | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -58 to 158°F (-50 to 70°C) | | Weatherproofing | Waterproof | | Dimensions | 3.9 x 2.5 x 1.6" (100 x 63 x 40 mm) | | Weight | 8.5 oz (240 g) | | | | Box Dimensions (LxWxH) | 13.0 x 9.0 x 6.0" |
