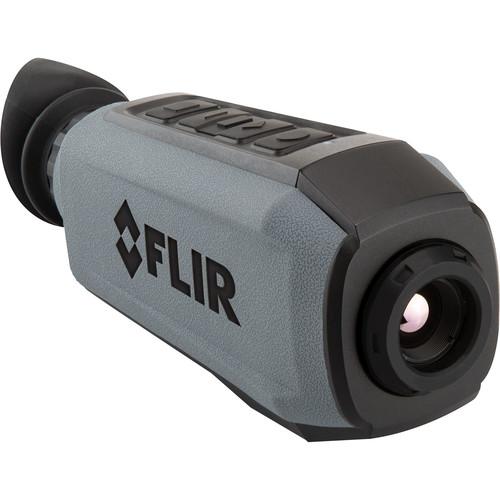

User Manual for Armasight by FLIR Scion OTM130 Thermal Monocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Scion OTM130 Thermal
- Product category: Thermal Scopes Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Thermal Scopes
 |
User manual for the Armasight by FLIR Scion OTM130 Thermal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The gray FLIR Scion OTM130 Thermal Monocular makes it possible to quickly detect objects of interest and provide superior awareness in low-visibility conditions. The device also records geotagged video (2GB onboard capacity and up to 128GB with an optional micro-SD memory card), and its 9 Hz refresh rate and picture-in-picture zoom give a clear view of the subject.
At the core of this device is the BOSON 12µm VOx microbolometer with 320x256 detection resolution. The optical system includes a 13.8mm lens with a 16x12° field of view and 1x, 2x, and 4x digital zoom. Thermal palettes include White Hot, Black Hot, Iron Bow, Rainbow, Graded Fire, and Lava, and display modes include scouting, picture-in-picture, and navigation. Communication capabilities include WiFi video streaming, near field communication (NFC), and Bluetooth BLE 4.1+.
The Scion OTM130 is IP67-rated weatherproof and is powered by six CR123A batteries, with a runtime of 4.5 hours at 68°F. It measures 9.0x3.0x2.4" and weighs 20.2 ounces. - Imaging Performance
-
- 320x256 BOSON 12µm VOx microbolometer
- 13.8mm lens with 16x12° field of view
- 9 Hz refresh rate
- 1x, 2x, 4x digital magnification
- Picture-in-picture zoom
- Use and Handling
-
- NFC, Bluetooth, Wifi streaming capability
- Quad-VGA 1280x960 FLCOS display
- Scouting, picture-in-picture, and navigation display modes
- White Hot, Black Hot, Iron Bow, Rainbow, Graded Fire, and Lava thermal palettes
- 2GB internal memory and up to 128GB with user-supplied micro-SD card
- Picture while recording, real-time clock, date/time stamp, auto power off
- Magnetic compass and accelerometer
- Construction Details
-
- USB-C power input, video output, file transfer, dock connection
- Runs on six CR123A batteries, runtime 4.5 hours at 68°F
- IP67-rated waterproof
- 1/4"-20 mount
- Measures 9.0x3.0x2.4", weighs 20.2 ounces
UPC: 849815010091 In the Box Armasight by FLIR Scion OTM130 Thermal Monocular (Gray) Limited 1-Year Warranty Extendable with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Scion OTM130 Thermal Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR RTM130 Specs | Array Configuration | 320 x 256 BOSON 12 µm VOx Microbolometer | | Field of View | 16 x 12° | | Eye Relief | 16 mm | | Lens System | 13.8 mm | | Refresh Rate | 9 Hz | | Magnification | Optical: 1.5x
Digital: 1x, 2x, 4x | | Video Output | NFC, Bluetooth BLE 4.1+, WiFi, USB-C | | Battery / Runtime | 6 x CR123A / 4.5 h @ 68°F/20°C | | Weatherproofing | IP67-Rated, Waterproof | | Dimensions | 9.0 x 3.0 x 2.4" / 23.9
