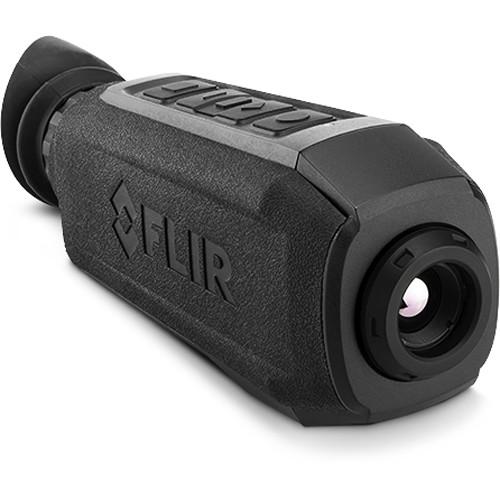

Product description The FLIR Scion PTM336 Thermal Monocular gives law enforcement and public safety professionals the ability to stream encrypted live video, letting command centers monitor any pursuit, evidence recovery, or search and rescue effort. The device also records geotagged video (2GB onboard capacity, and up to 128GB with an optional micro-SD memory card), and its 60 Hz refresh rate and picture-in-picture zoom give a clear view of the subject despite darkness, glaring light, or lingering haze.
At the core of this device is the BOSON 12µm VOx microbolometer with 320x256 resolution. The optical system includes a 25mm lens with a 9.0x6.5° field of view and 1x, 2x, and 4x digital zoom. Thermal palettes include White Hot, Black Hot, Iron Bow, Rainbow, Graded Fire, and Lava, and display modes include scouting, picture-in-picture, and navigation. Communication capabilities include NFC (near field communication), Bluetooth, WiFi, and FLIR's TruWITNESS real-time streaming platform, as well as GPS positioning.
The Scion PTM336 is IP67-rated weatherproof and is powered by six CR123A batteries, with a runtime of 4.5 hours at 68°F. It measures 9.4x3.0x2.4" and weighs 20.2 ounces. - Imaging Performance
-
- 320x256 BOSON 12µm VOx microbolometer
- 25mm lens with 9.0x6.5° field of view
- 60 Hz refresh rate
- Manual focus with 2.5x magnification
- 1x, 2x, 4x digital magnification
- Picture-in-picture zoom
- Use and Handling
-
- FLIR's TruWITNESS streaming platform provides live encrypted video to command centers
- NFC, Bluetooth, Wifi capability
- Quad-VGA 1280x960 FLCOS display
- Scouting, picture-in-picture, and navigation display modes
- White Hot, Black Hot, Iron Bow, Rainbow, Graded Fire, and Lava thermal palettes
- 2GB internal memory and up to 128GB with user-supplied micro-SD card
- Picture while recording, real-time clock, date/time stamp, auto power off
- Magnetic compass and accelerometer
- Construction Details
-
- USB-C power input, video output, file transfer, dock connection
- Runs on six CR123A batteries, runtime 4.5 hours at 68°F
- IP67-rated waterproof
- 1/4"-20 mount
- Measures 9.4x3.0x2.4", weighs 20.2 ounces
UPC: 849815010176 In the Box Armasight by FLIR Scion PTM336 Thermal Monocular (60 Hz, 25mm, Black) Limited 2-Year Warranty Extendable with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Scion PTM336 Thermal Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR PTM336 Specs | Array Configuration | 320x256 BOSON 12µm VOx Microbolometer | | Field of View | 9.0x6.5° | | Eye Relief | 16 mm | | Lens System | 25 mm Manual Focus | | Refresh Rate | 60 Hz | | Magnification | Optical: 2.6x
Digital: 1x, 2x, 4x | | Video Output | NFC, Bluetooth BLE 4.1+, WiFi, USB-C | | GPS | Yes | | Battery / Runtime | 6 x CR123A / 4.5 h @ 68°F/20°C | | Weatherproofing | IP67-Rated, Waterproof | | Dimensions | 9.4 x 3.0 x 2.4" / 22.7
