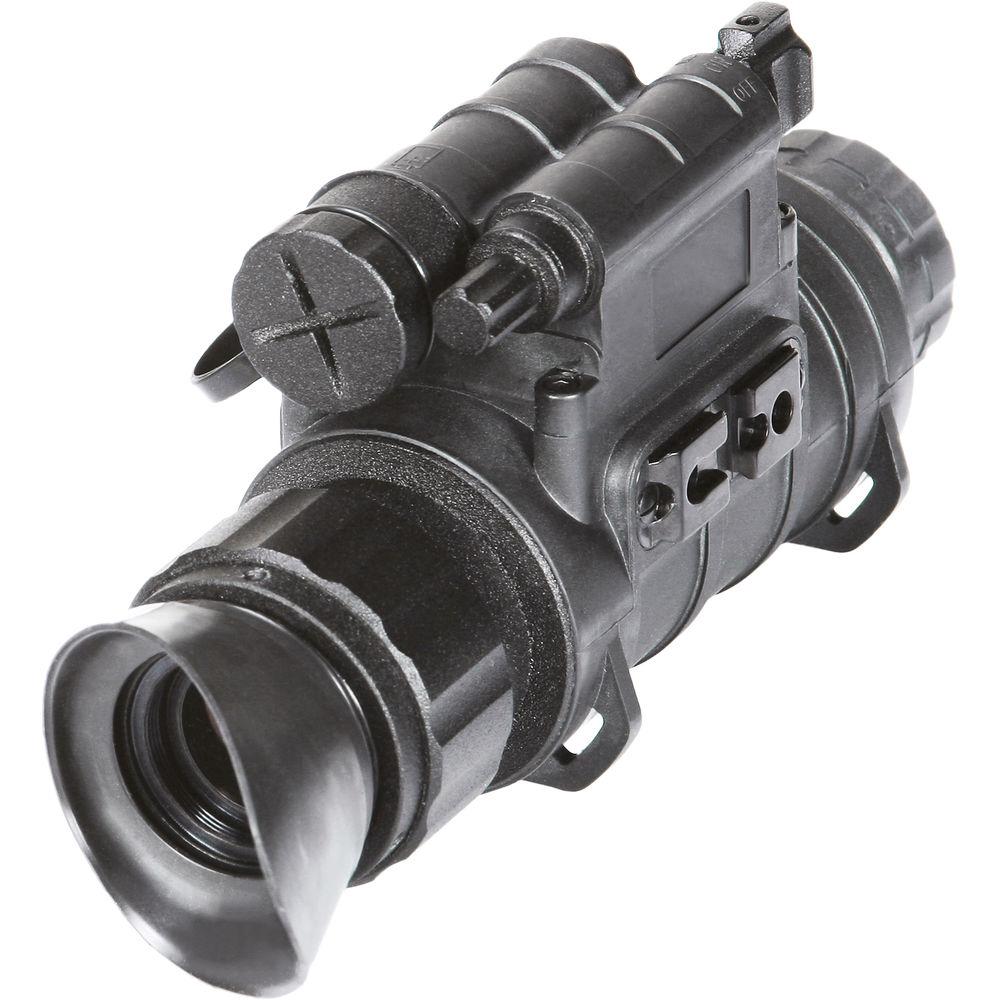

User Manual for Armasight by FLIR Sirius 1x 2nd Generation Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Sirius 1x 2nd
- Product category: NV Monoculars & Multi-Systems Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR NV Monoculars & Multi-Systems
 |
User manual for the Armasight by FLIR Sirius 1x 2nd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

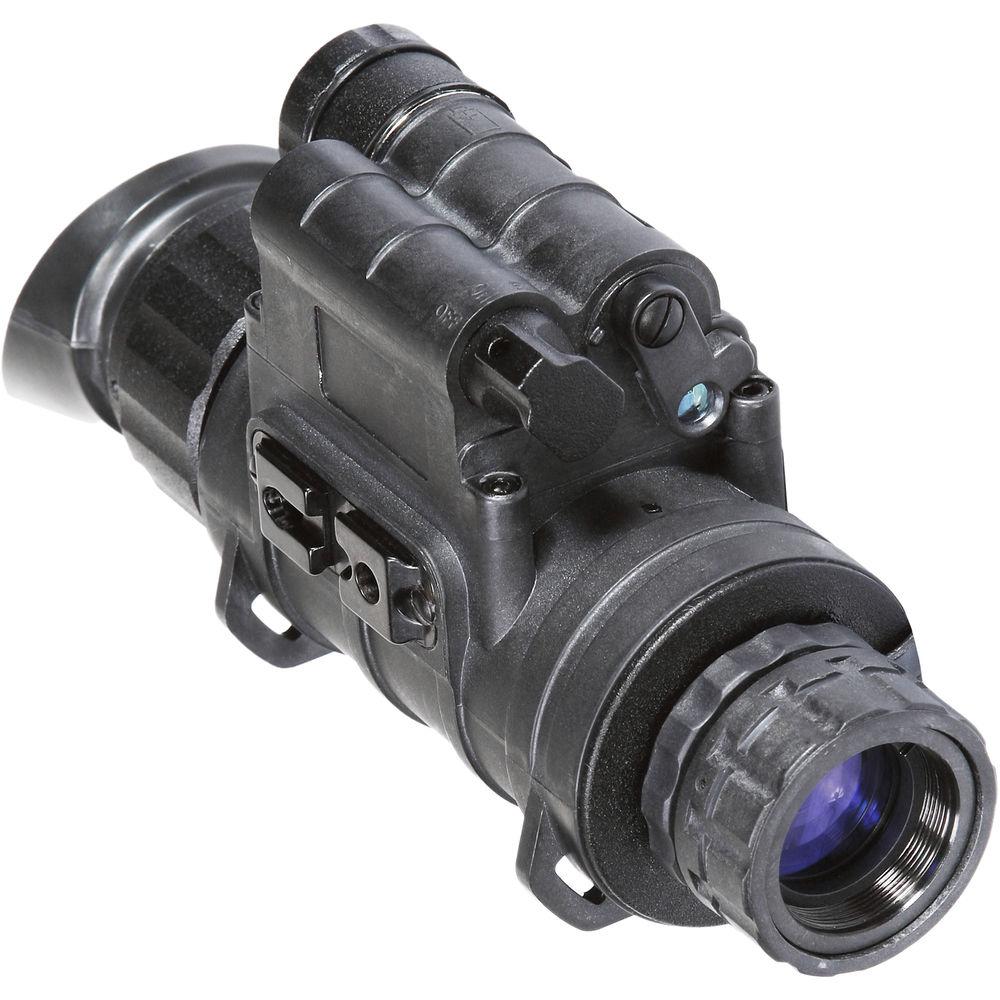

Product description Enhance your stealth with night capabilities using the Sirius 1x 2nd Generation Night Vision Monocular from Armasight by FLIR. This monocular is a 2nd generation night vision device that provides target visibility in low-light conditions. Its multi-alkali manual gain (MG) intensifier tube (with improved definition) converts infrared light into visible light (green) at a resolution of 47 - 54 lp/mm. Other highlights of the device are bright light cutoff and automatic shutoff functions. For casting additional light on your targets in total darkness to improve visibility, the device has a built-in LED infrared illuminator with a focusing lens. The optical system is designed to give a wide-angle view with low 1x magnification. For long-range or high-resolution imaging, the lens can be upgraded with optional high-zoom lenses. With the built-in mounting point, you can attach the monocular to your firearm or headgear using optional adapters. To reduce weight and to improve ergonomics, the body is made from polymer and features knurled rings, adjusters, and a rubber winged eyecup. - Intensifier Tube and IR Illuminator
-
- 2nd generation ID (improved definition) tube
- Resolution: 47 - 54 lp/mm
- Manual gain (MG) for manual brightness control
- Infrared LED illuminator with a flood-to-spot lens
- Optical Performance
-
- 1x magnification
- 24mm, f/1.2 lens system
- 40° angular field of view
- 0.8' minimum focusing distance

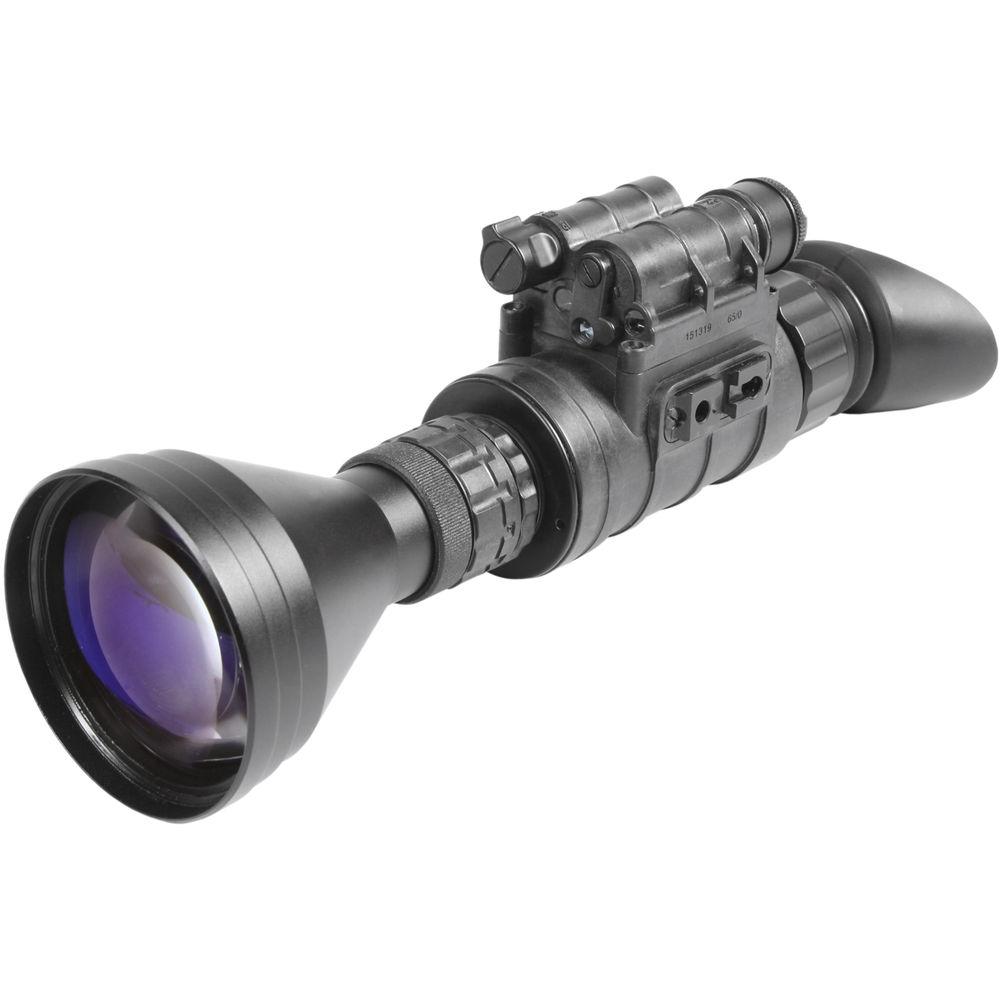

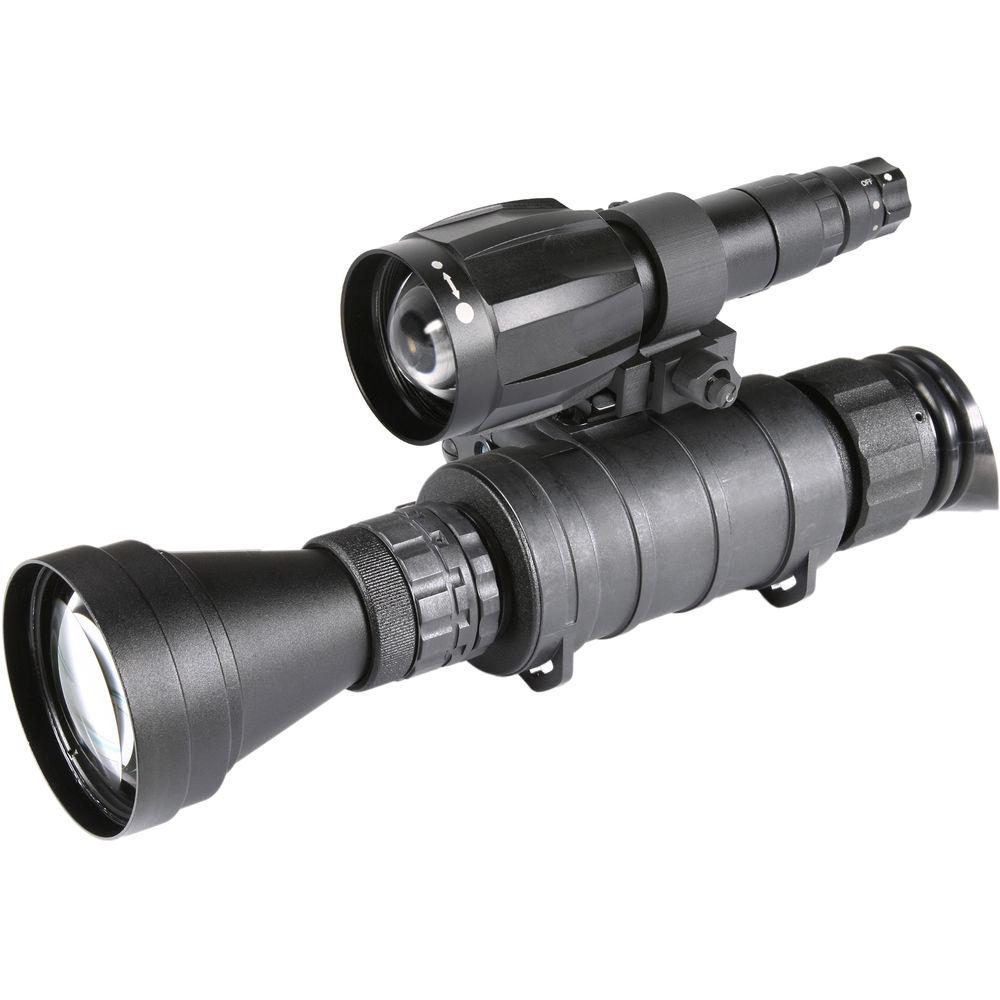

- Accepts optional high-zoom lenses
- 10mm exit pupil
- Use and Handling
-
- Auto shutoff function
- Bright light cutoff function
- Uses one CR123A or one AA battery with up to 60 hours of runtime
- Low battery indicator
- Construction Details
-
- Polymer housing
- Water-resistant

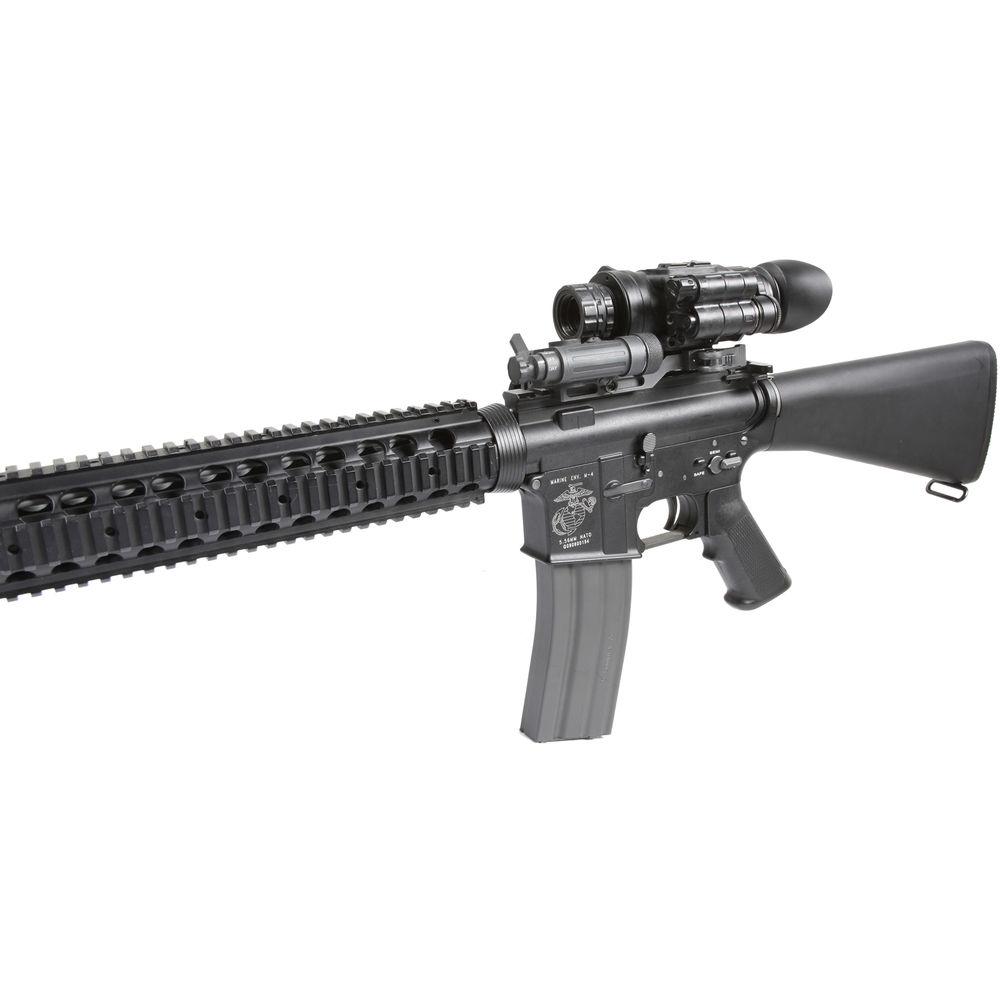

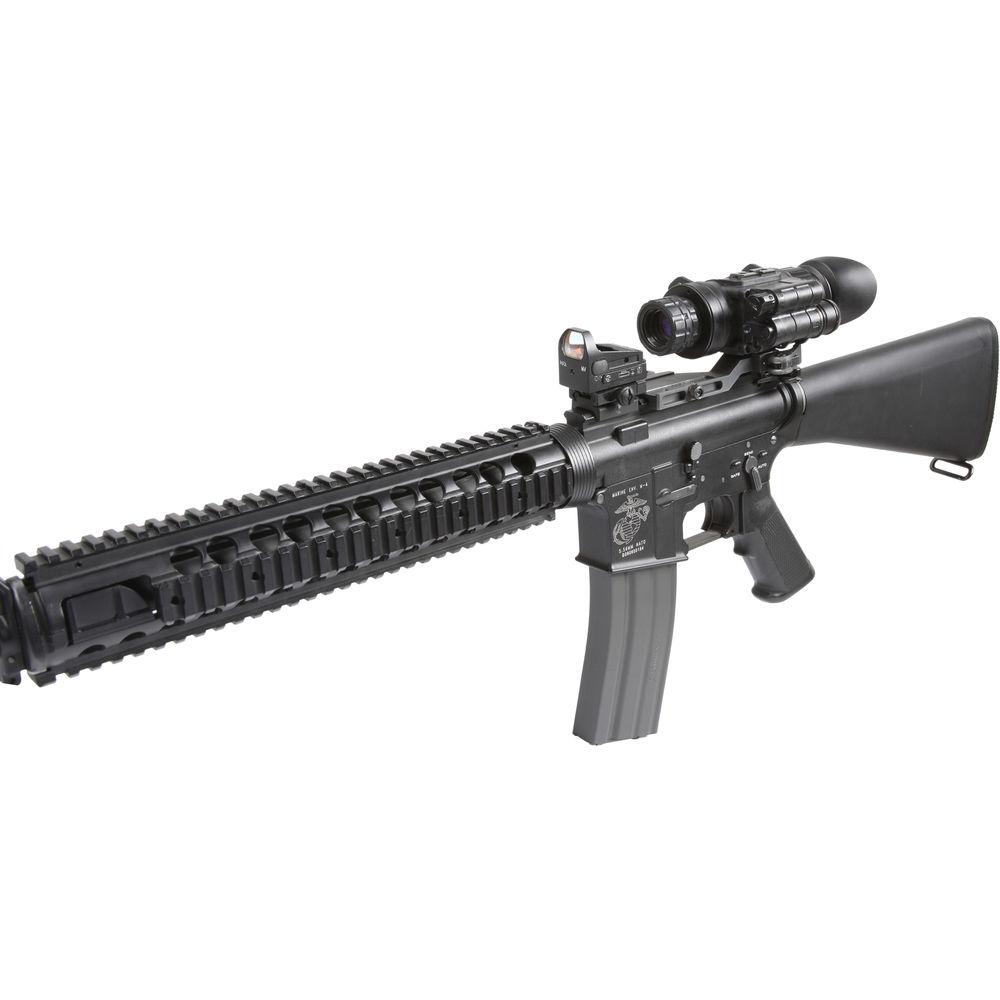

- Accessory mounting point on the side

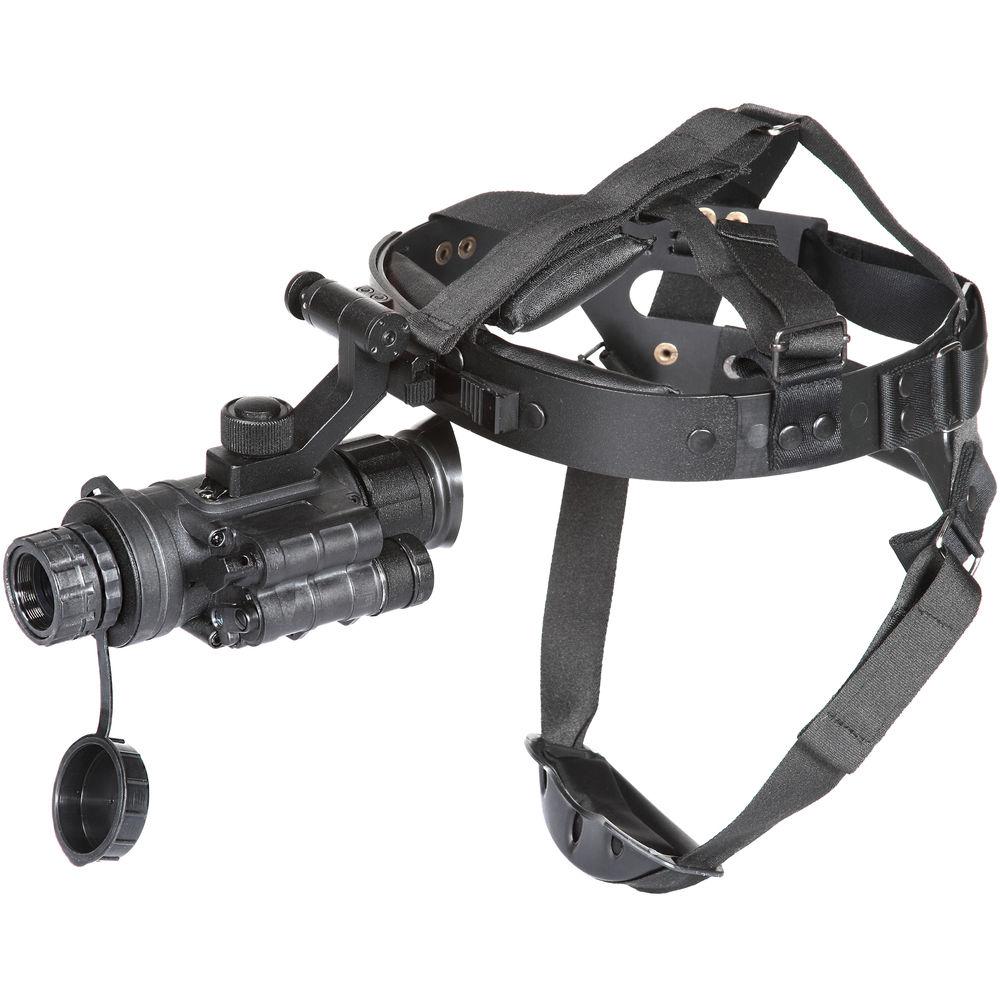

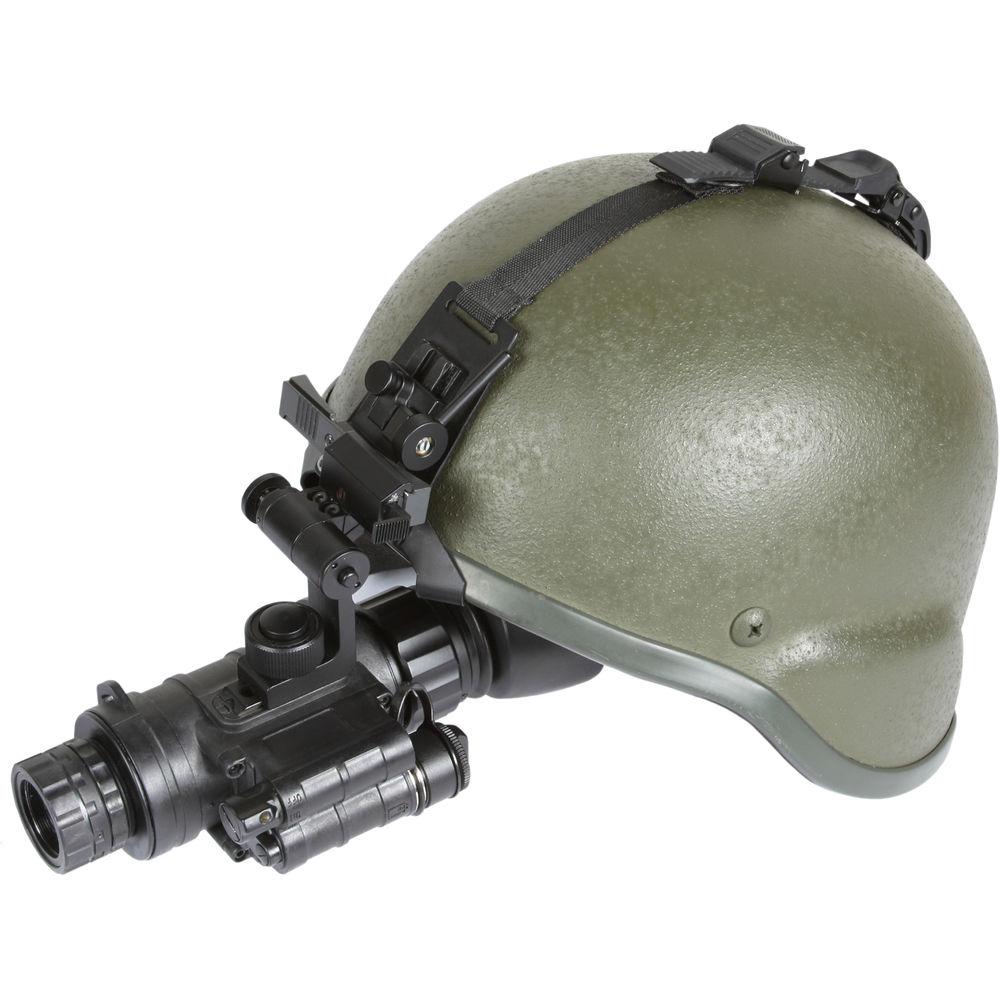

- Adaptable to a headgear or firearm
- Winged rubber eyecup
- Impact-resistant
UPC: 818470014584 In the Box Armasight by FLIR Sirius 1x 2nd Generation Night Vision Monocular (ID-Improved Definition IIT, Matte Black) - CR123A Battery
- AA Battery Adapter
- Lens Cap
- Soft Carrying Case
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Sirius 1x 2nd Generation Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSMSIRIUS12MDI1 Specs | IIT Generation | ID-Improved Definition | | Resolution | 47 - 54 lp/mm | | Magnification | 1x | | Photocathode Type | Multi-alkali | | Battery / Runtime | 1 x CR123A battery / 60 hours
1 x AA battery / 30 hours | | Lens System | 24mm, f/1.2 | | Field of View | 40° | | Minimum Focus Distance | 0.8' / 0.25 m | | Eye Relief | 21.5 mm | | Diopter Adjustment | -5 to +5 | | Infrared Illuminator | Type: LED
Wavelength: 850 nm
Power: 50 mW
Minimum Focus: 9.8' / 3 m | | Waterproofing | Water-resistant | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 158°F / -50 to 70°C | | Dimensions | 6.1 x 2.9 x 2.3" / 157 x 75 x 60 mm | | Weight | 16.2 oz / 0.46 kg | | | | Package Weight | 1.805 lb | | Box Dimensions (LxWxH) | 10.0 x 5.55 x 4.25" |
