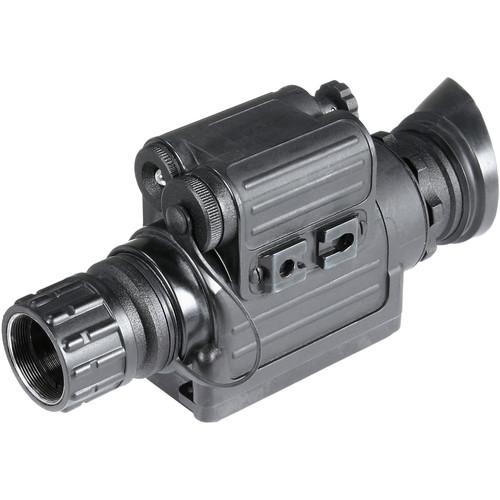

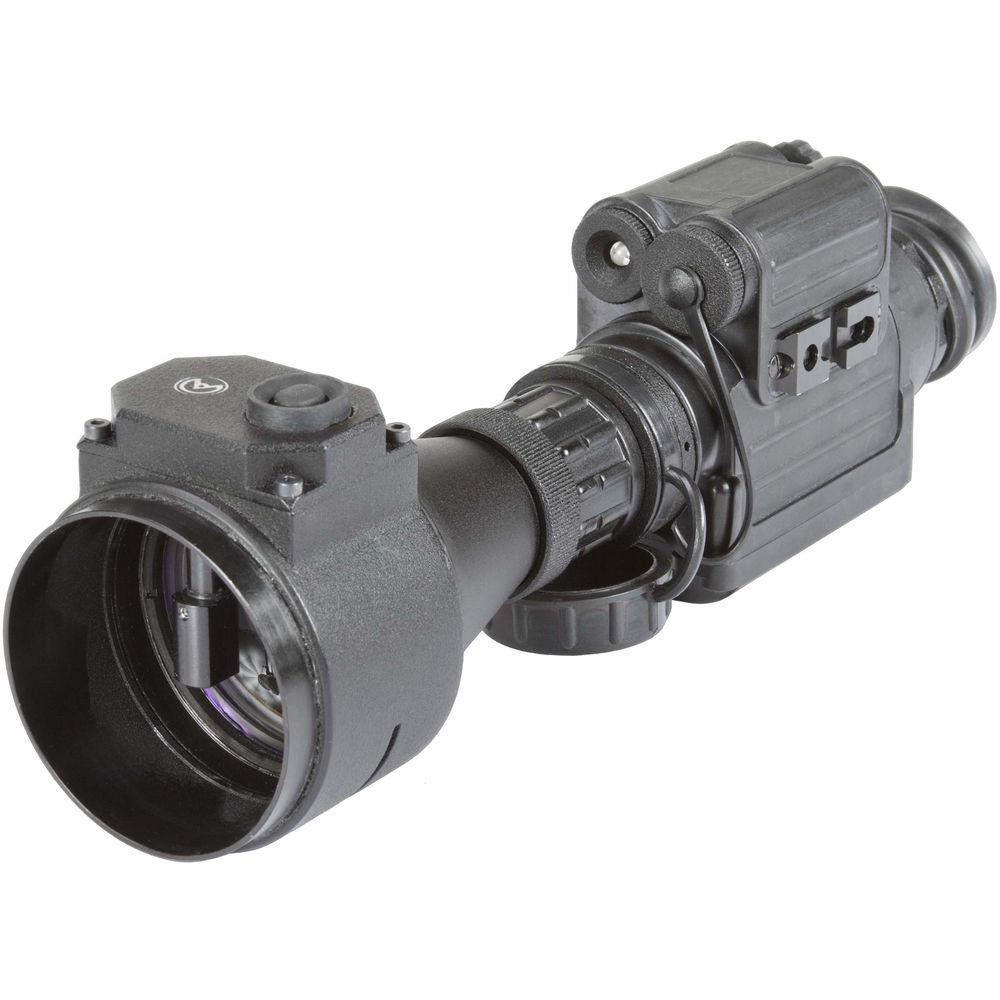

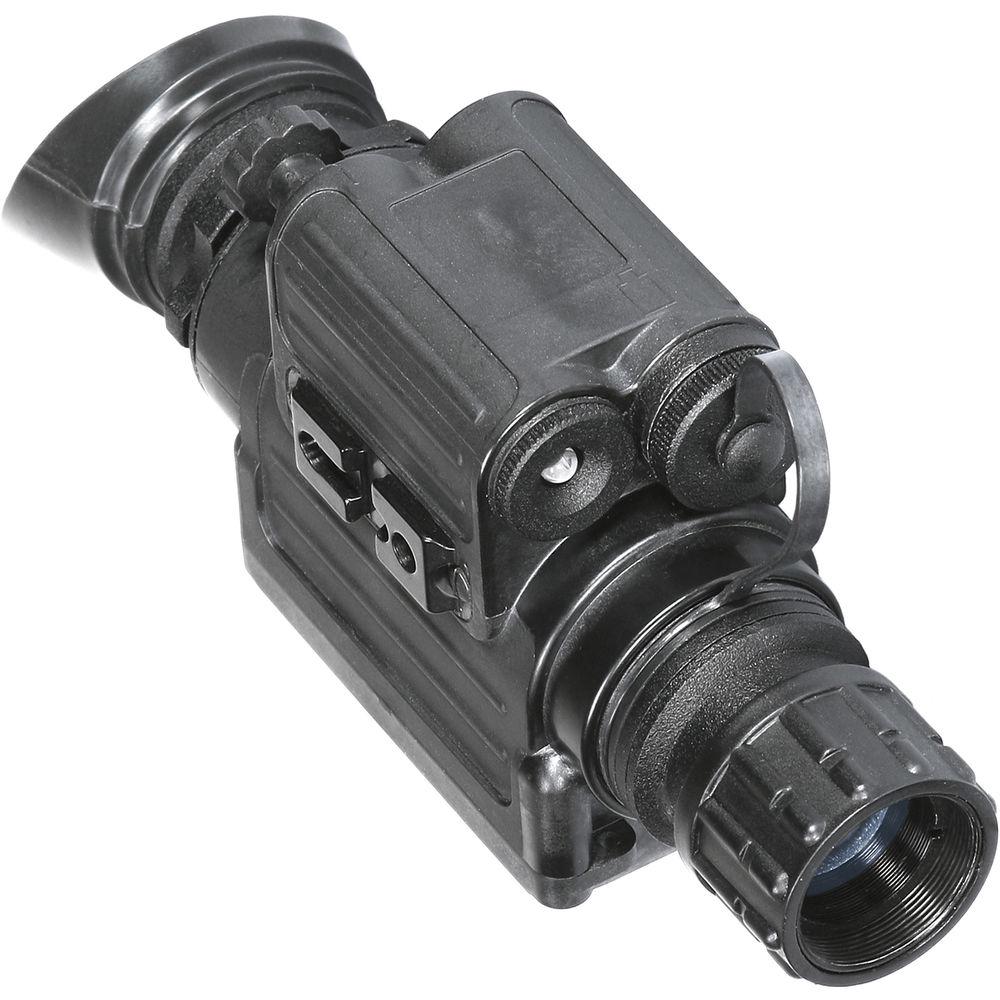

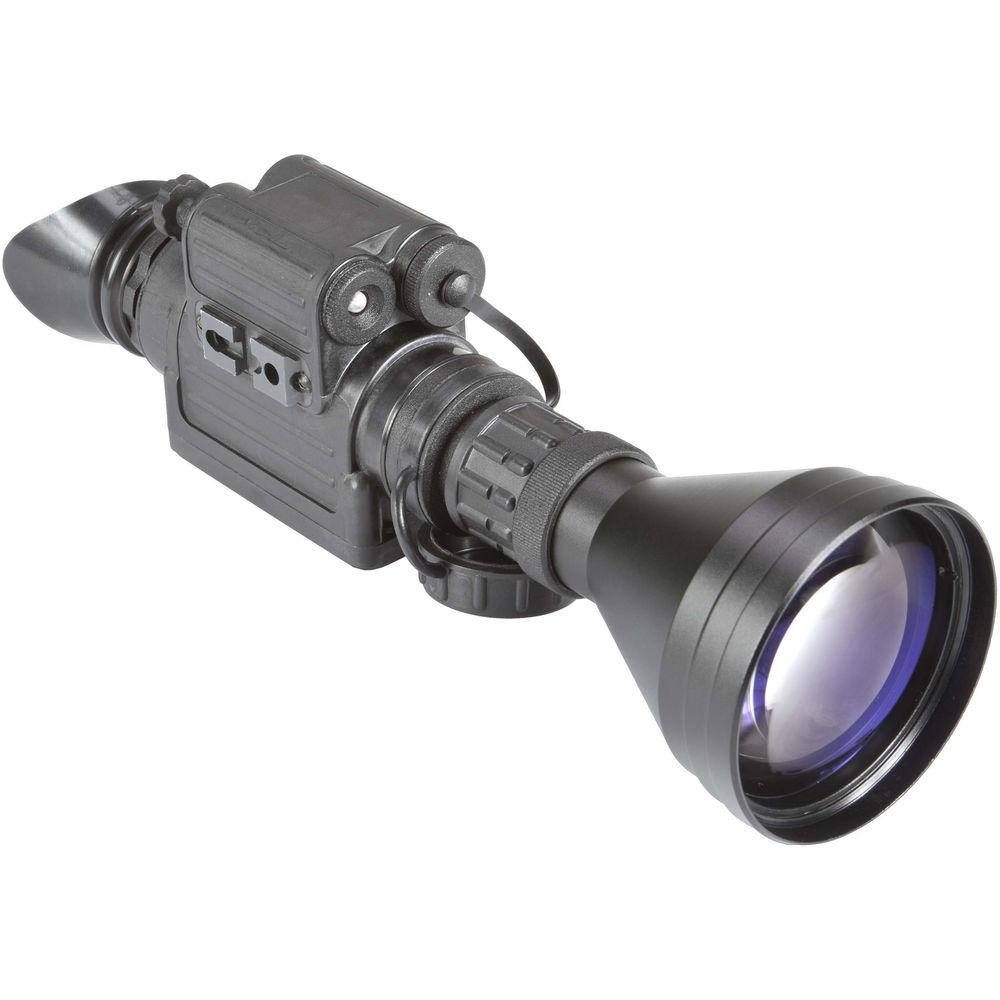

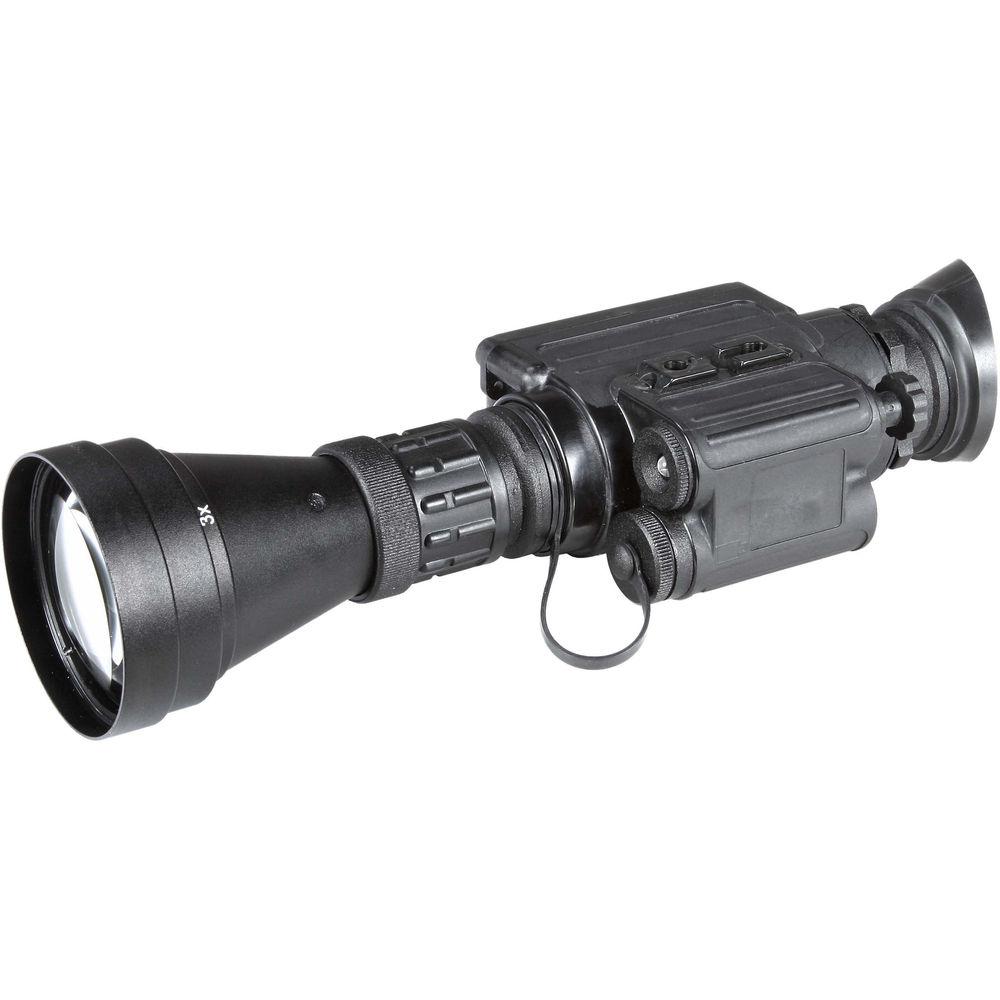

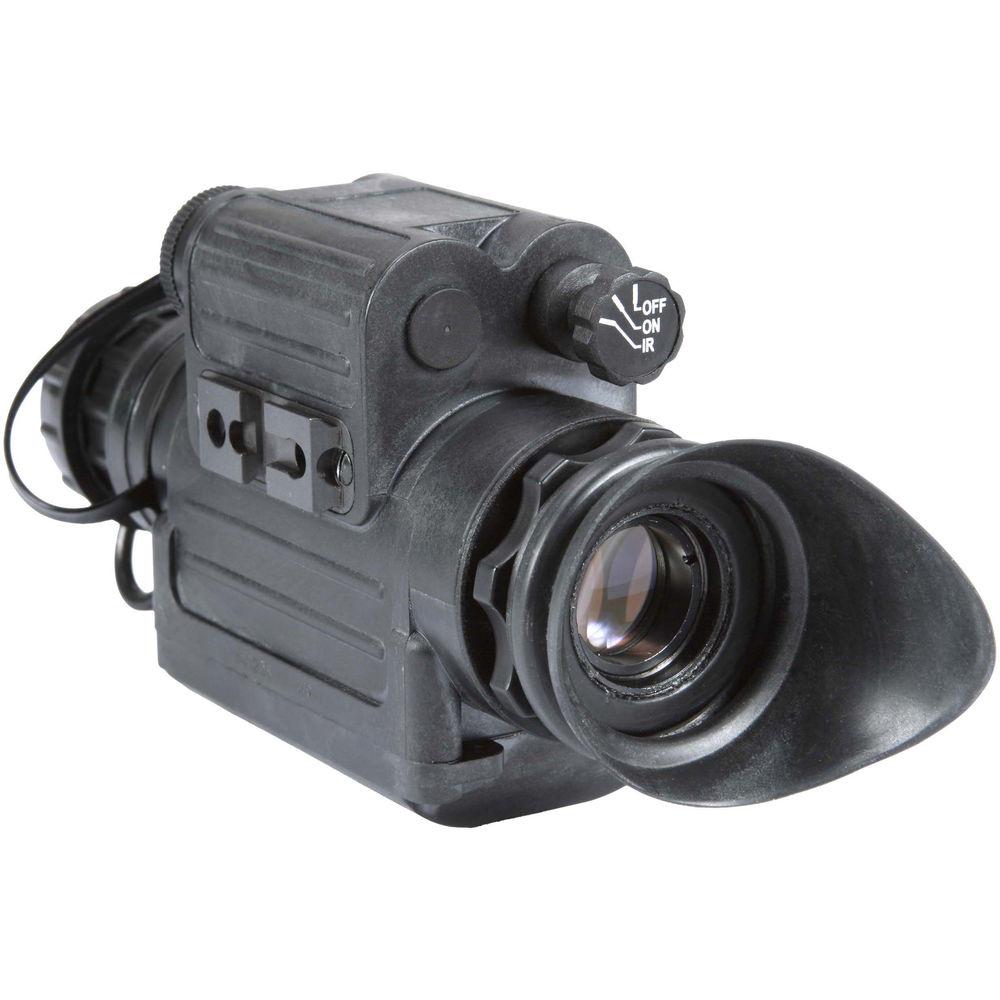

Product description Seeing Through Darkness with Armasight Night Vision Devices Read More Empowered by the Ceramic Optical Ruggedized Engine Technology (CORE), the Spark CORE Multi-Purpose Night Vision Monocular from Armasight is one of a few 1st generation night vision monoculars to boast 60-70 lp/mm resolution with minimal edge-to-edge image distortion. This device combines optimal performance characteristics with versatility: 1x magnification, 30° angular field of view, 0.82' minimum focus distance, and an 8 mm exit pupil. If you need to see farther or pick up more detail, the magnification can be upgraded to 3x with an optional objective lens. The monocular can be used as both a handheld device or it can be mounted on a weapon, helmet, or a headgear. To allow you seeing distant targets at night or to make observations in total darkness, the device features a built-in 50 mW infrared illuminator with a focusing lens.
The water-resistant housing is lightweight and durable. It offers contoured armoring for a slip-free grip and large knurled adjustment rings for easy tuning even when wearing gloves. Additional highlights are two Picatinny style points for attaching additional accessories like flashlights or lasers. The wide winged eyecup minimizes leakage of green light and provides comfortable skin contact. Also included are lens tissue, a soft carry bag, one CR-123A battery, and a tethered objective lens cap. - Intensifier Tube and IR Illumination
-
- 1st generation CORE Technology
- 60-70 lp/mm resolution
- 50mW built in infrared illuminator
- 810nm infrared wavelength
- Illuminator has a minimum focus of 9.8'
- Optical Performance
-
- 1x magnification
- 30° angular field of view
- Lens system f/1.7, 35mm
- 20mm objective lens diameter
- 0.82' minimum focusing distance
- 8 mm exit pupil diameter
- Construction Details
-

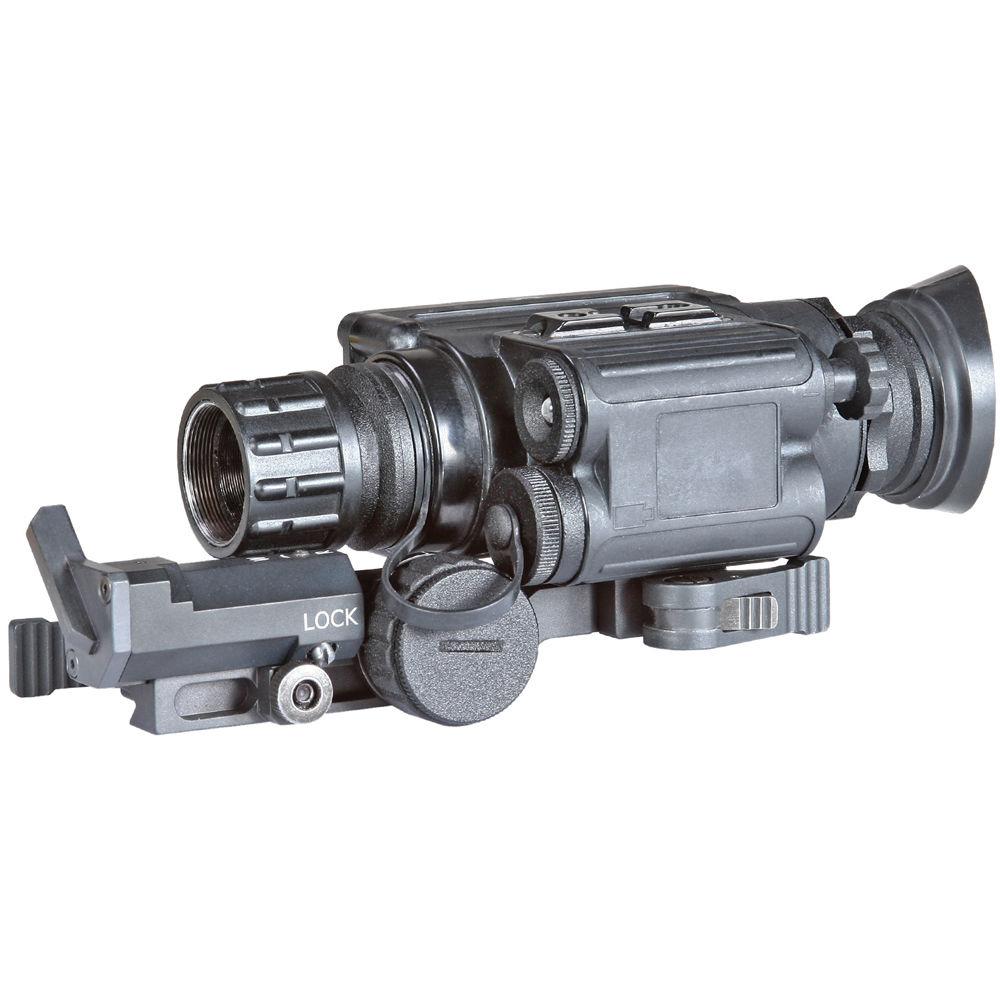

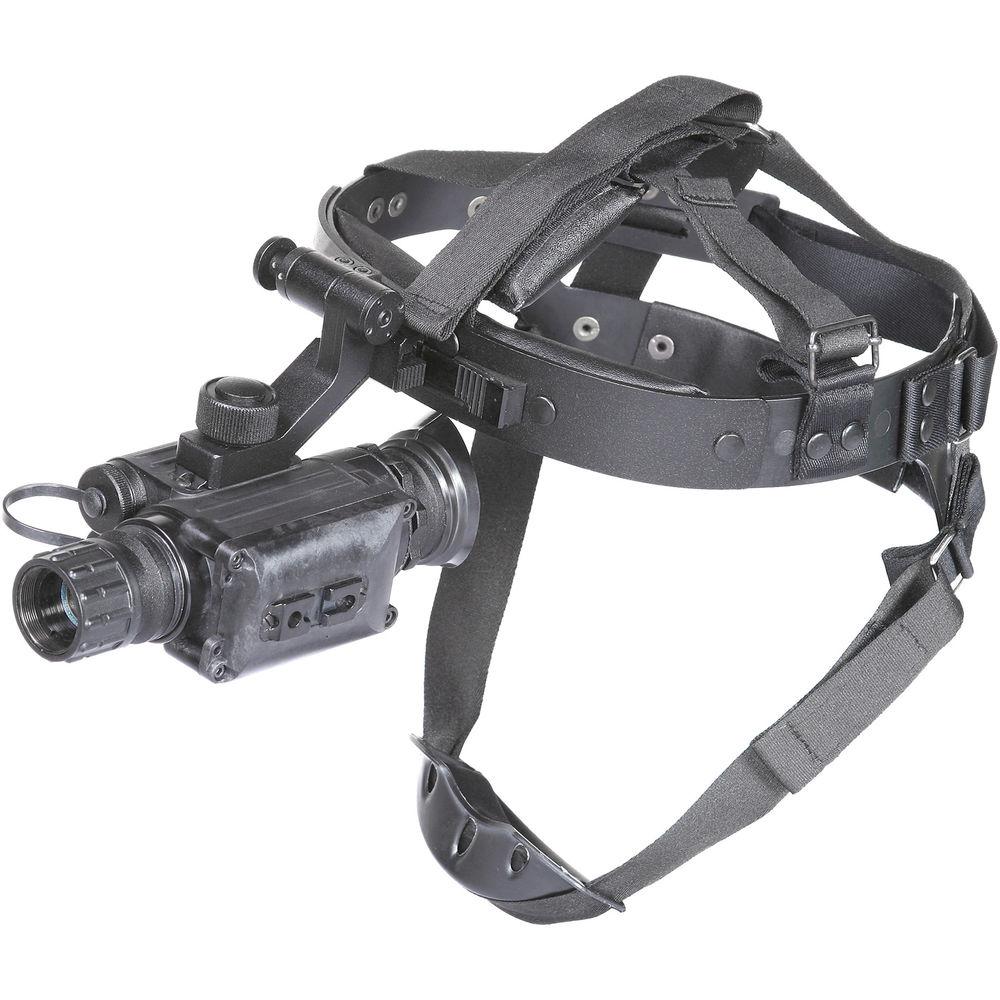

- Mountable on a helmet, headgear, or weapon
- Picatinny/Weaver accessory mounting point on the left side
- Wide rubberized winged eyecup

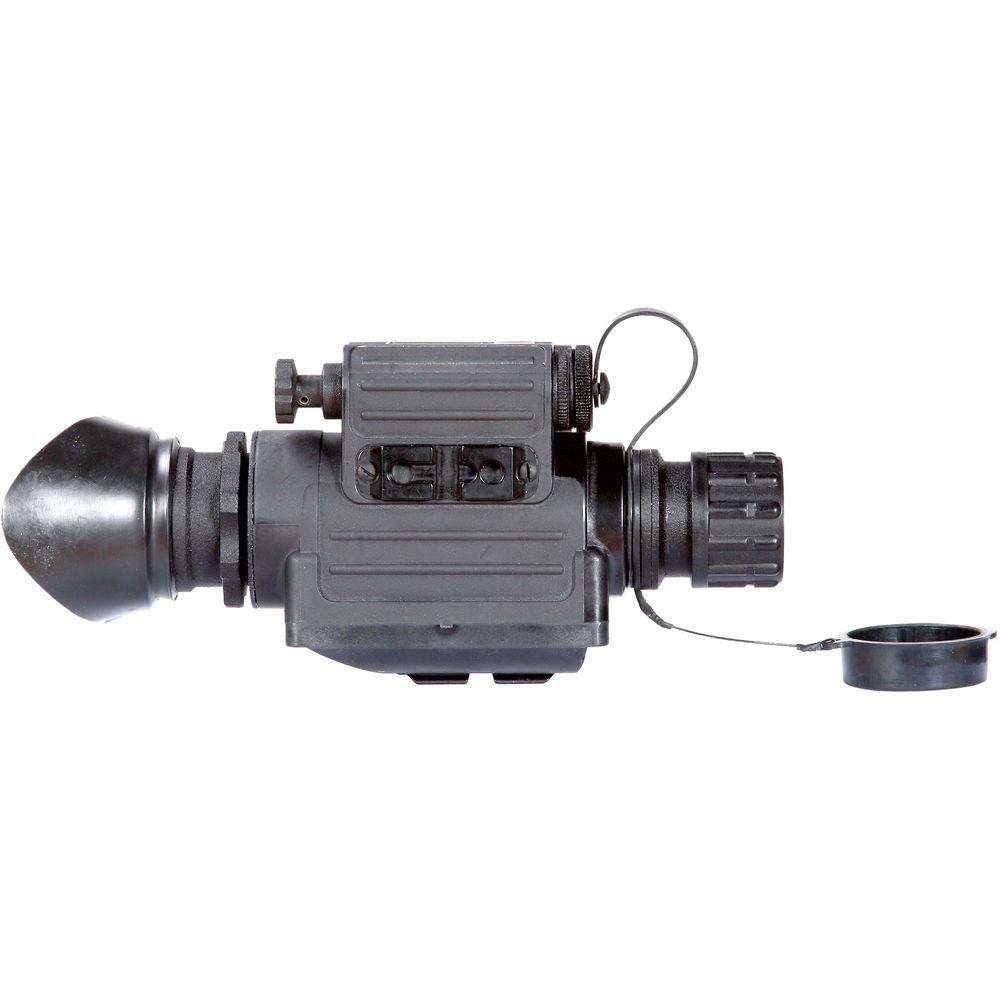

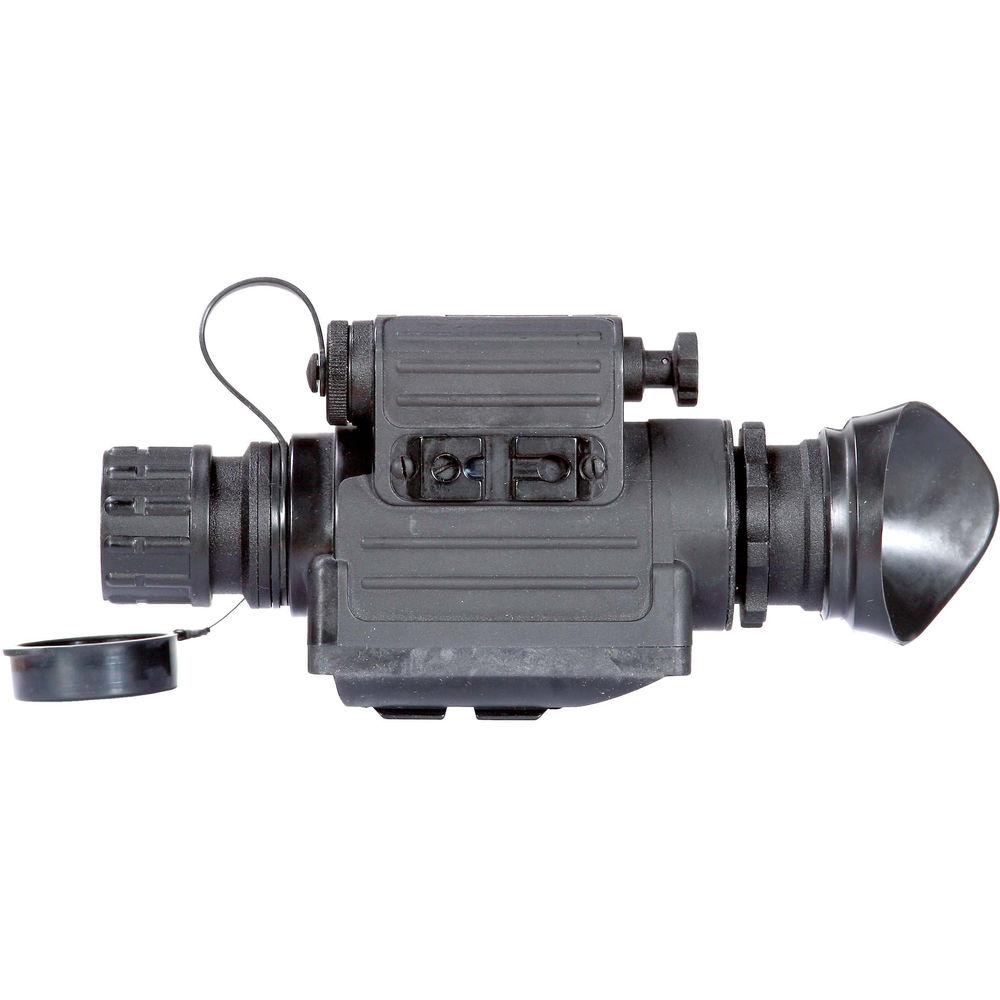

- Tethered objective lens cap
- Water-resistant
In the Box Armasight by FLIR Spark CORE Multi-Purpose Night Vision Monocular - Carrying Case
- CR-123A Lithium Battery
- Lens Cap
- Lens Tissue
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Spark CORE Multi-Purpose Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NSMSPARK01CCIC1 Specs | Intensifier Tube | 1st generation CORE Technology intensifier | | Resolution | 60-70 lp/mm | | Infrared Illuminator | Built-in
Power: 50 mW
Wavelength: 810 nm
Minimum focus: 9.8' (3 m) | | Magnification | 1x | | Lens System | 35mm, f/1.7 | | Field of View | 30° | | Minimum Focus Distance | 0.82' (0.25 m) | | Adjustable Diopter | +5 to -5 | | Exit Pupil | 8 mm | | Eye Relief | 0.78" (20 mm) | | Battery / Runtime | 1 x CR-123A lithium or rechargeable battery / 40 hr | | Tripod Mount | Yes | | Weatherproof Rating | Water-resistant | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -58 to 140°F (-50 to 60°C) | | Dimensions (L x W x H) | 6.3 x 1.9 x 3.2" (159 x 49 x 82 mm) | | Weight | 13 oz (0.4 kg) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 10.2 x 5.3 x 5.2" |
