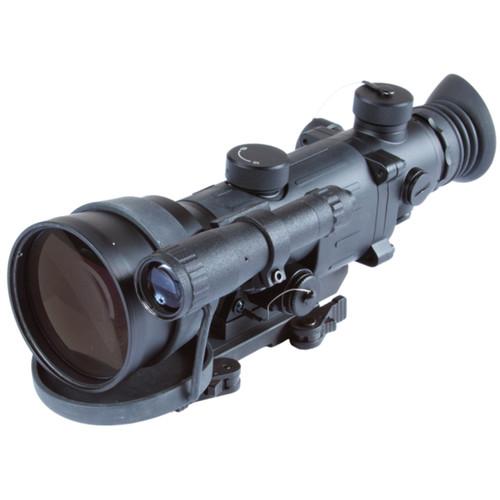

User Manual for Armasight by FLIR Vampire 3x CORE Night Vision Riflescope Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Vampire 3x CORE
- Product category: Night Vision Riflescopes Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Night Vision Riflescopes
|
User manual for the Armasight by FLIR Vampire 3x CORE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The Vampire 3x CORE Night Vision Riflescope from Armasight is a generation 1 NVD capable of up to 70 lp/mm resolution that rivals second generation tubes. The Armasight CORE (Ceramic Optical Ruggedized Engine) technology features tubes that are made just like Gen 2 and Gen 3 tubes by fusing metal alloys with ceramic compounds, and a variable brightness adjustment for the illuminated red reticle. This night vision riflescope is fitted with a double-lever quick release mount compatible with Weaver and Picatinny rail systems.A 108mm f/1.5 lens system displays a 10.5° field of view, making the Vampire 3x scope ideal for many viewing tasks. Combined with a removable IR illuminator and water and fog resistant rubberized housing, this riflescope is well-equipped for observations - low light or no light, indoor or outdoor. - Optical Performance
-
- Magnification: 3x
- Lens system: 108mm F/1.5
- Field of view: 10.5°
- Focus range: 33' / 10 m to infinity
- Image Intensifier
-
- Gen 1 CORE intensifier tube
- 60-70 lp/mm resolution
- Use and Handling
-
- Detachable infrared illuminator with adjustable focus
- 1/2 MOA impact point correction
- Illuminated red reticle
- Adjustable reticle brightness
- Integrated Weaver/Picatinny mount
- Double-lever quick release
- Construction Details
-
- Operating temperature: -40 to 50°C
- Storage temperature: -50 to 70°C
UPC: 818470012559 In the Box Armasight by FLIR Vampire 3x CORE Night Vision Riflescope Detachable IR Illuminator Lens Cloth CR123A Lithium Battery Soft Case for Storage and Carry Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Vampire 3x CORE Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NMWVAMPIR3CCIC1 Specs | Intensifier Tube | Gen 1 CORE | | Resolution | 60-70 lp/mm | | Magnification | 3x | | Field of View | 10.5° | | Lens System | 108mm f/1.5 | | Focus Range | 33' / 10 m to infinity | | Windage/Elevation Adjustment | 1/2 MOA | | Dioptric Correction | ±4 | | Infrared Illuminator | Yes, detachable | | Power Supply | CR123A lithium 3 V | | Runtime | Up to 40 hours | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 158°F / -50 to 70°C | | Dimensions | 10.8 x 3.4 x 3.7" / 275 x 87 x 95 mm | | Weight | 3.0 lb / 1.36 kg | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 13.4 x 5.4 x 4.8" |
