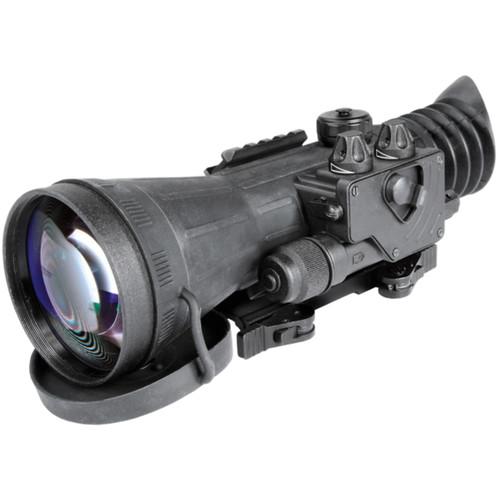

User Manual for Armasight by FLIR Vulcan 4.5x Gen 3 Bravo MG Night Vision Riflescope Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Vulcan 4.5x Gen
- Product category: Night Vision Riflescopes Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Night Vision Riflescopes
|
User manual for the Armasight by FLIR Vulcan 4.5x Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description The Vulcan 4.5x Gen 3 Bravo MG Night Vision Riflescope from Armasight features an NVD scope capable of 57-64 lp/mm resolution and manual gain control. The Armasight Gen 3 Bravo features a gallium arsenide photocathode; it also features Automatic Brightness Control, which continuously adjusts image brightness to optimize the displayed image quality, and a variable brightness adjustment for the illuminated red duplex crosshair reticle. The Vulcan 4.5x Gen 3 Bravo also features a bright-light cutoff and LED battery power indicators displayed in the screen of the eyepeice. This night vision riflescope is fitted with a double lever-lock quick release mount compatible with Weaver and Picatinny rail systems.A 108mm f/1.54 lens system displays a 9° field of view, making the Vulcan 4.5x Gen 3 Bravo scope ideal for many viewing tasks. Combined with a removable IR illuminator and waterproof rubberized housing, this riflescope is well-equipped for observations - low light or no light, indoor or outdoor. - Optical Performance
-
- Magnification: 4.5x
- Lens system: 108mm F/1.54
- Field of view: 9°
- Image Intensifier
-
- Gallium arsenide photocathode intensifier tube
- 57-64 lp/mm resolution
- Displays standard green NV image
- Manual Gain Control
- Automatic Brightness Control dynamically optimizes image brightness
- Bright Light Cut-Off protects tube and viewer's eyes from excessive light levels
- Use and Handling
-
- 1/2 MOA impact point correction
- Illuminated red duplex crosshair reticle
- Adjustable reticle brightness
- Integrated Weaver/Picatinny double lever-lock quick release mount
- Adjustable release
- Construction Details
-
- Operating temperature: -40 to 50°C
- Storage temperature: -50 to 70°C
UPC: 849815002461 In the Box Armasight by FLIR Vulcan 4.5x Gen 3 Bravo MG Night Vision Riflescope (Illuminated Duplex Crosshair) IR850W Detachable Wide Range Angle Adjustable Long Range Infrared Illuminator 2x Afocal Lens Lens Cloth Lens Cap Eye Cup Double Lever-Lock Quick Release Mount Wireless Remote Control Picatinny Adapter for Wireless Remote Control Wrench 2 x CR123A Lithium Battery (For Vulcan and IR Illuminator) Soft Case for Storage and Carry Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Vulcan 4.5x Gen 3 Bravo MG Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NRWVULCAN439DB1 Specs | Intensifier Tube | Gallium arsenide photocathode | | Resolution | 57-64 lp/mm | | Magnification | 4.5x | | Field of View | 9° | | Lens System | 108mm f/1.54 | | Exit Pupil | 7 mm | | Eye Relief | 45 mm | | Maximum Windage/Elevation Correction | ±45 MOA | | Windage/Elevation Adjustment | 17 SOA | | Dioptric Correction | ±4 | | Infrared Illuminator | Yes, detachable | | Power Supply | 1 x CR123A lithium 3 V or AA 1.5 V | | Runtime | 50 hr (CR123) or 46 hr (AA) | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 158°F / -50 to 70°C | | Waterproofing | 3' / 1 m for 30 min | | Dimensions | 8.6 x 3.9 x 3.2" / 219 x 99 x 81 mm | | Weight | 2.1 lb / 0.97 kg | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 16.0 x 5.0 x 5.0" |
