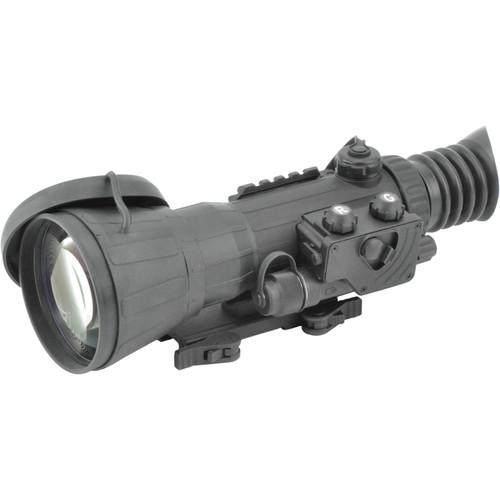

User Manual for Armasight by FLIR Vulcan 6x 2nd Gen Standard Definition MG Night Vision Riflescope Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Vulcan 6x 2nd
- Product category: Night Vision Riflescopes Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Night Vision Riflescopes
|
User manual for the Armasight by FLIR Vulcan 6x 2nd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|
Product description With 6x magnification, the Vulcan 6x 2nd Gen Standard Definition (SD) MG Night Vision Riflescope (Duplex Crosshair) from Armasight allows you to conduct medium range night observations and make precision target acquisitions. It can be wirelessly operated and features a 2nd generation intensifier tube. The Armasight second generation intensifier tube technology incorporates a microchannel plate, multi-alkaline photocathode, built-in power supply, and 18 mm format screen, which improve reliability, image brightness, and quality compared to first generation devices. The Standard Definition (SD) feature offers green images and a resolution of 45-51 lp/mm. To extend the life of the intensifier tube and to protect it from overexposure to bright light or accidental turn-on during daylight, the device is equipped the Bright Light Cut-off function.
With an f/1.8 F-number and a focal length of 145mm, it provides a wide aperture for collecting night light and improves visibility. To improve image visibility in complete darkness or to provide additional illumination for your targets, this night vision device includes an XLR-IR850 infrared illuminator. The illuminator is detachable and includes a rechargeable battery and a charger. The optical system also offers a 7° angular field of view and a 82' minimum focus distance.
The housing is lightweight, durable, waterproof, and resistant to extreme temperatures. Using its quick-release mount, this device can be mounted on Picatinny or Weaver style rails. Also included are as soft carrying case and tethered objective cap. - Image Intensifier
-
- Standard Definition multialkali photocathode intensifier tube
- 45-51 lp/mm resolution
- Displays green image
- Manual Gain Control
- Bright Light Cut-Off protects tube from damage
- Automatic Brightness Control maintains constant image brightness
- Optical Performance
-
- Magnification: 6x
- Lens system: 145mm, F/1.8
- Field of view: 7°
- Illuminated red duplex crosshair reticle
- Adjustable brightness
- Reticle, Use and Handling
-
- Illuminated reticle with adjustable brightness
- Low battery indicator
- Construction Details
-
- Compatible with Picatinny or Weaver rails
- Integrated Picatinny double lever-lock quick release mount
- Withstands extreme temperatures
- Tethered objective lens cover
- Waterproof
UPC: 849815003789 In the Box Armasight by FLIR Vulcan 6x 2nd Gen Standard Definition (SD) MG Night Vision Riflescope (Duplex Crosshair) - IR850W Detachable Wide Range Angle Adjustable Long Range Infrared Illuminator
- CR-123A Battery
- AA Battery Adapter
- Lens Cloth
- Lens Cap
- Quick Release Mount
- Wireless Remote Control
- Remote Control Picatinny Adapter
- Soft Carry Case
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Vulcan 6x 2nd Gen Standard Definition MG Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR NRWVULCAN629DS1 Specs | Intensifier Tube | 2nd Gen Standard Definition (SD)
Multialkali photocathode | | Resolution | 45-51 lp/mm | | Magnification | 6x | | Field of View | 7° | | Lens System | 145mm, f/1.8 | | Exit Pupil | 7 mm | | Eye Relief | 45 mm | | Dioptric Correction | ±4 | | Windage/Elevation Adjustment | 66 MOA | | Impact Point Correction | 12 SOA | | Infrared Illuminator | Yes, detachable | | Power Supply | 1 x CR-123A (3 V)
1 x AA (1.5 V) | | Runtime | 60 hr max | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Storage Temperature | -58 to 158°F / -50 to 70°C | | Waterproofing | Waterproof | | Dimensions | 9.7 x 4.1 x 3.6" / 246.4 x 104.1 x 91.4 mm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 16.0 x 5.0 x 5.0" |
