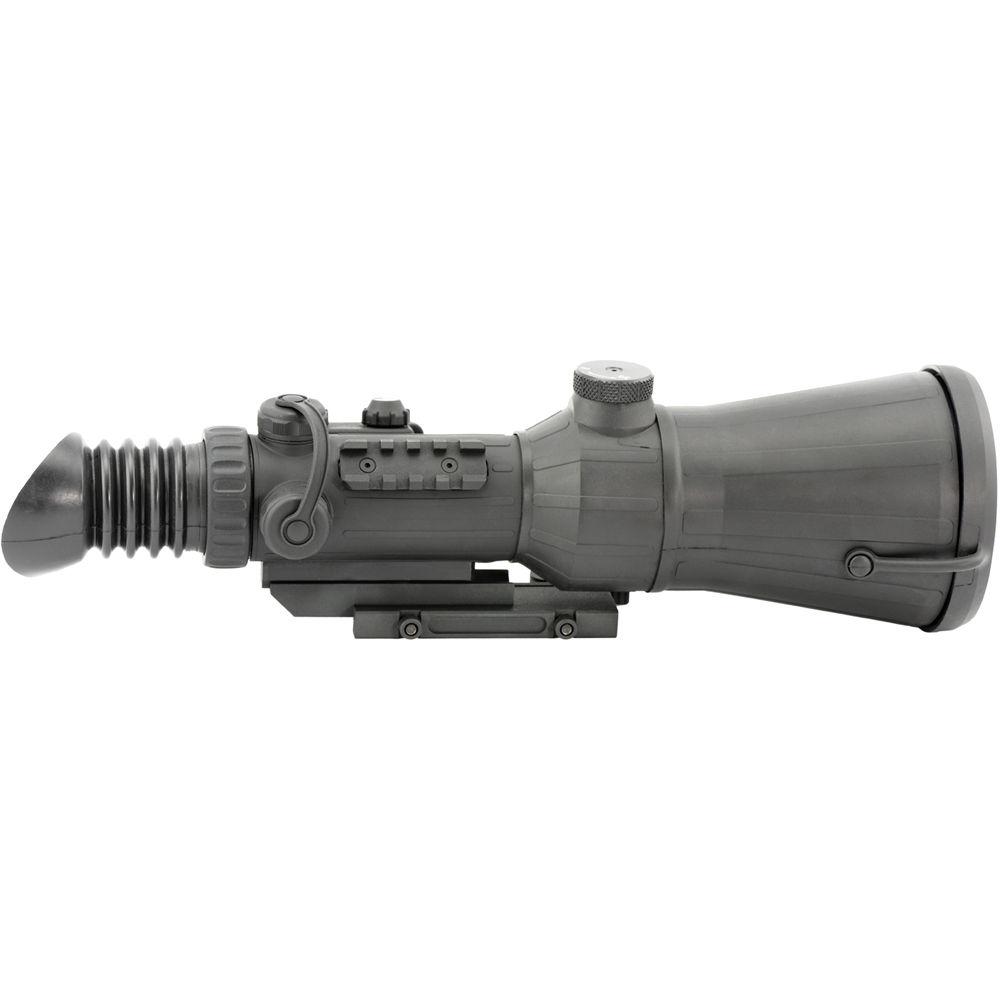

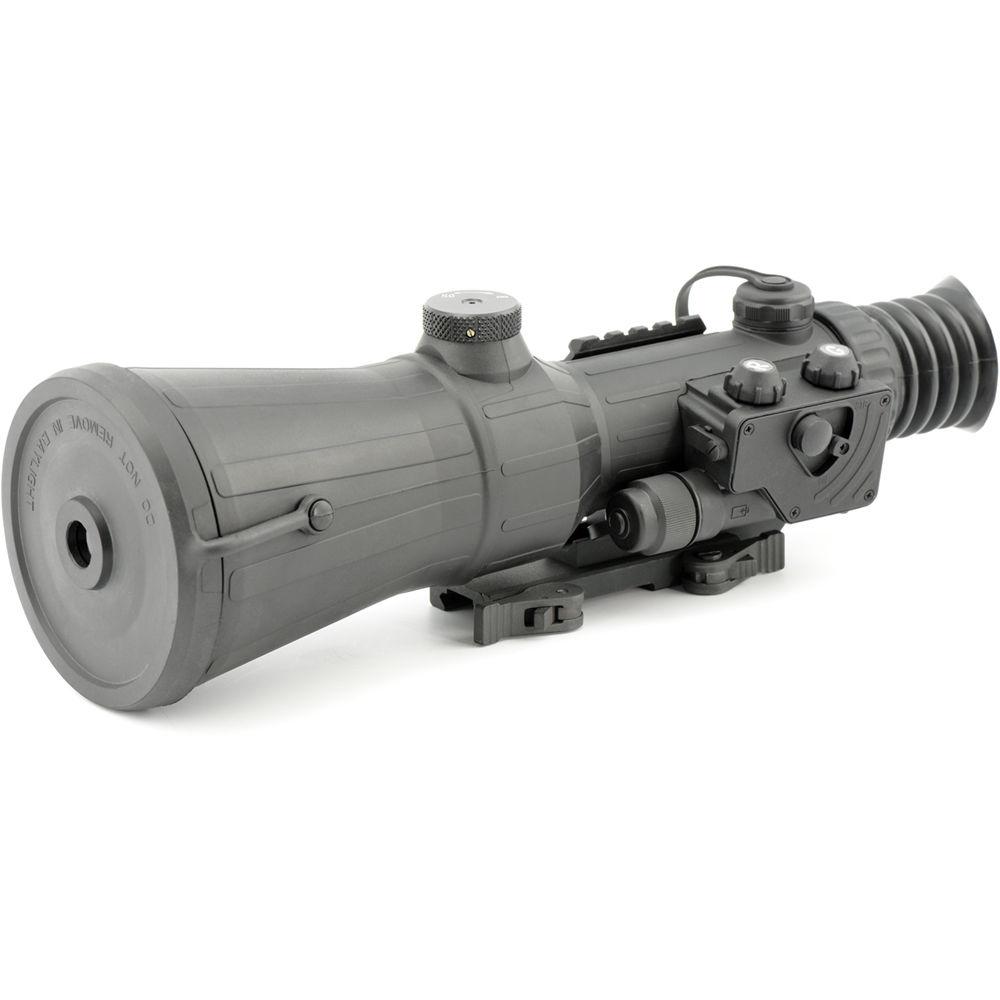

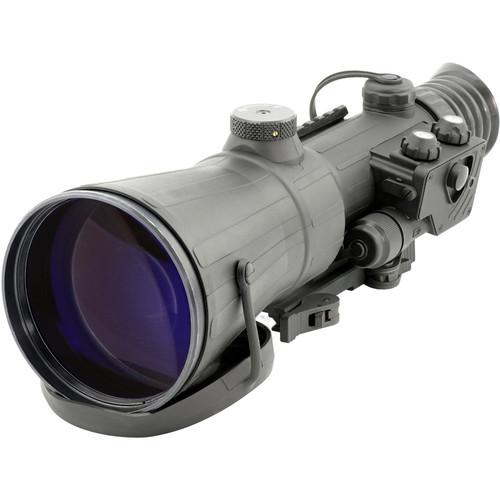

User Manual for Armasight by FLIR Vulcan 8x 2nd Generation QS MG Night Vision Riflescope Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Vulcan 8x 2nd
- Product category: Night Vision Riflescopes Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Night Vision Riflescopes
 |
User manual for the Armasight by FLIR Vulcan 8x 2nd contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

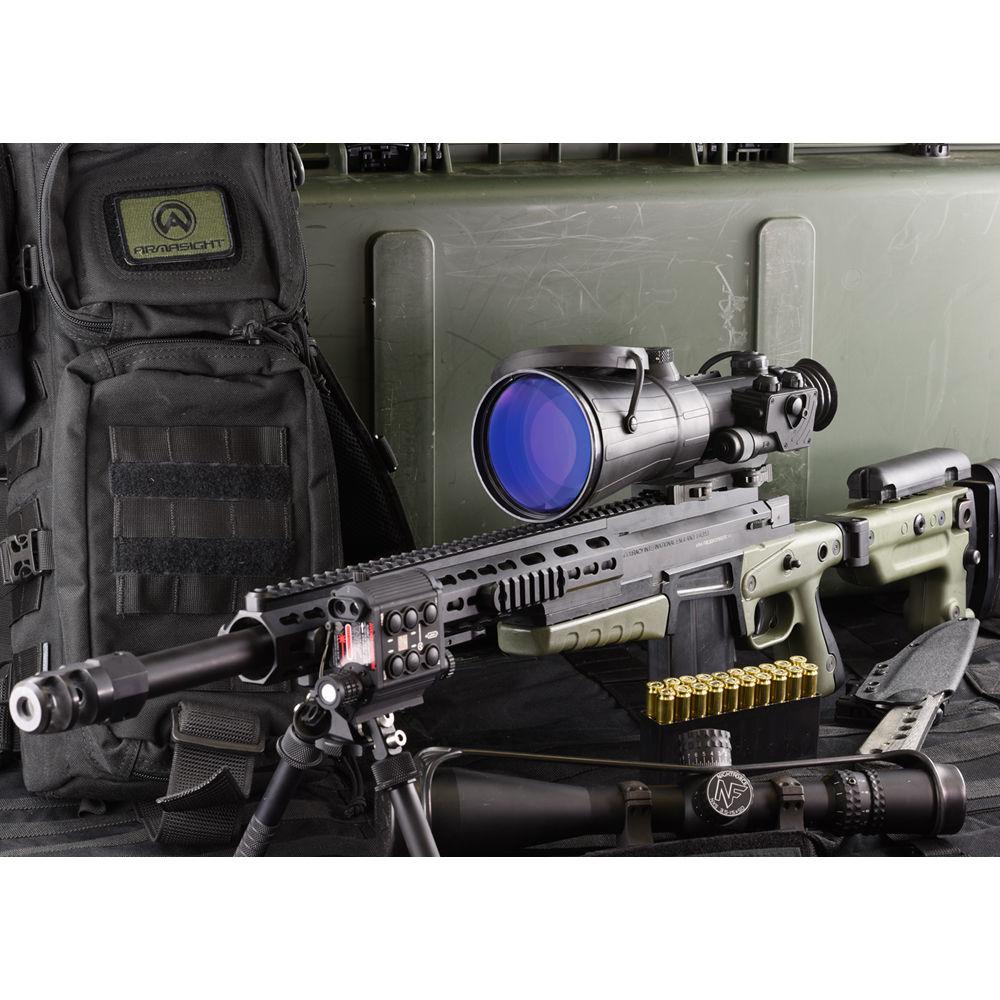

Product description Gain a tactical advantage in long-range target acquisitions and ultra-low-light conditions with the Vulcan 8x 2nd Generation QS MG Night Vision Riflescope from Armasight. This night vision riflescope features a 2nd generation image intensifier tube and can be wirelessly operated using the included remote control. The Quick Silver (QS) white phosphor technology produces black and white images with a resolution of 47-54 lp/mm. With the Manual Gain, you can control image brightness in low-light conditions or adjust image detail. To extend the life of the intensifier tube, and to protect it from overexposure to bright light or unintentional activation during daylight, the device is equipped with Bright Source Protection. As you move through environments with different lighting conditions, the Automatic Brightness Control (ABC) provides a constant brightness for your viewing.
The 192; f/2.13 lens system provides a wide aperture for collecting night light and improves visibility. To further improve image visibility in the darkness, or to provide additional illumination for faraway targets, this night vision device includes a detachable XLR-IR850 infrared illuminator. For precision targeting, it is equipped with an illuminated reticle, and the optical system offers a 5.4° angular field of view and a 164' minimum focus distance.
The housing is lightweight, durable, waterproof, and resistant to extreme temperatures. Using its quick release mount, this device can be mounted on Picatinny or Weaver-style rails. - Image Intensifier
-
- 2nd generation
- 47-54 lp/mm resolution
- Quick Silver (QS) white phosphor produces black and white images
- Bright Source Protection turned off the devices in bright light
- Automatic Brightness Control maintains constant image brightness
- Optical Performance
-
- Magnification: 8x
- Lens system: 192mm, f/2.13
- Multi-coated optics
- Field of view: 5.4°
- Reticle
-
- Illuminated red mil-dot reticle
- Adjustable brightness
- Low battery indicator
- Use and Handling
-
- Automatic power shut-off
- 50 MOA windage and elevation range
- 9 SOA impact point correction
- Construction Details
-
- Compatible with Picatinny or Weaver rails
- Integrated Picatinny double lever-lock quick release mount
- Withstands extreme temperatures
- Tethered objective lens cover
- Waterproof
In the Box Armasight by FLIR Vulcan 8x 2nd Generation QS MG Night Vision Riflescope (Illuminated Reticle) - XLR-IR850 X-Long Range Illuminator (Dovetail to Weaver Adapter #21)
- CR-123A Battery
- Lens Cloth
- Lens Cap
- Wireless Remote Control
- Remote Control Picatinny Adapter
- Soft Carry Case
- Limited 2-Year USA Warranty
- Limited 1-Year International Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Vulcan 8x 2nd Generation QS MG Night Vision Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR Vulcan Specs | Intensifier Tube | 2nd generation
White phosphor | | Resolution | 47-54 lp/mm | | Magnification | 8x | | Field of View | 5.4° | | Lens System | 192mm, f/2.13 | | Minimum Focus Distance | 164' (50 m) | | Exit Pupil | 7 mm | | Eye Relief | 45 mm | | Dioptric Correction | ±4 | | Windage/Elevation Adjustment | 50 MOA | | Impact Point Correction | 9 SOA | | Infrared Illuminator | Yes, detachable | | Battery / Runtime | 1 x CR-123A (3 V) battery
Runtime: 60 h
1 x AA (1.5 V) battery | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Storage Temperature | -58 to 158°F (-50 to 70°C) | | Waterproofing | Waterproof | | Dimensions | 12.2 x 4.2 x 4.1" (310 x 108 x 103 mm) | | Weight | 50.4 oz (1.43 kg) |
