Product description

Equipped with an uncooled 336x256 FLIR Tau 2 VOx microbolometer, the Zeus Pro 336 8-32x100 Thermal Imaging Weapon Sight from Armasight allows users to detect targets emitting invisible to the naked eye long wavelength infrared light during day or night. Additionally, because of different transmission properties of the infrared light compared to the visible light, this thermal imager will enable you to view your targets through smoke, fog, or dust.

You can view thermal profiles of your targets on a built-in AMOLED SVGA 060 color display or relay videos through a VGA video output port for viewing on an external monitor or for recording. The user-friendly menu allows you to choose between image filtering options and image processing functions that provide different color modes: White Hot, Black Hot, Rainbow, and Various Colors. Additionally, the included remote control allows for a wireless operation.

The aluminum alloy housing is durable, waterproof, and submersible to 66' for two hours. To provide a sure operation, all adjustment rings are knurled. The sight has a quick-release Picatinny mount and can also accommodate additional accessories on a short Picatinny rail located on the right side. Other construction details include a tethered protective objective lens cap, long eye relief, and a rubber winged eye guard. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce.
For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce.
    Imaging Performance
    • Detector: Tau 2
    • Type: solid state uncooled microbolometer
    • Spectral range: 7-14µm
    • Resolution: 336x256 pixels
    • Pixel size: 17µm
    • Refresh rate: 30 Hz
      Optical Performance
      • Germanium objective lens
      • Lens System: 100mm, f/1.4
      • Magnification: 8-32x
      • Digital zoom: up to 4x
      • Close focus: 33'
        Video Capability
        • 800x600 AMOLED SVGA 060 color display
        • Color modes: White Hot, Black Hot, Rainbow, Various Color modes
        • Easy and intuitive drop-down user menu
        • VGA video output port
        • Rapid start-up
          Imaging Filter Algorithms
          • Active Contrast Enhancement (ACE)
          • Smart Scene Optimization (SSO)
          • Information Based Histogram Equalization (IBHEQ)
          • Second Generation Digital Detail Enhancement (DDE)
          • Silent Shutterless Non-uniformity Correction (SSN)
            Use and Handling
            • Digital color reticle
            • Wireless remote control included
            • Digital compass
            • Digital inclinometer
            • Battery status indicator
              Construction Details
              • Aluminum alloy housing
              • Quick-release Picatinny rail mount
              • Picatinny accessory rail on the right side
              • Long eye relief eyepiece
              • Winged rubber eyeguard
              • Resistant to shock and recoil
              • Waterproof, submersible to 66'

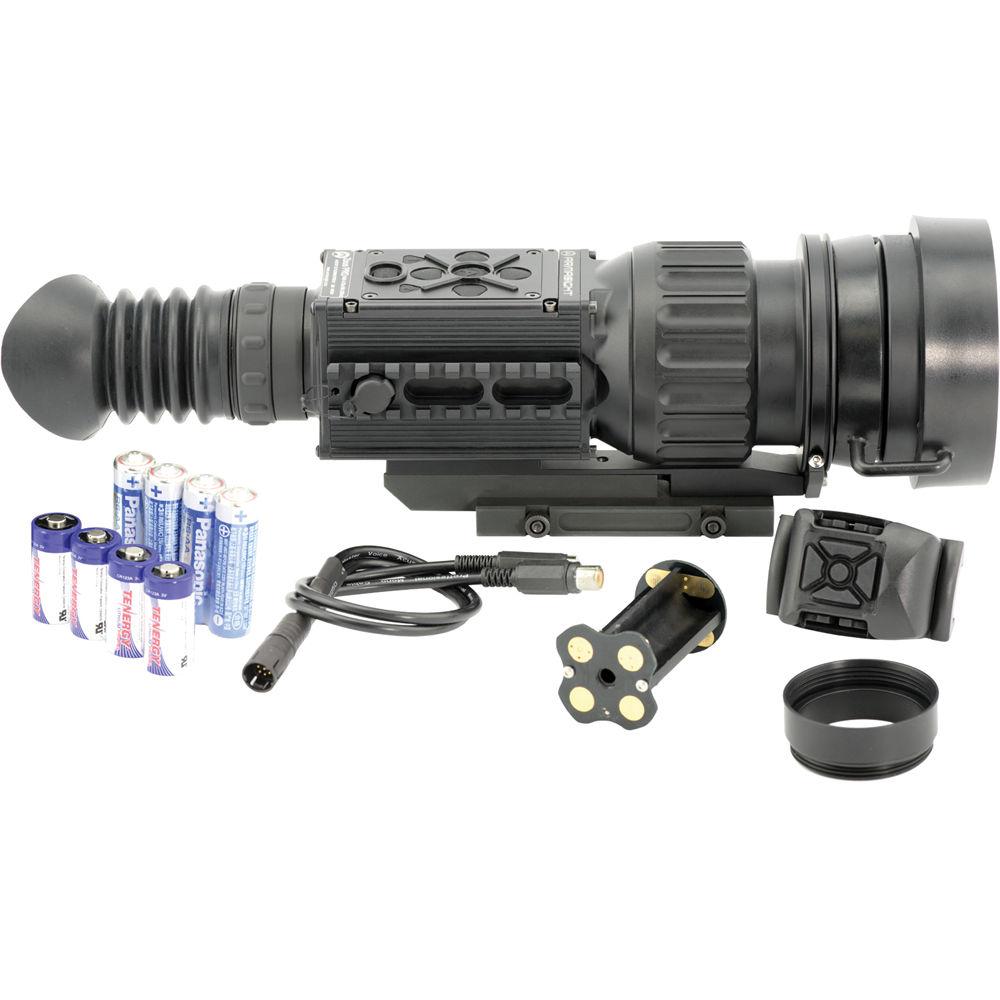

              UPC: 849815005134 In the Box Armasight by FLIR Zeus Pro 336 8-32x100 Thermal Imaging Weapon Sight with Digital Reticle (30 Hz)
            • Wireless Remote Control
            • Soft Carrying Case
            • Hard SKB Standard Black Case
            • Picatinny Adapter for Wireless Remote Control
            • Video Cable
            • 4 x CR-123A Batteries
            • AA Battery Cartridge
            • Extender Ring for AA Battery Cartridge
            • Objective Lens Cap
            • Limited 3-Year Warranty
            • Limited 10-Year Warranty on VOx Detector
