User Manual for Armasight by FLIR Zeus Pro 640 2-16x50 Thermal Imaging Weapon Sight with Digital Reticle Click to enlarge the picture
Contents of the user manual for the Armasight by FLIR Zeus Pro 640
- Product category: Thermal Scopes Armasight by FLIR
- Brand: Armasight by FLIR
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Armasight by FLIR Thermal Scopes
 |
User manual for the Armasight by FLIR Zeus Pro 640 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Armasight by FLIR product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Armasight by FLIR user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Armasight by FLIR product will considerably shorten its lifespan!
|

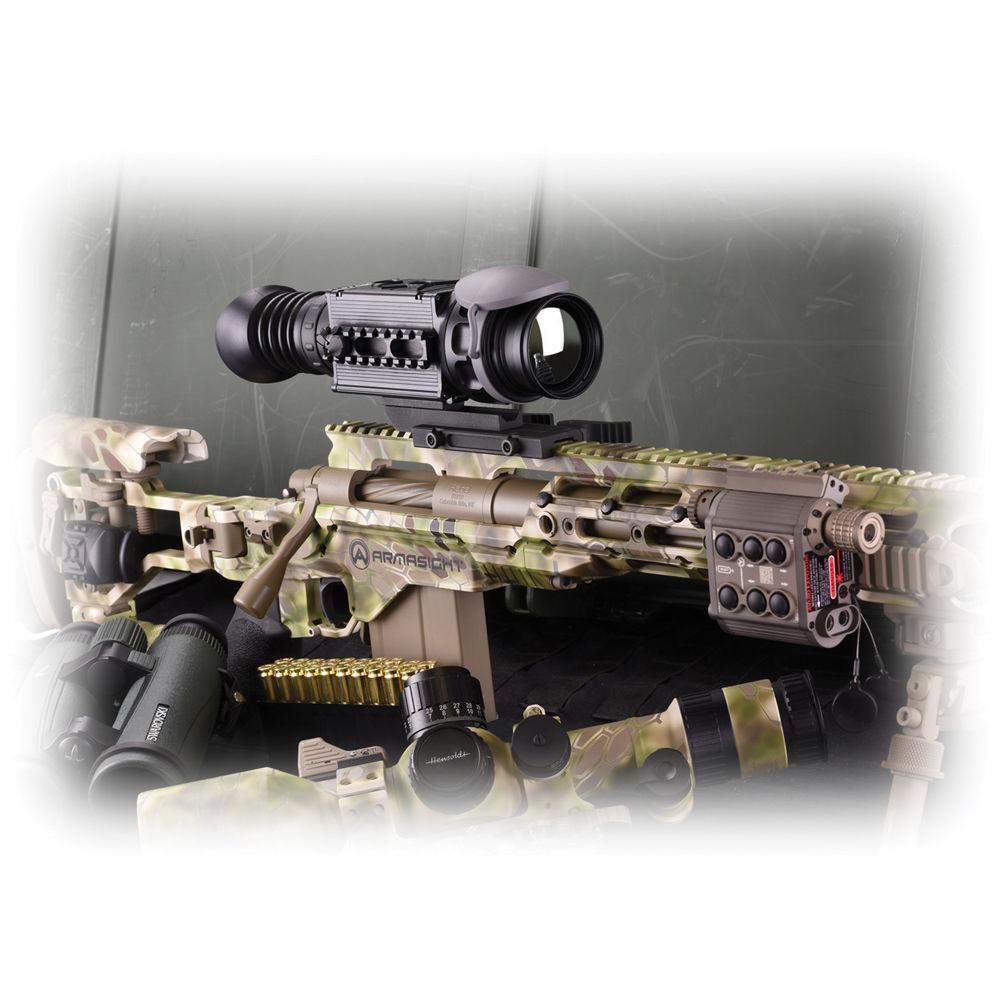

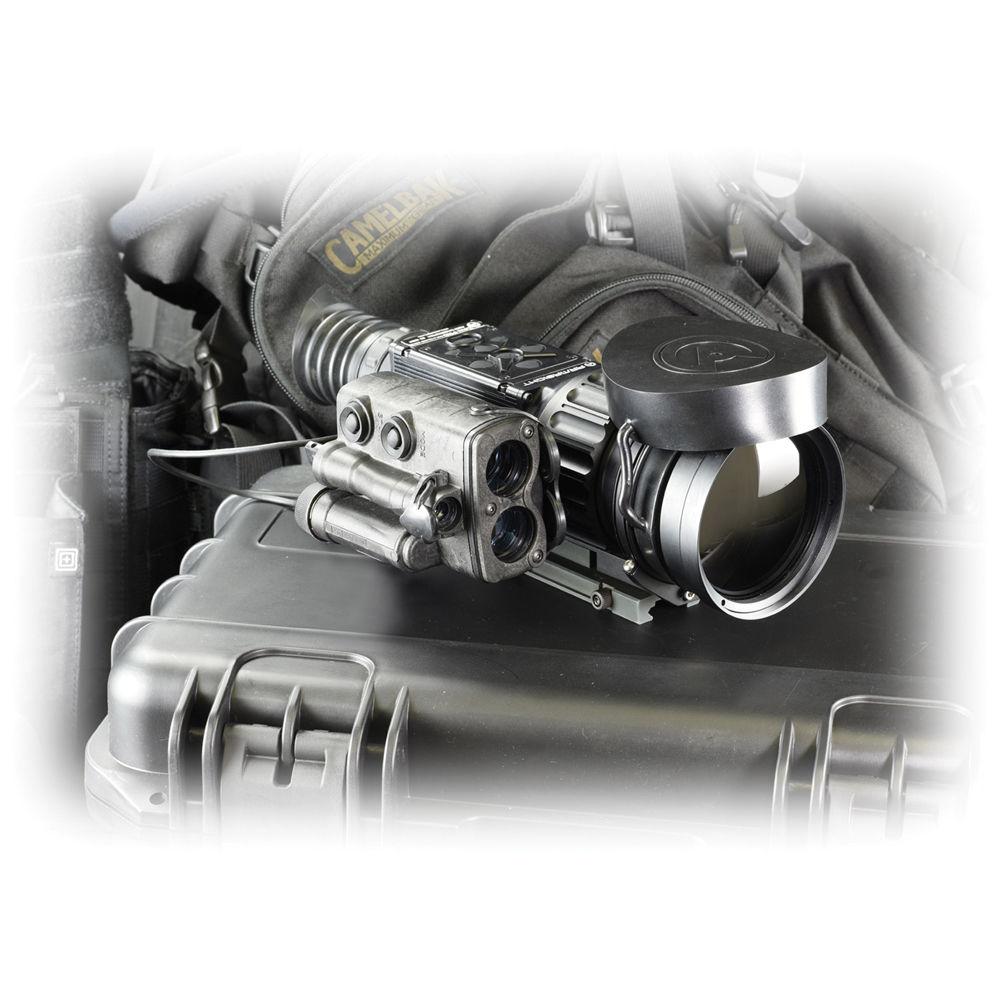

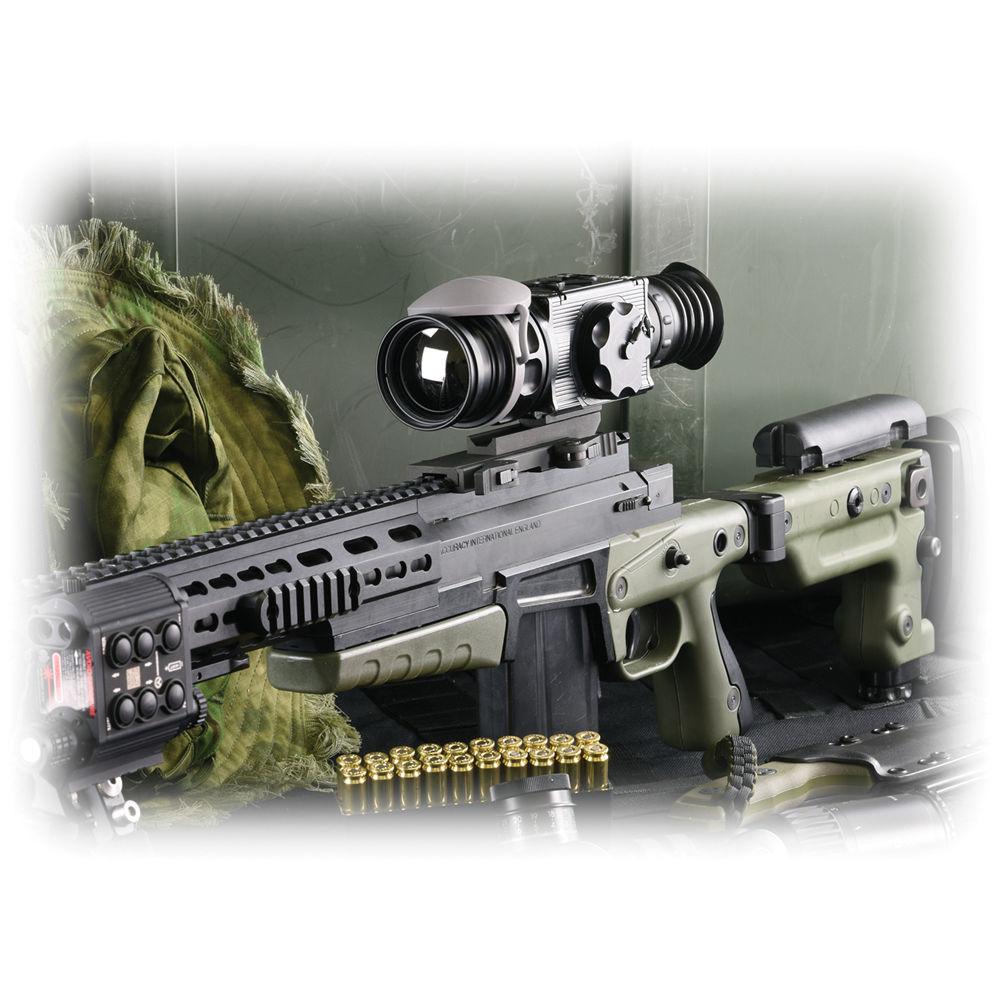

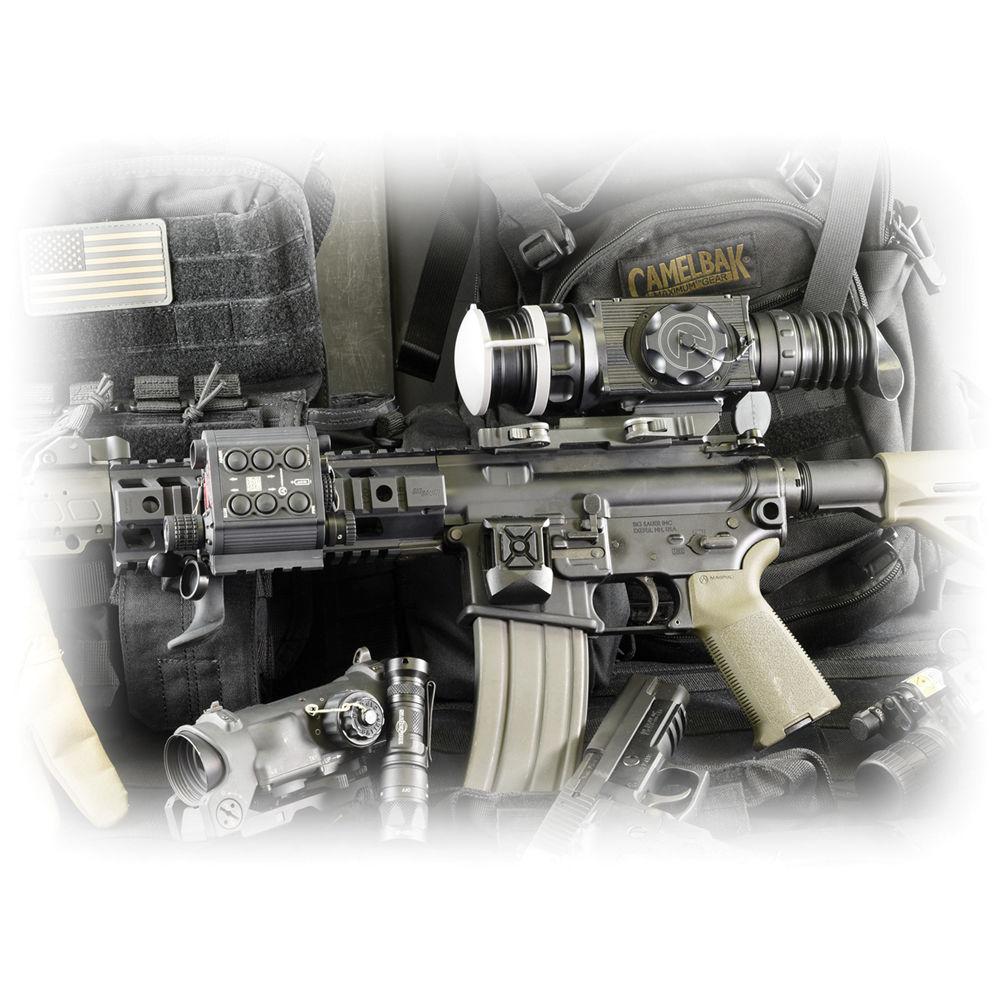

Product description Equipped with an uncooled 640x512 FLIR Tau 2 VOx microbolometer, the Zeus Pro 640 2-16x50 Thermal Imaging Weapon Sight from Armasight allows users to detect targets emitting invisible to the naked eye long wavelength infrared light during day or night. Additionally, because of different transmission properties of the infrared light compared to the visible light, this thermal imager will enable you to view your targets through smoke, fog, or dust.
You can view thermal profiles of your targets on a built-in AMOLED SVGA 060 color display or relay videos through a VGA video output port for viewing on an external monitor or for recording. The user-friendly menu allows you to choose between image filtering options and image processing functions that provide different color modes: White Hot, Black Hot, Rainbow, and Various Colors. Additionally, the included remote control allows for a wireless operation.

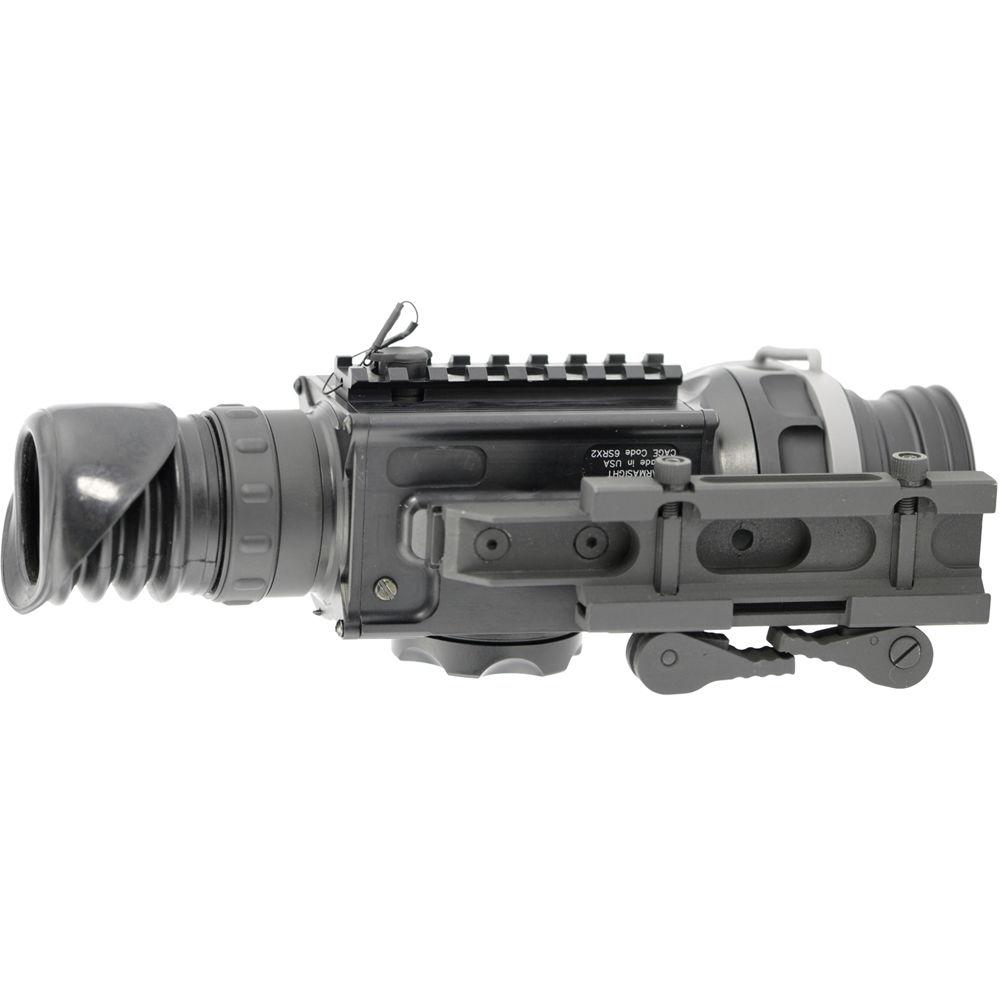

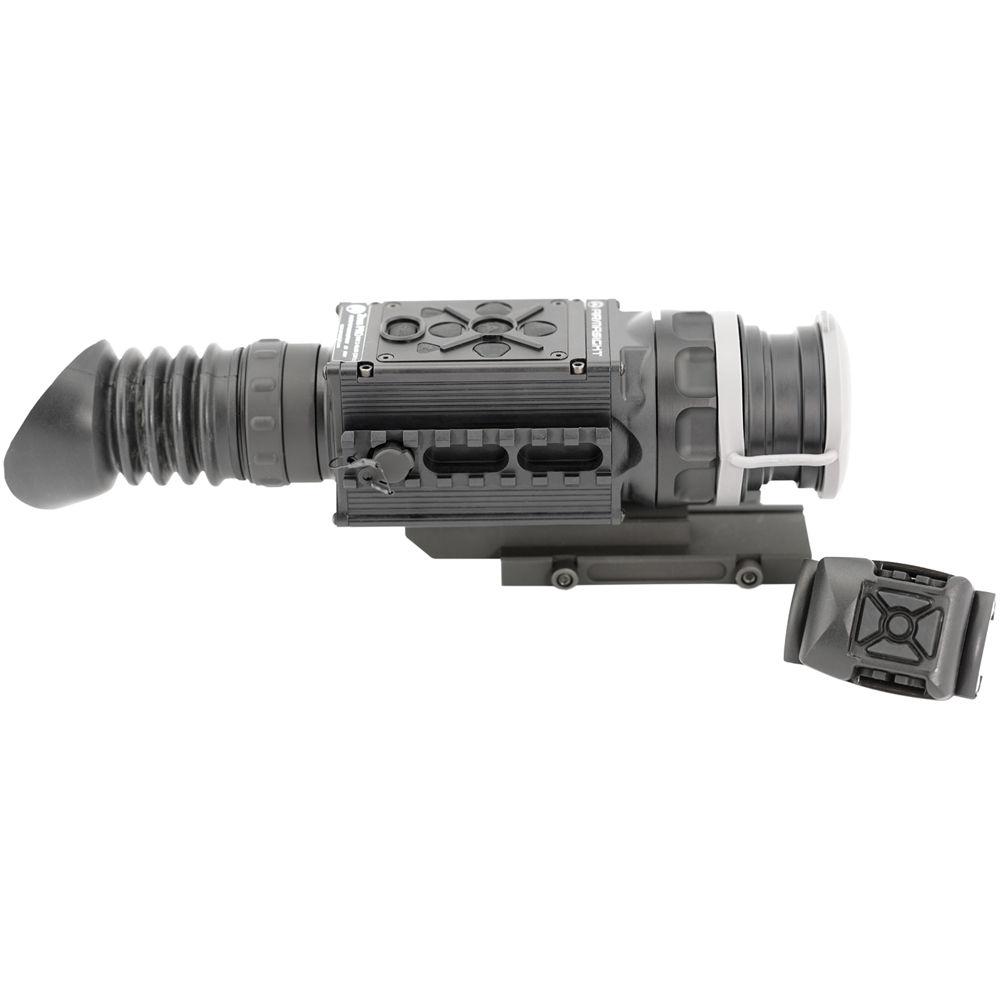

The aluminum alloy housing is durable, waterproof, and submersible to 66' for two hours. To provide a sure operation, all adjustment rings are knurled. The sight has a quick-release Picatinny mount and can also accommodate additional accessories on a short Picatinny rail located on the right side. Other construction details include a tethered protective objective lens cap, long eye relief, and a rubber winged eye guard. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State office of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130, and/or the U.S. Department of Commerce. For further information contact the Office of Defense Trade Control and/or the U.S. Department of Commerce. - Imaging Performance
-
- Detector: Tau 2
- Type: solid state uncooled microbolometer
- Spectral range: 7-14µm
- Resolution: 640x512 pixels
- Pixel size: 17µm
- Refresh rate: 60 Hz
- Optical Performance
-
- Germanium objective lens
- Lens System: 50mm, f/1.4
- Magnification: 2-16x
- Digital zoom: up to 8x
- Close focus: 16.4'
- Video Capability
-
- 800x600 AMOLED SVGA 060 color display
- Color modes: White Hot, Black Hot, Rainbow, Various Color modes
- Easy and intuitive drop-down user menu
- VGA video output port
- Rapid start-up
- Imaging Filter Algorithms
-
- Active Contrast Enhancement (ACE)
- Smart Scene Optimization (SSO)
- Information Based Histogram Equalization (IBHEQ)
- Second Generation Digital Detail Enhancement (DDE)
- Silent Shutterless Non-uniformity Correction (SSN)
- Use and Handling
-
- Digital color reticle
- Wireless remote control included
- Digital compass
- Digital inclinometer
- Battery status indicator
- Construction Details
-
- Aluminum alloy housing
- Quick-release Picatinny rail mount
- Picatinny accessory rail on the right side
- Long eye relief eyepiece
- Winged rubber eyeguard
- Resistant to shock and recoil
- Waterproof, submersible to 66'
UPC: 849815005189 In the Box Armasight by FLIR Zeus Pro 640 2-16x50 Thermal Imaging Weapon Sight with Digital Reticle (60 Hz) - Wireless Remote Control
- Carrying Case
- Picatinny Adapter for Wireless Remote Control
- Video Cable
- 4 x CR-123A Batteries
- AA Battery Cartridge
- Extender Ring for AA Battery Cartridge
- Objective Lens Cap
- Limited 3-Year Warranty
- Limited 10-Year Warranty on VOx Detector
Table of Contents
|
Upload User Manual
Have you got an user manual for the Armasight by FLIR Zeus Pro 640 2-16x50 Thermal Imaging Weapon Sight with Digital Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersArmasight by FLIR TAT166WN5ZPRO21 Specs | Array Configuration | 640x512 FLIR Tau 2 VOx detector | | Pixel Size | 17 µm | | Refresh Rate | 60 Hz | | Magnification | 2-16x | | Lens System | 50mm, f/1.4 | | Minimum Focus Distance | 16.4' (5 m) | | Display | 800x600 AMOLED SVGA 060 color display | | Power Source | 4 x CR-123A (3V) batteries
4 x AA (1.5) batteries | | Runtime | 7 hr | | Operating Temperature | -59 to 134°F (-51 to 57°C) | | Storage Temperature | -70 to 185°F (-57 to 85°C) | | Weatherproofing | Waterproof, submersible to 66' (20 m) for 2 hr max | | Dimensions | 7.5 x 3 x 3" (197 x 76 x 76 mm) | | Weight | 33.5 oz (950 g) | | | | Package Weight | 8.75 lb | | Box Dimensions (LxWxH) | 14.0 x 12.5 x 6.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
