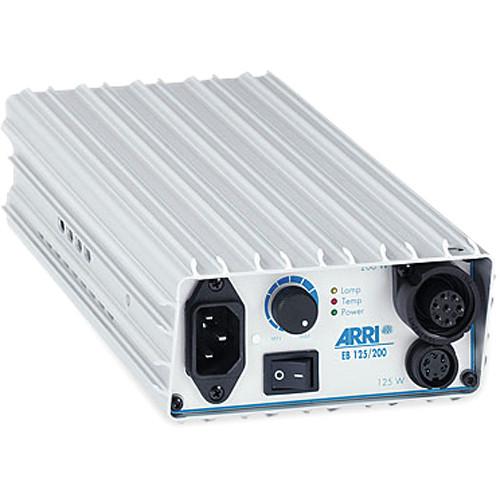

User Manual for ARRI 125 200W High Speed Electronic Ballast with ALF Click to enlarge the picture
Contents of the user manual for the ARRI 125 200W High Speed Electronic
- Product category: Ballasts ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Ballasts
|
User manual for the ARRI 125 200W High Speed Electronic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The ARRI 125/200W High Speed Electronic Ballast with ALF is designed for use with ARRI 125W or 200W HMI luminaries for high-speed photography at 500 to 5000 frames per second The ballast operates 1000 Hz rather than the typical 50 to 200 Hz and incorporates ALF (Active Line Filter). ALF provides a higher Power Factor resulting in more efficient power use. This is accomplished by shifting the voltage and current waveforms in phase and minimizing harmonics and spikes. ALF also minimizes the current carried back on the neutral leg of the power infrastructure. - Flicker-free light up to 5000 fps
- When combined with an adequate HMI lamp, at least 5 times more light output than a tungsten light of the same power
- Light intensity increased by at least 5%
- Constant color temperature
- Control of electric power of the lamp between 50 and 100%
- Variation in power supply voltage of 10% has no influence on the power of the lamp
- The ballast is built into a casing with IP21 or IP22 protection
In the Box ARRI 125/200W High Speed Electronic Ballast with ALF (1000 Hz) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI 125 200W High Speed Electronic Ballast with ALF in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI EB 125/200 Specs | Lamp Power | 125/200 W | | Input Voltage | 90-125/180-250 VAC | | Dimmer | 50-100% of lamp power | | Weight | 3.9 lb (1.8 kg) | | Dimensions | 5.1 x 2.7 x 9.4" (13 x 7 x 24 cm) | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 13.4 x 5.8 x 4.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
