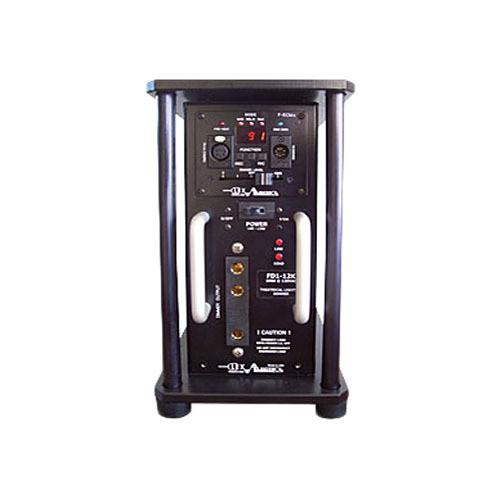

Product description The ARRI 12K Dimmer with DMX (120V, 50-60Hz) is an RFD Series stand alone dimmer made for ARRI by LEX Products/Electrol, which combines a DX Series dimmer with a rack system to offer a 12,000W portable dimming solution that accepts DMX 512 remote control.The unit's 8-bit resolution allows full 256-step, 0 - 100% dimming control for precision and repeatability. The panel features LED mode indicators as well as neon status indicators. Connectors include Neutrik 5 pin XLR for DMX communication and stage pin connectors for input and output. The power fail memory feature remembers dimmer level, preheat level, operating mode and the DMX 512 address. Convection cooling means absolutely quiet operation. - Three-digit display shows selected dimmer level form 0-100%, lamp pre-heat level from 0-20% and DMX 512 address from 001-512
- Separate LEDs indicate operating modes and presence of DMX 512 control signal
- Power fail memory retains dimmer level, pre-heat level, operating mode and DMX 512 address
- Panel mount stage pin connectors for input and output
- Short circuit proof, circuit breaker protected
- Neon indicators show status of line, circuit breaker and output
- Modular panel incorporating microprocessor-based control electronics precision
- 100% solid state design for reliability
- 8-bit resolution allows full 256-step dimming control to ensure exact level repeatability
- Voltage regulation maintains dimmer output within 2% despite fluctuations in input voltage
In the Box ARRI 12K Dimmer with DMX (120V, 50-60Hz) 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI 12K Dimmer with DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI L2.0005128 Specs | Dimmer Mode | Drives fans, incandescent lamps and dimmable magnetic transformers and ballasts | | Relay Mode | Provides full sine-wave output for non-dimmable loads | | Dimmer Response | 0 - 100%
Square law dimming curve, response time <8ms | | Filtering | 30 µs rise time copper wound toroidal choke | | Local Control | Integral momentary pushbuttons and digital display | | Remote Control | Accepts DMX 512 control signal | | DMX 512 Connectors | Neutrik 5 pin XLR male and female for DMX 512 input and DMX 512 thru | | Operating Conditions | 32 - 104°F (0 - 40°C) | | Certification | UL | | Dimensions | 14 x 8.0 x 14" (356 x 203 x 356 mm) | | Weight | 25 lb (11.3 kg) | | | | Package Weight | 37.8 lb | | Box Dimensions (LxWxH) | 19.0 x 18.5 x 12.6" |
