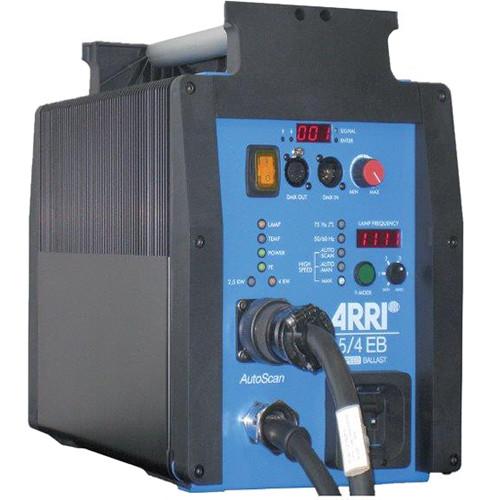

Product description The 2.5 / 4 K High Speed AutoScan Electronic Ballast from ARRI is an advanced power supply capable of handling fixtures with 2,500 or 4,000 W HMI discharge lamps. It is compatible with M-Series M40, AS 40, True Blue D 40 and D 25, Compact 2500 and 4000 Theatre lamp heads. The ballast has 3 high speed modes - AutoScan (fully automatic), Man (manual frequency control) or AutoMan (combining manual frequency setting with automatic frequency control). The lamp can be operated at 900 to 1200 Hz for high speed work as well as 50 or 60 Hz to limit noise or a 75 Hz for standard frame rates.Other high-end features include the power-saving ALF (Active Line Filter)and CCL (Compensation for Cable Losses). Dimming from 50-100% and remote On/Off is available via DMX. The ballast accepts 90 - 250 VAC for worldwide use. In the Box ARRI 2.5 / 4 K High Speed AutoScan Electronic Ballast Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI 2.5 4 K High Speed AutoScan Electronic Ballast in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI EB 2.5/4 Specs | Type | Electronic ballast | | Lamp | Optional 2,500 W and 4,000 W discharge lamps | | Head Compatibility | M-Series M40, AS 40, True Blue D 40 and D 25, Compact 2500 and 4000 Theatre | | Line Voltage | 90 - 130 / 190 - 250 V ~ 50/60 Hz; 1, N, PE (single phase) | | Line Current | 120 V: 53 - 42 A
230 V: 30 - 22 A | | DMX | DMX 512, In and Out
DMX Connector: DMX In / Out (XLR 5-pin) connector | | Maximum Power | 5430 VA (apparent) | | Lamp Frequency | 50/60 Hz (Low Noise), 75 Hz (Flicker Free), 900 to 1200 Hz (High Speed) | | High Speed Modes | AutoScan: frequency scan and automatic control and adjustment of lamp frequency
AutoMan: manual frequency setting with automatic control and adjustment of lamp frequency
Manual: manual frequency setting only, no automatic adjustment | | Power Factor | cos φ 0.98 due to Active Line Filter | | Efficiency | Approx. 0.91 | | Protection Class | I | | IP Rating | IP22 | | Maximum Temperature | Ambient: 122°F (50°C) | | Compensation of Cable Loss | Up to 328' (100 m) | | Active Line Filter | (ALF), yes | | Automatic Lamp Detection | Indication of detected lamp type with LED (2.5 kW green, 4 kW yellow) | | Ignition | Cold start and hot restrike | | Indicators | Display for DMX channel and lamp frequency
Successful ignition LED LAMP (yellow)
Over-temperature with LED TEMP (red)
Line power with LED POWER (green)
Protective earth with LED PE (green)
Lamp type with LED (2.5 kW green, 4 kW yellow) | | Dimensions | (H x W x D): 14 x 9.5 x 17.7" (358 x 243 x 450 mm) | | Weight | 45.2 lb (20.5 kg) |
