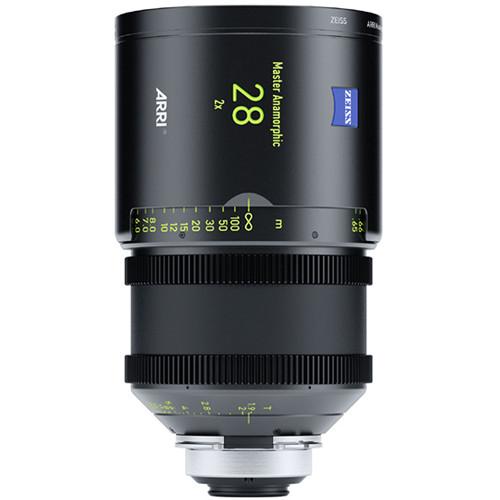

User Manual for ARRI 28mm T1.9 Master Anamorphic Lens Click to enlarge the picture
Contents of the user manual for the ARRI 28mm T1.9 Master Anamorphic Lens
- Product category: Digital Cine Lenses ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Digital Cine Lenses
|
User manual for the ARRI 28mm T1.9 Master Anamorphic Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description ARRI Lensesthe Current Professional Standard in Cinema Read More The 28mm Master Anamorphic Prime Lens is the widest in a set from ARRI/Zeiss featuring low distortion and a fast T1.9 aperture for achieving shallow depth of field. This anamorphic prime offers the skin tones and color rendition for which Zeiss is noted, and color-matches other ARRI/Zeiss primes and ARRI/Fujinon zoom lenses. Its 15-blade iris produces cinematic-looking, oval bokeh with distinct focus fall-off. There is minimal breathing when focusing and no "fat face/anamorphic mumps" effect on your talent. With there being no visible drop-off at the corner of your images, the full 2.39-format image is usable.Designed from scratch for use with digital cinema cameras, the ARRI/Zeiss Master Anamorphic primes will provide optimal image quality when used with an ARRI ALEXA 4:3-format camera. They will work with film cameras as well. Color fringing and shading in image corners is reduced thanks to the near telecentric design of these multi-coated lenses.This anamorphic lens provides a 2.39:1 aspect ratio to your image when used with a Super-35 sensor. The 28mm Master Anamorphic Prime Lens features a 26" minimum focus distance, focus marks in feet, a relatively light weight of 5.5 pounds, and a compact length of 7.2". The lens is constructed with geared focus and iris rings for use with follow focus, zoom control, and F/I/Z wireless systems. The PL LDS mount on the 28mm Master Anamorphic Prime Lens will transfer lens data to compatible cameras. Features - Low distortion and no "fat face/anamorphic mumps" effect on your talent
- Provides a 2.39:1 aspect ratio on Super-35 sensors
- Fast, maximum T1.9 aperture produces shallow depth of field
- Color-matches with other ARRI/Zeiss primes and ARRI/Fujinon zooms
- Relatively lightweight, compact form factor with 114mm front diameter
- PL LDS mount will transfer lens data when used with compatible cameras
In the Box ARRI 28mm T1.9 Master Anamorphic Lens (PL, Feet) Limited 1-Year Warranty Cinema Lens Care and Maintenance Mary Latvis 03/29/2017 czffeaswreddexdxsyayfudd Spec sheet PDF 443kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI 28mm T1.9 Master Anamorphic Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI Master Anamorphic 28mm T1.9 (ft) Specs | Focal Length | 28mm | | Lens Mount | PL LDS | | Aperture Range | T1.9-22 | | Number of Aperture Blades | 15 | | Close Focus Distance | 25.6" (0.65 m) | | Magnification Ratio | H: 1:32.3 V: 1:16.4 | | Front Diameter | 4.5" (114 mm) | | Maximum Diameter | 4.5" (114 mm) | | Entrance Pupil | -7.40" (-188 mm) | | Angle of View (HxV) | Super 35 Cinemascope:
78-36° | | Maximum Image Circle | 1.15" (29.26 mm) | | Length | 7.2" (183 mm) | | Length Plus Flange Focal Distance | 9.3" (235 mm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 9.6 lb | | Box Dimensions (LxWxH) | 14.9 x 12.6 x 12.3" |
