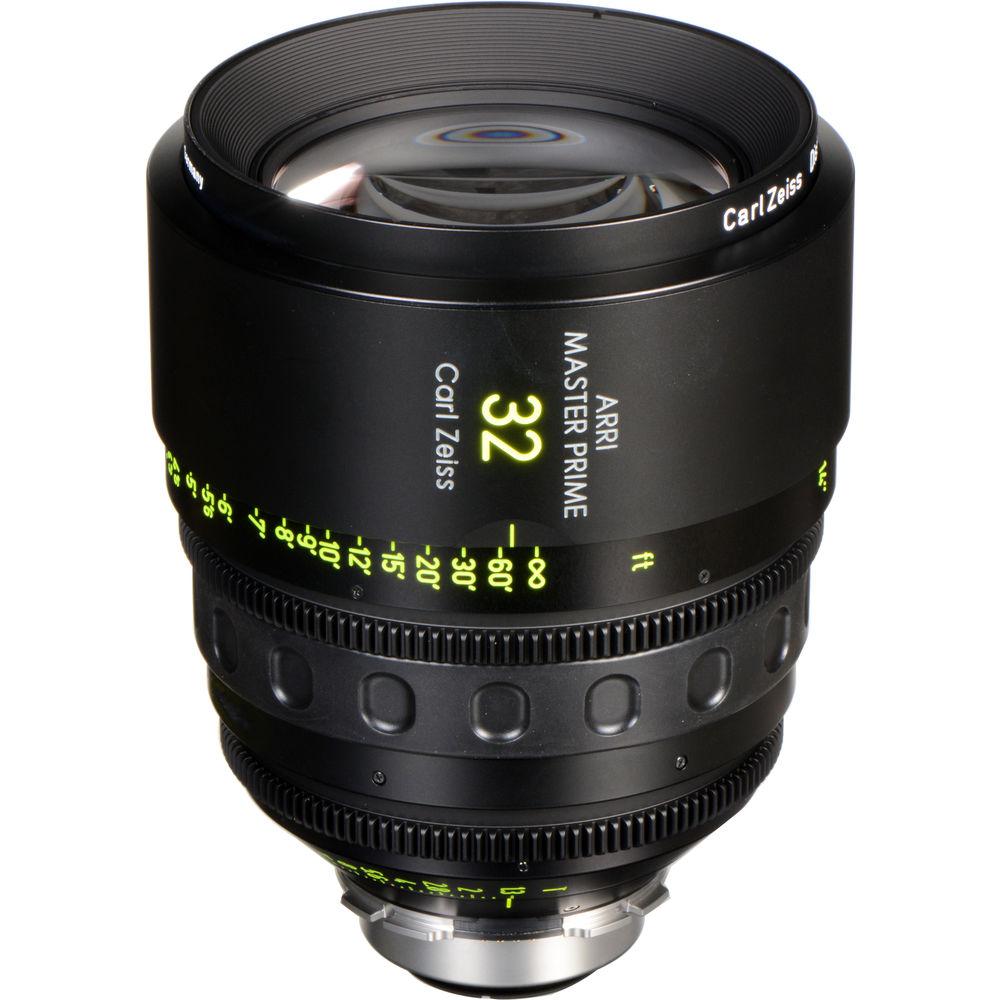

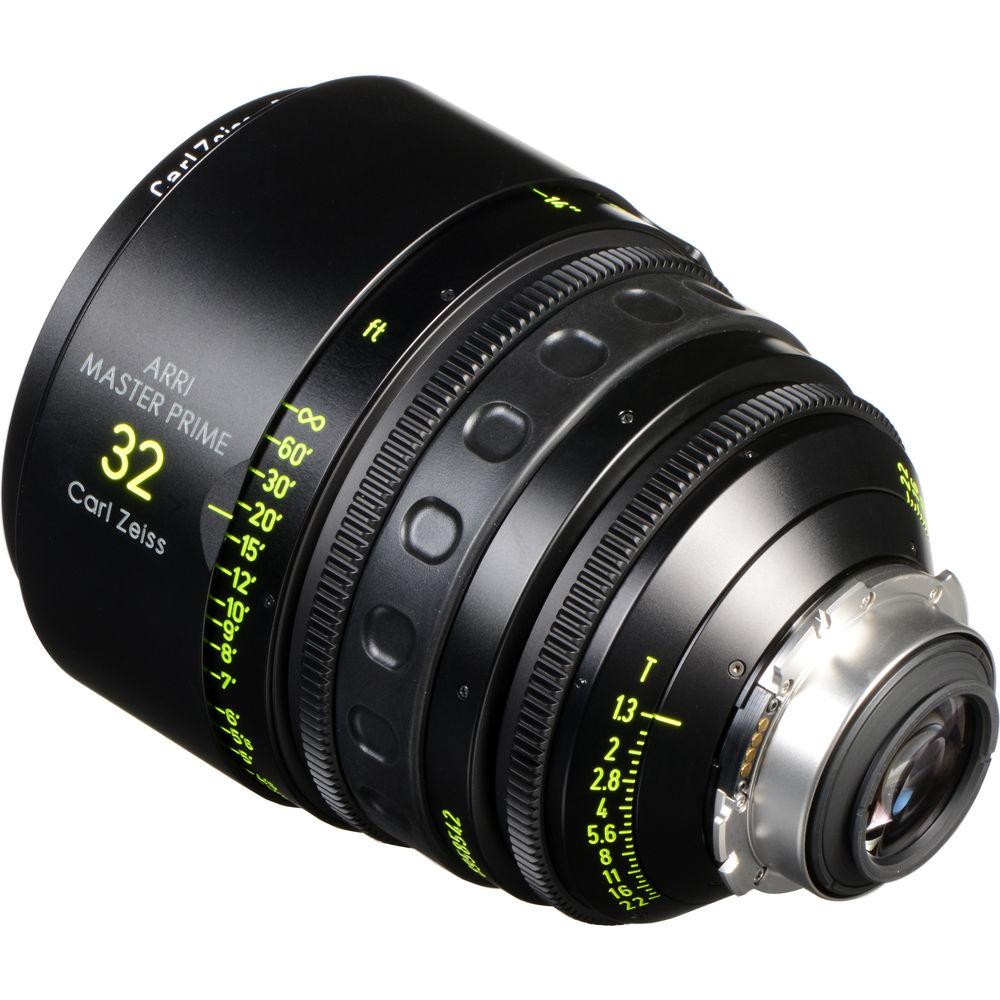

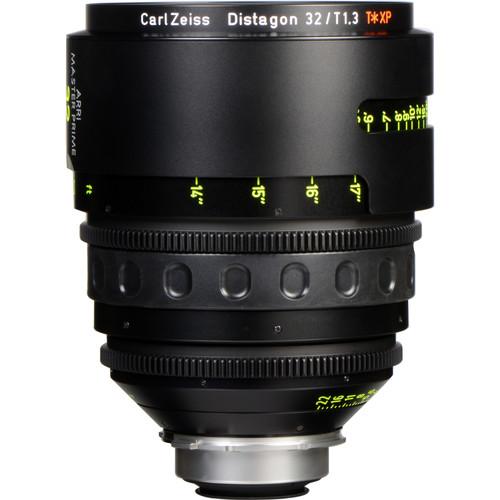

User Manual for ARRI 32mm Master Prime Lens Click to enlarge the picture
Contents of the user manual for the ARRI 32mm Master Prime Lens
- Product category: Digital Cine Lenses ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Digital Cine Lenses
 |
User manual for the ARRI 32mm Master Prime Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More czvqrsbfzzcvwtxvcdscyvzxzsywub The 32mm Master Prime is one in a set of 16 from ARRI/Zeiss featuring excellent resolution, advanced contrast, almost no breathing, and a fast T1.3 aperture for achieving shallow depth of field. Ranging from 12mm to 150mm, the Master Primes offer the skin tones and color rendition for which Zeiss is noted, and are color-matched for consistency across the set. These lenses incorporate an iris with at least nine blades for cinematic-looking bokeh with distinct focus fall-off. Dual floating elements provide optimal close-focus performance while minimizing breathing when focusing. The advanced T*XP coating reduces reflections and glare while improving contrast.Designed with aspherical elements for minimal chromatic aberration, the ARRI/Zeiss Master Primes provide optimal image quality and clean chroma-keying. High resolution is maintained in image corners even when the lens is used wide open and at close focus. Each lens features a PL mount and a built-in LDS system for transferring lens data to compatible cameras. The expanded focus scale has generous room for marks, and it sports fluorescent engravings for easier viewing in low-light settings. The focus ring has markings in both feet and metric; the ring may be reversed from one to the other by a qualified shop technician.This 32mm Master Prime Lens features a 14" minimum focus distance, focus marks set in feet, a relatively light weight of 5.1 pounds, and a compact length of 8". This family of lenses feature consistent placement of focus, iris, and zoom rings for easier use with follow focus, zoom control, and F/I/Z wireless systems. Most of the lenses in the Master Prime family, including the 32mm, have a uniform 114mm front diameter, enabling the use of the same size matte box adapter, filter, etc. Features - Superior resolution and contrast with virtually no breathing
- Fast, maximum T1.3 aperture enables shooting in low light and produces shallow depth of field
- Color-matched across the set
- Aspherical elements for reduced chromatic aberration
- PL mount with integrated LDS system for transferring lens data to compatible cameras
- Relatively lightweight, compact form factor with 114mm front diameter
In the Box ARRI 32mm Master Prime Lens (PL, Feet) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI 32mm Master Prime Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI Master Prime 32mm T1.3 (ft) Specs | Focal Length | 32mm | | Lens Mount | PL LDS | | Aperture Range | T1.3-22 | | Close Focus Distance | 14" (0.35 m) | | Magnification Ratio | 1:7.1 | | Front Diameter | 4.5" (114 mm) | | Maximum Diameter | 5" (128 mm) | | Angle of View (HxV) | Standard 35, ID = 27.2 mm: 38.84° - 28.74° - 47.10°
DIN Super 35, ID = 30 mm: 42.07° - 32.16° - 51.31°
ANSI Super 35, ID = 31.14 mm: 43.51° - 33.35° - 52.98°
* ID is the diameter of the image circle needed for the respective format | | Iris Blades | 9 or more (not further specified by manufacturer) | | Length | 8.1" (205 mm) | | Weight | 5.1 lb (2.3 kg) | | | | Package Weight | 9.15 lb | | Box Dimensions (LxWxH) | 14.5 x 12.5 x 12.3" |
