User Manual for ARRI 4 x 5.65" Full Spectrum Neutral Density Filter Basic Set Click to enlarge the picture
Contents of the user manual for the ARRI 4 x 5.65" Full Spectrum
- Product category: Neutral Density (Solid) ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Neutral Density (Solid)
 |
User manual for the ARRI 4 x 5.65" Full Spectrum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

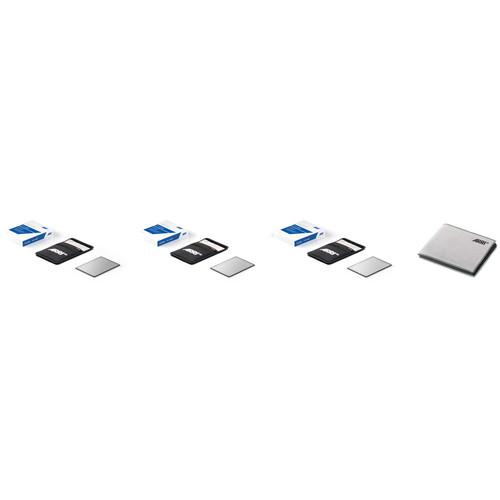

Product description How to Use ND Filters: Tips, Tricks, and Special Effects Read More This ARRI Full Spectrum Neutral Density Filter Basic Set contains three 4 x 5.65", 4mm thick solid neutral density filters. They can each be used to create a darkening of the entire frame, allowing you to record or photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field or convey movement more easily. These neutral density filters do not affect the coloration of a scene or image, are ideal for pairing with other filters, and their plano-parallel surfaces help ensure sharp results.
The included filters reduce the amount of light entering a lens by one, two, and three stops, respectively. Each filter is made of durable, Schott B270i glass that is multi-coated to minimize reflections, provide an improved beading effect with water or oil for more efficient cleaning, and to enhance surface durability. Additionally, the filters feature black, C-shaped edges. This rounded edge shape resists chipping while the black coloration reduces the potential for reflections along the sides of the framed scene or image during use.

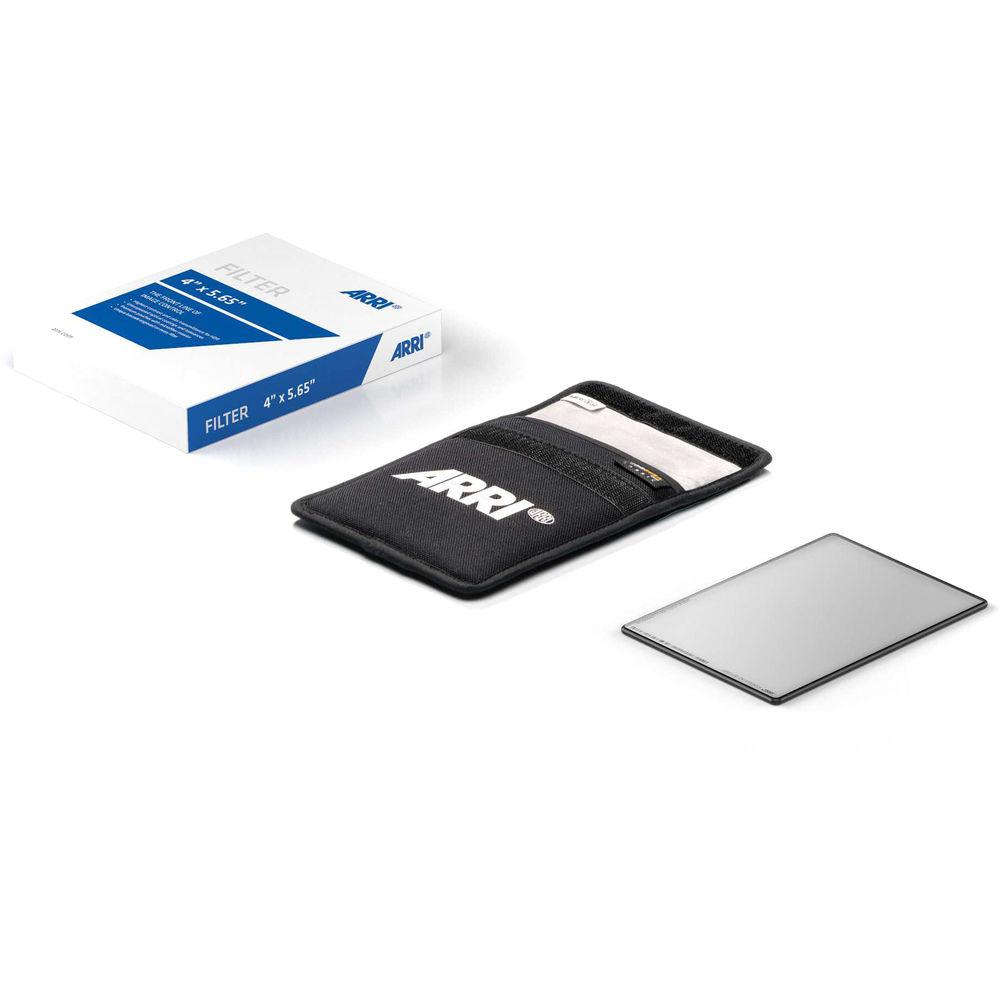

For organization within large equipment inventories, a unique GS1 barcode is assigned to each filter. Aside from being laser-engraved along a filter's edge, the barcode is repeated on each filter's glassine envelope, filter pouch, and individual box. The filter pouches' durable nylon construction provides reliable protection during storage or transport within a larger bag or case; and like each pouch's non-abrasive interior, the anti-static properties of the included microfiber cleaning cloth enhance its ability to keep the filters dust-free. - 4 x 5.65" Full Spectrum ND 0.3 Filter (1-Stop) With technology taken from the ALEXA Mini and the AMIRA internal filters, ARRI introduces a line of external front full spectrum neutral density filters. The 4 x 5.65" Full Spectrum ND 0.3 Filter absorbs 1 stop of light to reduce very bright illumination conditions, allow use of wide apertures, or add blur and motion effects to a subject during long exposures.ARRI uses SCHOTT B270i glass for absolute flatness and pure neutral color rendition and hydrophobic and oleophobic coating for easy and fast cleaning. ARRI coated filters provide lower reflectivity in the visible spectral range between 400 and 750nm and higher reflectivity in the near-infrared spectral range to produce a high dynamic range, improving color, neutrality, and contrast. Each filter has a unique engraved barcode for inventory and ID purposes and comes with a protective Cordura pouch lined with MICRODEAR anti-static cleaning cloth.
- Benefits
-
- Full spectrum neutral density filters from ALEXA Mini and AMIRA now as front filters
- High contrast and true color transmittance for HDR capture
- Multiple layers of coating for easy cleaning and prolonged filter life
- Long-lasting Cordura pouches lined with MICRODEAR anti-static cleaning cloth
- Fast inventory tracking through unique, laser-engraved barcodes

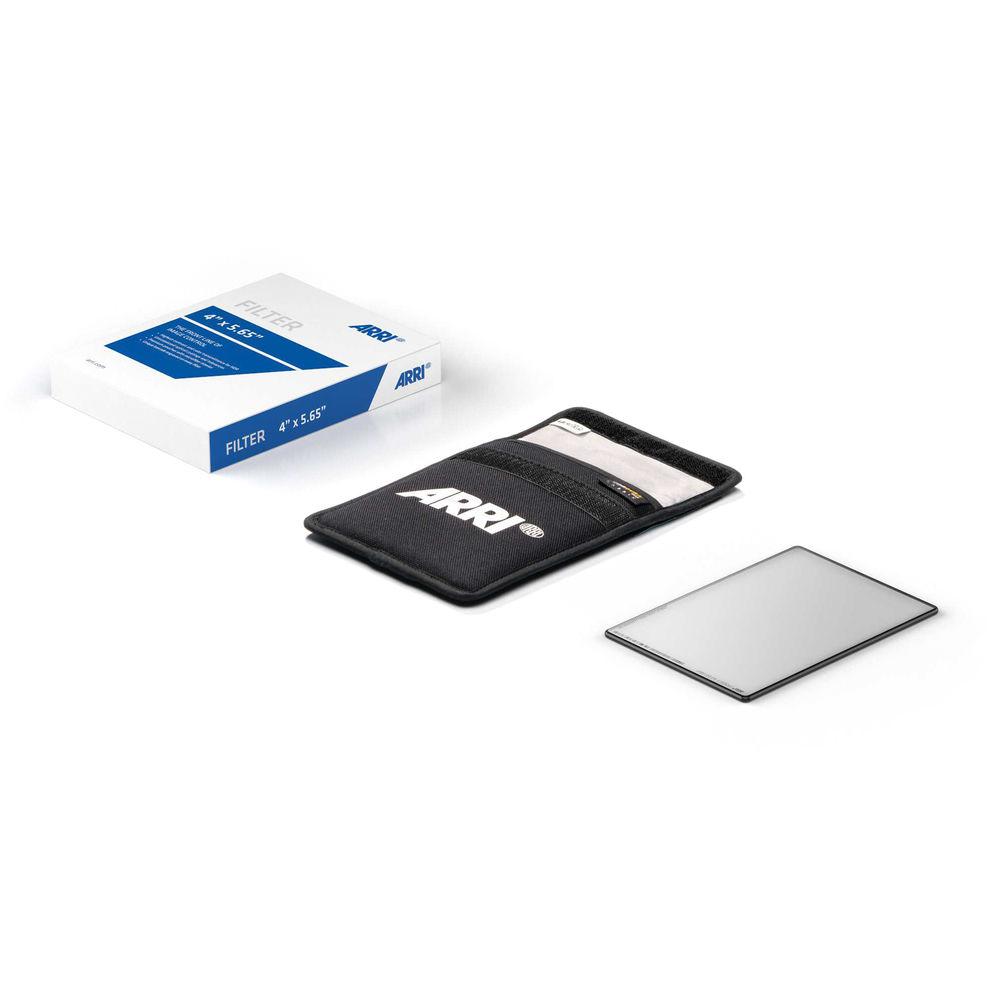

- 4 x 5.65" Full Spectrum ND 0.6 Filter (2-Stop) With technology taken from the ALEXA Mini and the AMIRA internal filters, ARRI introduces a line of external front full spectrum neutral density filters. The 4 x 5.65" Full Spectrum ND 0.6 Filter absorbs 2 stops of light to reduce very bright illumination conditions, allow use of wide apertures, or add blur and motion effects to a subject during long exposures.ARRI uses SCHOTT B270i glass for absolute flatness and pure neutral color rendition and hydrophobic and oleophobic coating for easy and fast cleaning. ARRI coated filters provide lower reflectivity in the visible spectral range between 400 and 750nm and higher reflectivity in the near-infrared spectral range to produce a high dynamic range, improving color, neutrality, and contrast. Each filter has a unique engraved barcode for inventory and ID purposes and comes with a protective Cordura pouch lined with MICRODEAR anti-static cleaning cloth.
- Benefits
-
- Full spectrum neutral density filters from ALEXA Mini and AMIRA now as front filters
- High contrast and true color transmittance for HDR capture
- Multiple layers of coating for easy cleaning and prolonged filter life
- Long-lasting Cordura pouches lined with MICRODEAR anti-static cleaning cloth
- Fast inventory tracking through unique, laser-engraved barcodes

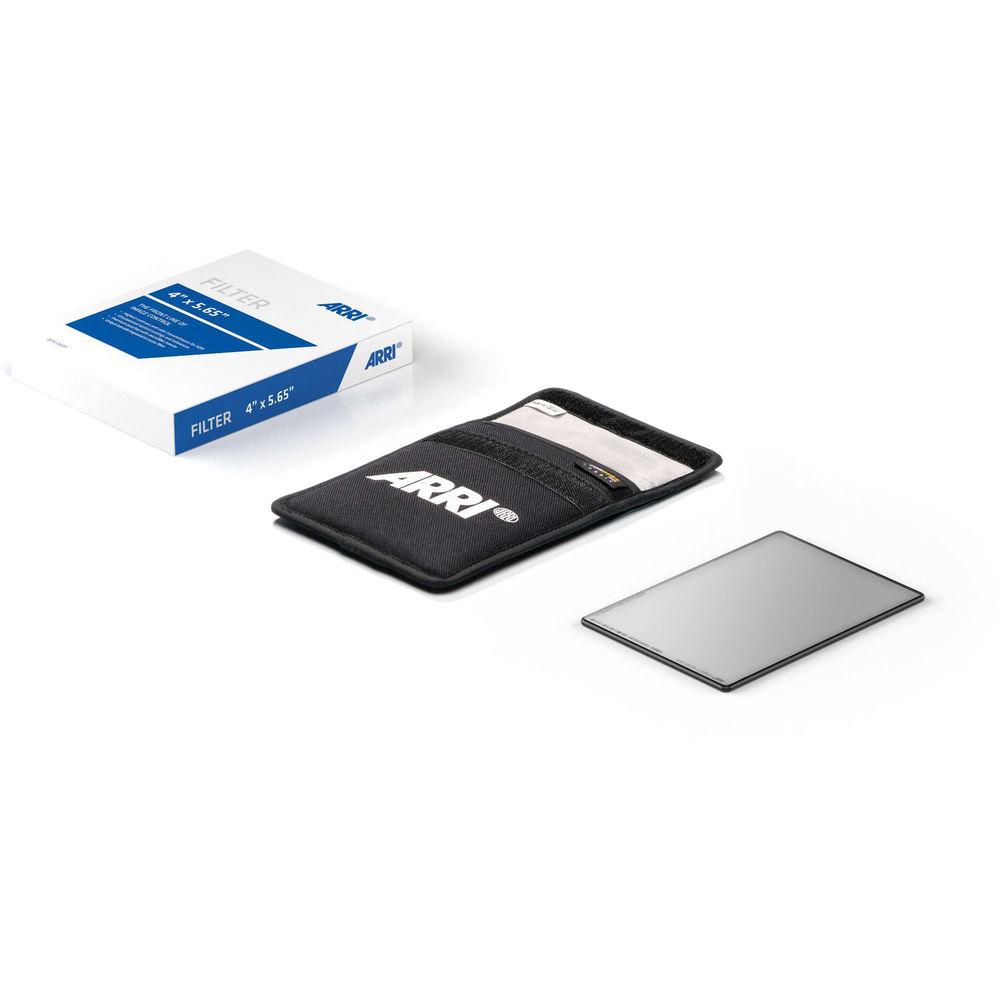

- 4 x 5.65" Full Spectrum ND 0.9 Filter (3-Stop) With technology taken from the ALEXA Mini and the AMIRA internal filters, ARRI introduces a line of external front full spectrum neutral density filters. The 4 x 5.65" Full Spectrum ND 0.9 Filter absorbs 3 stops of light to reduce very bright illumination conditions, allow use of wide apertures, or add blur and motion effects to a subject during long exposures.ARRI uses SCHOTT B270i glass for absolute flatness and pure neutral color rendition and hydrophobic and oleophobic coating for easy and fast cleaning. ARRI coated filters provide lower reflectivity in the visible spectral range between 400 and 750nm and higher reflectivity in the near-infrared spectral range to produce a high dynamic range, improving color, neutrality, and contrast. Each filter has a unique engraved barcode for inventory and ID purposes and comes with a protective Cordura pouch lined with MICRODEAR anti-static cleaning cloth.
- Benefits
-
- Full spectrum neutral density filters from ALEXA Mini and AMIRA now as front filters
- High contrast and true color transmittance for HDR capture
- Multiple layers of coating for easy cleaning and prolonged filter life
- Long-lasting Cordura pouches lined with MICRODEAR anti-static cleaning cloth
- Fast inventory tracking through unique, laser-engraved barcodes

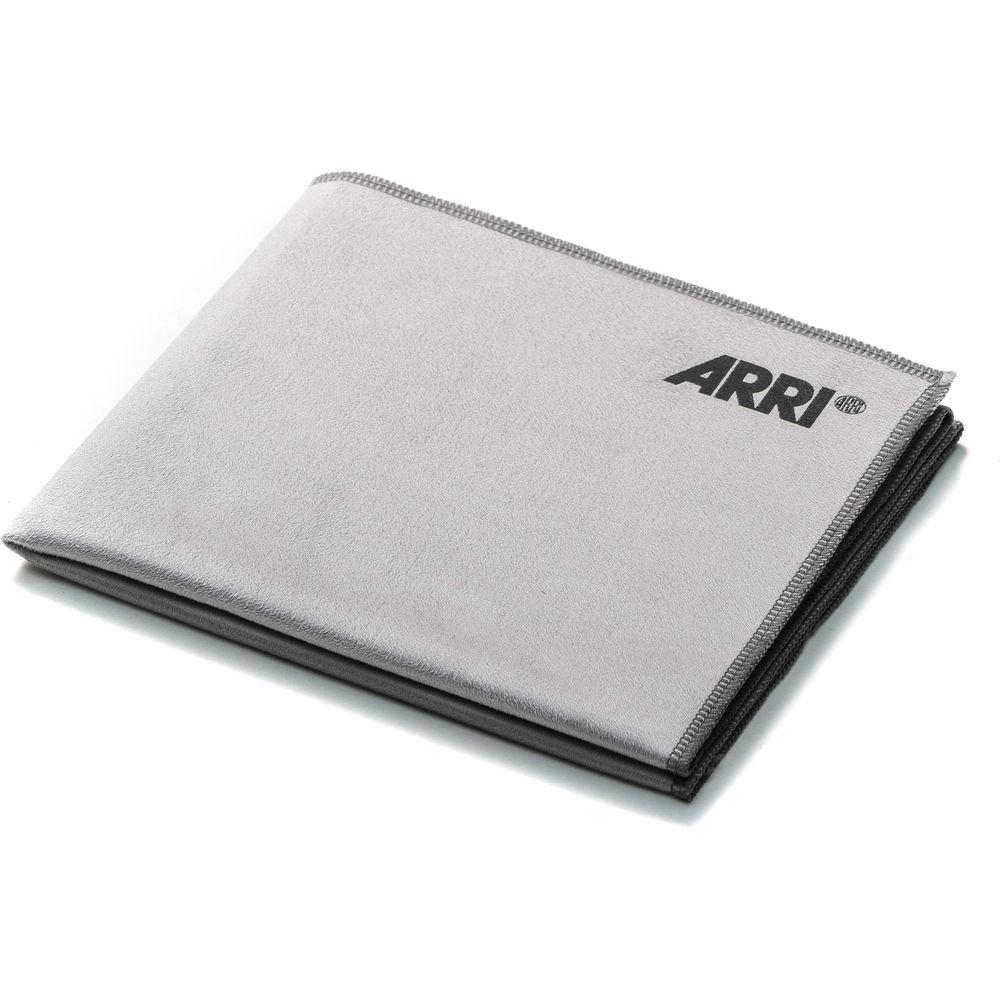

- Optical Cleaning Cloth (14.6 X 17.7") Keep your lenses, glasses, telescopes, or other optical equipment clean with the Optical Cleaning Cloth from ARRI. At 14.6 x 17.7", this large cloth is easy to use and machine washable with cold water.
In the Box Bundle Items 4 x 5.65" Full Spectrum ND 0.3 Filter (1-Stop) edysqtrrcvefabqvwfqyrvfttqtqra - Cordura Pouches Lined with MICRODEAR Anti-Static Cleaning Cloth
4 x 5.65" Full Spectrum ND 0.6 Filter (2-Stop) - Cordura Pouches Lined with MICRODEAR Anti-Static Cleaning Cloth
4 x 5.65" Full Spectrum ND 0.9 Filter (3-Stop) - Cordura Pouches Lined with MICRODEAR Anti-Static Cleaning Cloth
Optical Cleaning Cloth (14.6 X 17.7") Introduction to ND Filters: The Basics BH Online Videos 05/29/2015 How to Use ND Filters: Beyond the Basics BH Online Videos 05/29/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI 4 x 5.65" Full Spectrum Neutral Density Filter Basic Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4 x 5.65" Full Spectrum ND 0.3 Filter (1-Stop)
| Filter Type | Solid ND | | Density | 0.3 (1 Stop) | | Rotating | No | | Rectangular Size | 4.0 x 5.65" / 101.6 x 143.5 mm | | Cokin Compatibility | None | | Filter Material | Glass | | Coatings | Multi-Coating | | | | Box Dimensions (LxWxH) | 7.0 x 6.0 x 2.0" | - 4 x 5.65" Full Spectrum ND 0.6 Filter (2-Stop)
| Filter Type | Solid ND | | Density | 0.6 (2 Stops) | | Rotating | No | | Rectangular Size | 4.0 x 5.65" / 101.6 x 143.5 mm | | Cokin Compatibility | None | | Filter Material | Glass | | Coatings | Multi-Coating | | | | Box Dimensions (LxWxH) | 6.75 x 5.25 x 1.0" | - 4 x 5.65" Full Spectrum ND 0.9 Filter (3-Stop)
| Filter Type | Solid ND | | Density | 0.9 (3 Stops) | | Rotating | No | | Rectangular Size | 4.0 x 6.65" / 101.6 x 168.9 mm | | Cokin Compatibility | None | | Filter Material | Glass | | Coatings | Multi-Coating | | | | Box Dimensions (LxWxH) | 8.0 x 7.0 x 1.0" | - Optical Cleaning Cloth (14.6 X 17.7")
| Material | 100% Polyester | | Size | 14.6 x 17.7" / 37.1 x 45 cm | | | | Box Dimensions (LxWxH) | 7.0 x 5.5 x 1.0" |
