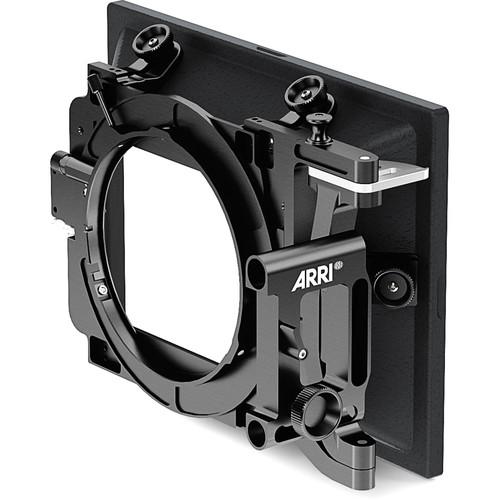

User Manual for ARRI 4" x 5.65" SMB-2 Basic Matte Box Module Click to enlarge the picture
Contents of the user manual for the ARRI 4" x 5.65" SMB-2 Basic
- Product category: Matte Boxes & Sunshades ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Matte Boxes & Sunshades
|
User manual for the ARRI 4" x 5.65" SMB-2 Basic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description This Basic SMB-2 Matte Box Module from ARRI is composed of the 4:3 sunshade, a non-tilting extension module, and an R2 ring–compatible back plate. A mounting arm is not included nor are any filter stages. The SMB-2 has a modular design, and is ready to accept stackable 4" x 5.65" filter stages, either the 19mm or 15mm rod mounting arm, and other separately available components as you wish. The SMB-2's swing-away design provides easy access to your lens without having to slide the matte box off the rods. When shooting with an ALEXA in 2.8K format and using up to a 3-filter stage, the SMB-2 will accommodate lenses as wide as the 14mm ARRI Master/Ultra Primes, and the ALURA zoom series. The SMB-2's back plate is sized to accept R2 adapter and reflex prevention rings. The SMB-2's removable 4:3 aspect-ratio sunshade may be swapped out with a 2:1 ratio version for anamorphic capture (available separately). The sunshades handily feature captive screws so you won't find yourself searching for tiny black screws in a dim studio after you've removed the shade for any reason. Features - Covers lenses as wide as the 14mm ARRI Master and 14mm Ultra Primes, and the ALURA zoom series
- Basic SMB-2 matte box with 4:3 sunshade, extension module, and back plate
- Ready to accept filter stages and other accessories of your choice (available separately)
- Swing-away design enables access to your lens without the need to remove the matte box from its rod mount (available separately)
In the Box ARRI 4" x 5.65" SMB-2 Basic Matte Box Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI 4" x 5.65" SMB-2 Basic Matte Box Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI K2.0002257 Specs | Lens Fit and Mount | Maximum Front Diameter: 4.5" (114 mm)
Mount: Not included | | Type | Swing-away | | Filter Type | 4 x 5.65" (stages not included) | | Dimensions (HxDxW) | 8.7 x 5.5 x 13.1" (220 x 140 x 334 mm) | | Weight | 2.4 lb (1107 g) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
