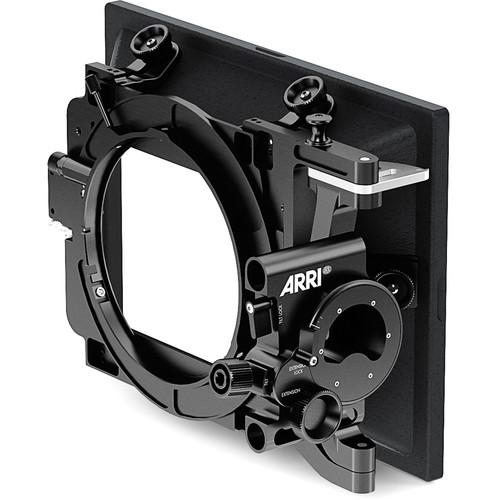

Product description The SMB-2 Tilt Matte Box Module from ARRI is composed of a 4:3 sunshade, a tilting extension module, and an R2 ring–compatible back plate. A mounting arm is not included nor are any filter stages or tilting filter ring. The SMB-2 has a modular design, and is ready to accept stackable 4" x 5.65" filter stages, either the 19mm or 15mm rod mounting arm, and other separately available components as you wish. The SMB-2's swing-away design provides easy access to your lens without having to slide the matte box off the rods. The tilt feature of this SMB-2 version may be used to disperse filter reflections from car headlights, streetlamps, and other sources. The SMB-2's back plate is sized to accept a 138mm tilting filter ring, an R2 adapter or other reflex prevention ring (available separately). When shooting with an ALEXA in 2.8K format and using up to a 3-filter stage, the SMB-2 will accommodate lenses as wide as the 14mm ARRI Master/Ultra Primes, and the ALURA series zooms. The SMB-2's removable 4:3 aspect-ratio sunshade may be swapped out with a 2:1 ratio version for anamorphic capture (available separately). The sunshades handily feature captive screws so you won't find yourself searching for tiny black screws in a dim studio after you've removed the shade for any reason. Features - Covers lenses as wide as the 14mm ARRI Master and 14mm Ultra Primes, and the ALURA zoom series
- Basic SMB-2 matte box with 4:3 sunshade, extension module, and back plate
- Tilting module for eliminating filter reflections
- Ready to accept filter stages and other accessories of your choice (available separately)
- Swing-away design enables access to your lens without the need to remove the matte box from its rod mount (available separately)
In the Box ARRI 4" x 5.65" SMB-2 Tilt Studio Matte Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI 4" x 5.65" SMB-2 Tilt Studio Matte Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI K2.0002256 Specs | Lens Fit and Mount | Maximum Front Diameter: 4.5" (114 mm)
Mount: Not included | | Type | Swing-away | | Filter Type | 4 x 5.65" (stages not included) | | Dimensions (HxDxW) | 8.7 x 6.7 x 13.4" (220 x 170 x 340 mm) | | Weight | 3.04 lb (1379 g) |
