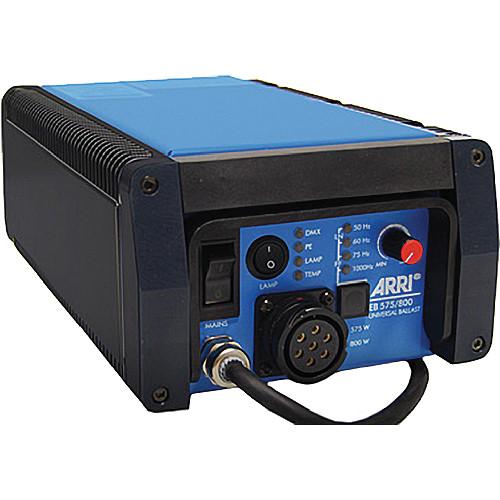

Product description The 575/800 High Speed Ballast with ALF and DMX for M8 has been introduced by ARRI to power the ground-breaking M8 lamp head with MAX reflector technology and 1,000Hz capability for frame rates of 1,000 fps and beyond. The EB 575/800W allows high speed shooting of sports events, industrial applications, automotive component testing and ballistics or material testing without any concerns about flicker. This versatile power source has been streamlined and packed with features like CCL to compensate for power loss over long cable runs and Active Line Filter. ALF provides a higher Power Factor resulting in more efficient power use. This is accomplished by shifting the voltage and current waveforms in phase and minimizing harmonics and spikes. ALF also minimizes the current carried back on the neutral leg of the power systems. Compatible with ARRI D, X, Compact, Daylight 575W and 800W Daylights with CCL such as the M8, the EB 575/800W features DMX on/off and 100-50% dimming control, as well as automatic detection of lamp heads. The ballast employs both fan and convection cooling and a low noise mode for quiet operation on-set. To help you monitor the unit while shooting, the EB 575/800W has LED indicators for DMX, protective earth, over temperature, frequency mode, lamp on, and detected lamp head, as well as an illuminated On/Off switch. -
- Small, compact size
- Dual wattage: 575 or 800W lamp
- Automatic detection of connected 575W or 800W luminaire
- Controllable frequency: choose between low noise, flicker free or high speed
- CCL: Compensation of Cable Loss
- ALF: Active Line Filter
- DMX controlled on/off, dimming
- Easy to read DMX setting on luminous display
- Robust aluminum alloy casting with additional edge protection
- User-friendly operation
In the Box ARRI 575/800 High Speed Ballast with ALF and DMX for M8 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI 575 800 High Speed Ballast with ALF and DMX for M8 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI EB 575/800 Specs | Type | Electronic high speed ballast | | Lamp Power | 575 W / 800 W | | Compatibility | ARRI D, X, Compact, Daylight 575W, 800W Daylights with CCL | | Input Voltage | 90-250 VAC, 50/60 Hz; 1,N,PE (single phase) | | Input Current | 11.1 - 8.9 A / 5.8 - 4.4 A | | Max. Apparent Power (VA) | 1,160 VA (max. in CCL mode) | | Power Factor | Cos phi: approx. 0.98 | | Efficiency | Approx. 88% | | Ignition | Cold strike and hot restrike (automatically limited < 1 sec) | | Typical Light Ripple | < 3.0% | | Dimmer | 50 - 100% Nominal value | | DMX | DMX 512 standard
Functions: Ballast On/Off; dimming of lamp power
DMX Connector: XLR 5-pin male and female (In/Out) | | Automatic Lamp Detection | No | | Automatic Lamp Head Detection | Yes | | Speed Control | Flicker-free mode: 75 Hz / 1,000 Hz, Adjustable | | Fan Cooled | Yes, with Low noise mode: 50/60 Hz | | LED Indicators | DMX, Protective Earth, Lamp On, Over Temperature, Frequency Mode, Lamp Head, Temperature Controlled Fan | | Output Connection | VEAM | | Compensation of Cable Loss | CCL, Yes | | Operating Temperature | Maximum: 122°F (50°C) | | IP Rating | I/IP22 | | Certification | CE | | Dimensions | 13 x 7.9 x 5.6" (33.4 x 20.2 x 14.2 cm) including feet | | Weight | 14.3 lb (6.5 kg) | | | | Package Weight | 18.1 lb | | Box Dimensions (LxWxH) | 18.1 x 13.7 x 11.0" |
