User Manual for ARRI 750 Plus 4 ARRILITE Kit Click to enlarge the picture
Contents of the user manual for the ARRI 750 Plus 4 ARRILITE Kit
- Product category: Tungsten Lights ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Tungsten Lights
|
User manual for the ARRI 750 Plus 4 ARRILITE Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description This ARRI 750 Plus 4 ARRILITE Kit is an ideal core kit featuring 4 advanced design ARRILITE 750 Plus fixtures with scrims, 220-240 VAC lamps, stands, an accessory pack, and a heavy duty wheeled case. The ARRILITE 750 Plus is an enhanced version of the tried-and-true ARRILITE open-face line. ARRI started with the basic design of the ARRILITE 800 and optimized the reflector to increase output 21% using HPL lamps which employ a compact filament that concentrates and augments light while increasing efficiency. The result is almost double the output. A redesigned one-arm stirrup instead of a yoke facilitates greater movement while the dedicated accessory holder allows use of Chimera softboxes without a speed ring. - HPL Lamps
- The ARRILITE 750 Plus is compatible with 375, 575, and 750W lamps. These proprietary HPL (High Performance Lamp) lamps use a compact filament which concentrates the light and augments output. At 575 watts, the HPL lamp is capable of producing the equivalent of a 1000W lamp using previous technology.
- High Efficiency Reflector
- ARRIMAX reflector (750 Plus) enables better light distribution and higher output.
- Accessory Holder/Speed Ring
- Accessory holder permits a Chimera Video Pro Plus (optional) to be fitted directly, without an additional speed ring.
- Light Stands
- Offer lightweight, yet sturdy support to a height of 8.6' (2.6m).
- Wheeled, Heavy Duty Case
- The case employs a hard plastic shell, aluminum trim and latches and a piano hinge. It features interior dividers and wheels for easy storage and transport.

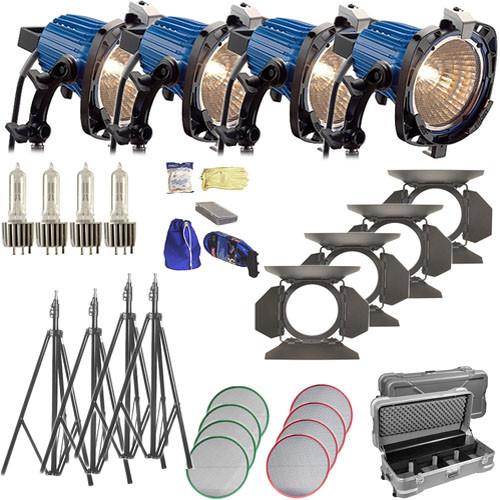

In the Box ARRI 750 Plus 4 ARRILITE Kit (220-240 VAC) 4 x ARRILITE 750 Plus wdddaeyazfuqasetus 4 x 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR 4 x AS-2 Lightweight Light Stand (8.5') 4 x Full Single Scrim for 650 Fresnel, Arrisun 2, HMI Fresnel 200 (6 5/8") 4 x Full Double Scrim for 650W Fresnel and Arrisun 2 HMI 200W 6-5/8" Accessory Pack for Arri Light 571197 Heavy-duty Location Case 4 x 750W HPL LAMP 220-240 VAC Limited 1-Year Warranty (Not Including Lamps) Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI 750 Plus 4 ARRILITE Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI 750 plus Specs | Rating | 750 W | | Socket (Lampholder) | G 9.5 | | Lens (Condenser) | Open-face (not applicable) | | Mounting | 5/8" / 16 mm stand mount | | Dimensions | Kit in case: 40 x 19 x 13.5" / 102 x 48 x 34 cm | | Kit Weight | 80 lb / 36.28 kg | | | | Package Weight | 81.0 lb | | Box Dimensions (LxWxH) | 33.0 x 22.0 x 13.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
