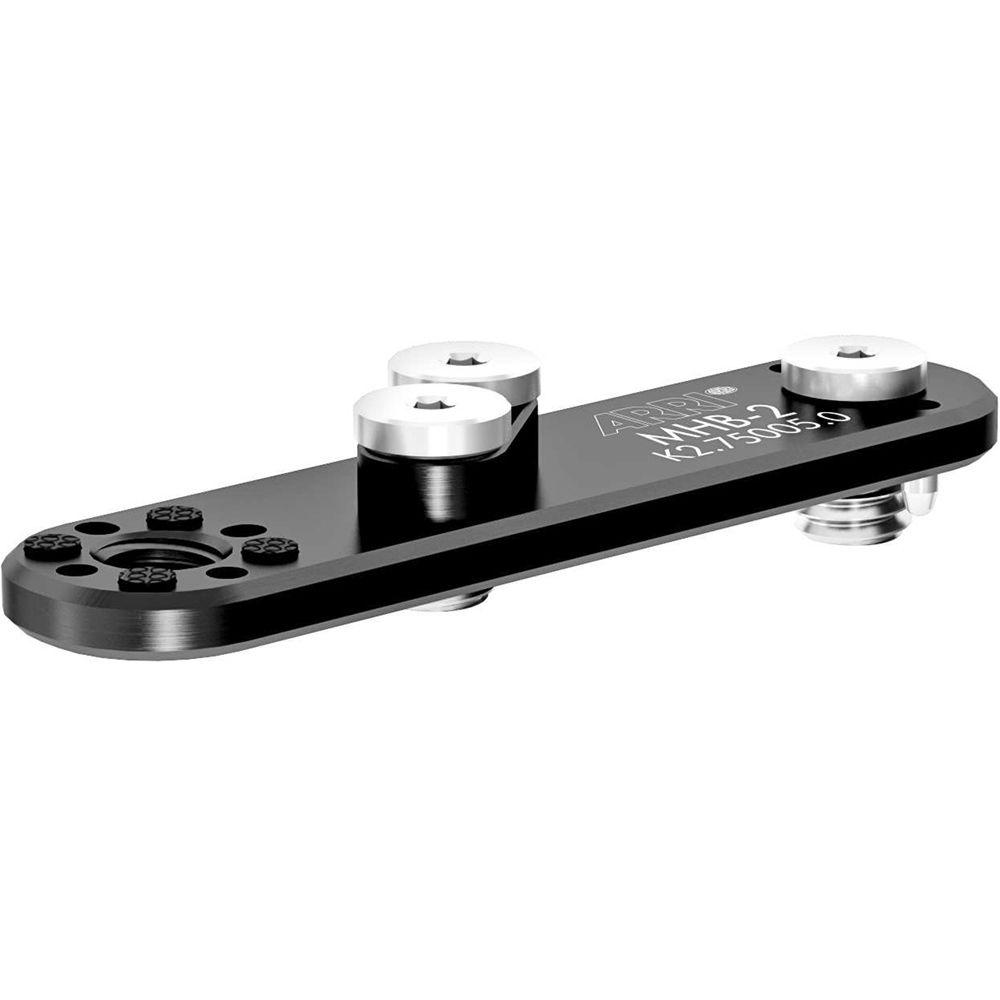

Product description The ARRI Accessories Bundle III offers an advanced, flexible selection of AMIRA-compatible components. Items in the bundle include wedge- and bridge plate adapters, a universal adapter plate, quick release plate, center handle, shoulder belt adapters, a viewfinder bracket and adapter, and the MHB-2 microphone holder bracket. Media components include three 256GB CFast 2.0 memory cards, and a USB 3.0 CFast 2.0 card reader. - MHB-2 Microphone Holder Bracket Provided by third party: Enjoy this bracket, capable to attach an on-camera microphone to the camera handle. Features knurled fasteners.

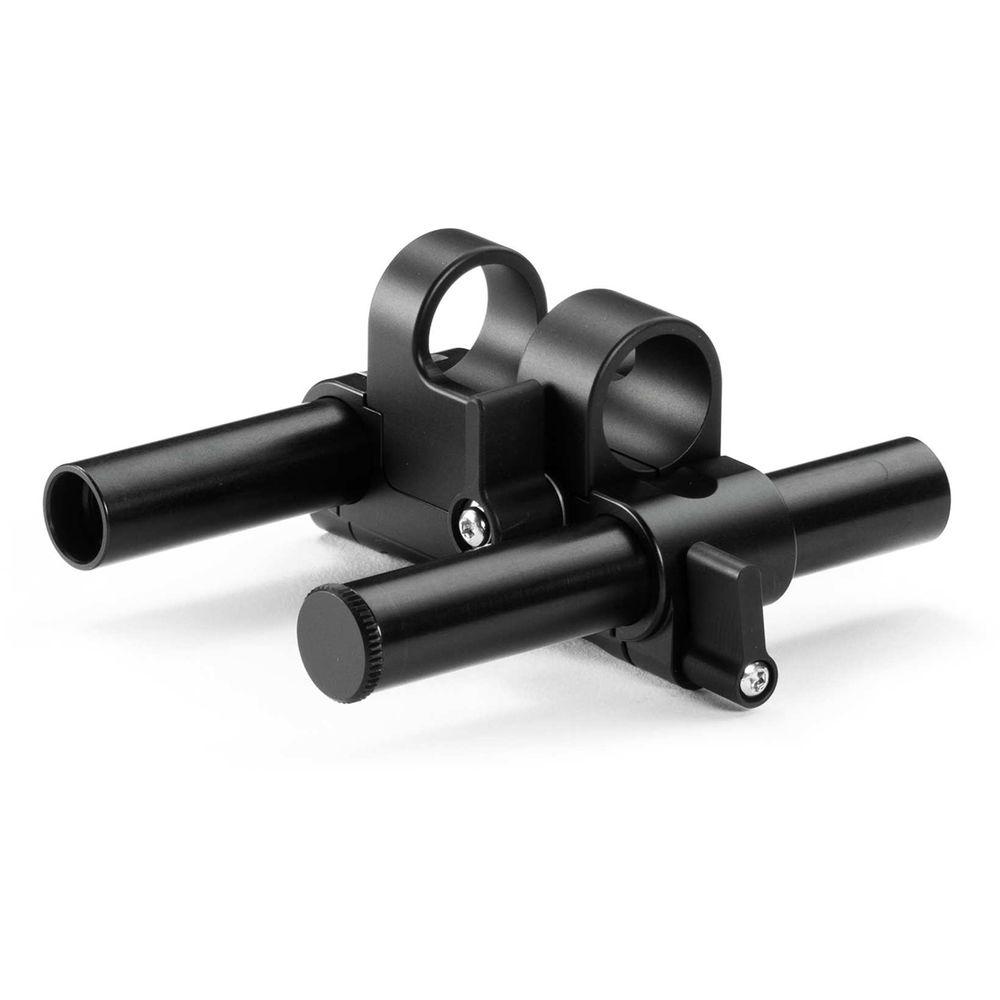

- VAB-1 Viewfinder Attachment Bracket Provided by third party: An attachment that allows the AMIRA viewfinder to be mounted to two 15 mm lightweight rods above the lens, as can be found on the Universal Adapter Plate UAP-2.

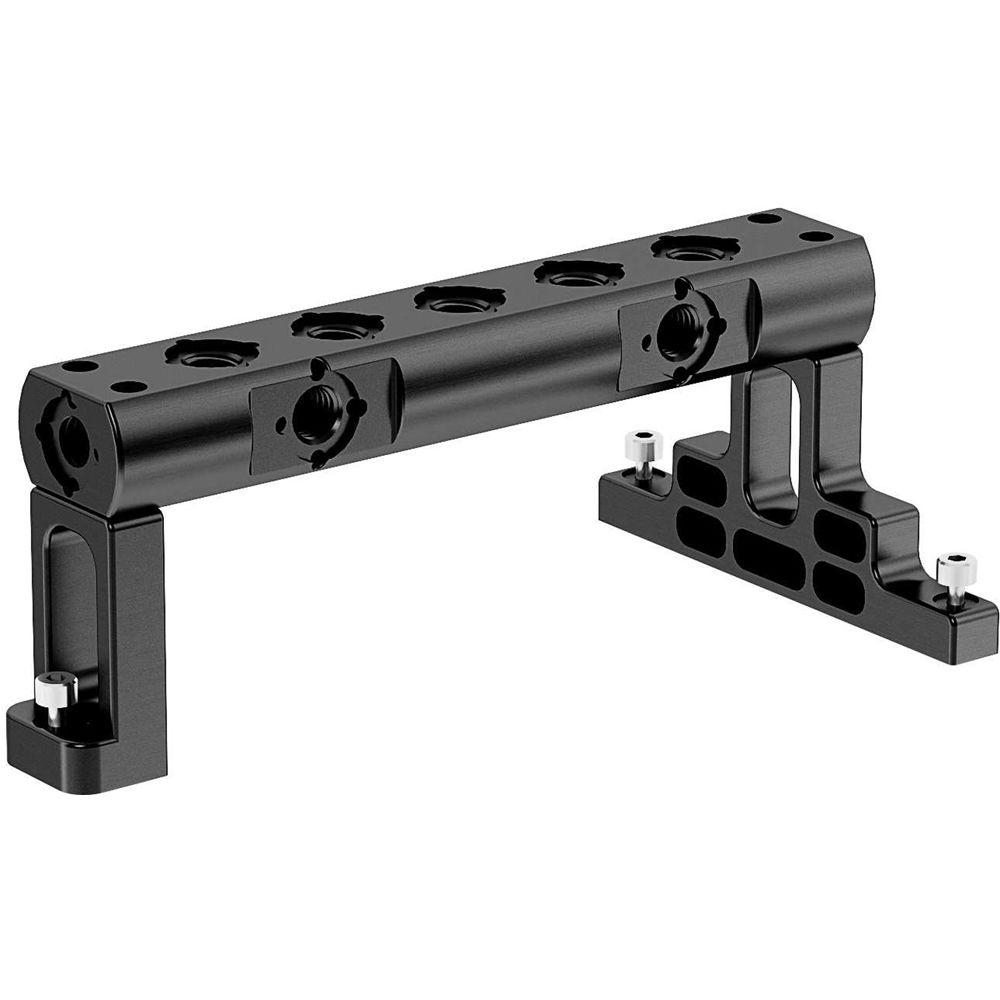

- CCH-1 Center Camera Handle for Select ALEXA Cameras The ARRI CCH-1 Center Camera Handle is a sturdy carrying handle featuring multiple 3/8"-16 threaded holes for attaching accessories. Designed for use with select ALEXA cameras (listed below), it attaches to the top of the camera via three screws. Note: The CCH-1 handle may be used with the BAT-G battery adapter attached, but it will not work with the BAT-V battery adapter, nor when any on-board battery is mounted to the top of the camera.
- Compatible ARRI Cameras
- ALEXA, ALEXA Plus, ALEXA Plus 4:3
ALEXA M body
ALEXA Studio
ALEXA XT, ALEXA XT M body, ALEXA XT Plus, ALEXA XT Studio

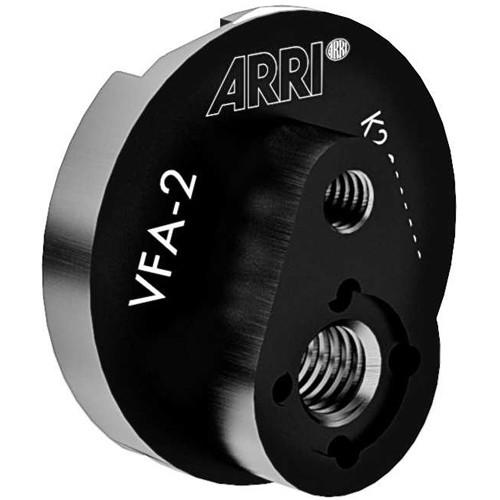

ALEXA SXT EV, ALEXA SXT Plus, ALEXA SXT Studio - VFA-2 Viewfinder Adapter Provided by third party: An adapter with an ARRI viewfinder dovetail on one side and one 3/8 inch and one 1/4 inch mounting point on the other side. This adapter can be used to mount the AMIRA or ALEXA viewfinders to ARRI Universal Mounting Arms (UMA) or Noga arms.
- QRP-1 Quick Release Plate The ARRI QRP-1 Quick-Release Plate is compatible with the ARRI AMIRA camera, select ARRI support systems, and many industry-standard broadcast cameras. The VCT wedge design enables you to quickly attach and remove your camera from the plate using the lever release.
Features - Quick release plate with lever release
- VCT-style plate enables quick mounting and removal of camera
- For ARRI AMIRA, select ARRI support systems, and many industry-standard broadcast cameras

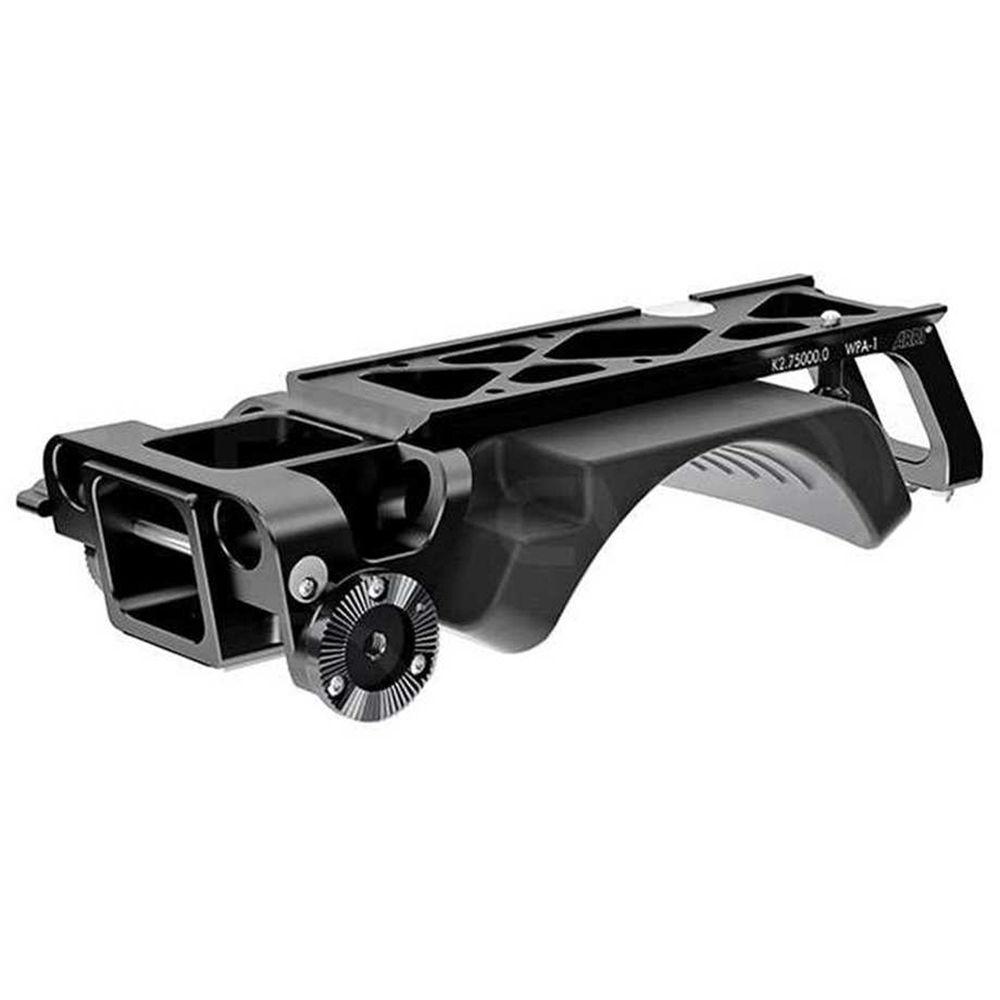

- WPA-1 Wedge Plate Adapter

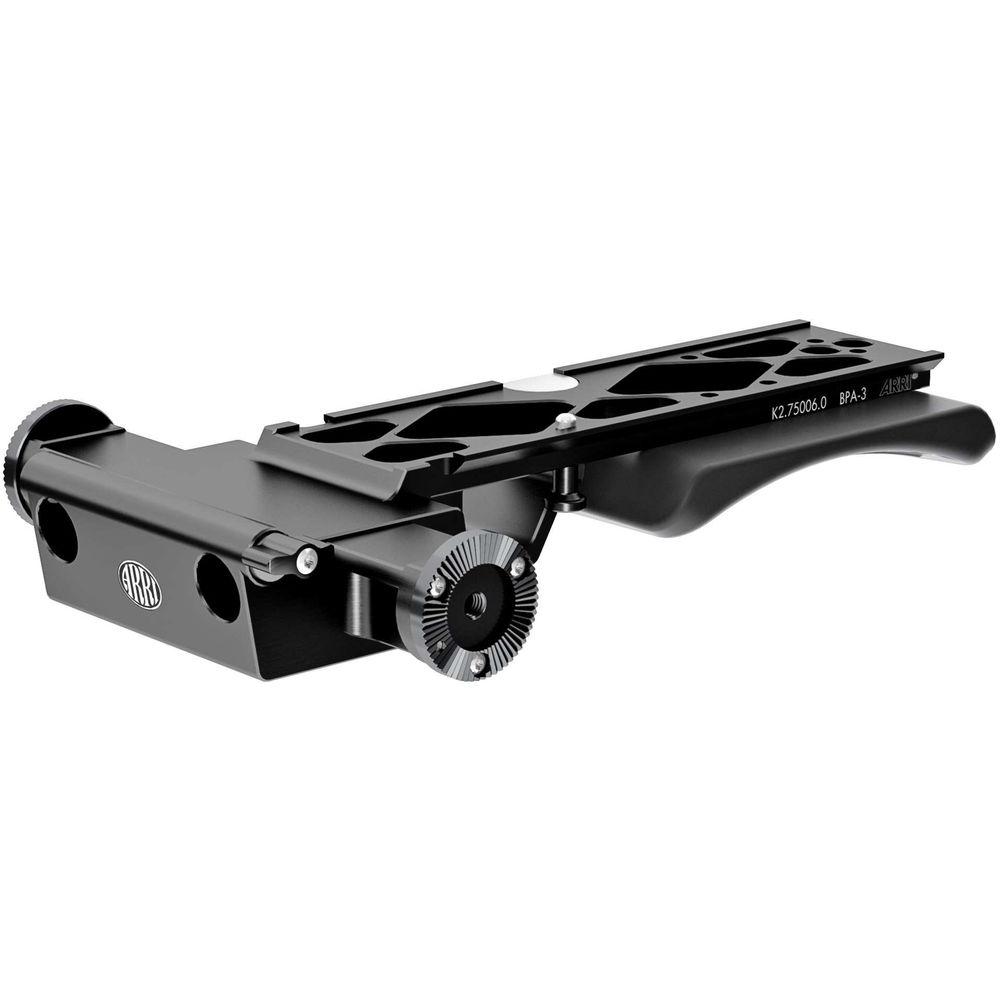

- BPA-3 Bridge Plate Adapter

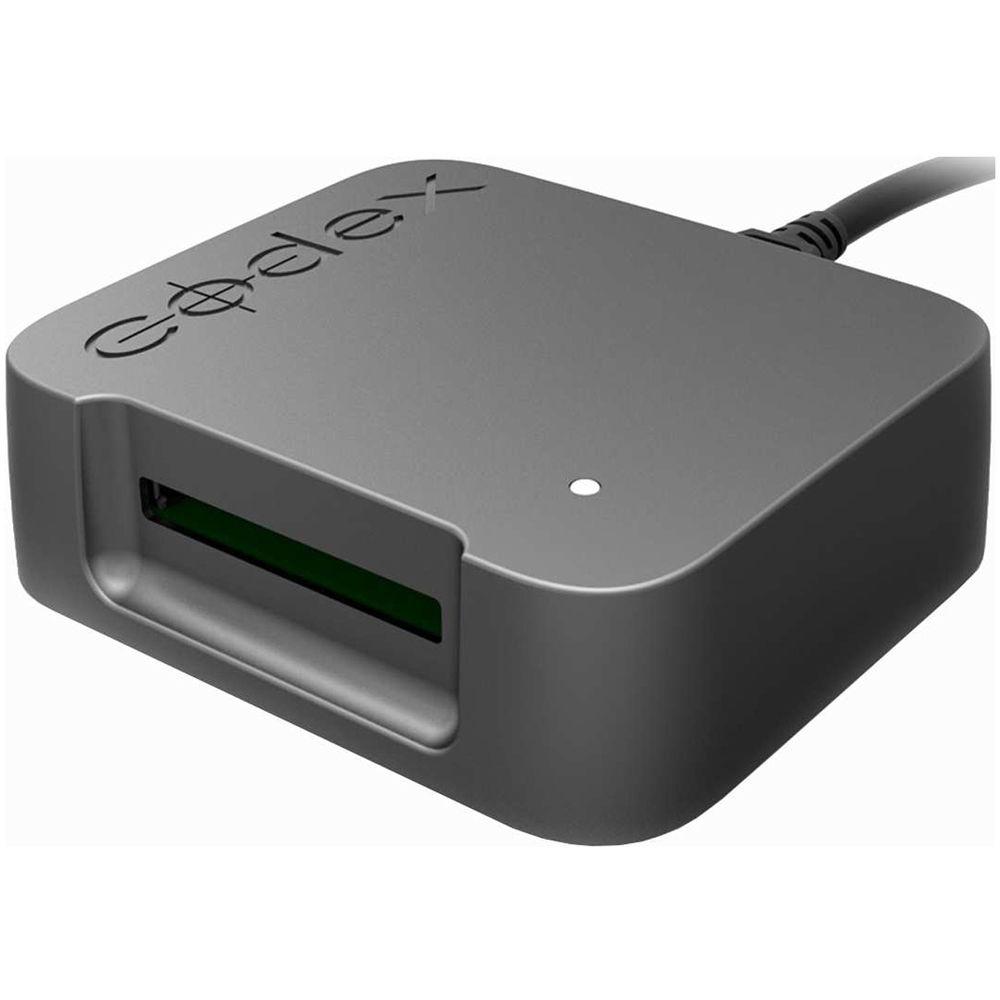

- CFast 2.0 Card Reader with USB-3 Interface

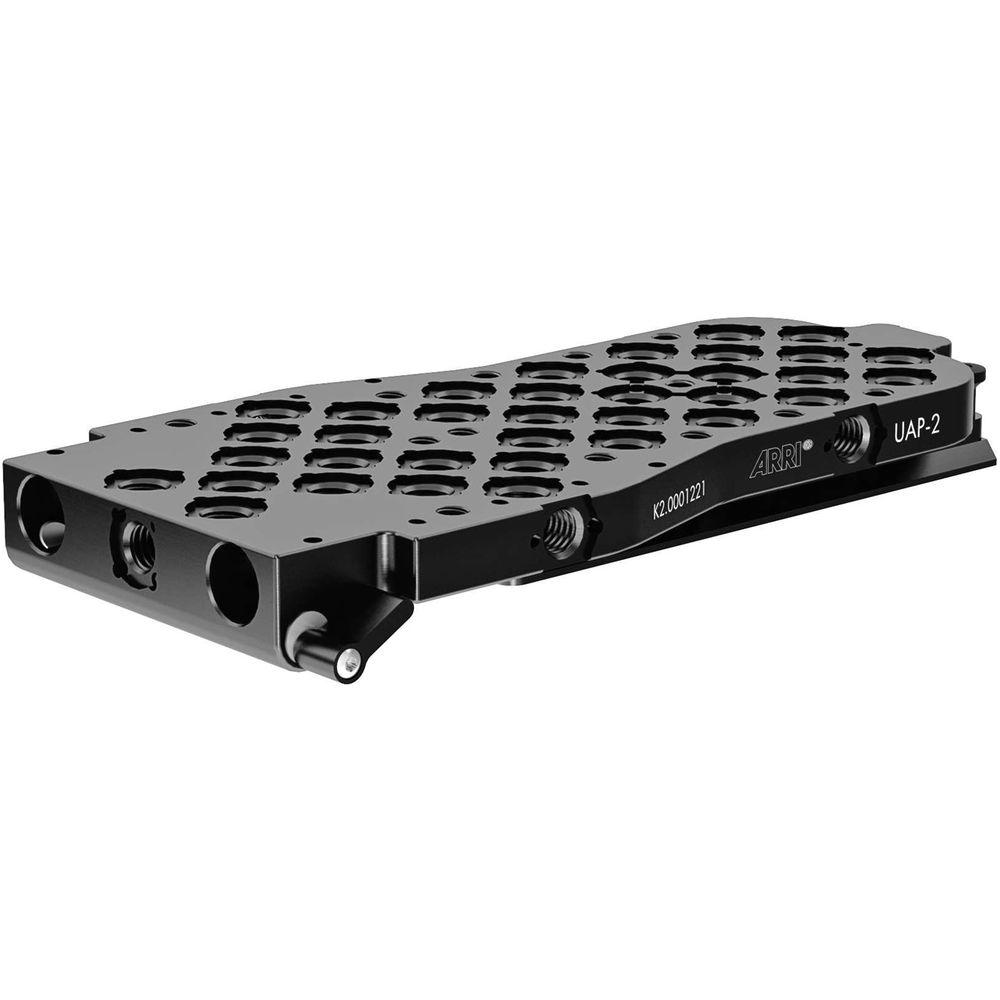

- UAP-2 Universal Adapter Plate

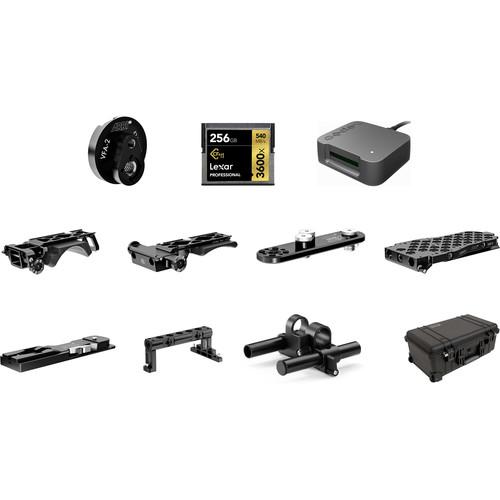

In the Box Bundle Items WPA-1 Wedge Plate Adapter tqvztqswsaywxfff BPA-3 Bridge Plate Adapter CFast 2.0 Card Reader with USB-3 Interface MHB-2 Microphone Holder Bracket UAP-2 Universal Adapter Plate VAB-1 Viewfinder Attachment Bracket CCH-1 Center Camera Handle for Select ALEXA Cameras VFA-2 Viewfinder Adapter QRP-1 Quick Release Plate

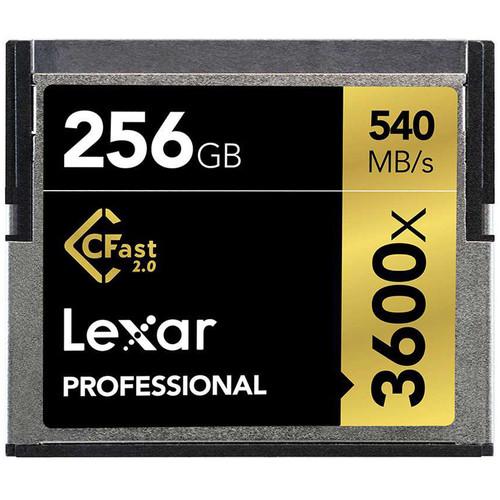

Also Includes - 3 x 256GB CFast 2.0 Card
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Accessories Bundle III in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - WPA-1 Wedge Plate Adapter
| | | Box Dimensions (LxWxH) | 10.3 x 5.1 x 2.6" | - BPA-3 Bridge Plate Adapter
| | | Box Dimensions (LxWxH) | 9.5 x 5.2 x 1.6" | - CFast 2.0 Card Reader with USB-3 Interface
| | | Box Dimensions (LxWxH) | 9.75 x 7.0 x 2.7" | - MHB-2 Microphone Holder Bracket
| | | Accessory Type | Mounting bracket | | | | Intended For | On-camera microphone | | | | Box Dimensions (LxWxH) | 3.2 x 2.6 x 0.7" | - VAB-1 Viewfinder Attachment Bracket
| | | Accessory Type | Viewfinder bracket | - CCH-1 Center Camera Handle for Select ALEXA Cameras
| Threaded Holes | 3/8"-16 | | Mounting Screw | 3 mm Allen | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.4 x 2.9 x 2.8" | - VFA-2 Viewfinder Adapter
| | | Accessory Type | Viewfinder adapter | | | | Intended For | Viewfinder | | Features | 1/4" thread, 3/8" thread | | | | Box Dimensions (LxWxH) | 3.9 x 2.2 x 0.9" | - QRP-1 Quick Release Plate
| Dimensions (WxLxD) | 3.1 x 11.4 x 1.2" / 80 x 290 x 30 mm | | Weight | 21 oz / 600 g | | | | Box Dimensions (LxWxH) | 13.4 x 4.0 x 2.2" | - UAP-2 Universal Adapter Plate
