User Manual for ARRI Accessory Set for SMB-2 Matte Box Click to enlarge the picture
Contents of the user manual for the ARRI Accessory Set for SMB-2 Matte
- Product category: Matte Box Accessories ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Matte Box Accessories
|
User manual for the ARRI Accessory Set for SMB-2 Matte contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

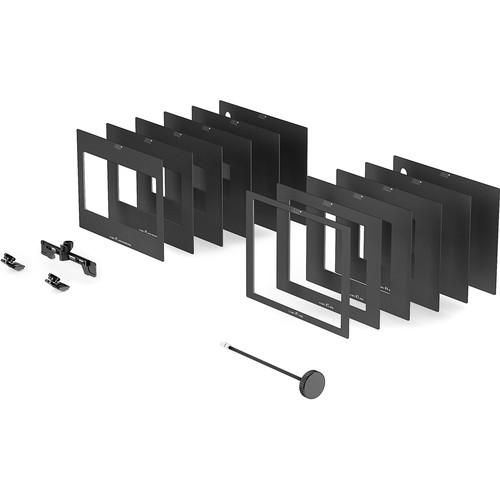

Product description The ARRI SMB-2 Accessory Set provides an assortment of accessories to complement the SMB-2 4 x 5.65" Studio Matte Box with 4:3 sunshade. This ARRI kit includes five spherical (4:3) mattes, five anamorphic (2:1) mattes, a short whip for a geared filter stage, two top/bottom flag holders, and one accessory holder. Use these accessories to further control the amount of light entering your lens, whether you're working in spherical or anamorphic mode. - Spherical Mattes for SMB-2 4:3 Sunshade (Set of 5) These Spherical Mattes for SMB-2 Matte Box are used with the SMB-2 spherical (4:3) sunshade. Each matte has a 4:3 spherical aspect-ratio opening and snaps into place on the sunshade. Use these mattes for additional blocking as light crosses the outer edge of the matte box. The set covers five lens focal length ranges and it includes a plain cover for blocking dust and dirt when the camera is not being used.
- Each of the five mattes snaps into place on the 4:3 sunshade of the ARRI SMB-2 matte box
- 4:3 spherical aspect-ratio lens openings
- A plain cover is included for blocking dust and dirt from reaching the lens when the camera is not in use
- Anamorphic Mattes for SMB-2 4:3 Sunshade (Set of 5) These Anamorphic Mattes for SMB-2 Matte Box are used with the SMB-2 spherical (4:3) sunshade. Each matte has a 2:1 anamorphic aspect-ratio opening and snaps into place on the sunshade. Use these mattes for additional blocking as light crosses the outer edge of the matte box. The set covers five lens focal length ranges and it includes a plain cover for blocking dust and dirt when the camera is not being used.
- Each of the five mattes snaps into place on the 4:3 sunshade of the ARRI SMB-2 matte box
- 2:1 anamorphic aspect-ratio lens openings
- A plain cover is included for blocking dust and dirt from reaching the lens when the camera is not in use
- Accessory Adapter for SMB-1/2 The Accessory Adapter for SMB-1/2 from ARRI is compatible with the SMB-1 and SMB-2 matte boxes. Use it to attach a rangefinder, French flag, or other accessory to the matte box. The adapter mount slides for optimal balance and placement.
- SMB Top/Bottom Flag Holders (Pair) This pair of Bottom Flag Holders from ARRI is compatible with the SMB-1 and SMB-2 matte boxes. Use the two holders to attach the top/bottom flag to the bottom of the matte box. Each holder screws into the matte box and has a knurled knob to hold the flag in place.
- Whip for Geared Matte Box Filter Stages The ARRI Whip for Geared Matte Box Filter Stage interfaces with any ARRI matte box geared filter stage. This flexible shaft is rotated by its knob handgrip, enabling an operator or camera assistant to raise and lower a geared filter tray at a comfortable distance from the camera.
In the Box Bundle Items Spherical Mattes for SMB-2 4:3 Sunshade (Set of 5) rbsxqrectfczbbvccvxudy Anamorphic Mattes for SMB-2 4:3 Sunshade (Set of 5) Accessory Adapter for SMB-1/2 rbsxqrectfczbbvccvxudy SMB Top/Bottom Flag Holders (Pair) Whip for Geared Matte Box Filter Stages Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI Accessory Set for SMB-2 Matte Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Spherical Mattes for SMB-2 4:3 Sunshade (Set of 5)
| Dimensions (HxWxD) | 8.7 x 11.8 x 0.8" (220 x 300 x 20 mm) | | Aspect Ratio | 4:3 | | Total Weight | 1.1 lb (504 g) | - Anamorphic Mattes for SMB-2 4:3 Sunshade (Set of 5)
| Dimensions (HxWxD) | 8.7 x 11.8 x 0.8" (220 x 300 x 20 mm) | | Aspect Ratio | 2:1 | | Total Weight | 1.3 lb (601 g) | - Accessory Adapter for SMB-1/2
| Dimensions | 2.4 x 7.9 x 1.2" (60 x 200 x 30 mm) | | Weight | 2.3 oz (66 g) | | | | Box Dimensions (LxWxH) | 9.6 x 2.3 x 1.0" | - SMB Top/Bottom Flag Holders (Pair)
| Dimensions | 1.6 x 2.4 x 2" (40 x 60 x 50 mm) | | Weight | 2.5 oz (70 g) | - Whip for Geared Matte Box Filter Stages
| Dimensions | 6.3 x 9.4 x 2" (16.0 x 24.0 x 5.0 cm) | | Weight | 2.3 oz (65 g) |
