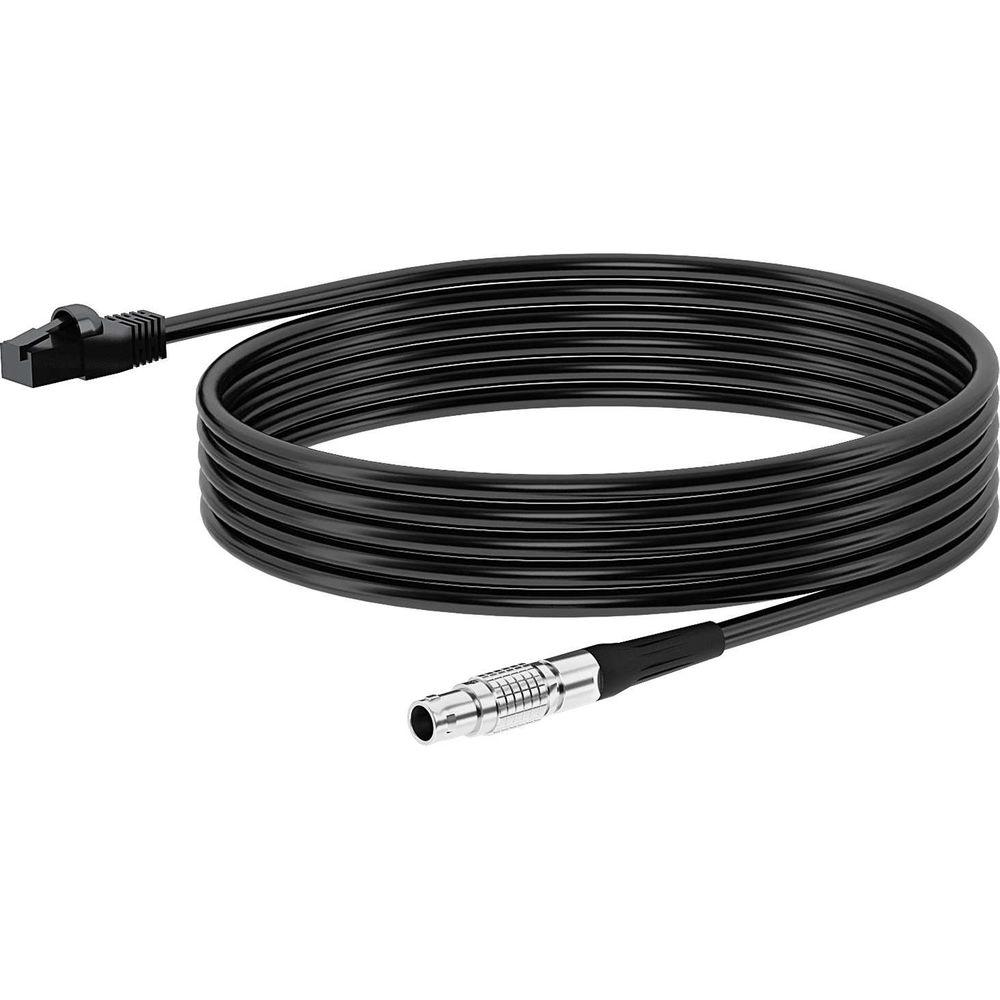

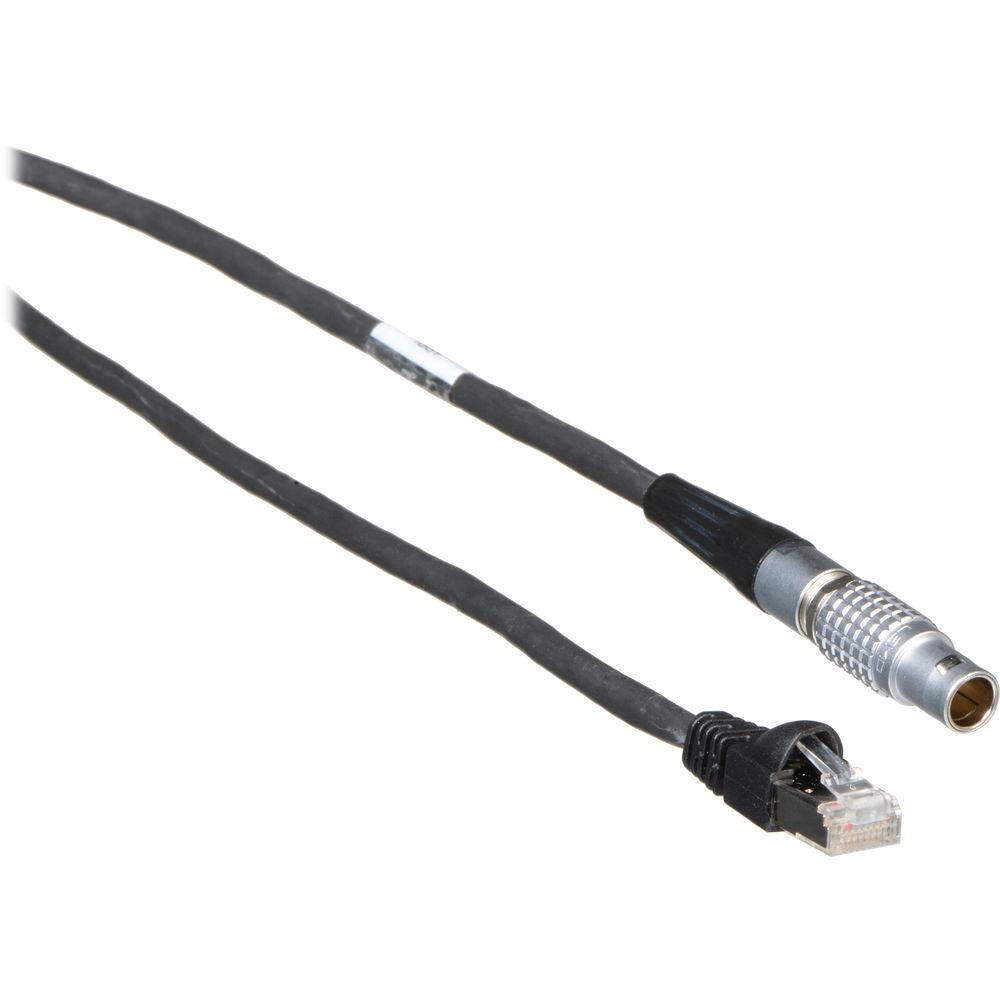

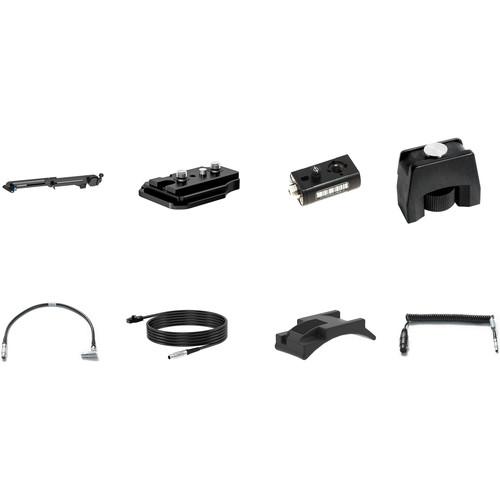

Product description The ARRI ALEXA Bundle Accessory Set (EV/Plus/W/LF) provides a handy selection of ALEXA-compatible accessory components. Items in this discounted bundle include the LB-1 leveling block, VEB-3 viewfinder extension bracket, BPA-2 bridge plate adapter, SP-4 shoulder pad, and the HEB-2 extension handle. Also included are a 9.8' Ethernet to RJ45 cable, a coiled 12V accessory cable, and a 2.1' EVF cable. - ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8') The ARRI ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8') is designed with a 10-pin LEMO connector on one end, and an RJ45 connector on the other. Use this cable to link your ALEXA to the Ethernet for updates, camera remote control, or service functions.

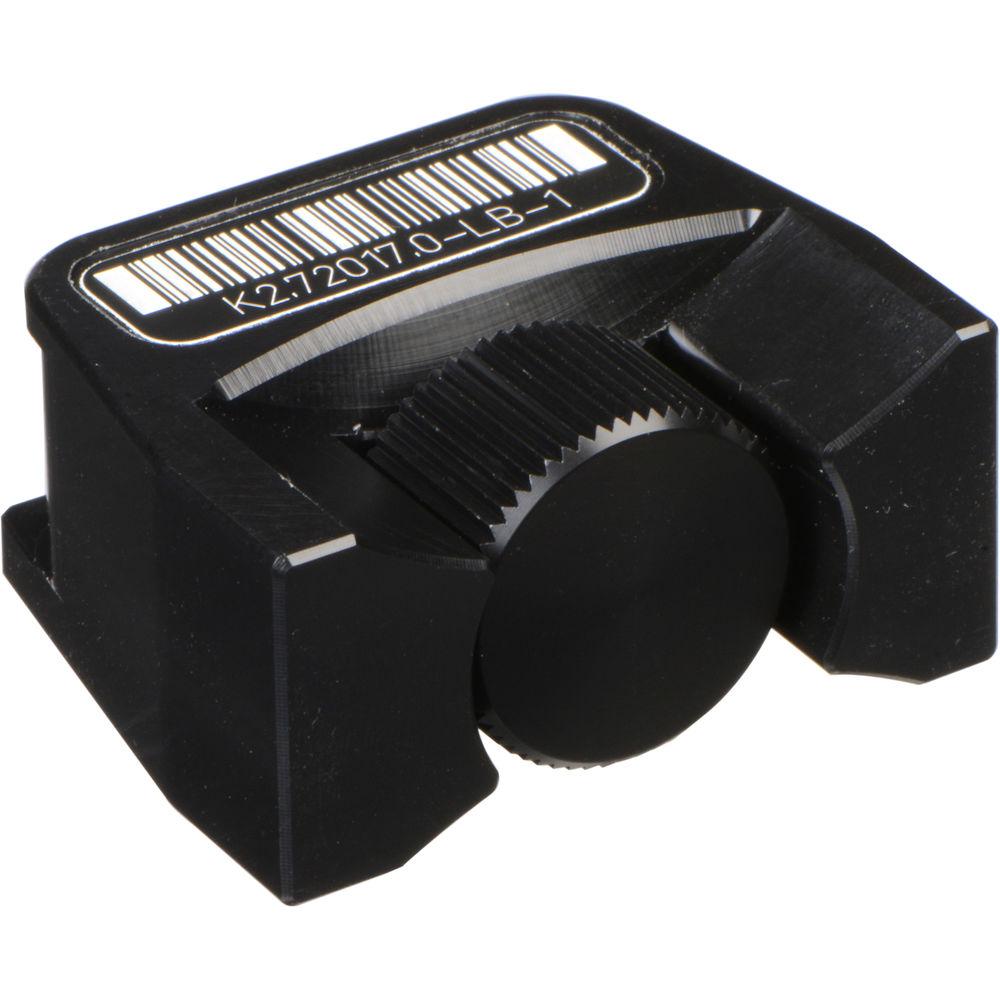

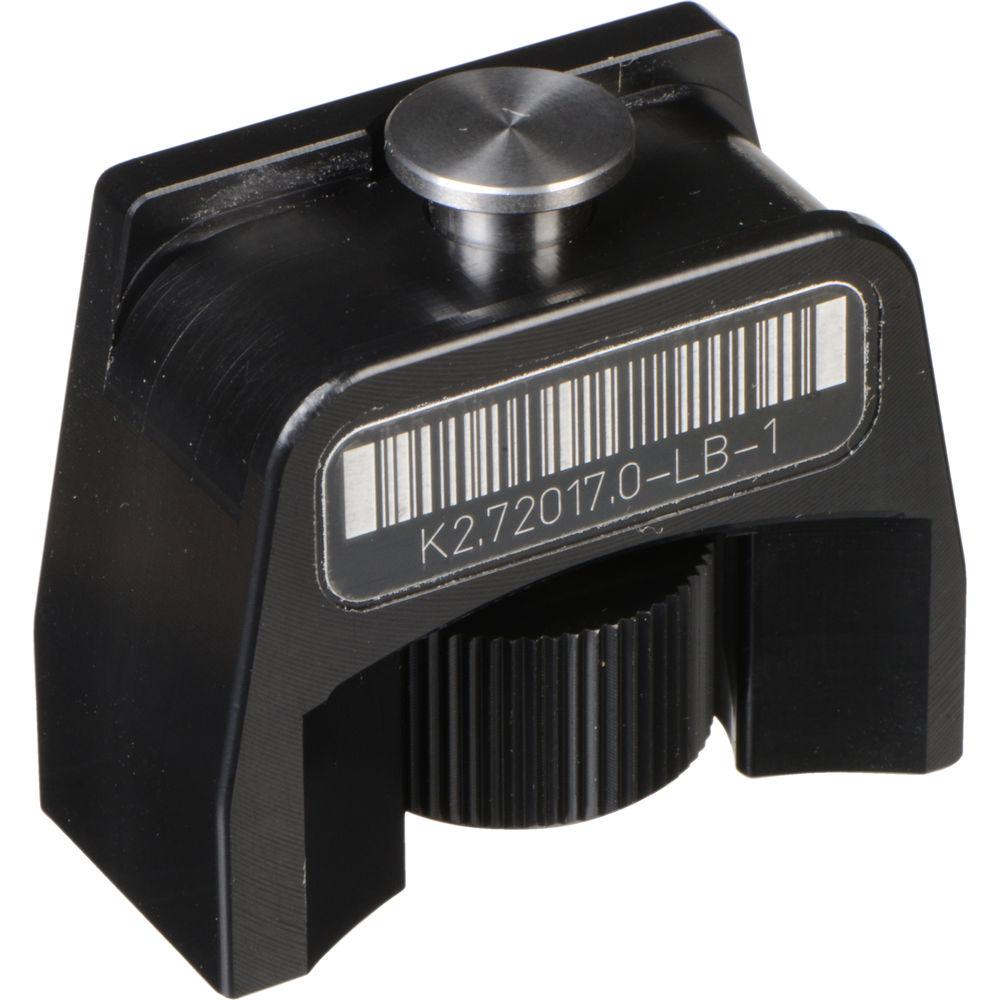

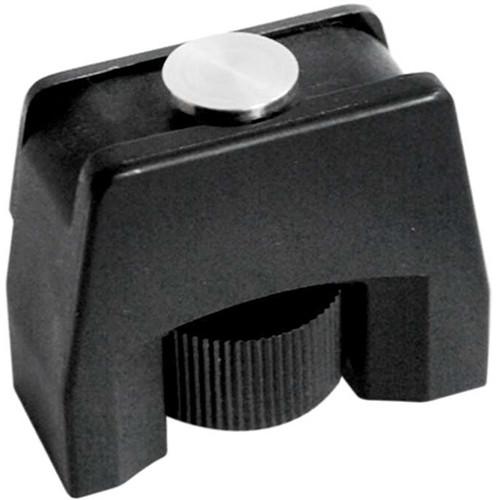

- LB-1 Leveling Block The ARRI LB-1 Leveling Block is designed to provide a level bottom surface on an ARRI ALEXA camera equipped with a back-mounted battery. The LB-1 block attaches to the back foot on the ALEXA body, enabling the camera to rest on a flat surface. Note: Not needed for the ALEXA Studio, XT Studio, or SXT Studio.
- VEB-3 Viewfinder Extension Bracket Provided by third party: Sturdy telescoping bracket that positions the electronic viewfinder for ALEXA (EVF-1), ALEXA Mini (MVF-1) or AMIRA (MVF-1) at the back of the camera (i.e. for use with geared heads).

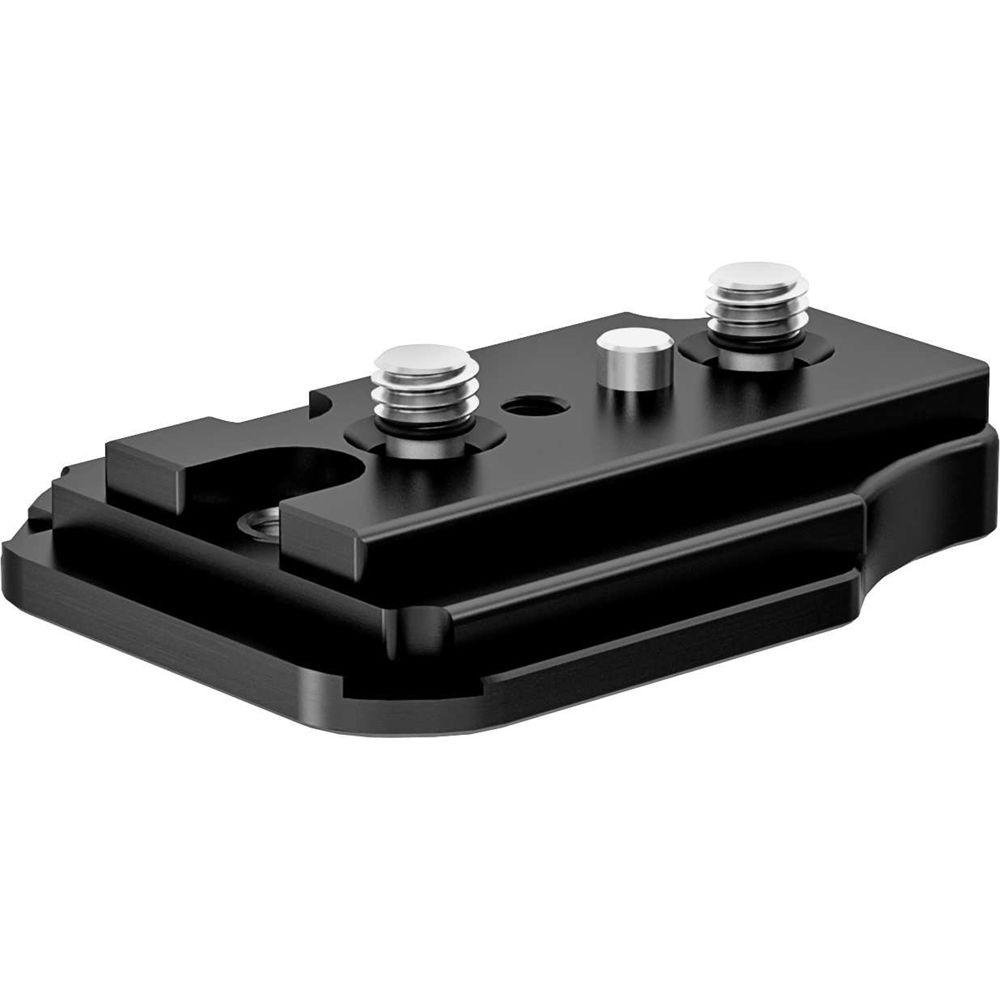

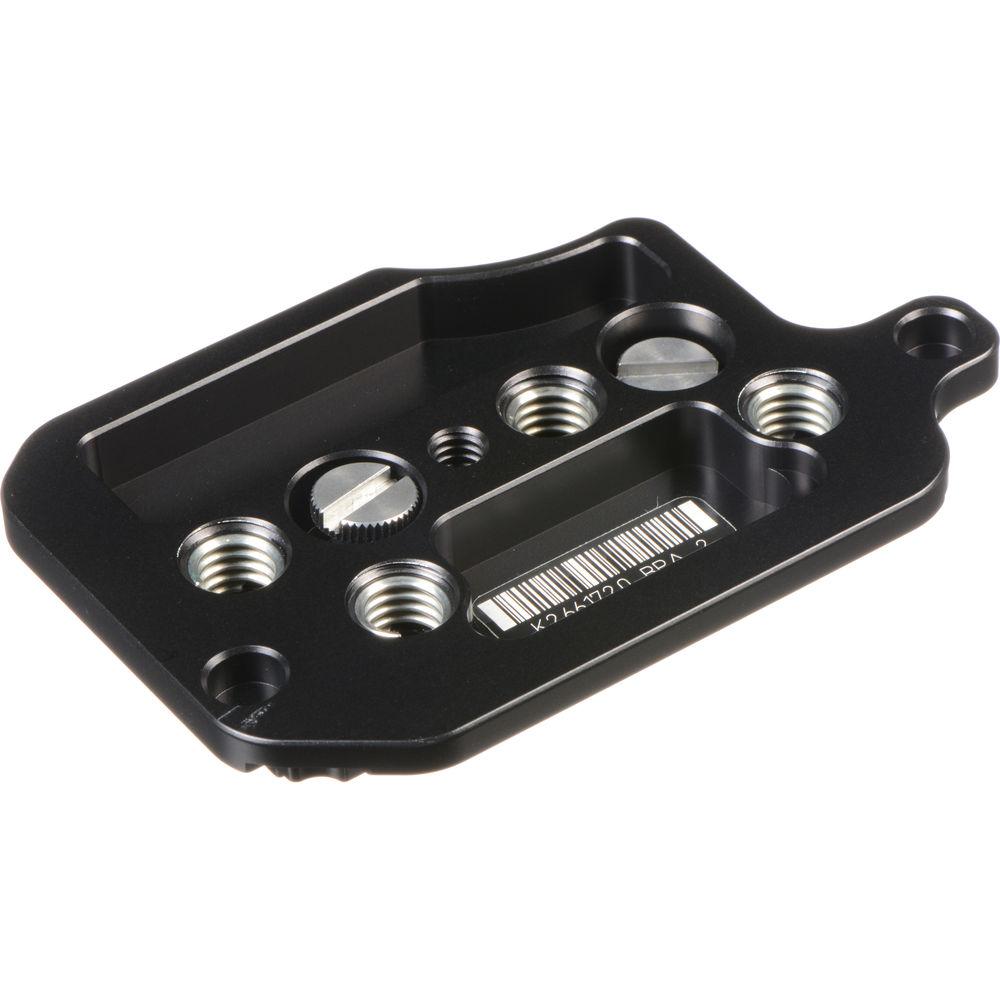

- BPA-2 Bridge Plate Adapter This ARRI BPA-2 Bridge Plate Adapter adds a set of centered bottom 3/8"-16 threaded mounting holes, and is compatible with optional ARRI Cine Bridge Plates such as the BP-8 and BP-9 (not included). The BPA-2 is for all ALEXA camera models except the ALEXA Studio, for which it is not necessary. The BPA-2 is also compatible with the Canon C100/300/500 cameras. When used with these cameras, if provides the correct position of the mounting screws, ensuring that the camera is centered properly for rod-mounted accessories.
- Ensures that camera is optically centered for 19 and 15mm studio support rods

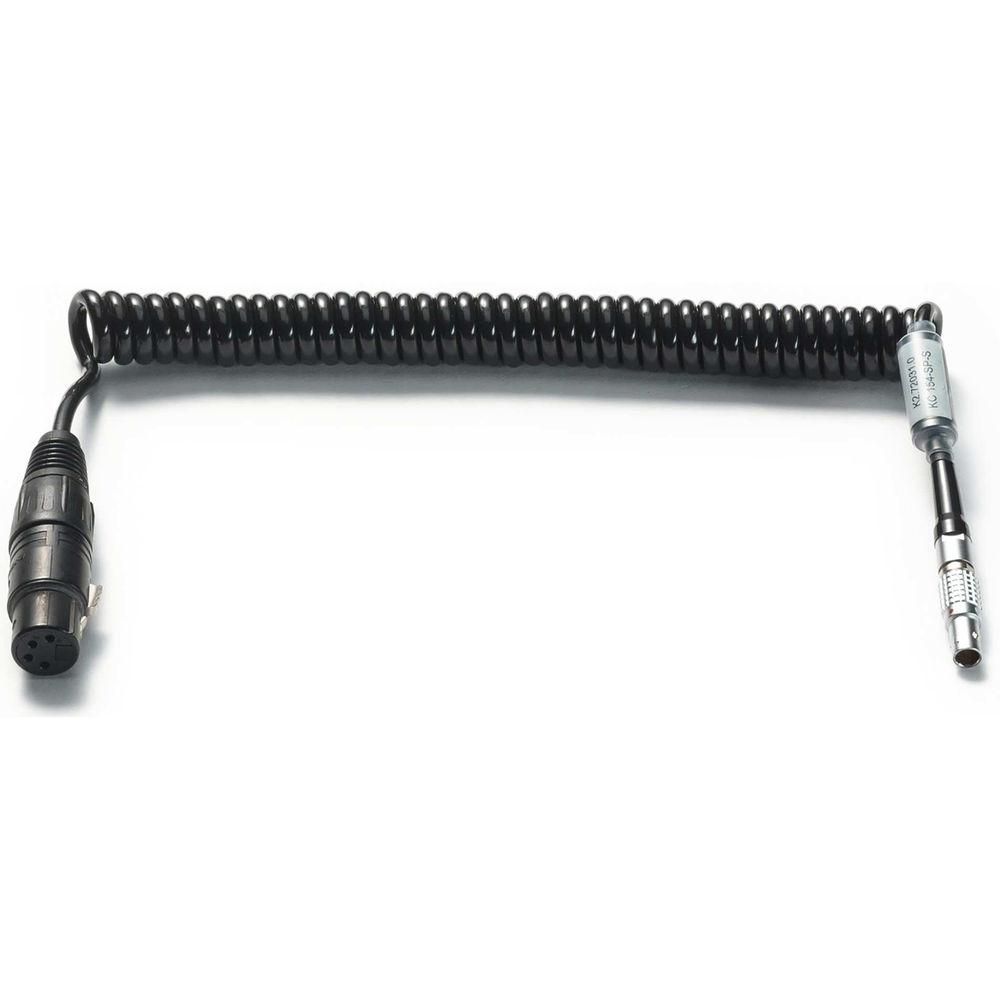

- ALEXA 12V Accessory Cable (KC 154-SP-S) The ARRI ALEXA 12V Accessory Cable (KC 154-SP-S) is designed with a 2-pin LEMO connector on one end and a 4-pin XLR connector on the other. Use this coiled (pigtail) cable to power a variety of camera accessories sporting a 4-pin XLR socket.
- SP-4 Shoulder Pad for ALEXA The ARRI SP-4 Shoulder Pad is designed to provide additional comfort when handholding an ARRI ALEXA camera. Attach this pad via its hook-and-loop fasteners to the shoulder arch at the bottom of the camera body.
- HEB-2 Handle Extension Block for CCH-1 The ARRI HEB-2 Handle Extension Block screws into the CCH-1 Center Camera Handle, providing a longer grip, and additional 3/8"-16 threaded holes for attaching accessories. The HEB-2 will also mount to any standard 3/8"-16 thread on a camera cage, gimbal, etc.
- KC 151-S Medium Viewfinder Cable (2.1')
In the Box Bundle Items ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8') tuuqufdrzffevuasuuzcvuuwrutszvf LB-1 Leveling Block VEB-3 Viewfinder Extension Bracket BPA-2 Bridge Plate Adapter ALEXA 12V Accessory Cable (KC 154-SP-S) SP-4 Shoulder Pad for ALEXA KC 151-S Medium Viewfinder Cable (2.1') HEB-2 Handle Extension Block for CCH-1 Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI ALEXA Bundle Accessory Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8')
| Connectors | 10-pin LEMO
RJ45 | | Cable Length | 9.8' / 3 m | | | | Box Dimensions (LxWxH) | 8.2 x 5.0 x 1.4" | - LB-1 Leveling Block
| Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 2.1 x 1.6 x 0.5" | - VEB-3 Viewfinder Extension Bracket
| | | Accessory Type | Viewfinder bracket | | | | Box Dimensions (LxWxH) | 10.0 x 10.0 x 1.8" | - BPA-2 Bridge Plate Adapter
| | | Box Dimensions (LxWxH) | 4.25 x 2.95 x 0.85" | - ALEXA 12V Accessory Cable (KC 154-SP-S)
| Connectors | 2-Pin LEMO (male)
4-Pin XLR (female) | | Cable Length | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 5.1 x 4.1 x 0.9" | - SP-4 Shoulder Pad for ALEXA
| Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.8 x 3.6 x 1.8" | - KC 151-S Medium Viewfinder Cable (2.1')
| | | Box Dimensions (LxWxH) | 9.35 x 6.95 x 1.1" | - HEB-2 Handle Extension Block for CCH-1
| Mounting Screw | 3/8"-16 | | Threaded Holes | 3/8"-16 | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 2.6 x 1.7 x 0.9" |
