User Manual for ARRI ALEXA Bundle Accessory Set Click to enlarge the picture
Contents of the user manual for the ARRI ALEXA Bundle Accessory Set
- Product category: Camcorder Accessories ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Camcorder Accessories
 |
User manual for the ARRI ALEXA Bundle Accessory Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

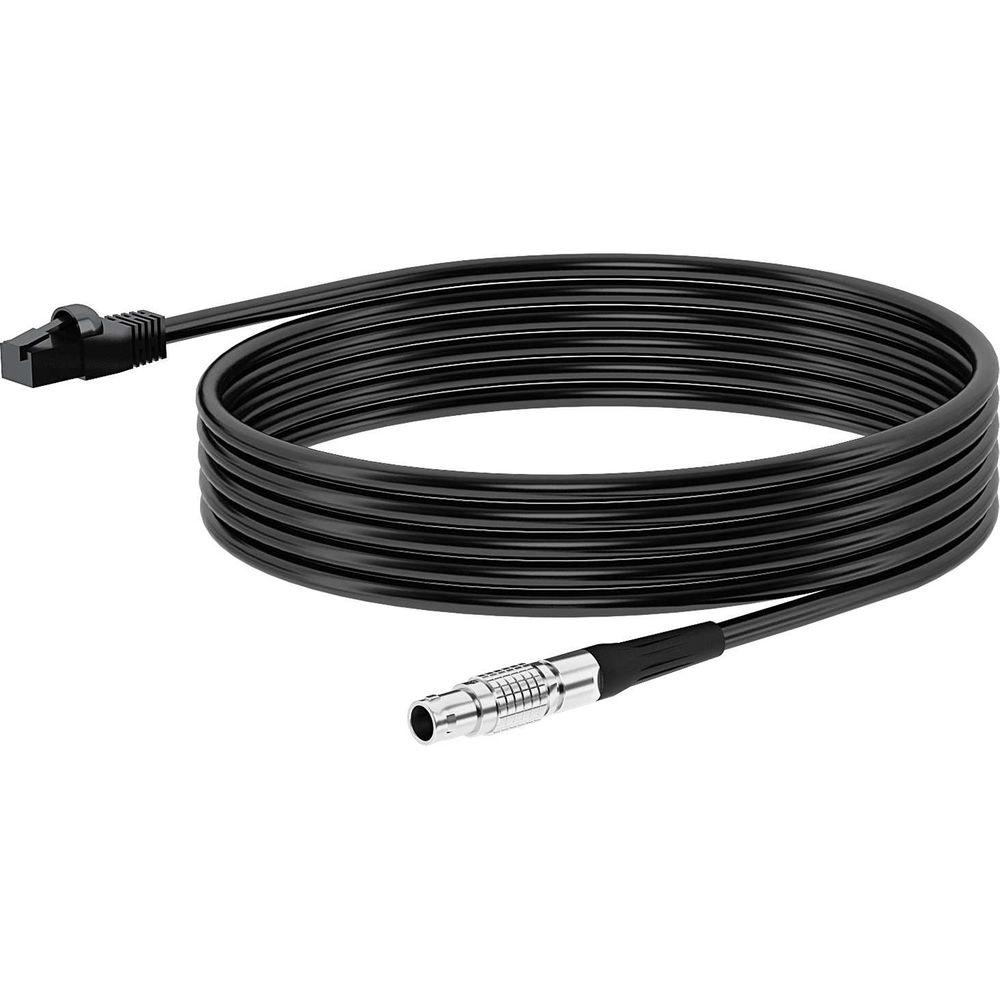

Product description The ARRI ALEXA Bundle Accessory Set (Studio) provides a basic selection of ALEXA-compatible components. Items in this set include an SP-4 shoulder pad, HEB-2 handle extension, and LB-1 leveling block. A coiled (pigtail) 12V accessory cable, and a 9.8' Ethernet cable are also included in the set. - ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8') The ARRI ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8') is designed with a 10-pin LEMO connector on one end, and an RJ45 connector on the other. Use this cable to link your ALEXA to the Ethernet for updates, camera remote control, or service functions.

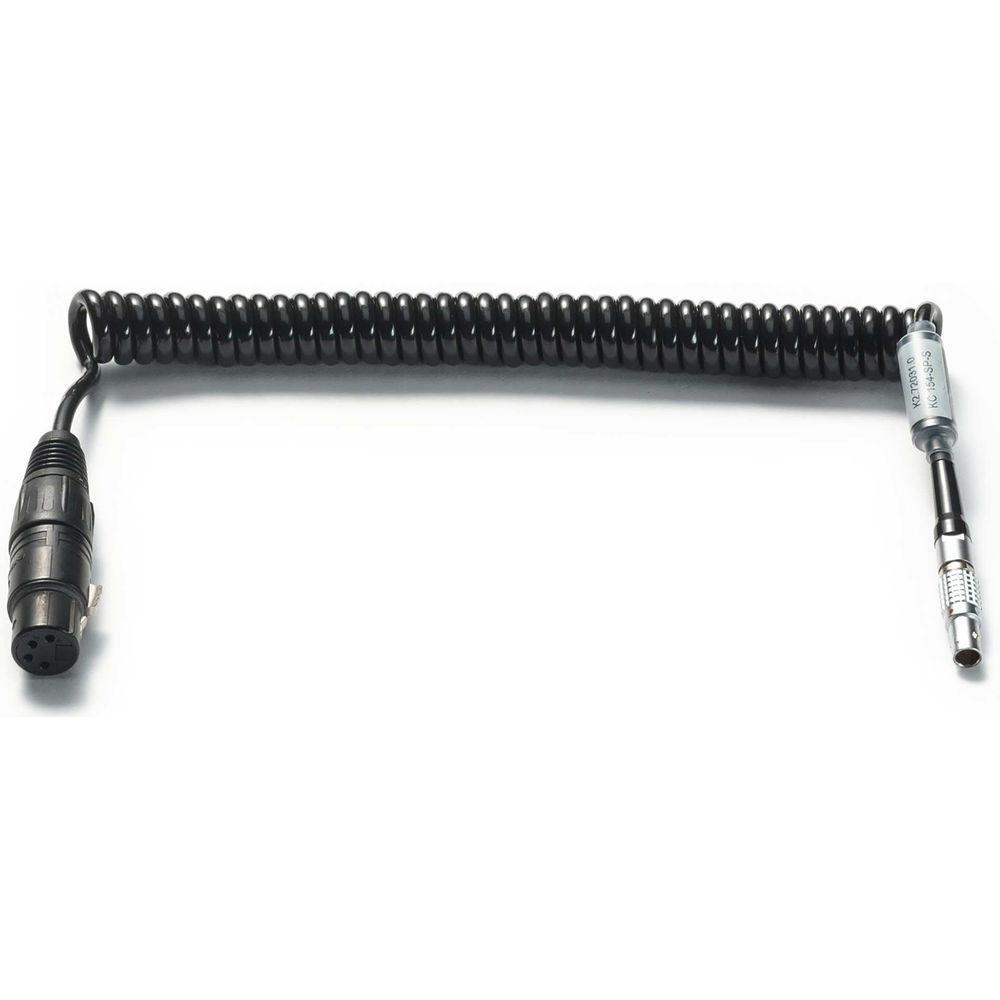

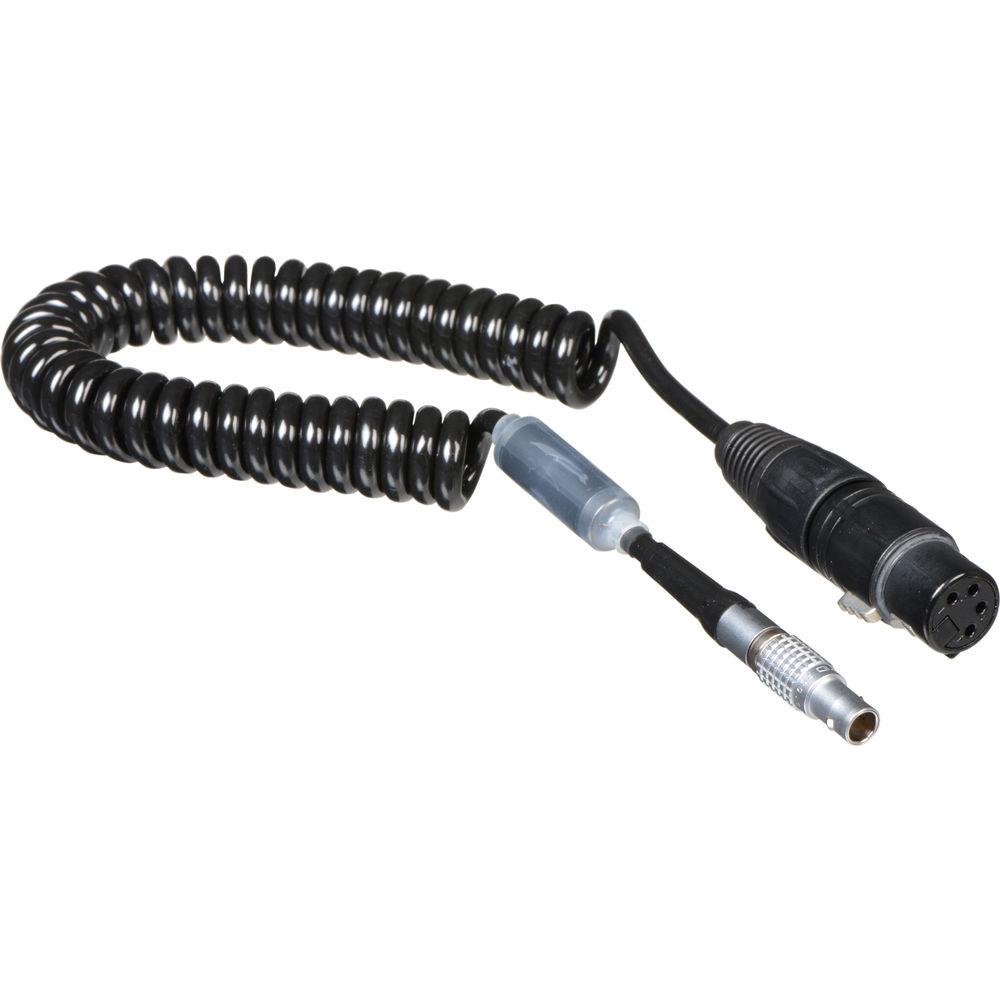

- ALEXA 12V Accessory Cable (KC 154-SP-S) The ARRI ALEXA 12V Accessory Cable (KC 154-SP-S) is designed with a 2-pin LEMO connector on one end and a 4-pin XLR connector on the other. Use this coiled (pigtail) cable to power a variety of camera accessories sporting a 4-pin XLR socket.

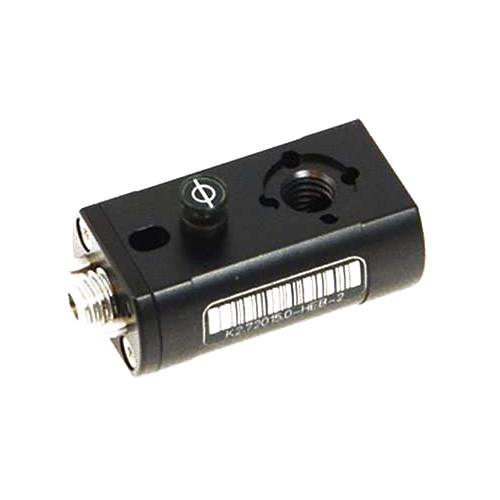

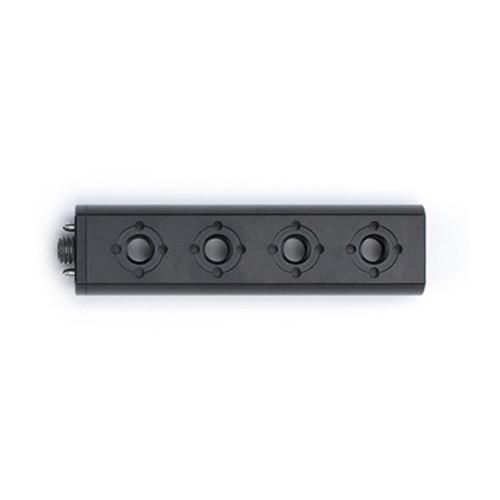

- HEB-2 Handle Extension Block for CCH-1 The ARRI HEB-2 Handle Extension Block screws into the CCH-1 Center Camera Handle, providing a longer grip, and additional 3/8"-16 threaded holes for attaching accessories. The HEB-2 will also mount to any standard 3/8"-16 thread on a camera cage, gimbal, etc.

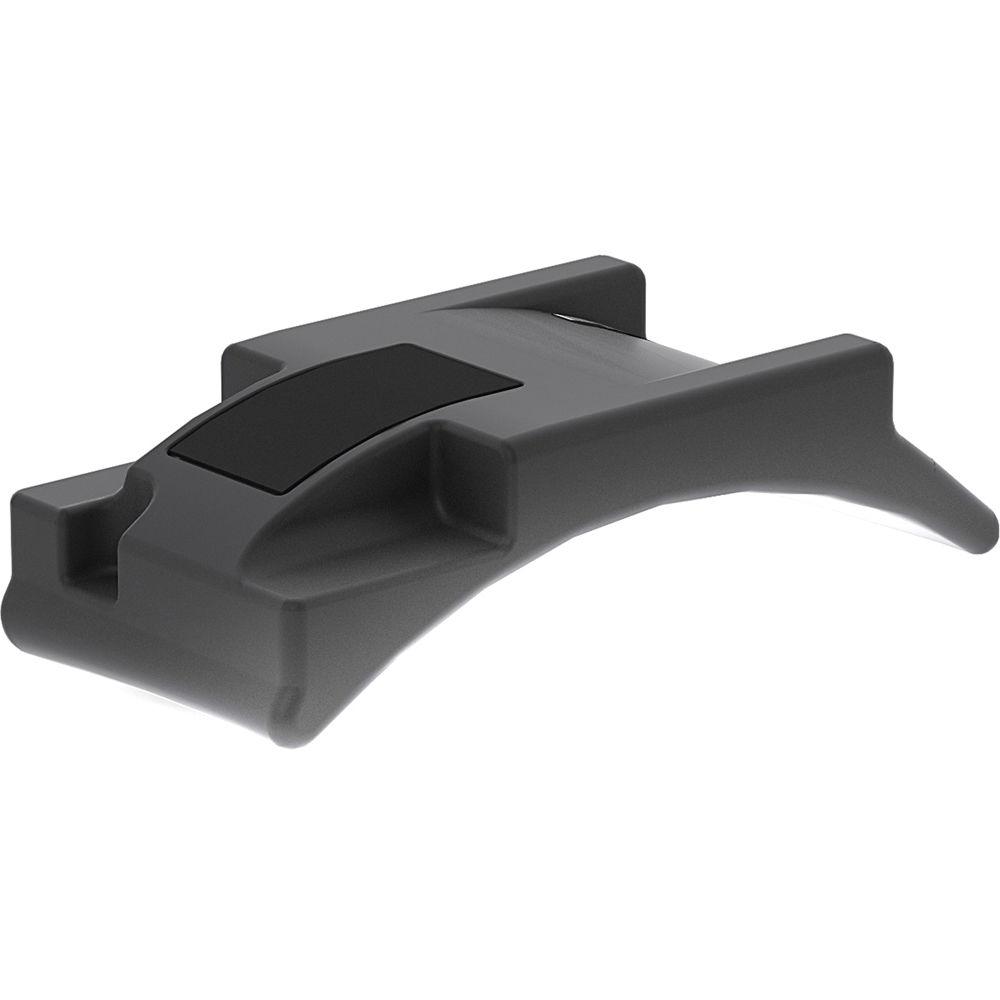

- SP-4 Shoulder Pad for ALEXA The ARRI SP-4 Shoulder Pad is designed to provide additional comfort when handholding an ARRI ALEXA camera. Attach this pad via its hook-and-loop fasteners to the shoulder arch at the bottom of the camera body.

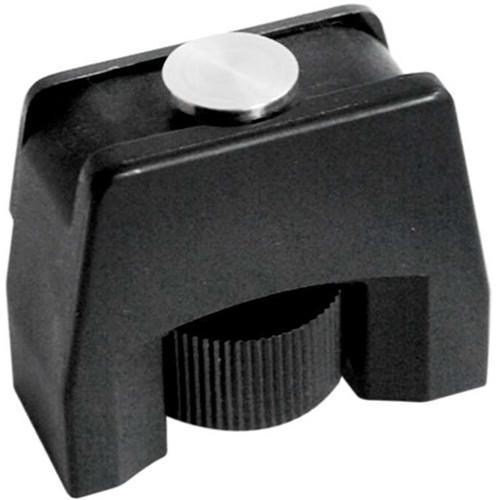

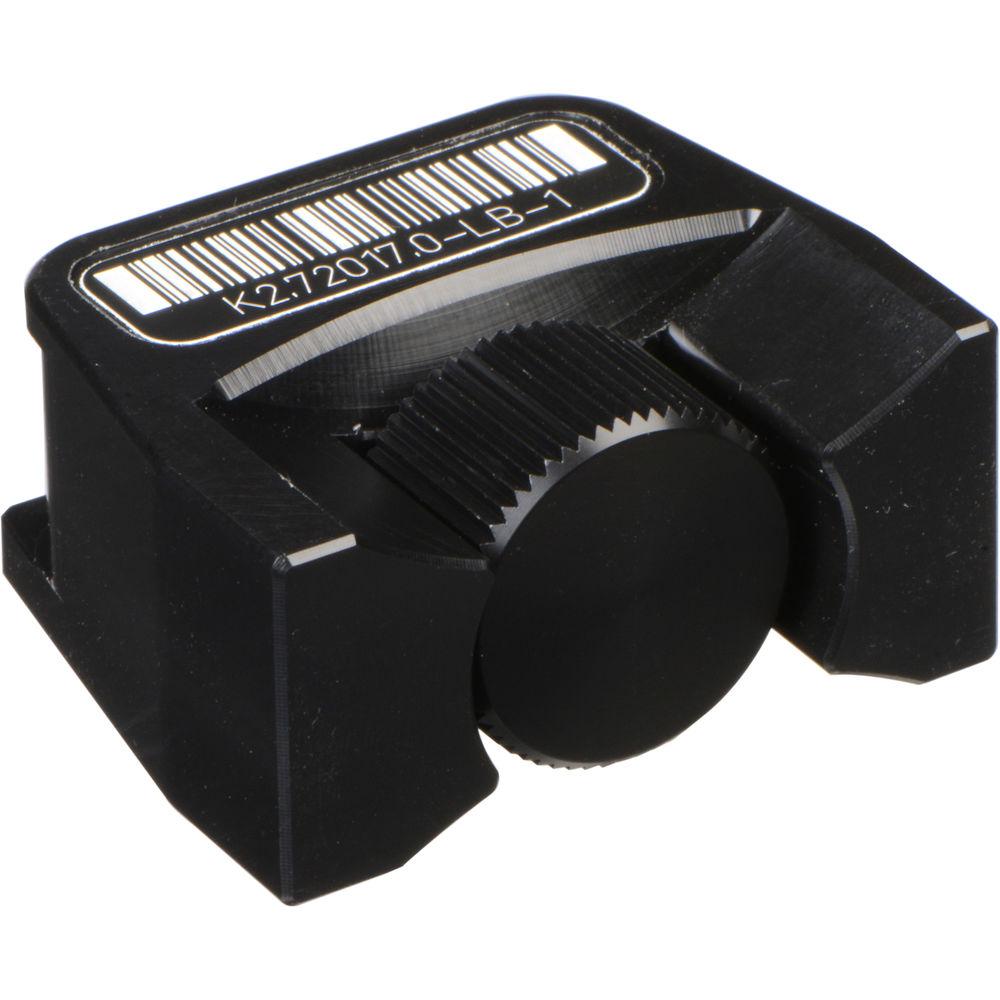

- LB-1 Leveling Block The ARRI LB-1 Leveling Block is designed to provide a level bottom surface on an ARRI ALEXA camera equipped with a back-mounted battery. The LB-1 block attaches to the back foot on the ALEXA body, enabling the camera to rest on a flat surface. Note: Not needed for the ALEXA Studio, XT Studio, or SXT Studio.

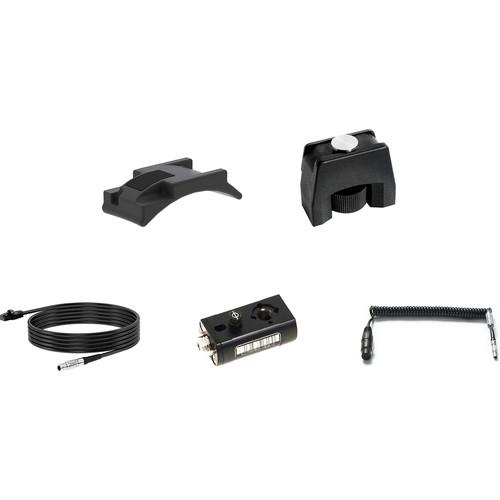

In the Box Bundle Items ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8') ALEXA 12V Accessory Cable (KC 154-SP-S) HEB-2 Handle Extension Block for CCH-1 SP-4 Shoulder Pad for ALEXA LB-1 Leveling Block yzwedfruszfdrydw Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI ALEXA Bundle Accessory Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8')
| Connectors | 10-pin LEMO
RJ45 | | Cable Length | 9.8' / 3 m | | | | Box Dimensions (LxWxH) | 8.2 x 5.0 x 1.4" | - ALEXA 12V Accessory Cable (KC 154-SP-S)
| Connectors | 2-Pin LEMO (male)
4-Pin XLR (female) | | Cable Length | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 5.1 x 4.1 x 0.9" | - HEB-2 Handle Extension Block for CCH-1
| Mounting Screw | 3/8"-16 | | Threaded Holes | 3/8"-16 | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 2.6 x 1.7 x 0.9" | - SP-4 Shoulder Pad for ALEXA
| Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.8 x 3.6 x 1.8" | - LB-1 Leveling Block
| Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 2.1 x 1.6 x 0.5" |
