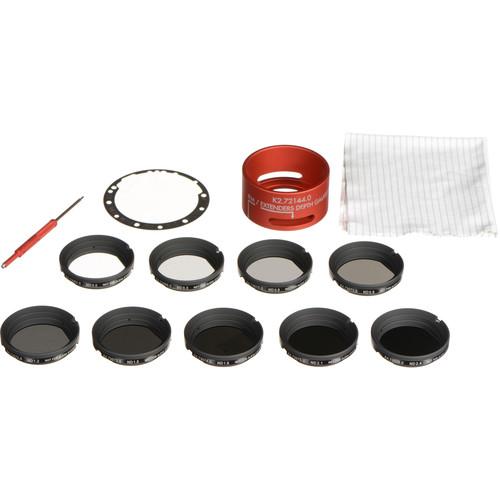

User Manual for ARRI ALEXA FSND Filter Set Click to enlarge the picture
Contents of the user manual for the ARRI ALEXA FSND Filter Set
- Product category: Camcorder & Cine Camera Components ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Camcorder & Cine Camera Components
|
User manual for the ARRI ALEXA FSND Filter Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description The ALEXA FSND Filter Set (Full) from ARRI provides a complete set of behind-the-lens neutral density filters organized neatly in a carrying case. This set includes an IFM optical clear filter, and 0.3, 0.6, 0.9, 1.2, 1.5, 1.8, 2.1 and 2.4 FSND Filters. Also included are an IFM (internal filter module) shim, a DG-1 IFM/extenders depth gauge, and a filter insertion tool. The IFM/Extenders Depth Gauge is used to check the compatibility of a lens with the camera when using the internal filter module, and/or an ARRI LDS lens extender. The IFM Shim must be added to any existing shims between the lens mount and camera when using any of the FSND filters, or the clear filter. The clear filter is used to avoid having to re-calibrate the depth after setting up the camera for internal FSND use. - IFM Filter Frame with Optical Clear Provided by third party: An IFM filter frame with an optical clear, to be used when no ND attenuation is desired (shim must be present).
- IFM FSND Full Spectrum Neutral Density 0.3 Filter This ARRI IFM FSND Full Spectrum Neutral Density 0.3 Filter is a 1-stop ND filter that fits into the Internal Filter Module (IFM) and goes behind the lens on an ALEXA XT, SXT, or Upgraded ALEXA Classic camera. As it is an FSND, it attenuates all wavelengths evenly, for consistent color when cutting between shots captured with a filter and without.
- Behind-the-lens filtering has the advantage of reducing weight and avoiding the worry over veiling glare striking your filter.
- This is a full spectrum neutral density filter. This means it evenly attenuates light at all frequencies, providing a neutral color balance no matter what the density of the filter.
- Using this filter with your ALEXA XT, SXT, or upgraded Classic requires the use of the IFM shim for best lens performance.
- IFM FSND Full Spectrum Neutral Density 0.6 Filter This ARRI IFM FSND Full Spectrum Neutral Density 0.6 Filter is a 2-stop ND filter that fits into the Internal Filter Module (IFM) and goes behind the lens on an ALEXA XT, SXT, or Upgraded ALEXA Classic camera. As it is an FSND, it attenuates all wavelengths evenly, for consistent color when cutting between shots captured with a filter and without.
- Behind-the-lens filtering has the advantage of reducing weight and avoiding the worry over veiling glare striking your filter.
- This is a full spectrum neutral density filter. This means it evenly attenuates light at all frequencies, providing a neutral color balance no matter what the density of the filter.
- Using this filter with your ALEXA XT, SXT, or upgraded Classic requires the use of the IFM shim for best lens performance.
- IFM FSND Full Spectrum Neutral Density 0.9 Filter This ARRI IFM FSND Full Spectrum Neutral Density 0.9 Filter is a 3-stop ND filter that fits into the Internal Filter Module (IFM) and goes behind the lens on an ALEXA XT, SXT, or Upgraded ALEXA Classic camera. As it is an FSND, it attenuates all wavelengths evenly, for consistent color when cutting between shots captured with a filter and without.
- Behind-the-lens filtering has the advantage of reducing weight and avoiding the worry over veiling glare striking your filter.
- This is a full spectrum neutral density filter. This means it evenly attenuates light at all frequencies, providing a neutral color balance no matter what the density of the filter.
- Using this filter with your ALEXA XT, SXT, or upgraded Classic requires the use of the IFM shim for best lens performance.
- IFM FSND Full Spectrum Neutral Density 1.2 Filter This ARRI IFM FSND Full Spectrum Neutral Density 1.2 Filter is a 4-stop ND filter that fits into the Internal Filter Module (IFM) and goes behind the lens on an ALEXA XT, SXT, or Upgraded ALEXA Classic camera. As it is an FSND, it attenuates all wavelengths evenly, for consistent color when cutting between shots captured with a filter and without.
- Behind-the-lens filtering has the advantage of reducing weight and avoiding the worry over veiling glare striking your filter.
- This is a full spectrum neutral density filter. This means it evenly attenuates light at all frequencies, providing a neutral color balance no matter what the density of the filter.
- Using this filter with your ALEXA XT, SXT, or upgraded Classic requires the use of the IFM shim for best lens performance.
- IFM FSND Full Spectrum Neutral Density 1.5 Filter This ARRI IFM FSND Full Spectrum Neutral Density 1.5 Filter is a 5-stop ND filter that fits into the Internal Filter Module (IFM) and goes behind the lens on an ALEXA XT, SXT, or Upgraded ALEXA Classic camera. As it is an FSND, it attenuates all wavelengths evenly, for consistent color when cutting between shots captured with a filter and without.
- Behind-the-lens filtering has the advantage of reducing weight and avoiding the worry over veiling glare striking your filter.
- This is a full spectrum neutral density filter. This means it evenly attenuates light at all frequencies, providing a neutral color balance no matter what the density of the filter.
- Using this filter with your ALEXA XT, SXT, or upgraded Classic requires the use of the IFM shim for best lens performance.
- IFM FSND Full Spectrum Neutral Density 1.8 Filter This ARRI IFM FSND Full Spectrum Neutral Density 1.8 Filter is a 6-stop ND filter that fits into the Internal Filter Module (IFM) and goes behind the lens on an ALEXA XT, SXT, or Upgraded ALEXA Classic camera. As it is an FSND, it attenuates all wavelengths evenly, for consistent color when cutting between shots captured with a filter and without.
- Behind-the-lens filtering has the advantage of reducing weight and avoiding the worry over veiling glare striking your filter.
- This is a full spectrum neutral density filter. This means it evenly attenuates light at all frequencies, providing a neutral color balance no matter what the density of the filter.
- Using this filter with your ALEXA XT, SXT, or upgraded Classic requires the use of the IFM shim for best lens performance.
- IFM FSND Full Spectrum Neutral Density 2.1 Filter This ARRI IFM FSND Full Spectrum Neutral Density 2.1 Filter is a 7-stop ND filter that fits into the Internal Filter Module (IFM) and goes behind the lens on an ALEXA XT, SXT, or Upgraded ALEXA Classic camera. As it is an FSND, it attenuates all wavelengths evenly, for consistent color when cutting between shots captured with a filter and without.
- Behind-the-lens filtering has the advantage of reducing weight and avoiding the worry over veiling glare striking your filter.
- This is a full spectrum neutral density filter. This means it evenly attenuates light at all frequencies, providing a neutral color balance no matter what the density of the filter.
- Using this filter with your ALEXA XT, SXT, or upgraded Classic requires the use of the IFM shim for best lens performance.
- IFM FSND Full Spectrum Neutral Density 2.4 Filter This ARRI IFM FSND Full Spectrum Neutral Density 2.4 Filter is an 8-stop ND filter that fits into the Internal Filter Module (IFM) and goes behind the lens on an ALEXA XT, SXT, or Upgraded ALEXA Classic camera. As it is an FSND, it attenuates all wavelengths evenly, for consistent color when cutting between shots captured with a filter and without.
- Behind-the-lens filtering has the advantage of reducing weight and avoiding the worry over veiling glare striking your filter.
- This is a full spectrum neutral density filter. This means it evenly attenuates light at all frequencies, providing a neutral color balance no matter what the density of the filter.
- Using this filter with your ALEXA XT, SXT, or upgraded Classic requires the use of the IFM shim for best lens performance.
- IFM Shim This ARRI IFM Shim must be used when using the ARRI IFM behind-the-lens FSND or Optical Clear filters. This is the same shim that is included with ARRI IFM Basic and IFM Full Filters sets, and can be handy to have as a spare.
- Behind-the-lens filtering has the advantage of reducing weight and avoiding the worry over veiling glare striking your filter.
- This shim must be used when you are using ARRI behind-the-lens glass filters such as the FSND and Optical Clear Filter.
In the Box Bundle Items IFM Filter Frame with Optical Clear ttecszewyfusrdxderxv IFM FSND Full Spectrum Neutral Density 0.3 Filter IFM FSND Full Spectrum Neutral Density 0.6 Filter IFM FSND Full Spectrum Neutral Density 0.9 Filter IFM FSND Full Spectrum Neutral Density 1.2 Filter IFM FSND Full Spectrum Neutral Density 1.5 Filter IFM FSND Full Spectrum Neutral Density 1.8 Filter IFM FSND Full Spectrum Neutral Density 2.1 Filter IFM FSND Full Spectrum Neutral Density 2.4 Filter IFM Shim
Also Includes - FSND Filter Insertion Tool
- IFM/Extenders Depth Gauge DG-1
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI ALEXA FSND Filter Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - IFM Filter Frame with Optical Clear
| | | Product Type | Filter | | Form Factor | Round | | | | Filter Effects | Optical clear | | Filter Color | Clear | - IFM FSND Full Spectrum Neutral Density 0.3 Filter
| Exposure Compensation | 1 Stop | | Dimensions | 2.52 x 0.94 x 2.8" / 64 x 24 x 71 mm | - IFM FSND Full Spectrum Neutral Density 0.6 Filter
| Exposure Compensation | 2 Stops | | Dimensions | 2.52 x 0.94 x 2.8" / 64 x 24 x 71 mm | - IFM FSND Full Spectrum Neutral Density 0.9 Filter
| Exposure Compensation | 3 Stops | | Dimensions | 2.52 x 0.94 x 2.8" / 64 x 24 x 71 mm | - IFM FSND Full Spectrum Neutral Density 1.2 Filter
| Exposure Compensation | 4 Stops | | Dimensions | 2.52 x 0.94 x 2.8" / 64 x 24 x 71 mm | - IFM FSND Full Spectrum Neutral Density 1.5 Filter
| Exposure Compensation | 5 Stops | | Dimensions | 2.52 x 0.94 x 2.8" / 64 x 24 x 71 mm | - IFM FSND Full Spectrum Neutral Density 1.8 Filter
| Exposure Compensation | 6 Stops | | Dimensions | 2.52 x 0.94 x 2.8" / 64 x 24 x 71 mm | - IFM FSND Full Spectrum Neutral Density 2.1 Filter
| Exposure Compensation | 7 Stops | | Dimensions | 2.52 x 0.94 x 2.8" / 64 x 24 x 71 mm | - IFM FSND Full Spectrum Neutral Density 2.4 Filter
| Exposure Compensation | 8 Stops | | Dimensions | 2.52 x 0.94 x 2.8" / 64 x 24 x 71 mm |
