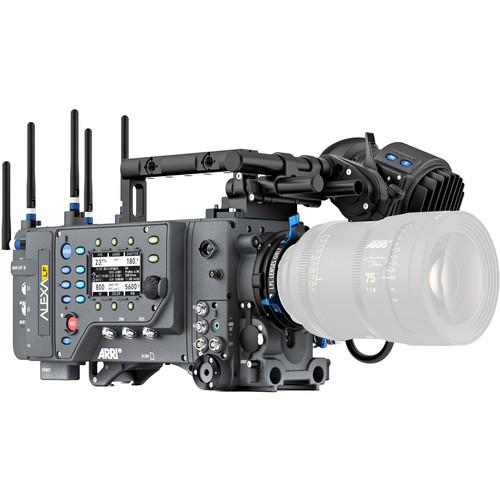

User Manual for ARRI ALEXA LF Pro Camera Set with 4 x 1 TB Drives Click to enlarge the picture
Contents of the user manual for the ARRI ALEXA LF Pro Camera Set
- Product category: Digital Cine Cameras ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Digital Cine Cameras
|
User manual for the ARRI ALEXA LF Pro Camera Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|
Product description First Look: ARRI ALEXA LF Pro Camera Read More This ARRI ALEXA LF Pro Camera Set (LPL) bundles the native 4K, large-format ALEXA LF camera body with a robust selection of accessories. Components include a complete set of full-spectrum, internal ND filters, the EVF-1 electronic viewfinder with bracket and cable, the CCH-1 center carrying handle, and an SD card for storing/loading LUTs, SUPs, etc. A PL-to-LPL adapter enables you to use any PL-mount lens with the ALEXA LF.Media capture components include SXR and SxS media adapters, and four 1TB SXR capture drives. One ARRI WRV-1 wireless receiver is included, providing connectivity with the wireless transmitter integrated into the ALEXA LF camera body. This set also includes an accessory and cable bundle with a shoulder pad, handle, extension, leveling block, bridgeplate adapter, and more. - Codex SXR Capture Drive Adapter Use the Codex SXR Capture Drive Adapter from ARRI to mount an SXR drive on an ALEXA SXT or ALEXA LF camera. Compatible ALEXA SXT models include the ALEXA SXT EV, SXT Plus, SXT Studio, and SXT W. Note: This adapter is not compatible with ALEXA XT/XR cameras, nor Codex XR capture drives.
- Compatible Cameras
- ALEXA LF
ALEXA SXT EV
ALEXA SXT Plus
ALEXA SXT Studio
ALEXA SXT W - Codex Product Code
- CDX-37097
- SxS Adapter 2 for ALEXA SXT The ARRI SxS Adapter 2 Adapter 2 enables a Sony SxS PRO and PRO+ card to be mounted to an ALEXA SXT camera. Compatible cameras include the ALEXA SXT EV, SXT Plus, SXT Studio, and SXT W. Note: This adapter is not compatible with ALEXA XT/XR cameras, nor with SxS-1 or other ExpressCard/34-type cards.
- Compatible Cameras
- ALEXA SXT EV
ALEXA SXT Plus
ALEXA SXT Studio
ALEXA SXT W - Codex Product Code
- CDX-37098
- SD Memory Card for ALEXA Cameras This 16GB SD Memory Card for ALEXA Cameras from ARRI can be used for saving or loading a variety of camera functions. Use it for LUTs, user preference settings, framelines, frame grabs, license keys, and lens tables for the LDS archive. It may also be employed when installing SUPs (software update packets).
- EVF-1 Electronic Viewfinder for Most ALEXA Cameras The ARRI EVF-1 Electronic Viewfinder for ALEXA provides a low-latency, film-style image display. An on-screen menu provides both EVF and basic camera control. This FLCOS micro-display panel has a resolution of 1280 x 784, and includes a surround view that enables you to spot objects just outside your recorded image frame. Glass optics give the EVF-1 a high-contrast, evenly-illuminated viewing area. Controls include a jog wheel, a Zoom button with 2.25x pixel-to-pixel magnification for checking focus, and an Exposure button for engaging a false-color exposure check. Features include customizable framelines, camera and lens info displays, and an image flip function. Note: The EVF-1 is not compatible with ALEXA Mini, nor ALEXA AMIRA cameras.
- Features
-
- Film-style image display with latency of <1 frame
- Provides EVF and basic camera controls
- Glass optics provide a high-contrast, low-distortion display
- Surround view enables you to spot objects just outside your recorded frame
- 2.25x zoom function for checking focus
- False-color exposure check, and an image-flip function
- Compatible Cameras
-
- ALEXA Classic, ALEXA Classic with XR Module
- ALEXA XT, ALEXA SXT (requires EVA-1 adapter)
- ALEXA Classic Studio, ALEXA Classic Studio with XR Module
- ALEXA XT Studio (requires EVA-1 adapter)
- VMB-3 Viewfinder Mounting Bracket The ARRI VMB-3 Viewfinder Mounting Bracket provides a sturdy mounting option for your ALEXA's electronic viewfinder. This bracket provides left/right, and up/down movement of the EVF, as well as 360° of rotation, and left- or right-side positioning on the camera. Features include an integrated bubble level, and one 3/8"-16 accessory-mounting thread.
- Features
-
- For ARRI ALEXA cameras
- Compatible with ARRI EVF-1, and select 15mm LWS-mount viewfinders
- Enables left/right, and up/down movement of the EVF, 360° of rotation, and left- or right-side positioning on the camera
- 15mm LWS rod standard
- Built-in bubble level, and one 3/8"-16 accessory thread
- Compatible Cameras
-
- ALEXA XT, ALEXA SXT
- ALEXA Mini
- ALEXA Classic, ALEXA Classic with XR Module
Requires EVA-1 adapter:
- ALEXA Classic Studio, ALEXA Classic Studio with XR Module
- ALEXA XT Studio, ALEXA SXT Studio
- KC 150-S Short EVF-1 Viewfinder Cable (1.2') The 1.2' KC 150-S Short EVF-1 Viewfinder Cable from ARRI connects the EVF-1 viewfinder to select ALEXA cameras. This shorter cable eliminates the need to wrap any excess length of cable.
- CCH-1 Center Camera Handle for Select ALEXA Cameras The ARRI CCH-1 Center Camera Handle is a sturdy carrying handle featuring multiple 3/8"-16 threaded holes for attaching accessories. Designed for use with select ALEXA cameras (listed below), it attaches to the top of the camera via three screws. Note: The CCH-1 handle may be used with the BAT-G battery adapter attached, but it will not work with the BAT-V battery adapter, nor when any on-board battery is mounted to the top of the camera.
- Compatible ARRI Cameras
- ALEXA, ALEXA Plus, ALEXA Plus 4:3
ALEXA M body
ALEXA Studio
ALEXA XT, ALEXA XT M body, ALEXA XT Plus, ALEXA XT Studio
ALEXA SXT EV, ALEXA SXT Plus, ALEXA SXT Studio - WVR-1 Wireless Video Receiver The ARRI WVR-1 Wireless Video Receiver accepts video transmission from the ALEXA SXT W internal transmitter, or from the stand-alone ARRI WVT-1 transmitter. The ARRI wireless video system provides real-time, uncompressed wireless transmission for ARRI or third-party cameras up to approximately 2000' with under 1 ms of delay. Up to four WVR-1 Receivers may be paired with each ALEXA SXT W internal transmitter, or stand-alone WVT-1 transmitter (available separately). Dual-channel audio, timecode, and a REC flag function are included in the 128-bit AES-encrypted signal. The WVR-1's 10-bit output is compatible with HDR monitoring. Designed for daily use on professional sets, the WVR-1 features a rugged, water-resistant and dust-proof design with protective connector collars. This receiver accepts power voltages ranging from 10.5 to 34V, suiting it for use with a wide range of batteries. With an inclusive operating temperature of -4 to 113°F, the ARRI wireless video system is suitable for a variety of locations. Five antennas, an RPS-1 power supply, and a USB cable are included with this receiver. The included MIA-1 interface adapter mounts the WVR-1 to a 19mm rod or to a 5/8" light stud. Compatible battery options include Gold Mount, V-Mount, and Sony L-series (battery plates available separately). Note: Separately available battery-mounting plates are not included
- PL-to-LPL Lens Adapter The ARRI PL-to-LPL Lens Adapter enables you to attach a PL-mount lens to the ARRI ALEXA LF camera. Compatible with any PL-mount lens, Super 35 or full-frame, this adapter can be securely fastened to your lens without the use of tools.
- Provides backwards compatibility for any PL-mount lens and LPL-mount camera
- SXR Capture Drive (1TB) Built using PCIe-based flash storage, the SXR Capture Drive (1TB) from Arri provides reliable, and high-performance storage in a compact, rugged aluminum enclosure. Designed for the ALEXA SXT, ALEXA LF, and ALEXA 65 cameras, this Codex drive enables in-camera capture of all available recording formats. This drive requires an SXR adapter, and is not compatible with ALEXA Classic, XT/XR, or XR Capture Drive docks.
- Compatible Cameras
- ALEXA SXT EV
ALEXA SXT Plus
ALEXA SXT Studio
ALEXA SXT W
ALEXA 65
ALEXA LF 1 Please Note: Requires an SXR adapter. close - Features
-
- 1TB of memory delivering up to 20 Gb/s bandwidth
- Professional PCIe-based flash storage
- Advanced thermal design, rugged aluminum form
- Enables in-camera capture of all available recording formats
- ALEXA LF FSND Filter Set (Full) The ALEXA LF FSND Filter Set (Full) from ARRI provides a complete set of large-format, behind-the-lens neutral density filters, organized neatly in a carrying case. This set includes an LF IFM optical clear filter, and LF 0.3, 0.6, 0.9, 1.2, 1.5, 1.8, 2.1 and 2.4 FSND Filters. Also included are an IFM (internal filter module) shim, a DG-1 IFM/extenders depth gauge, and a filter insertion tool. The IFM/Extenders Depth Gauge is used to check the compatibility of a lens with the camera when using the internal filter module, and/or an ARRI LDS lens extender. The IFM Shim must be added to any existing shims between the lens mount and camera when using any of the FSND filters, or the clear filter. The clear filter is used to avoid having to re-calibrate the depth after setting up the camera for internal FSND use.
- ALEXA Bundle Accessory Set (EV/Plus/W/LF) The ARRI ALEXA Bundle Accessory Set (EV/Plus/W/LF) provides a handy selection of ALEXA-compatible accessory components. Items in this discounted bundle include the LB-1 leveling block, VEB-3 viewfinder extension bracket, BPA-2 bridge plate adapter, SP-4 shoulder pad, and the HEB-2 extension handle. Also included are a 9.8' Ethernet to RJ45 cable, a coiled 12V accessory cable, and a 2.1' EVF cable.
In the Box Bundle Items
Also Includes - ALEXA LF Camera Body (LPL)
Codex SXR Capture Drive Adapter zqtxyudevs SxS Adapter 2 for ALEXA SXT SD Memory Card for ALEXA Cameras EVF-1 Electronic Viewfinder for Most ALEXA Cameras VMB-3 Viewfinder Mounting Bracket KC 150-S Short EVF-1 Viewfinder Cable (1.2') CCH-1 Center Camera Handle for Select ALEXA Cameras WVR-1 Wireless Video Receiver 5 x - Wireless Video / WiFi / ECS Antenna
- MIA-1 Multi-Interface Adapter for ARRI Wireless Tx or Rx
- RPS-1 Receiver Power Supply
- WVS USB Cable for Software Updates
PL-to-LPL Lens Adapter zqtxyudevs 4 x SXR Capture Drive (1TB) ALEXA LF FSND Filter Set (Full) zqtxyudevs - ALEXA LF IFM Optical Clear Filter
- ALEXA LF FSND Filter Case
- FSND Filter Insertion Tool
- IFM/Extenders Depth Gauge DG-1
ALEXA Bundle Accessory Set (EV/Plus/W/LF) - ALEXA Ethernet/RJ45 Cable (KC 153-S, 9.8')
- VEB-3 Viewfinder Extension Bracket
- BPA-2 Bridge Plate Adapter
- ALEXA 12V Accessory Cable (KC 154-SP-S)
- SP-4 Shoulder Pad for ALEXA
- KC 151-S Medium Viewfinder Cable (2.1')
- HEB-2 Handle Extension Block for CCH-1
Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI ALEXA LF Pro Camera Set with 4 x 1 TB Drives in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Codex SXR Capture Drive Adapter
| Dimensions | 0.8 x 3.3 x 4.7" / 21 x 84 x 120 mm | | Weight | 1.8 oz / 52 g | | | | Box Dimensions (LxWxH) | 4.2 x 3.4 x 1.0" | - SxS Adapter 2 for ALEXA SXT
| Dimensions | 0.8 x 3.3 x 4.7" (21 x 84 x 120 mm) | | Weight | 5.2 oz / 146 g | | | | Box Dimensions (LxWxH) | 4.8 x 3.3 x 0.9" | - SD Memory Card for ALEXA Cameras
| Card Type | SD | | Storage Capacity | 16 GB | - EVF-1 Electronic Viewfinder for Most ALEXA Cameras
| Resolution | 1280 x 784 | | Latency | <1 frame | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 8.2 x 8.0 x 6.1" | - VMB-3 Viewfinder Mounting Bracket
| Rod Standard | 15 mm LWS | | Accessory Mount Thread | 1 x 3/8"-16 | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.3 x 4.3 x 2.2" | - KC 150-S Short EVF-1 Viewfinder Cable (1.2')
| | | Box Dimensions (LxWxH) | 7.4 x 4.85 x 1.25" | - CCH-1 Center Camera Handle for Select ALEXA Cameras
| Threaded Holes | 3/8"-16 | | Mounting Screw | 3 mm Allen | | Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.4 x 2.9 x 2.8" | - WVR-1 Wireless Video Receiver
| Material of Construction | Aluminum | | Frequency Band | 5 GHz | | Transmission Range | 1,970' (600 m) | | Video Output | 10-bit | | Input Voltage Range | 10.5 to 34 V | | Operating Temperature Range | -4 to 113°F (-20 to 45°C) | | Dimensions and Weight | Not specified by manufacturer | - PL-to-LPL Lens Adapter
| | | Camera Mount | LPL Mount | | Lens Mount | PL Mount | - SXR Capture Drive (1TB)
| | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | | | Box Dimensions (LxWxH) | 5.8 x 3.6 x 1.1" | - ALEXA LF FSND Filter Set (Full)
- ALEXA Bundle Accessory Set (EV/Plus/W/LF)
