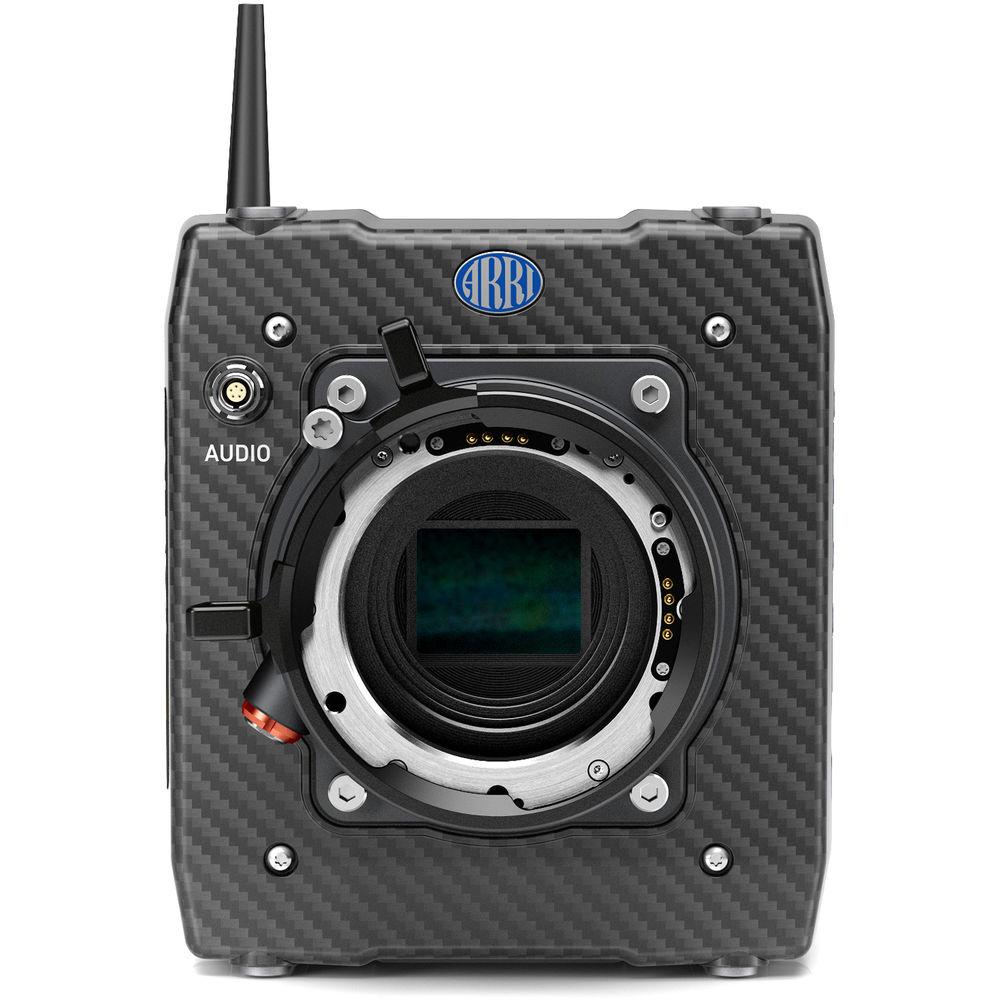

User Manual for ARRI ALEXA Mini Body with 4:3 and ARRIRAW Click to enlarge the picture
Contents of the user manual for the ARRI ALEXA Mini Body with 4:3
- Product category: Digital Cine Cameras ARRI
- Brand: ARRI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ARRI Digital Cine Cameras
 |
User manual for the ARRI ALEXA Mini Body with 4:3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ARRI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ARRI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ARRI product will considerably shorten its lifespan!
|

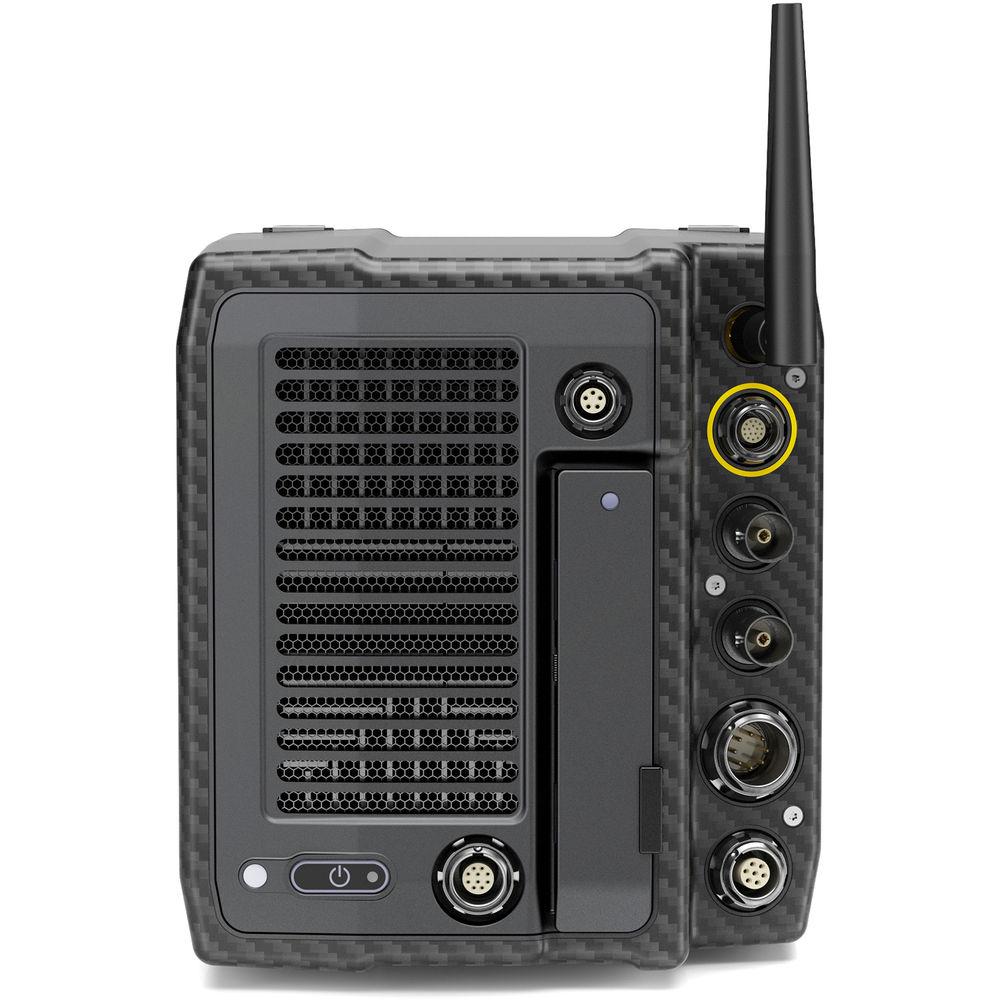

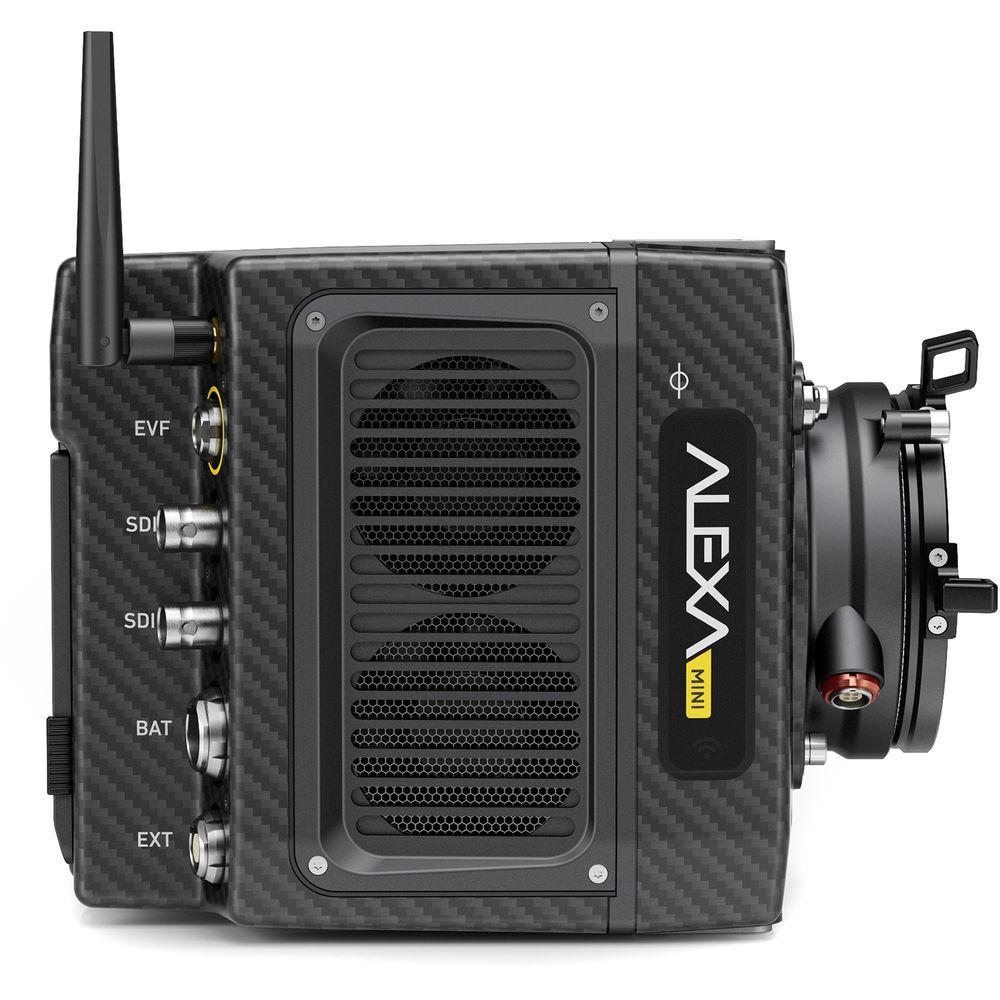

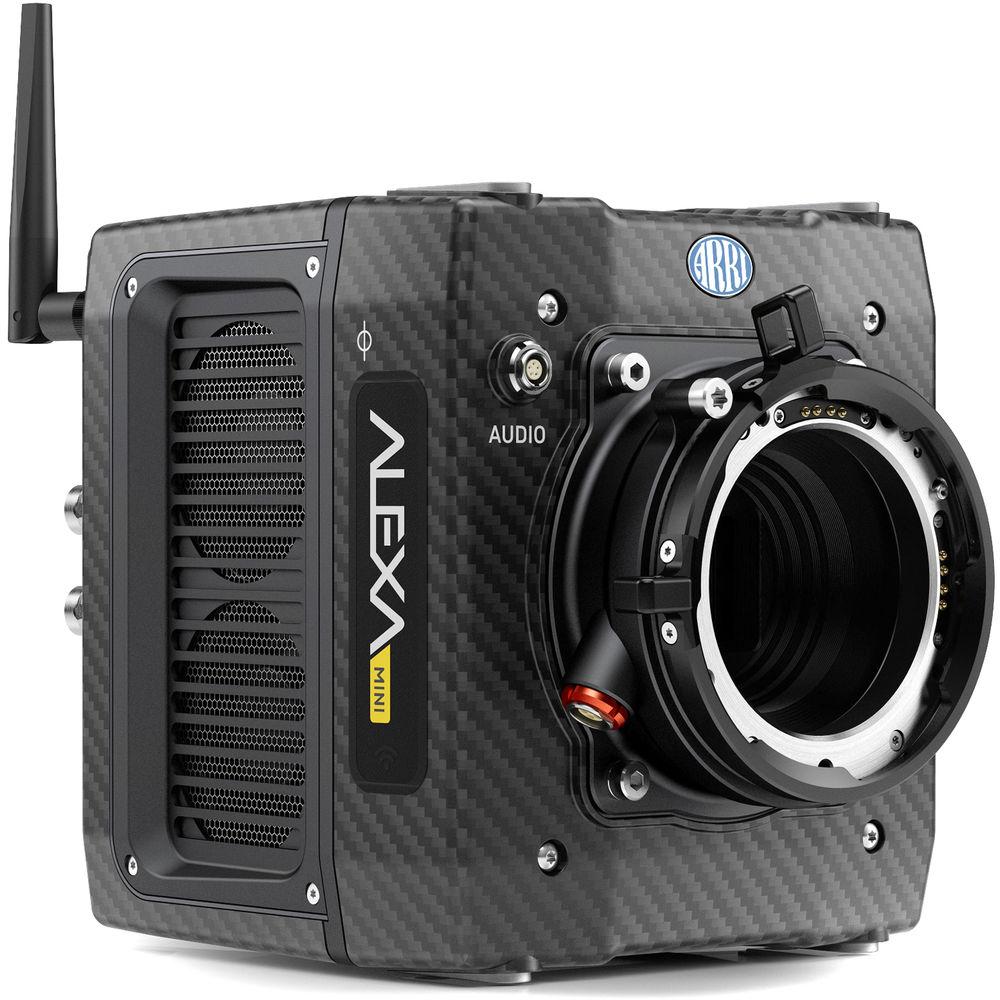

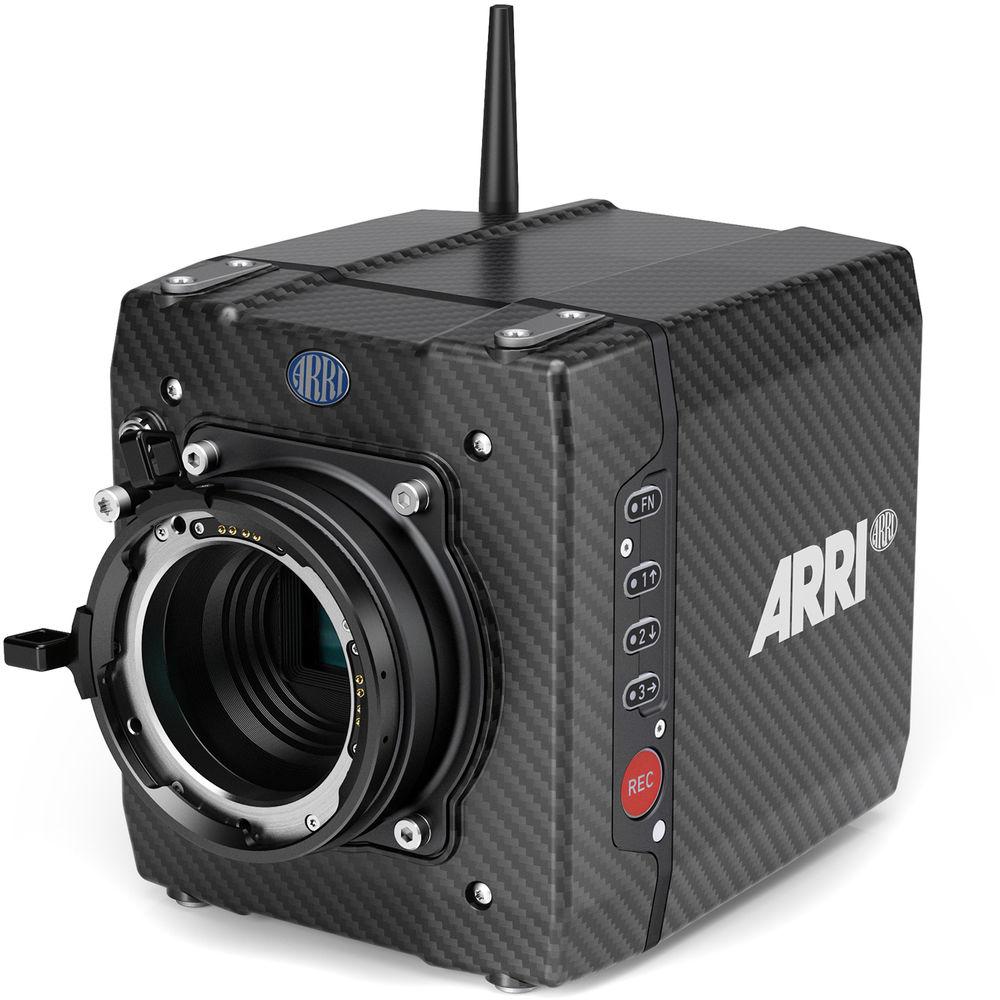

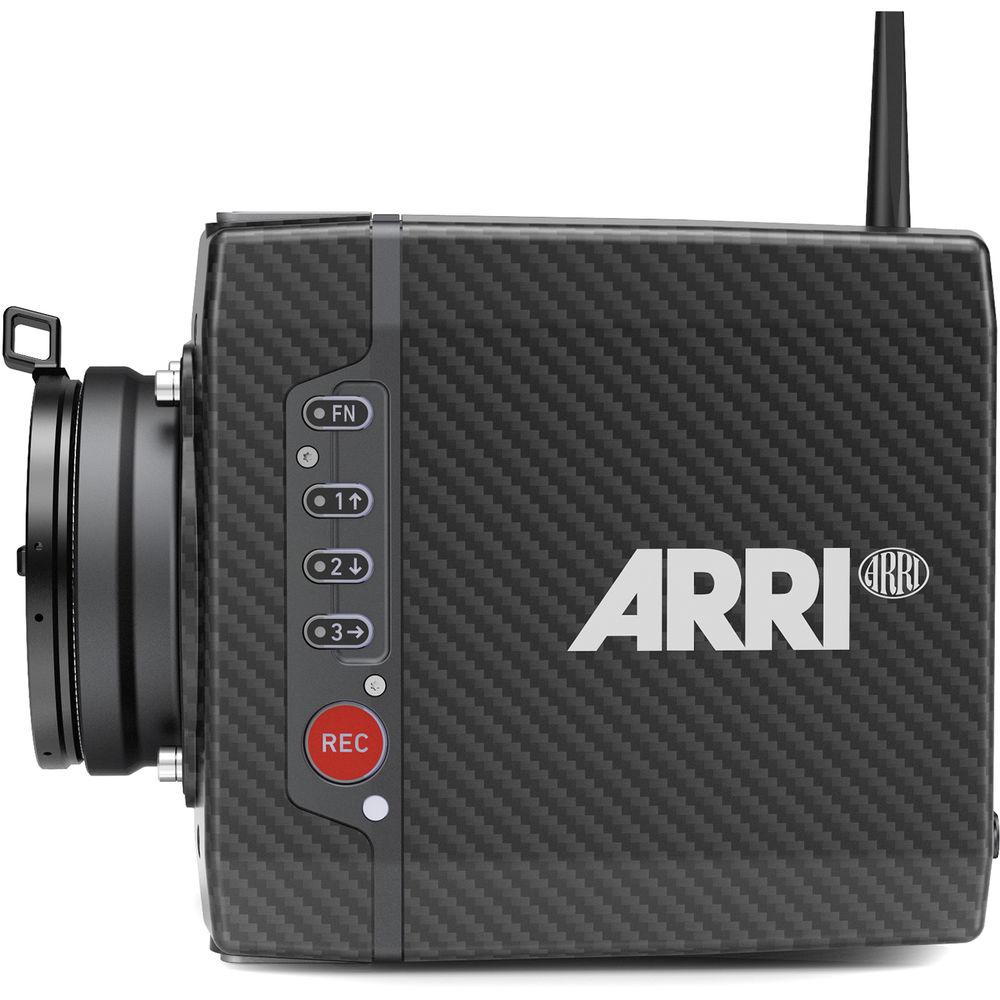

Product description With its compact, lightweight carbon body, the ALEXA Mini Body with 4:3 and ARRIRAW complements the range of full-size ALEXA cameras, and is especially useful for capturing specialized shots. The self-contained ALEXA Mini can record UHD-resolution images with up to 14 stops of dynamic range. Its 35mm-sized CMOS sensor features a titanium mount and a 4:3 aspect ratio. The included 4:3 Open Gate, and ARRIRAW licenses enable ProRes recording in several widescreen options, as well as in-camera and external ARRIRAW capture. Use the preinstalled ARRI Look Library license to quickly apply any of 87 graded looks to your footage.Operate the ALEXA Mini via wireless remote control, using the MVF-1 viewfinder, or while viewing an onboard monitor. Its small size suits it for use with gimbals, handheld rigs, or quadcopters and for multicamera shots, and in tight quarters. The lens mount is interchangeable, opening up a wider choice of lenses such as EF-mount still lenses. The ALEXA Mini can make use of ARRI AMIRA mounts, a boon for shooters working with both units.Image quality, formats, and workflow are identical to those offered by other ALEXA models, enabling you to produce matching images across cameras, including in anamorphic mode. Record ProRes or ARRIRAW to an internal CFast card or externally to a Codex recorder (not included). Up to four ALEXA Minis can record simultaneously to one Codex recorder. The Mini's maximum frame rate of 200 fps (ProRes) enables you to avoid adding a separate camera for high-speed work.The ALEXA Mini's integrated lens motor control is a space-saving feature useful when using gyro-stabilized and other specialized rigs, eliminating the need for an external control box. Integrated Wi-Fi connectivity enables the use of iOS or Android devices for remote control. Remote control is also possible using the ARRI WCU-4 hand unit. The ALEXA Mini offers high-quality performance in underwater locations and other low-light settings.Built-in, motorized ND filters let you quickly respond to ambient light changes; this internal design also frees up a slot in your matte box for another filter. The ARRI LDS (lens data system) function is also built into the ALEXA Mini, enabling your AC to quickly adjust to changing parameters displayed on a control unit during a shot.Using the power and large pixels of the 4:3 ALEV III sensor, the ALEXA Mini records up to UHD 4K ProRes images with the dynamic range, skin tones, and true-to-life colors for which ARRI cameras are noted. Recording in Open Gate and MFX/ARRIRAW formats requires additional, downloadable licenses (not included). Looking ahead to future standards, the wide dynamic range of the ALEXA Mini makes it suitable for HDR displays, and its 0.75-200 fps speed range can be used for increasingly-popular HFR (high frame rate) capture modes. Note: The ARRI Look Library requires SUP 5 or later. Key Features Compatible with ALEXA Series - Shared image quality, format choices, and workflow with other cameras in the ALEXA line, making for seamless integration on multicamera projects.

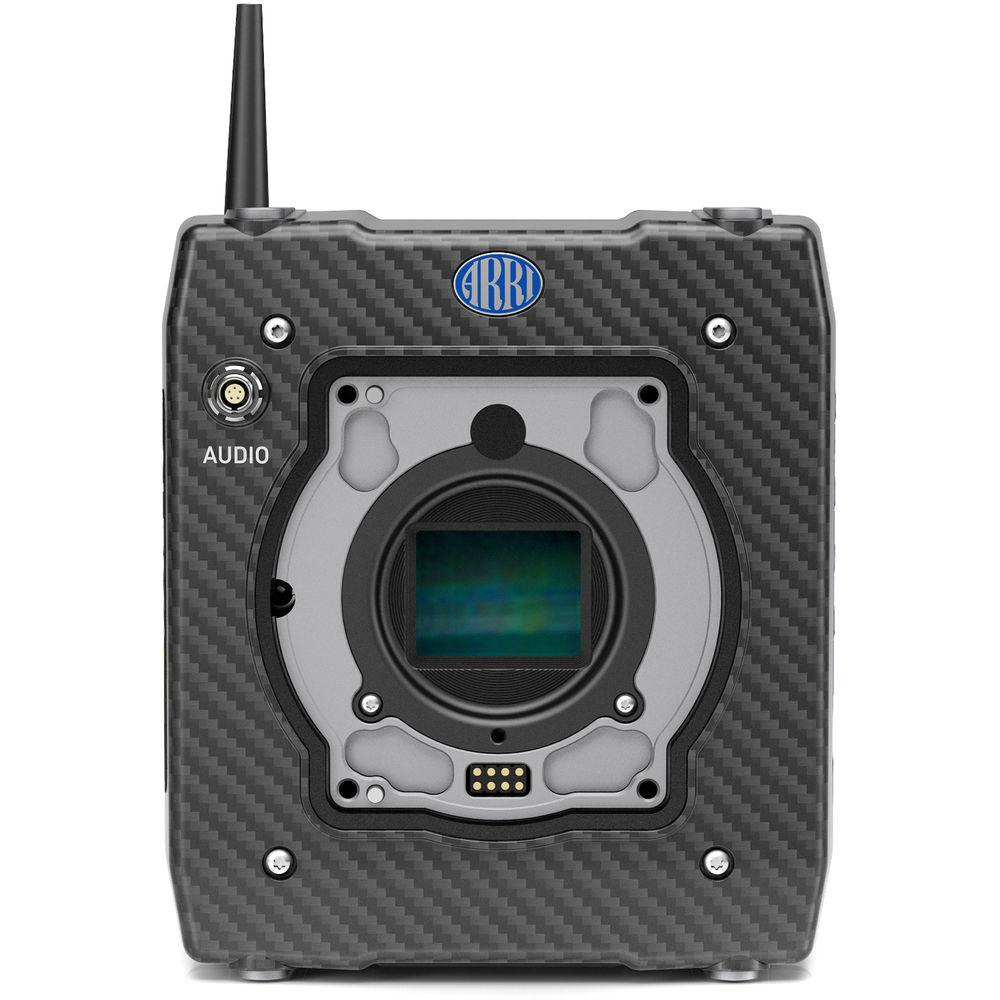

35mm CMOS Sensor - The 35mm-sized 4:3 CMOS sensor can record up to UHD 4K images featuring the wide dynamic range, skin tones, and true colors for which ARRI cameras are known.

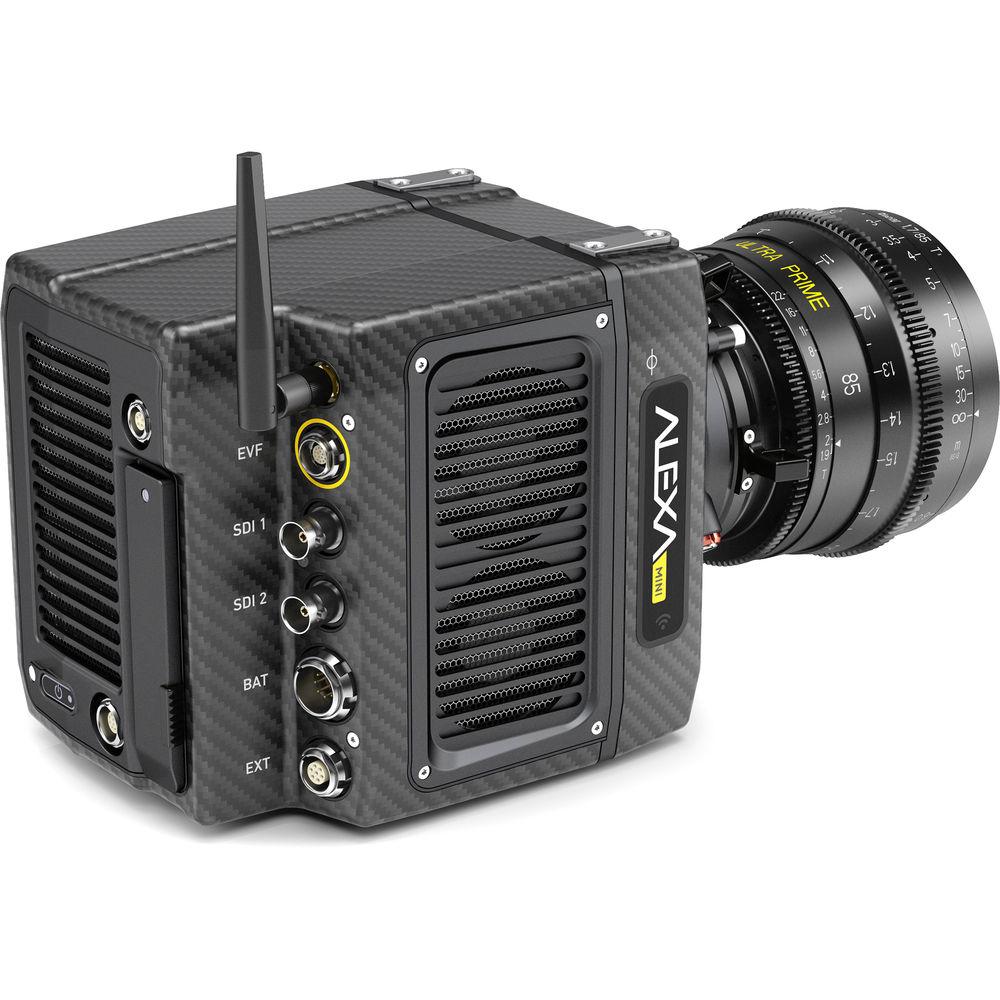

Interchangeable Lens Mount - Separately available PL, EF, and B4 mounts expand your choice of lenses.
4:3 Open Gate & ARRIRAW Recording - The included 4:3 Open Gate, and ARRIRAW licenses offer expansive widescreen recording options including 2.8K 4:3, 2:39:1 2K anamorphic, HD anamorphic, and Open Gate capture.
Recording Options - Record up to 3840 x 2160 in ProRes or up to 3424 x 2202 in ARRIRAW.

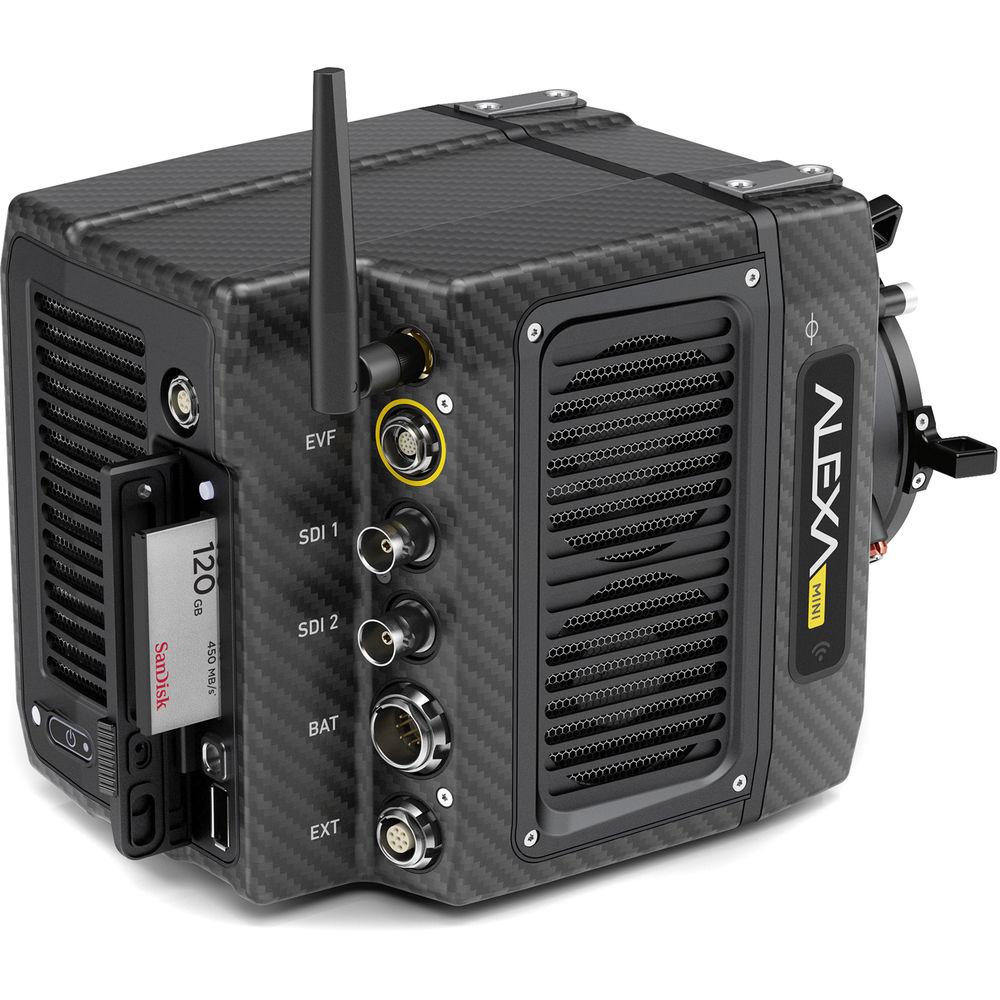

Recording Media - Media recording options include CFast cards or an external Codex recorder (not included).
ARRI Look Library - Quickly apply one of 87 predefined, color-graded looks to your footage. Looks are grouped in themes, and each look is available in three intensities.
Compact Design - The Mini's compact size is suitable for specialty shots using gimbals, handheld rigs, or quadcopters, and its carbon body provides lightweight strength and durability.
Integrated Features - A built-in lens motor control system and internal ND filters save additional space on your rig.
Built-In Wi-Fi - Integrated Wi-Fi connectivity offers remote camera control via compatible iOS and Android devices.
Future Proofing - The ALEXA Mini's wide dynamic range is compatible with HDR displays, and its wide selection of frame rates makes is suitable for HFR (high frame rate) imaging.
Supported Media Card Types - ARRI 128GB C-Fast 2.0 Memory Card # ARK2.0003623 MFR # K2.0003623
ARRI 128GB Extreme PRO C-Fast 2.0 Memory Card (3-Pack) # ARCFAST3X128 MFR # K0.0019005
ARRI 256GB Extreme PRO C-Fast 2.0 Memory Card # ARCFAST256GB MFR # K2.0015640
ARRI 256GB Extreme PRO C-Fast 2.0 Memory Card (3-Pack) # ARCFAST3X256 MFR # K0.0019006
ARRI 256GB AV Pro AR C-Fast 2.0 Memory Card (ARRI Edition) # ARCFST256GB MFR # K2.0021432
ARRI 256GB AV Pro AR C-Fast 2.0 Memory Card (ARRI Edition, 3-Pack) # ARCFST3X256 MFR # K0.0021433
ARRI 512GB Extreme PRO C-Fast 2.0 Memory Card # ARCFAST512GB MFR # K2.0016648
ARRI 512GB Extreme PRO C-Fast 2.0 Memory Card (3-Pack) # ARC3X512GB MFR # K0.0019007 In the Box ARRI ALEXA Mini Body with 4:3 and ARRIRAW ALEXA Mini ARRIRAW License Key ALEXA Mini 4:3 License Key ARRI Look Library License Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ARRI ALEXA Mini Body with 4:3 and ARRIRAW in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersARRI ALEXA Mini Specs | | | Image Sensor Size | Super35 | | Sensor Type | CMOS | | Effective Sensor Resolution | 3424 x 2202 | | Color Filter | Bayer | | ISO | 800 (Native) | | Advertised Dynamic Range | 14 Stops | | | | Lens Mount | None | | Shutter Angle | 5 to 356
